Home > Products > Cylindrical Roller Bearing > SL06 full complement cylindrical roller bearing SL06032 SL06032E 160x240x110mm

SL06 full complement cylindrical roller bearing SL06032 SL06032E 160x240x110mm

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

SL06 full complement cylindrical roller bearing SL06032 SL06032E 160x240x110mm

The bearings have solid outer and inner rings and rib-guided cylindrical rollers.Since these bearings have the largest possible number of rolling elements, they have extremely high radial load carrying capacity, high rigidity and are suitable for particularly compact designs. Due to the kinematic conditions, however, they do not achieve the high speeds that are possible when using cylindrical roller bearings with cage.Double row full complement cylindrical roller bearings are available as non-locating,semi-locating and locating bearings. The bearings do not permit any skewing between the inner and outer ring , are supplied in an open design.

SL 04 5005 PPbearings are widely used in mining , petroleum , marine,chemical,coal,cement,heavy machinery ,wind power,engineering machinery and other industries . We can also supply interchangable bearing NNCF ,NNC and NNCL series .If you want to know more about SL18 5004 bearing , pls do free to contact us .

Cylindrical roller bearing are of high load capacity and can operate at high speeds because they use rollers as their rollingelements. They can therefore be used in applications involving heavy radial and impact loading.
double row full complement cylindrical roller bearings SL06020E

Name	germany brand full complement cylindrical roller bearings SL06032
ID	160 mm
OD	240 mm
B	90 mm
bearing weight	14.3 kg
Application	gear box
Tel /Whs	86-18710180456
contact	sales1 at

SL06032 Cylindrical roller bearings SL06 032 E

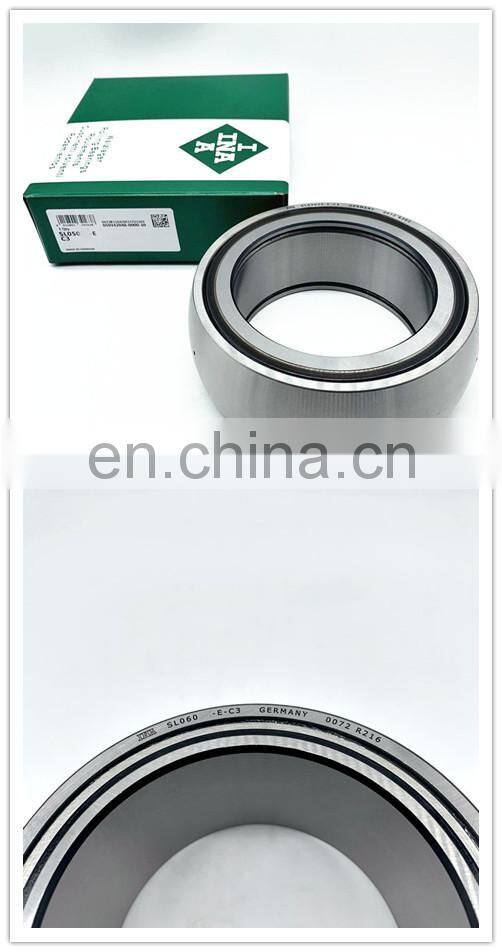

BEARING SL 06 036 E picture show

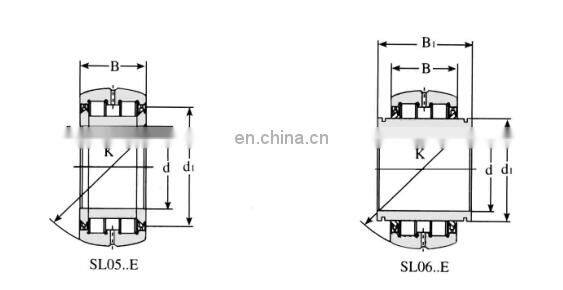

full complement cylindrical roller bearing sl06 036e drawing

Bearing sl06036 E model show

Basic Size mm							basic load rating			Current Code	mass kg
Basic Size mm								dynamic Cr	static
d	K	B	B1		Cor			dynamic Cr
100	150	55		280	490	SL05020E	3.3
	150	55	65	280	490	SL06020E	3.5
110	170	60		340	620	SL05022E	4.9
	170	60	75	340	620	SL06022E	5.2
120	180	60	•	350	660	SL05024E	5.2
	180	60	75	350	660	SL06024E	5.5
130	200	65		435	810	SL05026E	7.4
	200	65	80	435	810	SL06026E	7.8
140	210	70		495	930	SL05028E	82
	210	70	85	495	930	SL06028E	8.6
150	225	75	•	540	1020	SL05030E	10
	225	75	90	540	1020	SL06030E	10.5
160	240	90	•	660	1260	SL05032E	13.7
	240	90	110	660	1260	SL06032E	14.3
170	260	95		760	1420	SL05034E	17.4
	260	95	115	760	1420	SL06034E	18.1
180	280	100	•	790	1520	SL05036E	22.1
	280	100	120	790	1520	SL06036E	23
190	290	110		950	1850	SL05038E	25
	290	110	135	950	1850	SL06038E	26.5
200	310	115		1070	2060	SL05040E	30.5
	310	115	140	1070	2060	SL06040E	32
220	340	125		1260	2440	SL05044E	40
	340	125	150	1260	2440	SL06044E	42
240	360	130		1310	2600	SL05048E	44
	360	130	155	1310	2600	SL06048E	46
