Home > Products > Cylindrical Roller Bearing > 544741B KOYO Cylindrical Roller Bearing 544741 B Planetary Gear Box Bearing 544741B

544741B KOYO Cylindrical Roller Bearing 544741 B Planetary Gear Box Bearing 544741B

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

544741B KOYO cylindrical roller bearing 544741 B Planetary Gear box Bearing 544741B

full Cylindrical roller bearings can provide axial guidance of the planet.This can be carried out by means of axial washers and retaining rings arranged on both sides of the rolling element .The bearings are available as single row and double row locating bearings. They can support not only high radial forces but also axial forces in both directions and can therefore guide shafts axially in both directions.The bearings are supplied in an open design. They are not greased and can be lubricated with oil or grease.The rolling elements are protected against damage and loss during transport by means of a plastic sleeve.

The other reduction gear box model
Model i) (ID) (OD) (Width)
RSL-183015 bearing 75 x107.9 x30mm
RSL-183013 bearing 65 x93.09 x26
RSL-183012 bearing 60 x86.74x 26
RSL-182212 bearing 60 x99.17 x28
RSL-182211 bearing 55 x88.81 x25
RSL-182210bearing 50 x81.4 x23
RSL-182208 bearing 40 x70.94 x23
RSL-182207 bearing 35 x63.97 x23
RSL-182206 bearing 30 x55.19x 20
RSL-182205 bearing 25 x46.52 x18
F-219590 bearing 30 x 50.74x 14
F-219593bearing 25x 50.74 x14
RN2205 bearing25 x46.55 x18
RN204 bearing 20x 36.85 x14
RN306bearing 30 x62x 19

F-212543bearing 50 x72.25 x 40
F-204783 bearing 50 x72.33 x39
F-219012bearing 45 x65.02 x34
F-204781bearing 40x 61.74 x35.5
F-208099 bearing40 x57.81 x34
F-210408 bearing22 x 38.75x 22.5
F-208098 bearing35x 52.09x 26.5
RNN3006X3V bearing30x 49.6x 25
RNN3005X3Vbearing 35 x42.6 x23

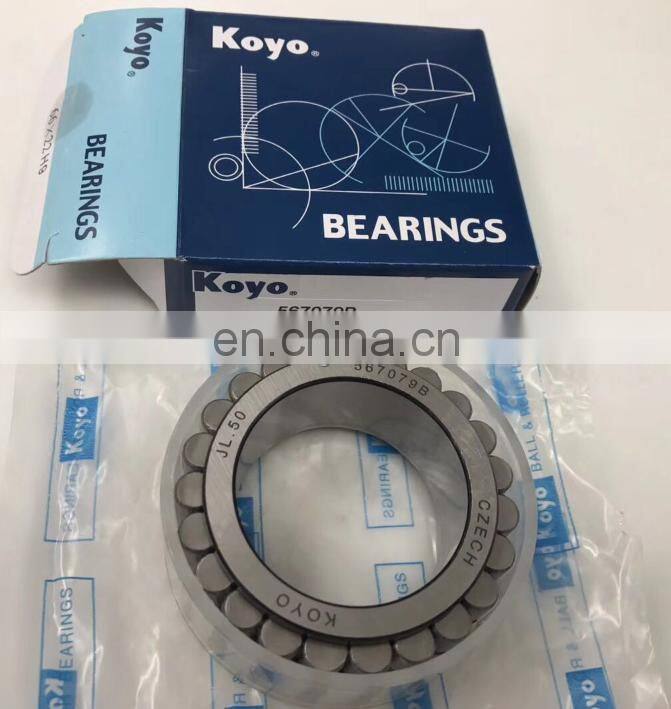

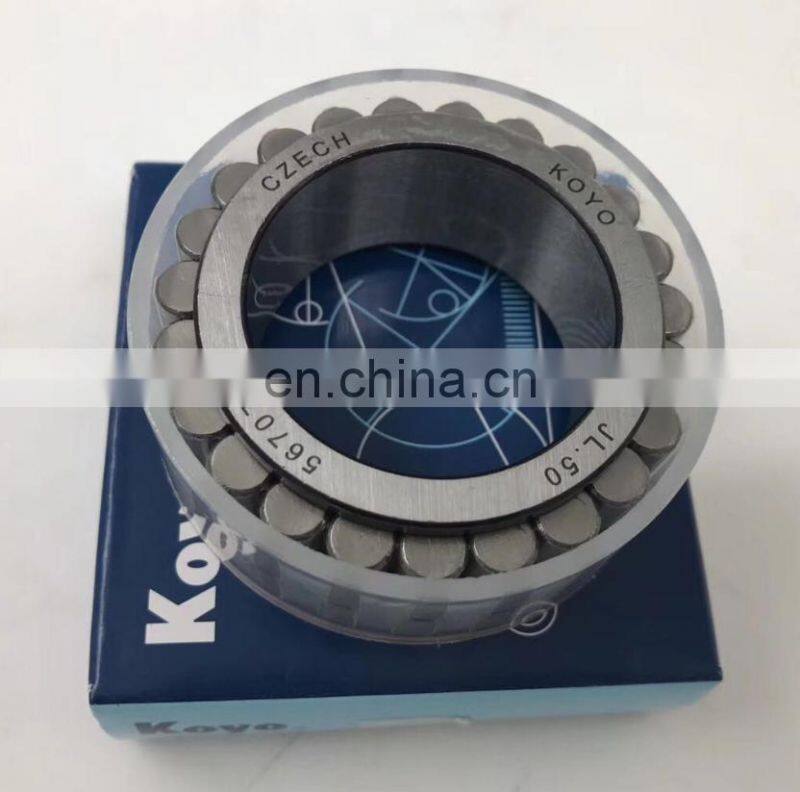

Bearing Model	567079B cylindrical roller bearing 567079B Planetary Gear box Bearing KOYO brand 567079 B
Structure	Cylindrical Roller Bearing
(dxDxB)	3654.322mm
Weight /	0.3KG
HS CODE	8482500000
Lead Time	Within 3 Days
Contact Person	sara (Ms)
WhatsApp / Webchat	+86-18710180456
E-Mail	sales1@landlionbearing.com

Detailed Images

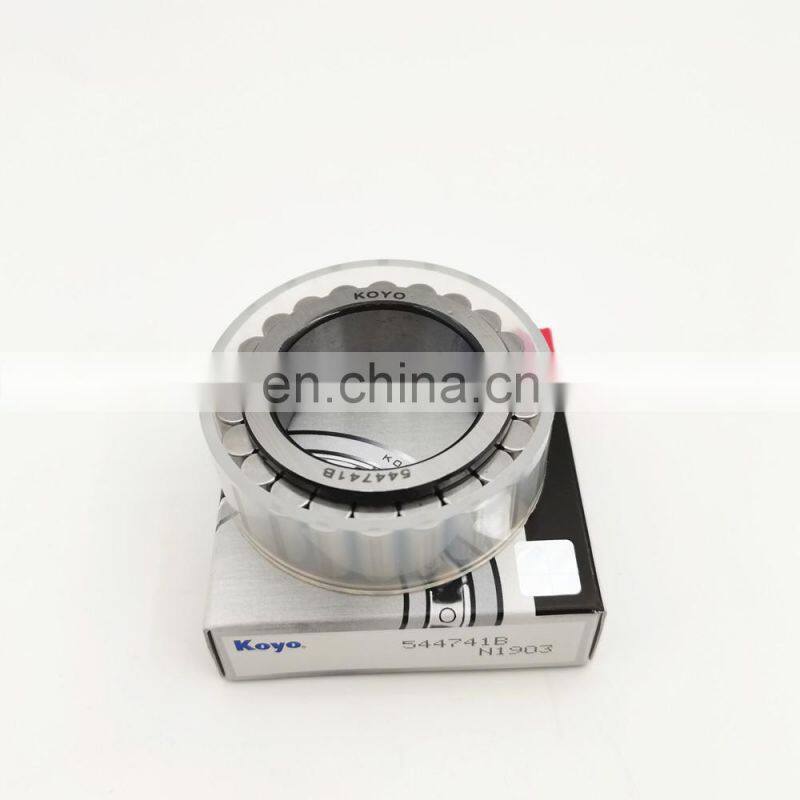

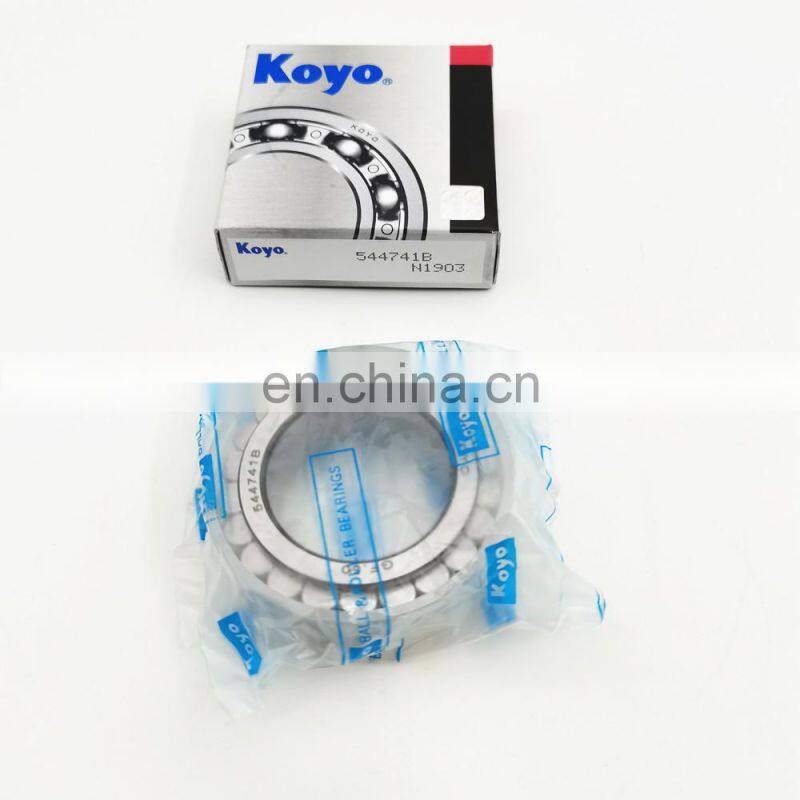

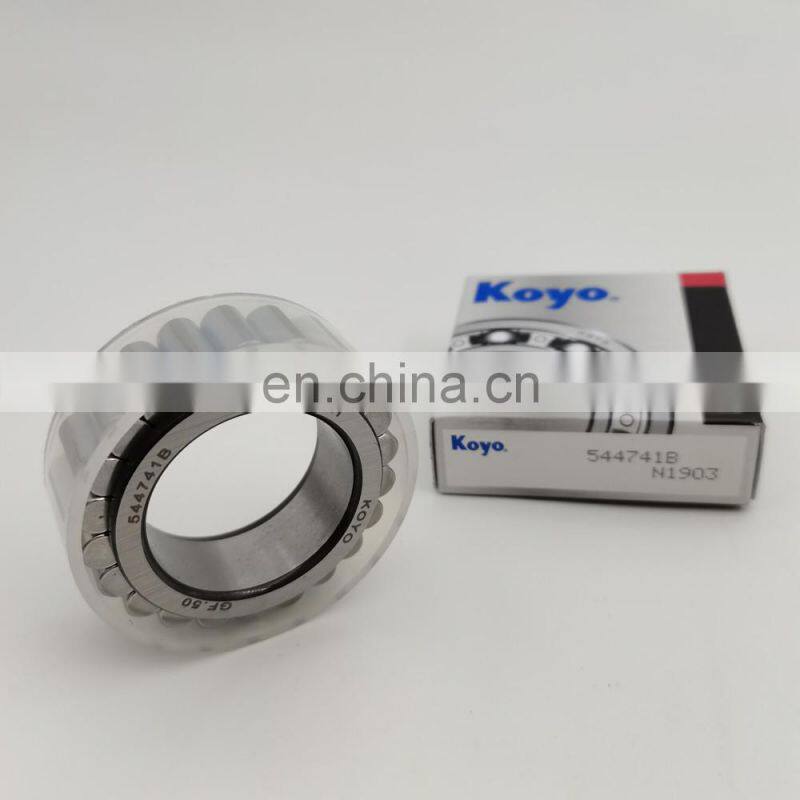

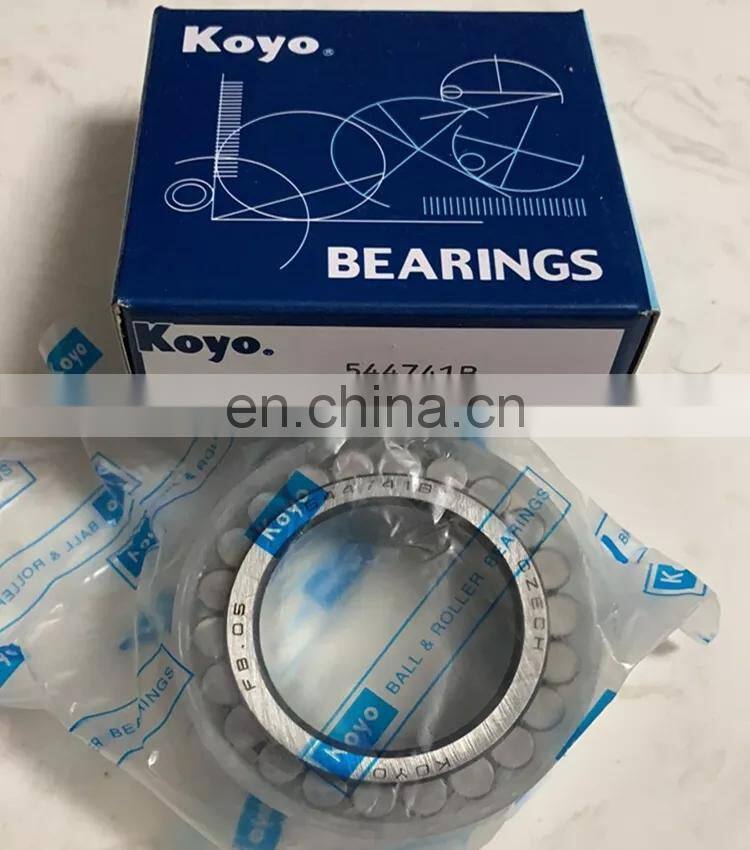

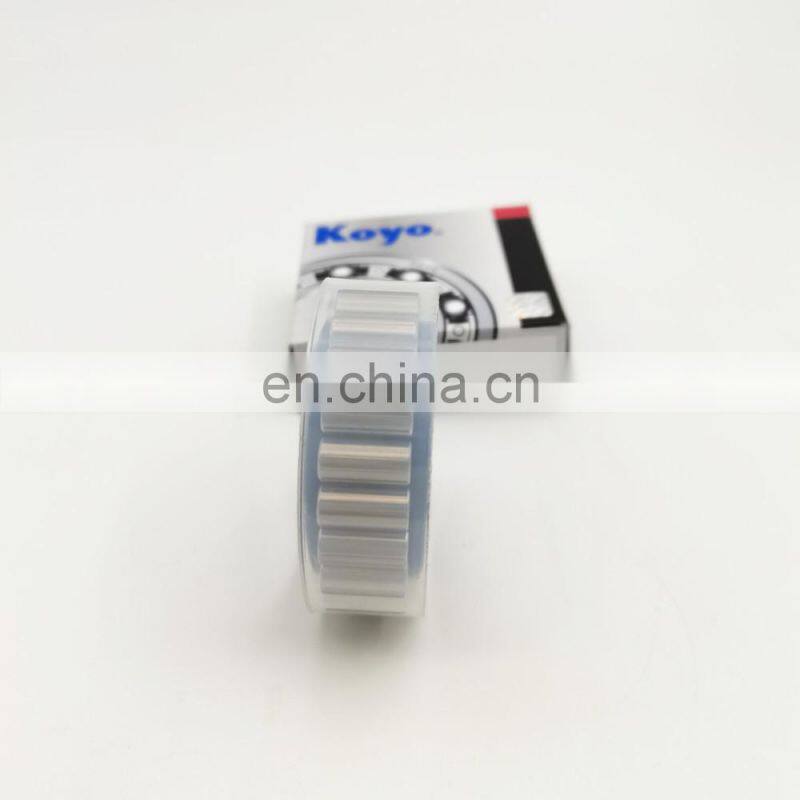

KOYO 544741B Cylindrical Roller Bearing 544741 B Gearbox Roller Bearings KOYO 544741B

without outer ring full complement cylindrical roller beaing/Gearbox Roller Bearing

if have any item of this type bearings.pls check as following:

Bearing No.	Weight(kg)	d(mm)	Dr(mm)	B(mm)
F-227932	0.12	20	36	30
F-219593	0.144	25	42	30
F-204045	0.27	30	49	34
F-219590	0.28	35	55	36
F-123243	0.4	45	66	40
F-210408	0.46	50	72	40
HS-262	0.86	55	83	46
RNNX22AV	0.895	60	86	46
F-2440.326	0.94	65	93	46
RNN3005X3V	1.12	70	100	54
F-217615	1.35	75	107	54
F-210304	1.8	80	116	60
RNN306X3V	1.85	85	121	60
F-3246.628	2.6	90	130	67
F-208098	2.6	100	139	67
RNN3007X3V	3.95	110	156	80
F-385328	4.52	120	167	80
HS-263	6.7	130	183	95
RNNX10V	7.914	140	197	95
F-237005	8.215	150	206	100
F-229575.1	11.09	160	224	109
567079B	15.6	170	242	122
F-229070	RSL185004	RSL183004	RSL182204	RSL182304
F-219012	RSL185005	RSL183005	RSL182205	RSL182305
F-210390	RSL185006	RSL183006	RSL182206	RSL182306
F-207407	RSL185007	RSL183007	RSL182207	RSL182307
F-212543	RSL185008	RSL183008	RSL182208	RSL182308
F-204754	RSL185009	RSL183009	RSL182209	RSL182309
F-201346	RSL185010	RSL183010	RSL182210	RSL182310
F-208098	RSL185011	RSL183011	RSL182211	RSL182311
F-208099	RSL185012	RSL183012	RSL182212	RSL182312
F-204783	RSL185013	RSL183013	RSL182213	RSL182313
F-204781	RSL185014	RSL183014	RSL182214	RSL182314
F-204782	RSL185015	RSL183015	RSL182215	RSL182315
F-217411	RSL185016	RSL183016	RSL182216	RSL182316
F-213617	RSL185017	RSL183017	RSL182217	RSL182317
F-210408	RSL185018	RSL183018	RSL182218	RSL182318
F-238900	RSL185020	RSL183020	RSL182220	RSL182320
F-212590	RSL185022	RSL183022	RSL182222	RSL182323
CPM2518	RSL185024	RSL183024	RSL182224	RSL182324
1056-25	RSL185026	RSL183026	RSL182226	RSL182326
RNNX22V	RSL185028	RSL183028	RSL182228	RSL182328
RNN50x69.67x32	RSL185050	RSL183030	RSL182222	RSL182323
RNN40x61.74x32	RSL185032	RSL183032	RSL182232	RSL182332
RNN40x57.81x34	RSL185034	RSL183034	RSL182234	RSL182334
RNN55x77.07x41	RSL185036	RSL183036	RSL182236	RSL182336
RNN50x72.33x39	RSL185038	RSL183038	RSL182238	RSL182338
RNN50x72.33x42	RSL185040	RSL183040	RSL182240	RSL182340

d/mm	D/mm	B/mm	Cr kN	Cor kN	Bearing
18	32.300	20.5	24.1	25.7	CPM 2699 bearing
22	36.200	30.0	47.5	68.8	CPM 2435 bearing
22	38.750	22.5	34.6	38.1	CPM 2535 bearing
22	38.750	22.5	34.6	38.1	CPM 2834 bearing
24	40.250	26.0	44.0	59.8	CPM 2400 bearing
24	40.250	34.0	53.3	76.4	CPM 2597 bearing
25	40.250	26.0	44.0	59.8	CPM 2686 bearing
25	40.250	32.0	53.3	76.4	CPM 2613bearing
28	44.450	34.0	70.8	99.8	CPM 2776 bearing
30	46.400	32.0	73.2	105.7	CPM 2594 bearing
30	48.250	40.0	85.8	131.6	CPM 2687 bearing
30	49.600	26.0	57.0	70.3	CPM 2510 bearing
30	49.600	24.0	50.8	60.6	CPM 2178 bearing
30	49.600	25.0	50.8	60.6	CPM 2651 bearing
30	49.600	26.0	57.1	70.4	CPM 2198 bearing
30	49.600	30.0	69.1	90.0	CPM 2683 bearing
32	46.600	25.0	54.3	82.5	CPM 2508 bearing
32	46.600	28.0	54.3	82.5	CPM 2183 bearing
32	46.600	28.0	54.3	82.5	CPM 2439 bearing
32	48.240	34.0	76.0	112.0	CPM 2668 bearing
32	51.750	25.0	59.1	74.7	CPM 2496 bearing
32	51.750	29.0	71.5	95.5	CPM 2579 bearing
34	50.200	29.0	66.7	96.6	CPM 2634 bearing
35	49.800	28.0	56.8	89.7	CPM 2434 bearing
35	52.090	26.5	56.6	79.4	CPM 2723 bearing
35	55.520	36.0	83.6	113.6	CPM 2470 bearing
35	55.520	36.0	83.6	113.6	CPM 2520 bearing
35	55.520	36.0	83.6	113.6	CPM 2706 bearing
35	59.190	27.0	68.4	85.5	CPM 2721 bearing
35	64.300	26.5	72.9	95.7	CPM 2528 bearing
38	52.950	28.0	59.2	97.0	CPM 2164 bearing
38	52.950	29.5	59.2	97.0	CPM 2504 bearing
38	52.950	29.5	59.2	97.0	CPM 2806 bearing
38	54.686	29.5	56.9	86.7	CPM 2464 bearing
38	54.690	29.5	63.0	99.0	CPM 2458 bearing
38	57.910	38.0	106.0	156.0	CPM 2669 bearing
40	57.810	34.0	96.0	141.0	CPM 2827 bearing
40	60.680	31.0	80.8	118.1	CPM 2729 bearing
40	61.740	28.0	70.6	90.6	CPM 2188 bearing
40	61.740	35.5	100.0	140.0	CPM 2650 bearing
42	60.750	37.0	100.7	156.9	CPM 2412 bearing
42	60.750	37.0	107.2	169.7	CPM 2777 bearing
44	61.600	34.0	90.1	153.0	CPM 2592 bearing
44	62.970	37.0	103.5	164.4	CPM 2401bearing
45	61.550	32.0	77.3	125.7	CPM 2559 bearing
45	61.550	36.0	90.0	153.0	CPM 2425 bearing
45	65.020	34.0	94.3	140.4	CPM 2647bearing
45	66.850	37.5	105.8	156.7	CPM 2722 bearing
45	66.850	37.5	123.0	157.0	CPM 2828 bearing
45	83.880	85.0	268.0	393.9	CPM 2619 bearing
46	69.500	45.0	145.0	207.0	CPM 2807 bearing
50	67.280	32.0	75.7	145.2	CPM 2530 bearing
50	67.360	40.0	109.0	201.0	CPM 2720 bearing
50	69.580	40.0	118.0	202.0	CPM 2719 bearing
50	69.670	32.0	89.1	141.0	CPM 2492 bearing
50	69.670	37.5	111.2	186.9	CPM 2609 bearing
50	72.050	37.0	111.7	172.5	CPM 2466 bearing
50	72.330	40.0	130.9	194.3	CPM 2190 bearing
50	72.330	40.0	130.9	194.3	CPM 2465 bearing

Factory

Warehouse

workshop

Product packaging

Packing ： 1. Industrial packing 2. Single box +carton +pallets /case 3. According to customers demand Delivery time : 1. Generally after payment: within 3 days . 2. If need produce , about 30 days Payment A less USD1000 , 100% T/T in advance . 1. More USD1000 , 30% T/T in advance , 70%T/T before shipment

Shipping : by sea/by air/by express like EMS FEDEX TNT DHL...

Application

Factory

Company introduction

LANDLION BEARING CO.,LTD is an export-oriented enterprise, specializing in manufacturing and marketing several types of bearings for more than 10 years. We can produce the bearings accordingly to the customers' samples or drawings.LANDLION has a large top brand bearing NSK NTN UBC ASAHI IKO NACHI KOYO in stock.

FAQ

Q: Are you trading company or manufacturer ? A: We are factory and trader . Q: How long is your delivery time? A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: What is your terms of payment ? A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us .
