7005C Hybrid Bearings 7005 HQ1 AC/C DB P4 Ceramic Ball Bearings 7005 Cnc Lathe Spindle Bearing

7005C Hybrid Bearings 7005 HQ1 AC/C DB P4 Ceramic Ball Bearings 7005 Cnc Lathe Spindle Bearing thumbnail-1
7005C Hybrid Bearings 7005 HQ1 AC/C DB P4 Ceramic Ball Bearings 7005 Cnc Lathe Spindle Bearing thumbnail-2
7005C Hybrid Bearings 7005 HQ1 AC/C DB P4 Ceramic Ball Bearings 7005 Cnc Lathe Spindle Bearing thumbnail-3
7005C Hybrid Bearings 7005 HQ1 AC/C DB P4 Ceramic Ball Bearings 7005 Cnc Lathe Spindle Bearing thumbnail-4
7005C Hybrid Bearings 7005 HQ1 AC/C DB P4 Ceramic Ball Bearings 7005 Cnc Lathe Spindle Bearing thumbnail-5
7005C Hybrid Bearings 7005 HQ1 AC/C DB P4 Ceramic Ball Bearings 7005 Cnc Lathe Spindle Bearing photo-1
7005C Hybrid Bearings 7005 HQ1 AC/C DB P4 Ceramic Ball Bearings 7005 Cnc Lathe Spindle Bearing photo-2

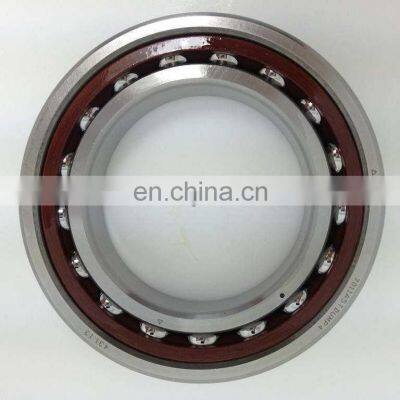

7005C Hybrid Bearings 7005 HQ1 AC/C DB P4 Ceramic Ball Bearings 7005 Cnc Lathe Spindle Bearing photo-3
7005C Hybrid Bearings 7005 HQ1 AC/C DB P4 Ceramic Ball Bearings 7005 Cnc Lathe Spindle Bearing photo-4

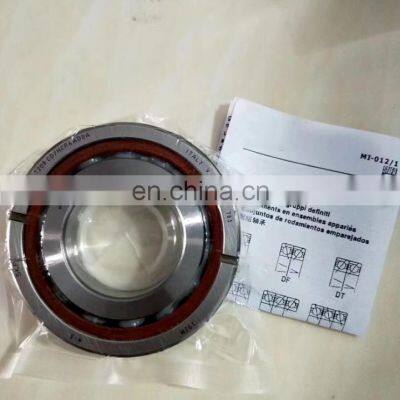

7005C Hybrid Bearings 7005 HQ1 AC/C DB P4 Ceramic Ball Bearings 7005 Cnc Lathe Spindle Bearing photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2003
Annual Export Value:
US$50 Million - US$100 Million
Contact Supplier Request Quote Chat Now
Jinan Landlion Bearing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description
cnc lathe spindle bearing 7005C hybrid bearings 7005 HQ1 AC/C DB P4 Ceramic Ball Bearings
Structure-Ceramic Ball/Angular Contact ball
Model number-7005 HQ1
Size :Inner ring(mm)-25 Outer ring(mm)-47Width(mm)-12 Weight(Kg)-0.093
Materials-Chrome steel/GCR15
Precision grade-P4/P2
Lubrication type-Grease lubrication
Contact Angle-C=15°;AC=25°
Material(Ball)-SN24:Ceramic ball(Si3N4)
Number of Row-Single rows
Material(Cage)-TN /PN
Combination-
SU:Universal combination (single row)
DU:Universal combination (double rows)
DB: Back-to-back combination
DF: Face-to-face combination
DT: Parallel combination
DBD.DFD.DTD: Three rows
DBB.DFF.DBT.DFT.DTT: Four rows
Categories:Angular Contact Ball Bearings Ceramic Ball Bearings
Related Search:7005AC / CHQ1P4,7005C Ceramic Ball Bearings,7005C Spindle bearing,7005C High Speed Bearing
Product Features
Angular Contact Ball bearing with Ceramic balls (Si3N4), used in high precision Spindle and Motors
Series Introduction
High Speed Ceramic Ball Type:ISO 10 Series - highest load, second lowest speed
bearings-70 Series Angular Contact Bearings Series
Model No.
7000HQ1,7001HQ1,7002HQ1,7003HQ1,7004HQ1,7005HQ1,7006HQ1,7007HQ1,7008HQ1,7009HQ1,
7010HQ1,7011HQ1,7012HQ1,7013HQ1,7014HQ1,7015HQ1,7016HQ1,7017HQ1,7018HQ1
Applications High Speed Ceramic Ball Angular contact bearing applications :
electric motors,Spindle,automotive applications, home appliances, industrialequipment
name
cnc lathe spindle bearing 7005C
ball material
Si3N4
ID
25MM
OD
12MM
B
10MM
Product weight
0.093kg
Cage Material:
TN
material
chrome steel
mail
sales1@landlionbearing.com
Tel
+86-18710180456
Related Products
bearing
d
D
B
c
Da
da
contact angle
weight KG
B7000-C-2RSD-T-P4S-UL
10
26
8
6.4
22
14
15°
0.02
B7001-C-2RSD-T-P4S-UL
12
28
8
6.7
24.5
16.5
15°
0.02
B7002-C-2RSD-T-P4S-UL
15
32
9
7.6
28
19
15°
0.03
B7003-C-2RSD-T-P4S-UL
17
35
10
8.5
32
21
15°
0.04
B7004-C-2RSD-T-P4S-UL
20
42
12
10.2
37
25
15°
0.07
B7005-C-2RSD-T-P4S-UL
25
47
12
10.8
42
30
15°
0.08
B7006-C-2RSD-T-P4S-UL
30
55
13
12.3
49
36
15°
0.11
B7007-C-2RSD-T-P4S-UL
35
62
14
13.5
56
41
15°
0.15
B7008-C-2RSD-T-P4S-UL
40
68
15
14.7
62
46
15°
0.19
B7009-C-2RSD-T-P4S-UL
45
75
16
16
69
51
15°
0.24
B7010-C-2RSD-T-P4S-UL
50
80
16
16.7
74
56
15°
0.25
B7011-C-2RSD-T-P4S-UL
55
90
18
18.7
83
62
15°
0.38
B7012-C-2RSD-T-P4S-UL
60
95
18
19.4
88
67
15°
0.4
Product packaging
Packing ： 1. Industrial packing 2. Single box +carton +pallets /case 3. According to customers demand Delivery time : 1. Generally after payment: within 3 days . 2. If need produce , about 30 days Payment A less USD1000 , 100% T/T in advance . 1. More USD1000 , 30% T/T in advance , 70%T/T before shipment
Shipping : by sea/by air/by express like EMS FEDEX TNT DHL...
Application
Factory
Company introduction
LANDLION BEARING CO.,LTD is an export-oriented enterprise, specializing in manufacturing and marketing several types of bearings for more than 10 years. We can produce the bearings accordingly to the customers' samples or drawings.LANDLION has a large top brand bearing NSK NTN UBC ASAHI IKO NACHI KOYO in stock.
FAQ
Q: Are you trading company or manufacturer ? A: We are factory and trader . Q: How long is your delivery time? A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: What is your terms of payment ? A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us .
