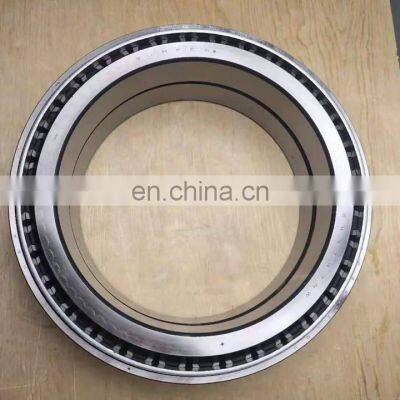

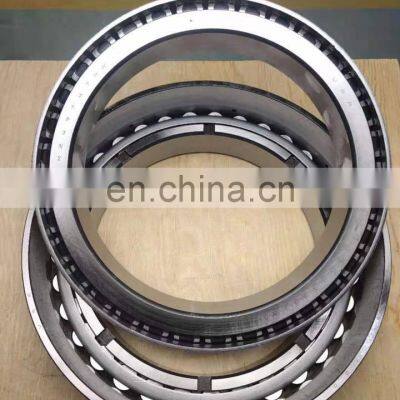

LM249747NW LM249710CD double row taper roller bearing LM249747NW/LM249710D

Name: LM249747NW LM249710CD double row taper roller bearing LM249747NW/LM249710D
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

double row taper roller bearing LM249747NW/LM249710D for crown block LM249747NW - LM249710CD

* item NumberLM249747NW/LM249710D Timken
* Technical details (D)D=Double Inner Race Or Double Outer Race (Non-Interchangeable With Basic Part Number).
* Also known asLM249747NW/710D

* CategoryTapered Roller Double Row
* Weight (kg)24.80
* Manufacturer Part Number (MPN)LM249747NW/LM249710D

Tapered roller bearings consist of four basic components including: the cone (inner ring), the cup (outer ring), tapered rollers, and a cage (roller retainer). The cone, cup and rollers carry the load while the cage spaces and retains the rollers on the cone. The cone, rollers and cage components of our tapered roller bearings are referred to as the cone assembly. Individual cup and cone components of our tapered roller bearings are available as well as the complete assembly. In addition, We offers a variety of configurations to our tapered roller bearings such as single-row, double-row and four-row.

Factory Direct Sales!
Maximum Cost-saving for Customers!

baring No.	LM249747NW/LM249710D
Original	37951K
Main Dimension	mm
Inside Dia-d	253.975
Outside Dia-D	347.663
T-Bearing Width across Cones	101.6
B-Cone Width	50.8
C-Double Cup Width	69.85
Mass(kg)	23.8
OEM Service	Yes
Tolerance	P0;P6
Bearing Type	Taper roller bearing
Cage Type	Stamped steel

Related Products

Mud Pump No	New	Old
Mud Pump No	New	Old
F500	NNAL6/101.6Q4/C5W33XYA2	5G354920Q
		NUP464779Q4/C9YA4	92984QU
		NU3228X2M	4G32828H
		23138CA/C9	3053738U
F800	NNAL6/177.8Q4/W33XYA2C5	254735Q
		NUP464775Q4/C9YA4	928/508QU
		23148MB	3G3003748HY
		NU3036X2M/C4	4G32836H
F1000	NNAL6/177.8-2Q4/W33	254936Q
		NUP464744Q4/C9	929/588.8QU
		24056CA/W33C3	3G4053156HY
		NU3040X3M	4G32840H
F1300	NNAL6/206.375Q4/W33XYA2	254941QU
		NUP464776Q4/C9YA4	928/660.4QU
		24060CA/W33C3	3G4053160HY
		NU3044X3M	4G32844H
F1600	NNAL6/206.375Q4/W33XYA2	254941QU
		NUP464777Q4/C9YA4	929/660.4QU
		23160MB/W33C3	3G3003760HY
		NU3044X3M	4G32844H
3NB1300	NFP38/666.75X3Q4	228/666.75
		24072CA/W33	4053172Y
		NU3044X3M	4G32844H
		NNAL6036X2-2M/W33X	154836
3NB1600	NFP6/723.795Q4	229/723Q
		23176CA/W33	3053776Y
		NU2148X3M	4G32848H
		NNAL6/209.55Q4/C4W33X	4G154942Q
Rotary Table Bearings
ZP205	5691/600	61981/600
		1687/650	5692/650X1
		22334	3634
ZP205	1687/650	5692/650X1
		1687/620	5617/620
		32630EH	NU2330EM
		3630MB	3630
ZP175	91682/530	5692/530
		1689/520	5617/520
		NU2322M	32622
		22322CA	53622
ZP275	1681/800	5611/800
		91682/800	5692/800
		32630EH	NU2330EM
		3630MB	3630
ZP375	2687/1049	2327/1049YA
		32630EH	NU2330EM
		3630MB	3630
49	L812148/L812111	66.675

Mud Pump Type	Bearing No.
8-P-80	24036 CA/C3W33
		HM256849/HM256810/C9
		NFP 6/596.9/C9
		NNAL 6/174.625/C9W33YA
9-P-100	24040/C3W33
		3506/333.375/C9
		NFP 6/647.7/P69
		NNAL 6/180.975/P69W33XYA
10-P-130	23144 CA/P63W33
		3506/368.249/P69
		NFP 38/666.75X3/P69
		NNAL 6/187.325/P69W33YA
12-P-160	24052 CA/C3W33
		3506/381/C9
		NFP 6/723.795/C9
		NNAL 6/209.55/C9W33X
14-P-220	23156/P63W33
		3506/409.575/P69
		NUP 6/812.8/P69
		NNAL 6/228.6/P69W33X
F-500	NU 3228X2/C9
		23138 CA/C3W33
		NUP 464779/C9YA
		NNAL 6/101.6/C5W33XYA
F-800	NU 3036X2/C4
		23148/C3W33
		NUP 464775/C9YA
		NNAL 6/177.8/C5W33XYA
F-1000	NU 3040X3/C4
		24056 CA/C3W33
		NUP 464744/C9
		NNAL 6/177.8/C5W33XYA
F-1300	NU 3044X3/C4
		24060 CA/C3W33
		NUP 464776/C9YA
		NNAL 6/206.375/W33XYA
	NU 3044X3/C4
	23160/C3W33
	NUP 464777/C9YA
F-1600	NNAL 6/206.375/W33XYA
Rotary Table Type	Bearing No.
ZP175	QJF 6/506.43 HC
ZP175		22322 CA/W33 C3
ZP205	5692/650X1
		5691/600
		22326 CA/W33 C3
		22232 C/W33 C3
ZP275	5692/800
		5611/800
		22330 CA/W33 C3
		NU 2332 EM
ZP375	2327/1049
		NU 2330 EM
		22330 CA/W33 C3

Frac Pump Bearing	Bearing no.
		744-742
		K-LM739749-710
		850-832
		NU 6-292.1
		NUP6-292.1
		NJ 6-203.2
		NJ 6/203.2 M/C9W33
		NFP 6/292.1 M/C9-1W33
		NU 6/292.1 M/C9-1W33
		306/196.85-2
		23936 C/P63W33
		NNU 6/25.4-2LSV
		NNU 6/19.05-2LSV
		23056 CAK/W33+H3056
		24036 CA/C3W33
		NF 6/406.362 M/P69W33
		N 6/285.75 M/C9
		N 6/152.4 M/C9
		306/346.075
		306/333.375
		N 6/336.55 N2M/C9
		306/88.9
		NU 3316 M/WB1C9
		N 6/336.55 M/C9
		NUP 3316 M/C9
		N 6/336.55-1 M/C9
		T2AR88.9/190.5
		N 6/406.362 M/P69W33
		NEP 6/393.7 AM/HCC9W33
		23038 CA/W33
		N 29/530/P53W26
		NF 19/530/P53W26

FAQ

Q: Are you trading company or manufacturer ? A: We are factory and trader . Q: How long is your delivery time? A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: What is your terms of payment ? A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us .

Product packaging

Packing ： 1. Industrial packing 2. Single box +carton +pallets /case 3. According to customers demand Delivery time : 1. Generally after payment: within 3 days . 2. If need produce , about 30 days Payment A less USD1000 , 100% T/T in advance . 1. More USD1000 , 30% T/T in advance , 70%T/T before shipment

Shipping : by sea/by air/by express like EMS FEDEX TNT DHL...

Application

Factory

Company introduction

LANDLION BEARING CO.,LTD is an export-oriented enterprise, specializing in manufacturing and marketing several types of bearings for more than 10 years. We can produce the bearings accordingly to the customers' samples or drawings.LANDLION has a large top brand bearing NSK NTN UBC ASAHI IKO NACHI KOYO in stock.
