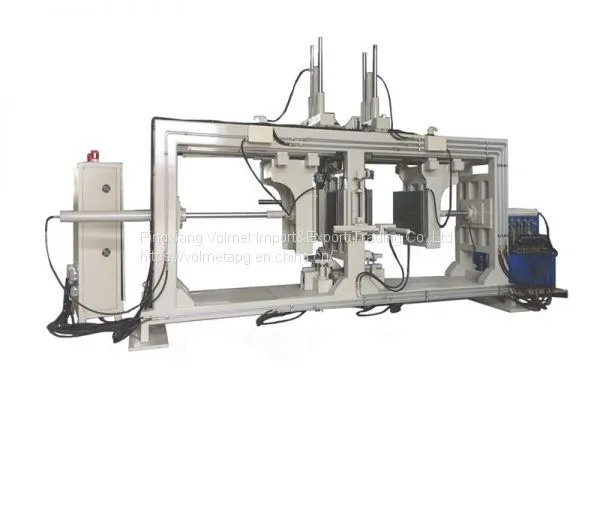

Hot Sale Resin Transfer Molding Machine for High Voltage Instrument Transformer
- 100 Set / Sets per Month
- Qingdao
- T/T
- 45 days
- Epoxy resin Insulator 、APG mold
- Epoxy resin Insulator 、APG mold
- Apg Epoxy Resin Clamping Machine APG mold
- Best Factory Price VOL100L Mixing Frame & Injection Pot Used for Epoxy Resin, Hardener, Silica Powder, Pigment
- Volmet APG Epoxy Compound Insulator Line Production Equipment for Electrical Bushing Insulators
- Volmet APG Epoxy Compound Insulator Line Production Equipment for Electrical Bushing Insulators
Product Details
Brand Name: | VOLMET | Place of Origin: | China | Model Number: | DVOL-865 |
After-sales Service Provided: | Engineers available to service machinery overseas | Condition: | New |
Product Description
Place of Origin | China |
After-sales Service Provided | Field maintenance and repair service |
Applicable Industries | electrical power insulation |
Port | Any ports in china |
factory
1.high quality clamping mould
2.Supply APG moulds
3.Experienced engineers
4.Long life service
Heating plate size | Clamping force | Speed of clamping close | Clamping open speed | Distance between heating plates |
800X600(mm) | 250(KN) | 3.1 (2.4)(m/min) | 4.8(3.3)(m/min) | 125-1175mm |
Heating power | Hydraulic unit power | Tilting degree | Machine dimension | Machine weight |
24 (KW) | 5.5 (KW) | 5° | 6560X1020X3205 (mm) | 7350 (KG) |
Products
1:Good product quality, fine surface finish of products without bubbles.
2:High efficiency and high automation,only need 1/2 workers operate APG machine,efficiency greatly raised but the intensity of labor is decreased.
3:Chemical resistance,electrical insulation,strength resistance greatly improved.
APG machine work process
1. /watch?v=twsvRiqF_WU (for full automatic apg machine)
2. /watch?v=7Zecwg7kONk (36KV Current transformer)
3. /watch?v=NJTtDC-ha2U (for wall bushing)
4. /watch?v=SJdU89FMcsA (for producing zero current transformer)
5. /watch?v=lhdOkqDPQ44(For insulators)
Our Services:
1.Offer Equipments Consulting Service.
2.Supply High quality APG machine, mixing device,APG&casting Mold, CT/PT winding machine,
3.Produce qualified samples with APG machine before delivery
Guarantee that APG machine and molds are 100% good before send to clients.
4.Onsite training APG technique till you control produce products by yourself.
Accompanying customer visits
