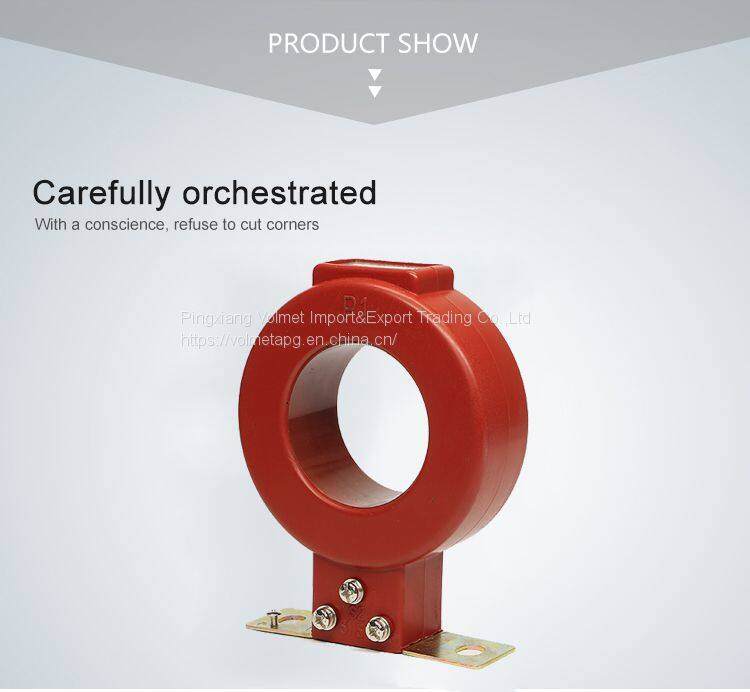

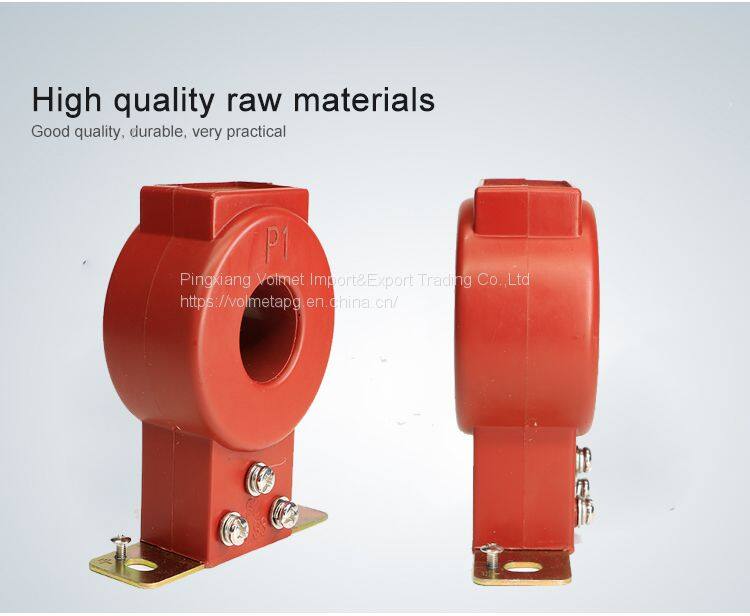

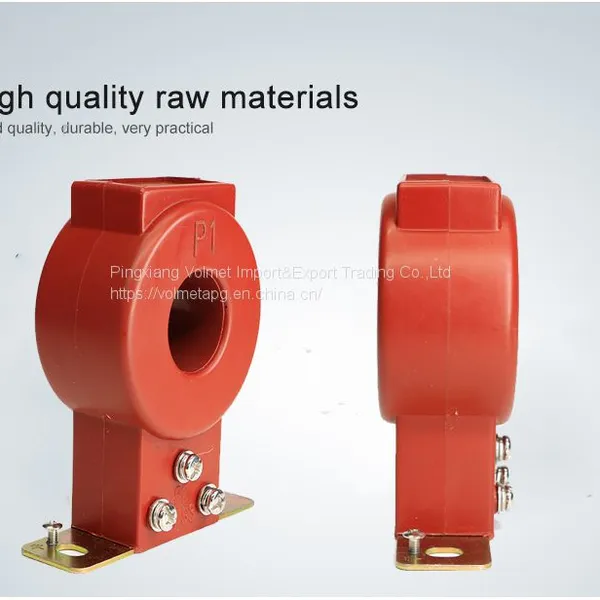

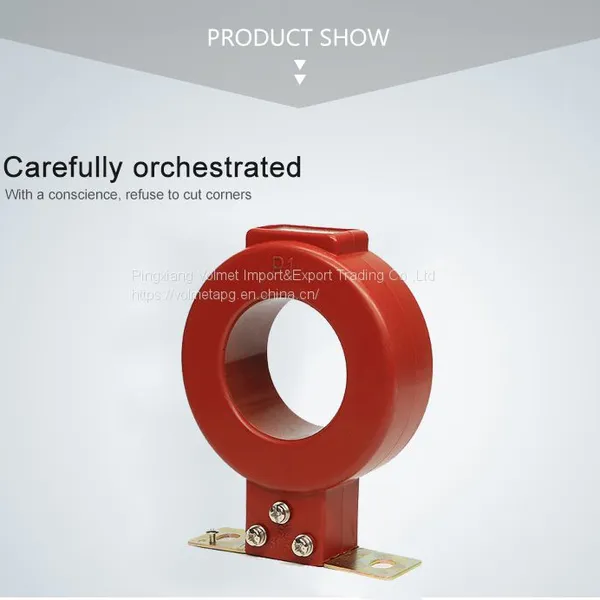

High Quality Epoxy Resin CT Current Transformer
US$ 10 - 30
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
Volmet
Place of Origin:
China
Model Number:
VOT-CT001
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai,Qingdao and other ports
Delivery Detail:
7 days
Related Products
-
Epoxy Resin Insulator 、APG MoldUS$ 2.2 - 2.6MOQ: 100 Pieces -
Epoxy Resin Insulator 、APG MoldUS$ 2.2 - 2.6MOQ: 100 Pieces
-
Apg Epoxy Resin Clamping Machine APG MoldUS$ 2.1 - 2.5MOQ: 100 Pieces
-
Volmet APG Epoxy Compound Insulator Line Production Equipment for Electrical Bushing InsulatorsUS$ 2.1 - 2.5MOQ: 100 Pieces
-
Volmet APG Epoxy Compound Insulator Line Production Equipment for Electrical Bushing InsulatorsUS$ 2.1 - 2.5MOQ: 100 Pieces
Brand Name
Volmet
Place of Origin
China
Model Number
VOT-CT001
Usage
Current
Phase
Single
Coil Number
Autotransformer
Coil Structure
Toroidal
High Quality Epoxy Resin CT Current Transformer
Installation and maintenance instructions
LMZJ1-0.5 type current transformer is mainly used for indoor, for rated voltage up to and include 0.4KV, rated frequency
50Hz AC circuit as the electric current, electric energy measurement.
Specification
Normal working/installation conditions
1.Installation sites: Indoor
2.Ambient temperature: -5℃-40℃
3.Ambient humidity: ≤80%
4.Altitude: ≤1000m
5.Atmospheric conditions: no serious impurity in the atmosphere
1.Installation sites: Indoor
2.Ambient temperature: -5℃-40℃
3.Ambient humidity: ≤80%
4.Altitude: ≤1000m
5.Atmospheric conditions: no serious impurity in the atmosphere
Standard
IEC60044-1 GB1208-2006
Technicial Parameters
| Model | Current Ratio | Hole Diameter | Class | Burden |
| LMZJ1-0.5 | 50/5A-100/5A | 35MM | 0.5S | 5-15VA |
| LMZJ1-0.5 | 75/5A-150/5A | 35MM | 0.5S | 5-15VA |
| LMZJ1-0.5 | 100/5A-200/5A | 35MM | 0.5S | 5-15VA |
| LMZJ1-0.5 | 150/5A-300/5A | 35MM | 0.5S | 5-15VA |
| LMZJ1-0.5 | 200/5A-400/5A | 35MM | 0.5S | 5-15VA |
| LMZJ1-0.5 | 250/5A-500/5A | 75MM | 0.5S | 5-15VA |
| LMZJ1-0.5 | 300/5A-600/5A | 75MM | 0.5S | 5-15VA |
| LMZJ1-0.5 | 400/5A-800/5A | 75MM | 0.5S | 5-15VA |
| LMZJ1-0.5 | 500/5A-1000/5A | 75MM | 0.5S | 5-15VA |
| LMZJ1-0.5 | 600/5A-1200/5A | 75MM | 0.5S | 5-15VA |
| LMZJ1-0.5 | 700/5A-1400/5A | 75MM | 0.5S | 5-15VA |
| LMZJ1-0.5 | 800/5A-1600/5A | 75MM | 0.5S | 5-15VA |
| LMZJ1-0.5 | 900/5A-1800/5A | 75MM | 0.5S | 5-15VA |
| LMZJ1-0.5 | 1000/5A-2000/5A | 75MM | 0.5S | 5-15VA |
| LMZJ1-0.5 | 1500/5A-3000/5A | 75MM | 0.5S | 5-15VA |
