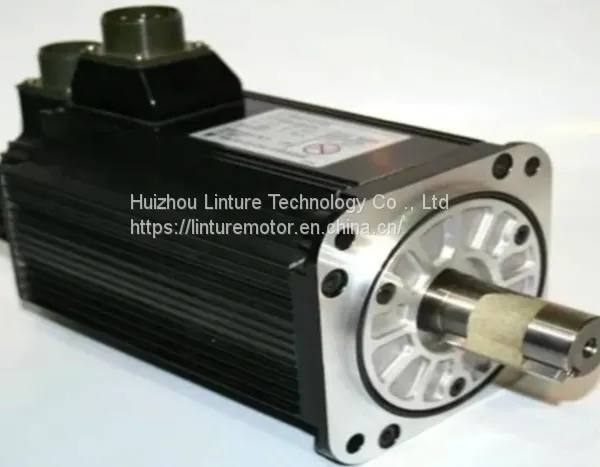

SGMSH-40ACA61 Industrial Controller Permanent Magnet Servo Motor

Name: SGMSH-40ACA61 Industrial Controller Permanent Magnet Servo Motor
Brand: Yaskawa
Availability: InStock

FOB Price

US$ 1 - 1000000 / Unit

1 Unit(Min. Order)

Port Shanghai
Payment TermsT/T L/C PayPal
Delivery Detail5 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Yaskawa	Place of Origin	Japan
Model Number	SGMSH-40ACA61	Type	Servo Motor
Certification	CE	Usage	Other, universal
Construction	Permanent Magnet	Efficiency	IE 3
Protect Feature	Drip-proof	Voltage(V)	105V
Output Power	100W	Continuous Current(A)	2.5A
Speed(RPM)	3000R/MIN	Commutation	Brushless

Product Description

Brand:	Yaskawa	Model:	SGMSH-40ACA61
Place Of Origin:	Japan	Power:	4KW
Voltage:	200V	Ins:	F
Rated Speed:	3000RPM	Series:	SGMSH
High Light:	ewing machine servo motor,electric servo motor

Industrial Yaskawa servo motor 4kW SGMSH-40ACA61 3000 rpm 17 bit Warranty 12 months

Yaskawa: Servomotor SGMSH-40ACA61
1.0kW to 5.0kW, Rated Speed 3,000 RPM
The SGMSH Sigma II servo motor is a legacy product and no longer promoted in the Americas. The SGMSH servo motor series had a high torque-to-inertia ratio and incorporated the segmented stator design, which dramatically reduced overall size. These servo motors were well suited for high-cycle-rate applications.
Features:
Time Rating: Continuous
Insulation: Class F
Vibration: 15mm or less
Withstand Voltage: 1500VAC
Insulation Resistance: 10MW minimum at 500VDC
Enclosure: Totally-enclosed, self-cooled IP67 (except for shaft opening)
Ambient Temperature: 0 to 40ºC
Ambient Humidity: 20 to 80% (non-condensing)
Rated Speed: 3000rpm
Maximum Speed: 5000rpm
Excitation: Permanent magnet
Drive Method: Direct drive
Mounting: Flange-mounted
Painting Color: Munsell notation N1.5

Together these methods provide the complete toolbox for calibrating IT and similar instruments and for characterizing step height structures at metrological levels.
For step height measurements and calibration at the highest level the ISO 5436 method in SPIP™ is a convenient tool, which also can measure sidewall angles and widths in addition to the height of step height structures. The function can analyze a single profile, or all the scan lines in an image- even with multiple steps!

Many calibration samples consist of grid or checker board pattern for XY calibration. Often these samples also have a certified height/depth of the structures. The histogram method is very fast and easy for measuring this height or depth.

When evaluating images of reference structures where the true unit cell of the calibration grid is known SPIP™ can calculate correction parameters. These can be saved and subsequently used to correct other images – or in some cases used for adjusting the actual microscope.
SPIP™ not only offers calibration using artificial calibration grids but can for example also use the hexagonal structure of graphite. This is useful in for example STM images at high resolution.
