Home > Manufacturing & Processing Machinery > Woodworking Machinery > Wood Router > Widely Used 1325 Cnc Router Cnc Router With Ccd Cnc Router With Ccd

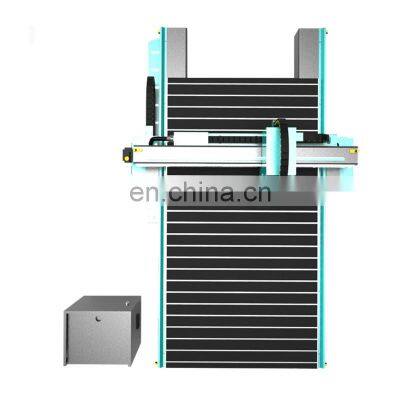

Widely Used 1325 Cnc Router Cnc Router With Ccd Cnc Router With Ccd
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
1993
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Durable Ccd Cnc Router Cnc Router With Ccd Camera Cnc Cutting Engraving MachineNegotiableMOQ: 1 -
Best Seller Oscillating Knife Cnc Router Machine 1325 Cnc Router Wood Carving Oscillating Knife Cnc RouterNegotiableMOQ: 1
-
High Quality Wood Engraving Cnc Router Machine 1325 Woodworking Cnc Router Cnc Knife Router MachineNegotiableMOQ: 1
-
Widely Used 3d Wood Cnc Router Oscillating Knife Cnc Router Machine Oscillating Knife Cutting MachineNegotiableMOQ: 1
-
Durable 3d Cnc Wood Carving Machine Cnc Router With Ccd Camera Wood Engraving Cnc Router Machine 1325NegotiableMOQ: 1
3d ccd camera vision positioning 1325 automatic edge cnc router.

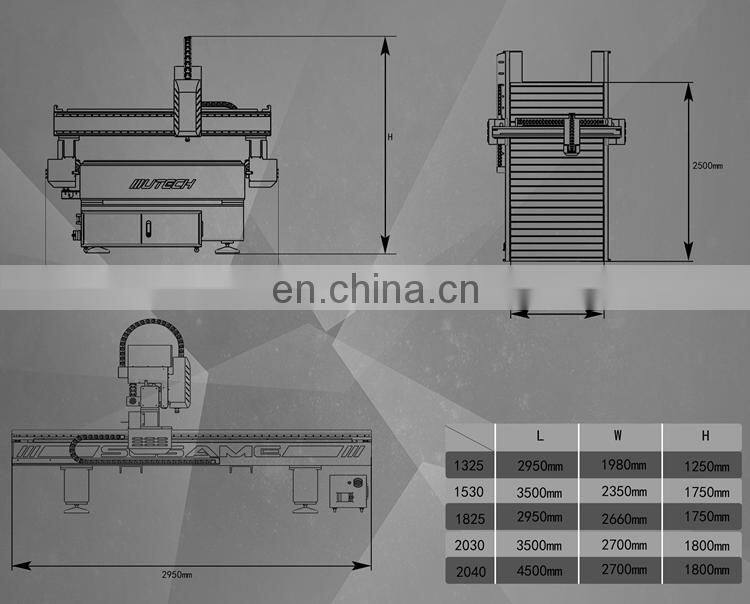

Product parameter
Descriptions | Parameters | ||||||
Model | SESAME S2 1325 | SESAME S2 1530 | SESAME S2 2030 | SESAME S2 2040 | |||
Working area | 1300*2500mm | 1500*3000mm | 2000*3000mm | 2000*4000mm | |||
Accuracy | ±0.05mm | ||||||
Table Surface | Vacuum & T-slot table | ||||||
Frame | Square pipe welding bed structure 200*300mm+150*200mmgantry | ||||||
X, Y Structure | 1.25M Gear and rack transmission, Taiwan Linear Rail | ||||||
Z Structure | Taiwan TBI Ball Screw, Taiwan Linear Rail | ||||||
Spindle Power | 5.5kw water cooled spindle+ER25 cutter | ||||||
Spindle Speed | 0-24000RPM | ||||||
Drive Motors | JMC stepper motor and driver | ||||||
Working Voltage | AC 220/380V | ||||||
Command Language | G Code | ||||||
Operating System | HD100 handle controller (DSP or Mach3 optional) | ||||||
Computer Interface | Ethernet (or USB) | ||||||
Dust Collector | 2.2kw | ||||||
Inverter | Best | ||||||
Software | Vectric Aspire/Type 3 /Artcam /Ucancam/JDPaint | ||||||
Product Description
1. Adopt heavy-duty lathe bed, square pipe welded, side hanging structure, heavy column, 150*200mm gantry, ensure the overall operation stability of the equipment.
2. The transmission model adopts a precision reducer match with brand gear rack, large torque, low noise, and high transmission precision accuracy.
3. Single system control, eliminating the switching system of the second boot, save time and effort.
4. Tracing-edge cutting for different materials, KT board, PVC, photo paper to achieve no burr cutting.

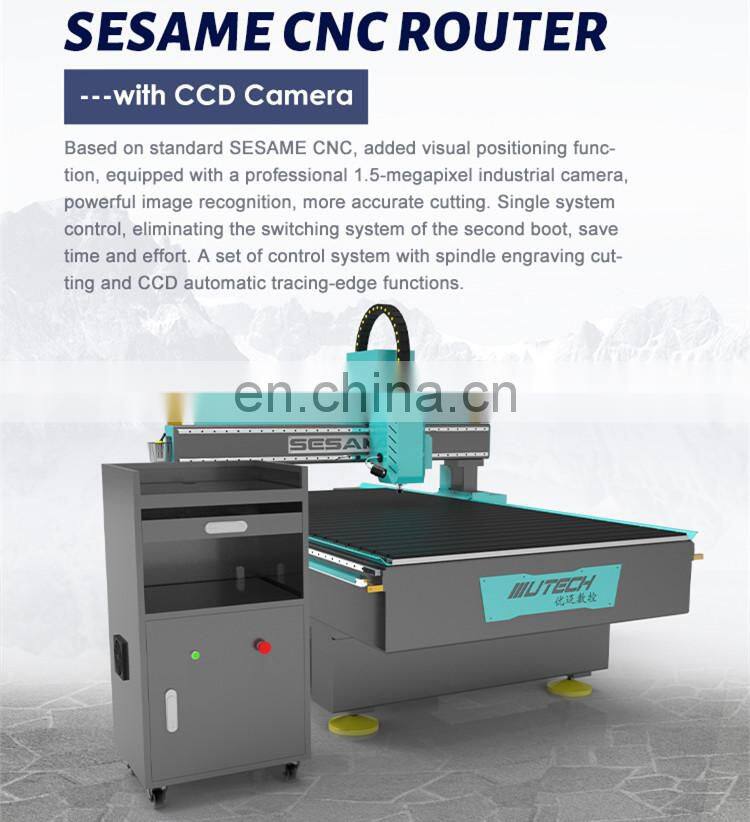

5. Equipped with a professional 1.5-megapixel industrial camera, powerful image recognition, more accurate cutting
6. The machine supports DXFJPGPNGNCand other formats, not only with automatic tracing-edge but also support the function of the CNC router.
2. The transmission model adopts a precision reducer match with brand gear rack, large torque, low noise, and high transmission precision accuracy.
3. Single system control, eliminating the switching system of the second boot, save time and effort.
4. Tracing-edge cutting for different materials, KT board, PVC, photo paper to achieve no burr cutting.
5. Equipped with a professional 1.5-megapixel industrial camera, powerful image recognition, more accurate cutting
6. The machine supports DXFJPGPNGNCand other formats, not only with automatic tracing-edge but also support the function of the CNC router.
Applications
Applications:
1. Advertising industry: Acrylic, two-color board, PVC, ABS board, aluminum board, two-color portrait, three-dimensional
advertising, all kinds of standard, badge, coordinate card, copper, font, font, all kinds of logos, trademarks, etc.
2. Woodworking industry: furniture decoration, musical instrument manufacturing, wooden crafts, solid wood furniture, office furniture, custom furniture, MDF paint-free doors, composite doors, cabinets, wardrobes, window doors, bedside tables, etc.
3. Decoration industry: art models, murals, screens, reliefs, ornament processing, gift packaging, wave boards, electrical
countertops, sporting goods, and other wood products.
1. Advertising industry: Acrylic, two-color board, PVC, ABS board, aluminum board, two-color portrait, three-dimensional
advertising, all kinds of standard, badge, coordinate card, copper, font, font, all kinds of logos, trademarks, etc.
2. Woodworking industry: furniture decoration, musical instrument manufacturing, wooden crafts, solid wood furniture, office furniture, custom furniture, MDF paint-free doors, composite doors, cabinets, wardrobes, window doors, bedside tables, etc.
3. Decoration industry: art models, murals, screens, reliefs, ornament processing, gift packaging, wave boards, electrical
countertops, sporting goods, and other wood products.
Company Profile
Why Choose Us

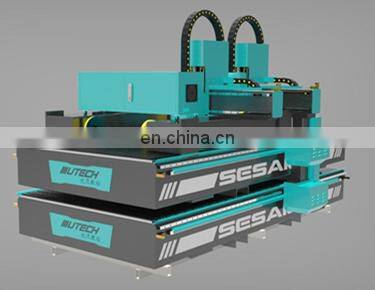

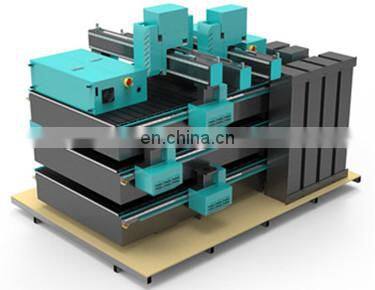

Patent separable structure

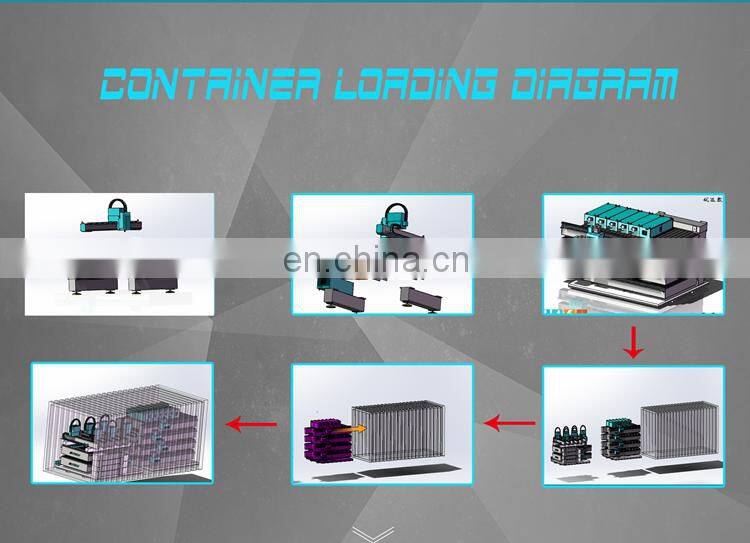

The legs and body of SESAME CNC can be separated freely, save packing volume and shipping cost.
l If you are an individual buyer: 2 sets/3 sets can be packed in a wooden box
l If you're a dealer
a 20’GP container to package 6 sets SESAME 1325.
a 40’HQ container to package 14 sets SESAME 1325.
Easy to install the disassembly method and installation guide video so that you have no worries at home.
The legs and body of SESAME CNC can be separated freely, save packing volume and shipping cost.
l If you are an individual buyer: 2 sets/3 sets can be packed in a wooden box
l If you're a dealer
a 20’GP container to package 6 sets SESAME 1325.
a 40’HQ container to package 14 sets SESAME 1325.
Easy to install the disassembly method and installation guide video so that you have no worries at home.
Our Service
Before confirming the production order, we will provide the rendering picture and 360-degree panoramic video, so that customers can fully understand the style and structure of the machine, so as to ensure that the actual machine meets the requirements of customers, so as to avoid the discrepancy between the real object and customers' imagination caused by various communication deviations.
UTECH technical support is designed to help you make the most of the machine. A variety of technical files and installation videos
will be placed in the U disk and shipped with the machine. Our technical experts can provide online remote support and training,
and contact UTECH technical support experts in real time for remote diagnosis. Door to door service is also available.
UTECH technical support is designed to help you make the most of the machine. A variety of technical files and installation videos
will be placed in the U disk and shipped with the machine. Our technical experts can provide online remote support and training,
and contact UTECH technical support experts in real time for remote diagnosis. Door to door service is also available.
Logistics and packaging
1. No need for fumigation, plywood wooden case packing.
2. All the spare parts of the machine were covered by some soft materials, mainly avoiding all damages that could happen in the delivery process.Then we’ll covered plastic wrap out it tightly, make sure intact of the covered soft materials, also Waterproof and rustproof.
3. The bottom of the wooden case has firm iron jack, convenient for handling and transport.
e packing wooden case is after fumigation treatment. Needn’t timber inspection, saving shipping time.
2. All the spare parts of the machine were covered by some soft materials, mainly avoiding all damages that could happen in the delivery process.Then we’ll covered plastic wrap out it tightly, make sure intact of the covered soft materials, also Waterproof and rustproof.
3. The bottom of the wooden case has firm iron jack, convenient for handling and transport.
e packing wooden case is after fumigation treatment. Needn’t timber inspection, saving shipping time.
