High quality cnc router for cutting aluminum cnc router machine woodworking cnc router manufacturer

Name: High quality cnc router for cutting aluminum cnc router machine woodworking cnc router manufacturer
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

Cheap cnc router machine for aluminum cnc router machine woodworking cnc router wood carving machine

Specification

Model	KL-1325
Working Area	13002500200mm
Table structure	T-slot table
Transmission Device	X, Y axis: Precision helical tooth gear transmission
Transmission Device		Z axis: Precision TBI ball screw
Travel speed	0-25000mm/min
Working speed	0-18000mm/min
Control system	NC-studio
Spindle power	3.2KW water cooled spindle motor
Spindle speed	0-24000rpm
Diameter of cutter	φ3.175-φ12.7mm
Command code	HPGL G-code
Working voltage	AC220V/Hz
Device interface	Standard PCI/USB interface optional
Resolution	0.01mm
Machine size(WDH)	320019001900mm
Warranty	12 months
Weight	1100kg

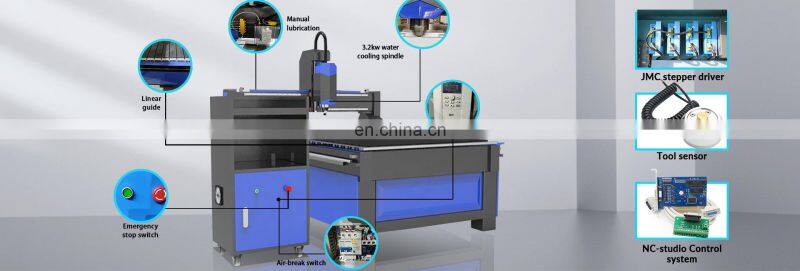

Specifications of Cheap 1325 cnc router PVC coffin stone acrylic aluminum plastic foam MDF
* 3.2kw water cooling spindle
* 1300*2500*200mm
* Nc-studio controller
* XY axis by gear transmission, Z axis by ball screw
* JMC 860 driver, 450B stepper motor
* BEST inverter
* Taiwan HIWIN/PMT 20 guide rail
* Cast aluminum piece machine head suit.
* Square pipe welding bed structure.
* T-slot table

Features of Cheap 1325 cnc router PVC coffin stone acrylic aluminum plastic foam MDF
1. CNC Router machine comes with 3.2kw water or 3.5kw air cooled high-frequency spindle. This precision spindle requires no
maintenance, uses industry-standard ER collects. Fully programmable speeds from 6000 to 24000RPM.
2. High accuracy Taiwan linear guide, high accuracy helical gear rack transmitting, more stability, higher precision.
3. Has power off restoration, continue processing at breakpoint, auto tool height adjusting device, repeat processing, support 9 coordinates setting, user-friendly design.
4. Be compatible with many CAD/CAM software like Type3 /Artcam /Castmate /Proe /UG/ Artgrave etc.
5. Independent control cabinet, stronger power and weak power separate, maintenance easily.

Optional of 3d cnc router machine wood cutting engraving machine for furniture wood cnc machine
* Mach3/DSP controller
Hybrid servo/AC servo
Vacuum table+vacuum pump
Dust collector
Design/Size

Company Profile

"///UTECH" is the new logo brand after the transformation of "Shandong U-May CNC Technology Co., Ltd.". "///" aims to record the
important strategic transformation of the company from ordinary business innovation to high-quality operation in the three years
after its establishment; "U" is "U-May"'s homophonic characters; "TECH" means the CNC technology. At the same time, when the
company was founded three years, the establishment of the Ministry of Foreign Trade, so "///UTECH" became the company's new logo,
and the company's development philosophy "Smarter Solution, Better Tomorrow."

Applications

1. Woodworking:

wooden door and furniture, windows, tables and chairs, cabinets and panels, 3D wave plate, MDF, computer desk, musical instruments, etc;

2. Advertising:

billboard, logo, sign, 3D characters cutting, acrylic cutting, LED/neon channel, literal-hole cut, lightbox mold, stamp, mould, etc;

3. Die industry:

copper sculpture, aluminum engrave, metal molds, plastic sheeting, PVC , etc;

4. Decoration:

acrylic, density board, artificial stone, organic glass, soft metals like aluminum and copper, etc.

Our Service

Before confirming the production order, we will provide the rendering picture and 360-degree panoramic video, so that customers can fully understand the style and structure of the machine, so as to ensure that the actual machine meets the requirements of customers, so as to avoid the discrepancy between the real object and customers' imagination caused by various communication deviations.

UTECH technical support is designed to help you make the most of the machine. A variety of technical files and installation videos will be placed in the U disk and shipped with the machine. Our technical experts can provide online remote support and training, and contact UTECH technical support experts in real time for remote diagnosis. Door to door service is also available.

Packing & Delivery

1. No need for fumigation, plywood wooden case packing.

2. All the spare parts of the machine were covered by some soft materials, mainly avoiding all damages that could happen in the delivery process.Then we’ll covered plastic wrap out it tightly, make sure intact of the covered soft materials, also Waterproof and rustproof.

3. The bottom of the wooden case has firm iron jack, convenient for handling and transport.
A packing wooden case is after fumigation treatment. Needn’t timber inspection, saving shipping time.

FAQ

1.Are you a factory or trading company?
We are the manufacturer. As only the machine made by ourself ,quality can be trusted,
and most important thing is we can do better serivce after sales.
we know how to fix the problem in each parts easliy. so welcome to visit to our factory.

2. If machine has any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem. We will provide 24-hour telephone and online service support.

3. Does U-MAY have maintenance manual and operation manual?
Each cnc machine leaving the factory will be along with related series or model the English instructions including maintenance manual and operation manual. Attached documentations may also include cnc controller instruction, parts instruction you bought(like rotary, oil cooler)

4. What’s the package?
We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
