Factory Outlet Cnc Oscillating Knife Cutter Oscillating Knife Multi-ply Auto Cutter Leather Oscillating Knife Cutting Machine

CNC cutter Muliti-layers fabrics oscillating head for foam EPE cutting Vibrating knife router machine for corrugated paper

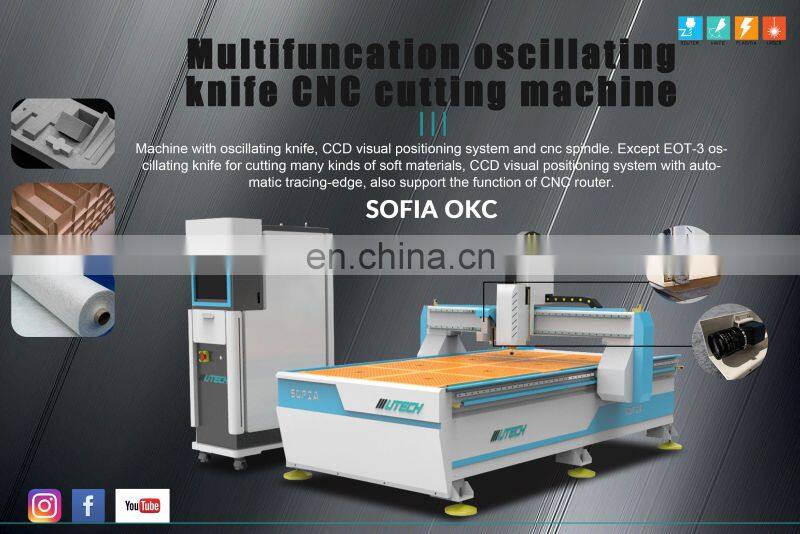

Oscillating knife cutting is also called CNC knife cutter, CNC knife cutter Machine, Knife Cutter, Knife Cutting Machine, CNC
knife cutting table. At home, out shopping, on vacation, in the streets, in a car or on an airplane–we are constantly surrounded by products likely to have come off a knife cutter. From street signs to storefronts, packaging to spacesuits, hot-air balloons to bullet-proof vests, airplane seats to windshields, Oscillating Knife Cutter can process all of the materials involved with the perfect tool for the job–be that cutting, routing, creasing, scoring, or cnc machining.

According to your material and thickness, we'll share proper sugestions with you, machine design and configurations all could be customized.

If you dont know how to choose a proper machine for yourself or your customer, just tell me your main industry, material and thickness. UTECH team will provide all things with you.

Equipped with a professional 1.5-megapixel industrial camera, powerful image recognition, more accurate cutting.

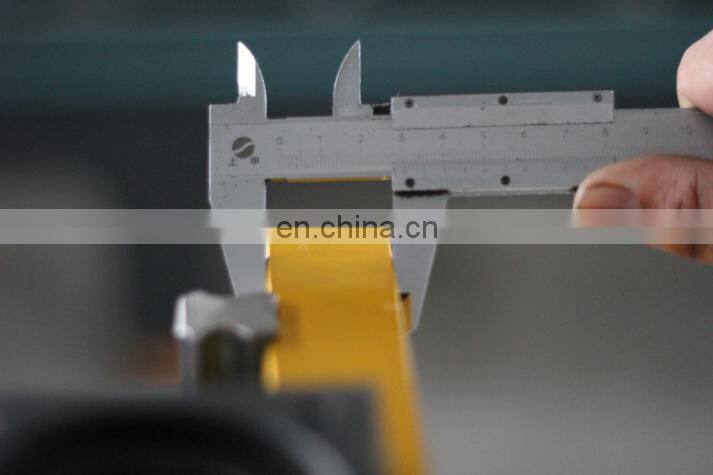

First, For the choice of hand piece, we choose T6061/6063 aviation aluminum alloy as the base material. Through the precision processing of CNC Processing Center, we finished our finished parts. Second, the high requirement assembly process ensures the precision of the product.

TBI High-Precision Ball-screw Transmission (Taiwan)

XY axis by precision 1.25 module helical rack gear.

Helical teeth gears provide continuous engagement along the tooth length and are often quieter and more efficient than straight tooth gears and also offer higher loading for same rack width. Helical tooth gears resemble spur gears in the plane of rotation but include teeth that are twisted along a helical path in the axial direction.

Whole machine with PMI Linear guide+high assembly Flange slider.
(1) High positioning accuracy, high repeatability.
(2) Low frictional resistance, high precision maintained for the long period.
(3) High rigidity with four-way load design.
(4) Suitable for high-speed operation.
(5) Easy installation with interchangeability.

This type machine could add 16 adsorption holes, Increase suction skills. Like you mentioned “the size of the materials is very hectic, it could be for example 150x150mm, and could be 2450x2060mm, with hectic cut depths”, there're some small adsorption zone, when you process mini materials, then could open one or more adsorption zone, then can adsorb materials very well. Unique bakelite plate vacuum table and T-slot table can be sucked and clipped, with four zones independent control. Vacuum table is with multi zones, which allows the operator to switch from full sheet processing to smaller part processing. Every vacuum zone is controlled by separated valves on the front of machine, and whole vacuum zones are with one general valves to control.

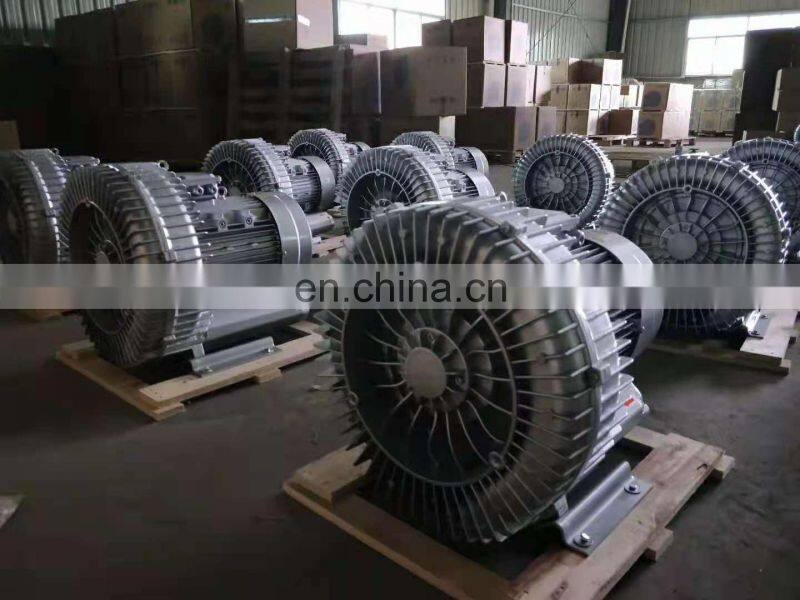

According to your local place's voltage, we'll provide proper power vacuum pump for you. Vaccum table need to combine with vacuum pump. Wihout it, vacuum table can not work. Vacuum pump is mainly through taking the air away between the workpiece and the table surface, form a negative pressure to achieve the purpose of the workpiece firmly fixed on the table.

Low noise, high efficiency and simple operation.Suitable for lubrication of machine tools, engraving machines, gear, rack, guide rail, etc., no manual operation, timed and quantitative automatic lubrication.

Packing:

1/ If machine delivery via LCL, then would packed with wrapping film, EPE foam, and standard export plywood box.
2/ If machine delivery via FCL, then dont need wood box, would packed with warpping film and EPE foam.

Shipping:

We support machine delivery via express, air transportation, land transportation and sea transportation.
1/ Such as some small machine, Mini CNC Router or Small CO2 Laser Machine and Fiber Laser Marking Machine, usually delivery via
express and air transportation.
2/ If you wanna us help you delivery to domestic warehouse or Russia, Kazakhstan etc, usually delivery via land transportation.
3/ Large machine or some countries where shipping is more convenient, usually suggest choose sea transportation.
You can choose any way you'd prefer, we also will give you some proper suggestions.
