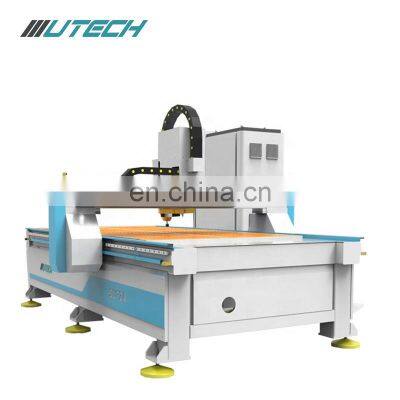

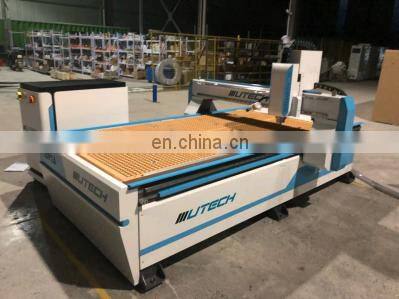

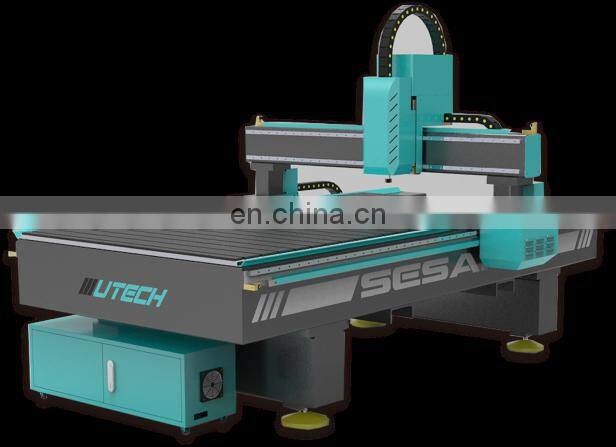

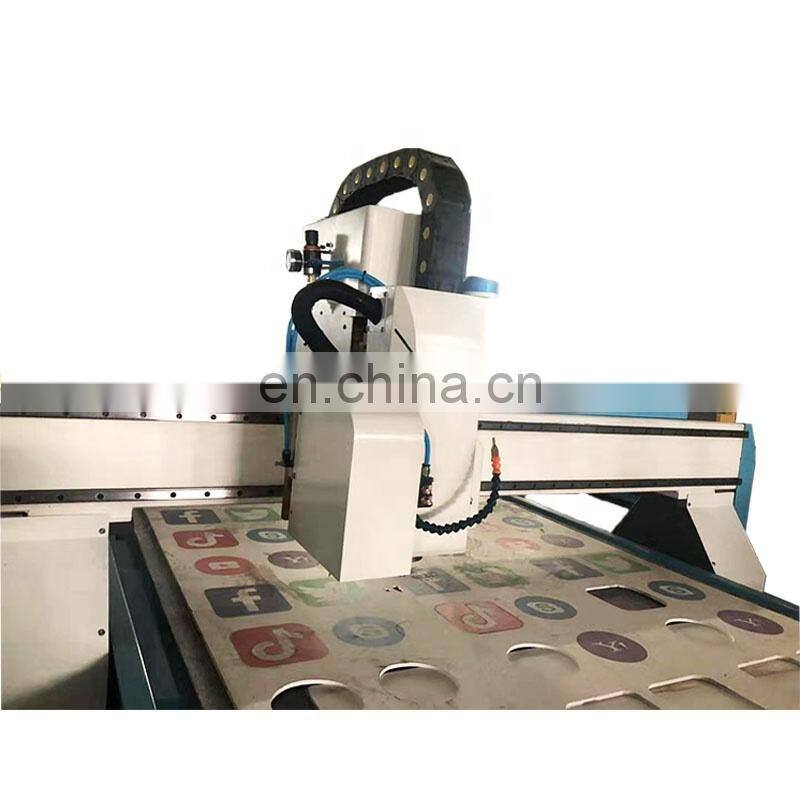

cnc vibrating knife oscillating blade cutting machine oscillating knife cutting leather and wood atc cnc router
Product Description

Concepts:

Oscillating Knife: Oscillating Knife cutting has the advantages of small cutting force, low cutting heat, the high surface quality of the workpiece, easy chip handling, improved tool durability, stable processing, and high production efficiency.
CNC VISION SYSTEM: CCD Vision Cutting system contains two operating modes: direct cutting mode and photo processing mode. Therefore, the processing route manufacturing steps
Differentiate: Direct cutting does not need to draw a photo point, and the tool path file for drawing a photo point can be processed through the buttons on the interface.
Descriptions
Parameters
Model
OSC-1212
OSC-1325
OSC-2030
OSC-2040
Can be Customized
Working area
1200*1200
1300*2500
2000*3000
2000*4000
Can be Customized
Working Voltage
220V/380V, 3PHASE, 50HZ (can be customized)
Control System
UTECH-Knife V5.5.0 Visual Positioning Cutting&Engraving Control System
Control box
Independent 1.8m high control box
Oscillating knife
Germany ECOCAM EOT-3
Visual system
CCD camera for tracing-edge
Spindle
UTECH 3.2kw water cooled taper spindle(according to your work)
Spindle speed
0-24000RPM
Motor and Driver
JMC hybrid servo motor&driver (Leadshine/YASKAWA/Delta/Panasonic servo are optional)
Inverter
3kw Xinfutai inverter
Structure
The bed is made of high-rigidity rectangular steel pipe welded and optimized dragnet
structure, aging treatment to ensure the precision of the bed.
Table surface
T-slot and Vacuum Working Table with 9 Zones
Lubrication system
Automatic lubrication system
Calibration
Tool sensor
Mist cooling sprayer
Automatic oil mist cooling sprayer(if you process metal)
Transmission
X,Y Axis: 1.25M Helical rack, Taiwan Hiwin/PMI 25# Rail Linear Bearing.
Z Axis: Taiwan Hiwin/PMI/ABBA Rail 25# Linear Bearing & Taiwan TBI Ball Screw
Whole machine with Japan SHIMPO reducer 1:5 or 1:10
Vacuum pump
5.5kw Water circulation vacuum pump (220V, 3PHASE, 50HZ)
Dust Collector
Binocular or monocular dust collector(220V/380V)
Machining Accuracy
±0.2mm
Repositioning Resolution
±0.01mm
Command language
G Code
Color
According to your reference.
Applications
Leather, Carpet, Carton, Wood, MDF, PVC, Acrylic, Carboard, Rubber, Corrugated box,
Foam, Leather strip.
Application Industry

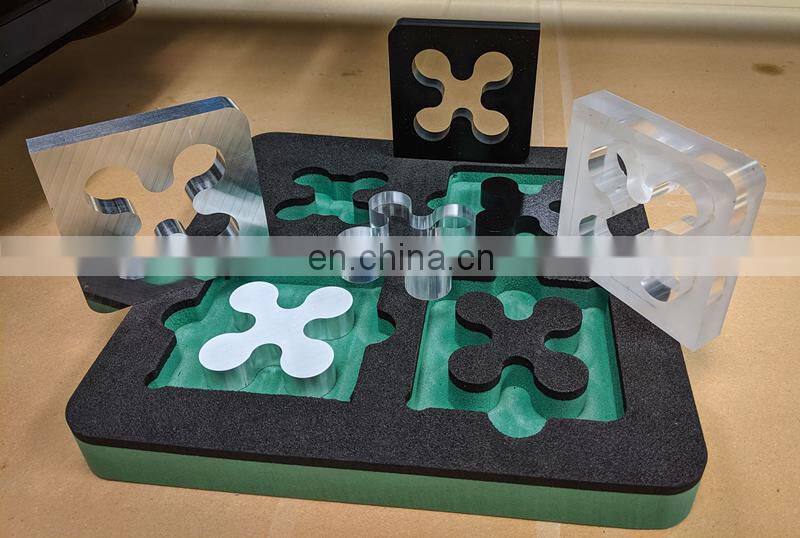

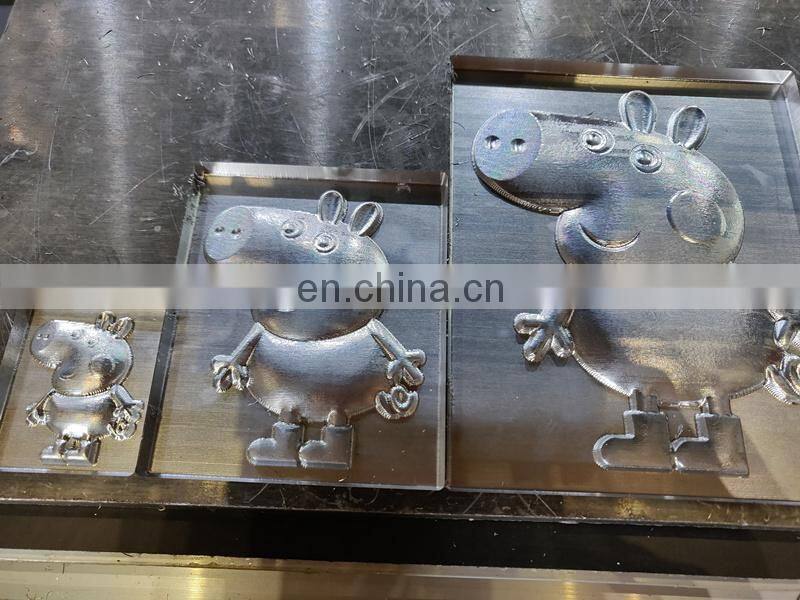

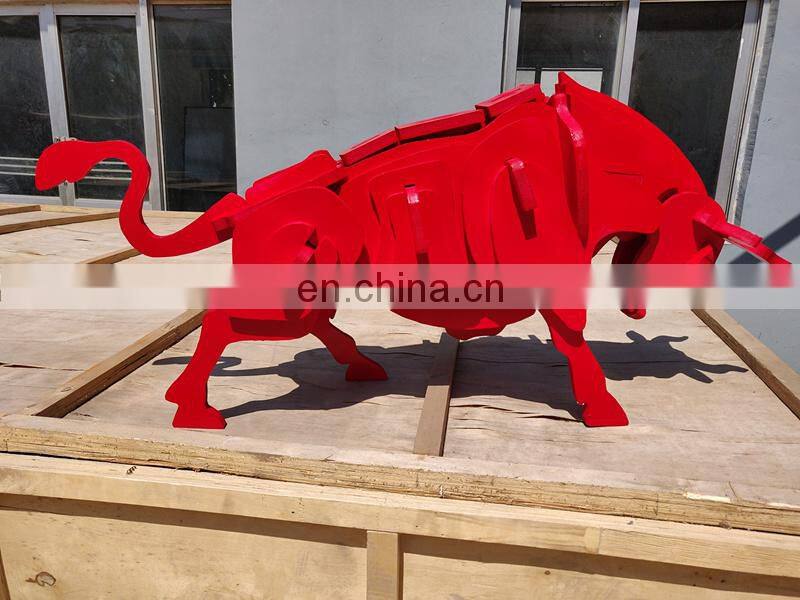

Sample

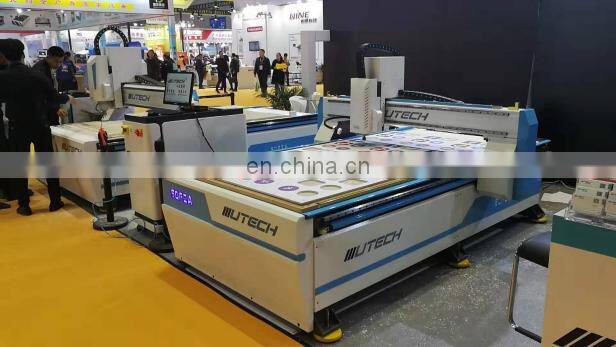

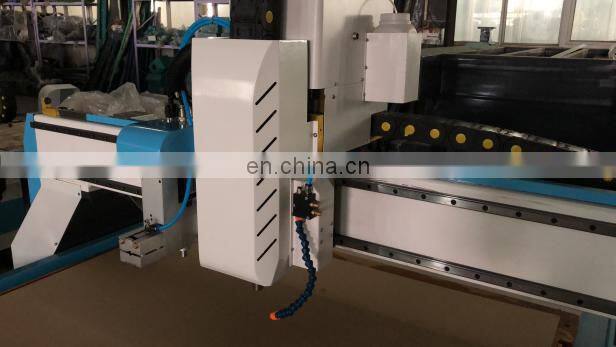

Machine with oscillating knife, CCD visual positioning system and cnc spindle. Except EOT-3 oscillating knife for cutting many kinds of soft materials, CCD visual positioning system with automatic tracing-edge, also support the function of CNC router.

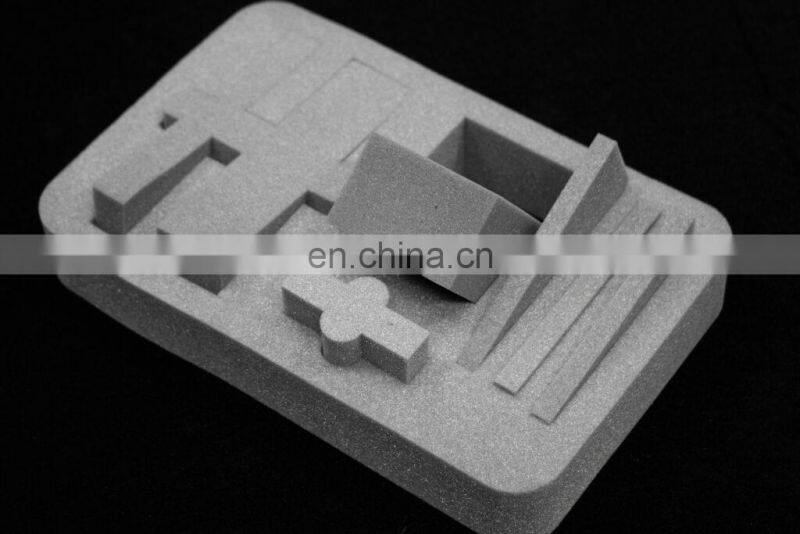

EOT-3 - Oscillating Tangential Knife for cutting cardboard, veneer, textile, rubber, felt, leather and much more
EOT-3 Common cutting applications/materials Sealants Carbon fiber Corrugated cardboard / hardboard Leather and cork Tissues and films Rigid foam panels Carpet Rubber

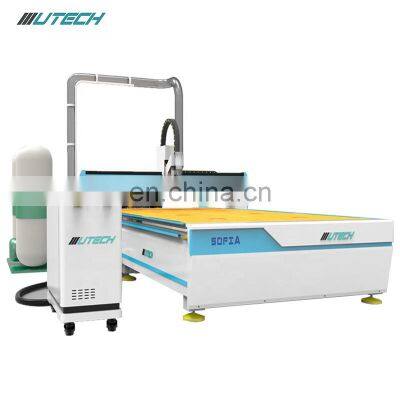

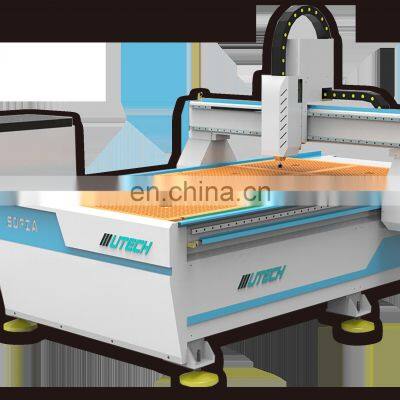

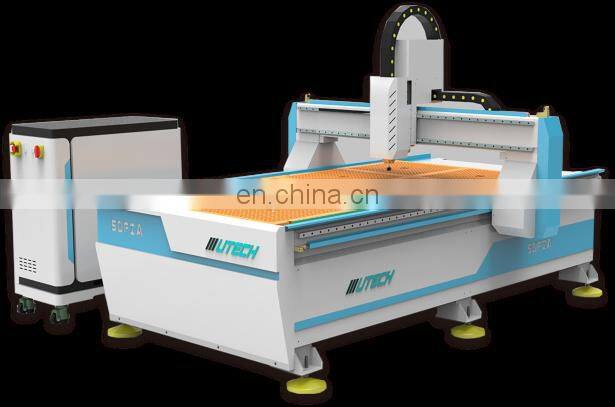

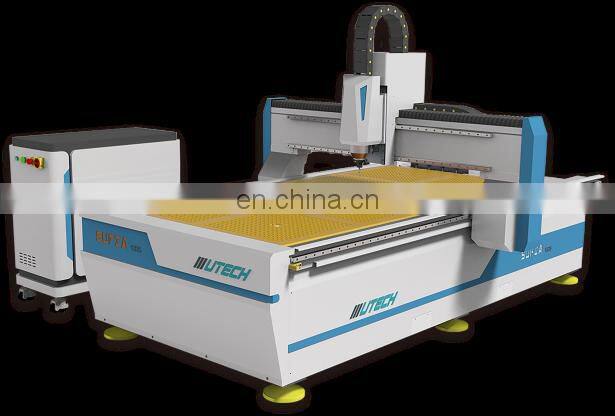

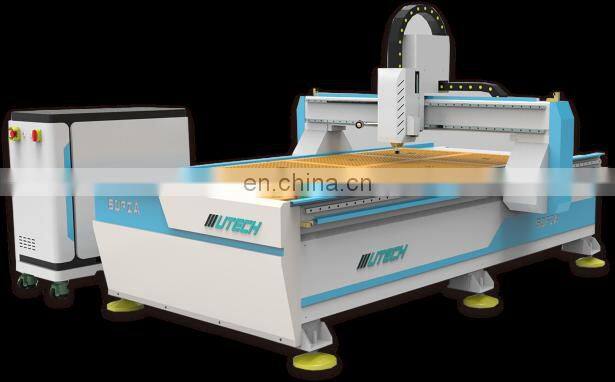

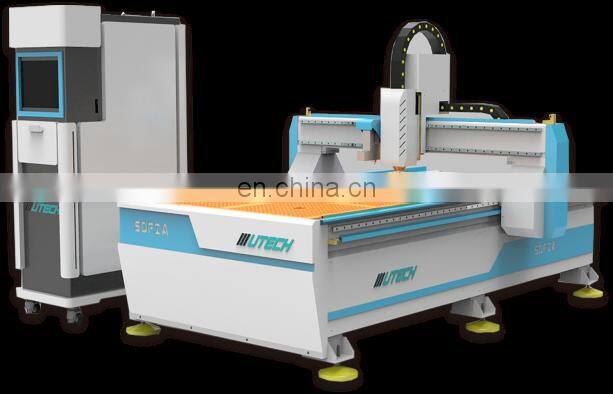

Main Characteristics of UTECH Oscillating Knife CNC Cutter+CCD Visual System

1.The bed is made of high-rigidity rectangular steel pipe welded and optimized dragnet structure, aging treatment to ensure the precision of the bed. 2.Double heads device--spindle and oscillating knife, can be cut according to different materials. After many improved tests, we update machine, now machine only have one Z axis for spindle and oscillating knife, it’s integrated together to share one z-axis motor&drive, and doesn’t need another set of motor&driver to control the z-axis of oscillating knife separately. 3.Excellent visual positioning system, one-click cutout and one-click start processing, free of typesetting&cutout time, improve processing efficiency. Equipped with professional 1.5 megapixel industrial camera, powerful image recognition, more accurate cutting. 4.Oscillating knife head can be processed and tracing-edge cutting according to different materials, the material dust-free and without raw edge. 5.CCD: Tracing-edge cutting for different materials, KT board, PVC, photo paper to achieve no burr cutting. 6.Transmission model adopt precision reducer match with brand gear rack, large torque, low noise and high transmission precision accuracy. 7.Machine supports DXF, JPG, PNG, NC and other formats, not only with automatic tracing-edge, but also support the function of CNC router.
Detailed Images

Title goes here.

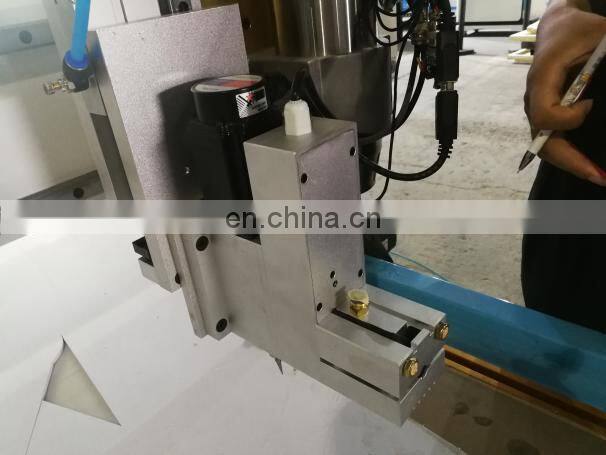

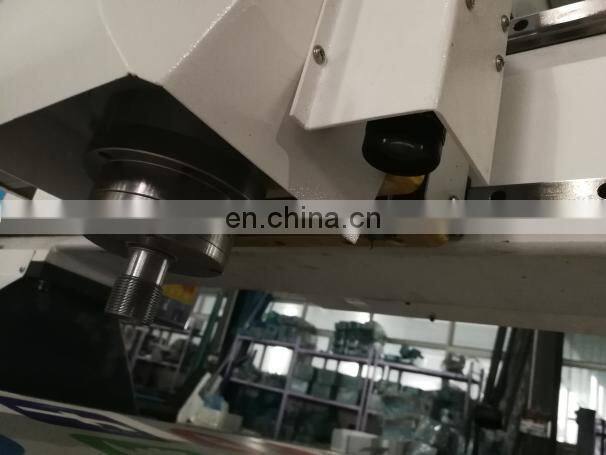

The EOT-3 is a processing unit for CNC-machines to cut various materials. A powerful oscillation motor moves the blade quickly up and down while an actuator rotates the blade in each direction of cutting. Thus, even strong and thick materials can be cut precisely and quickly.

CCD camera for tracing-edge

Equipped with professional 1.5 megapixel industrial camera, powerful image recognition, more accurate cutting.

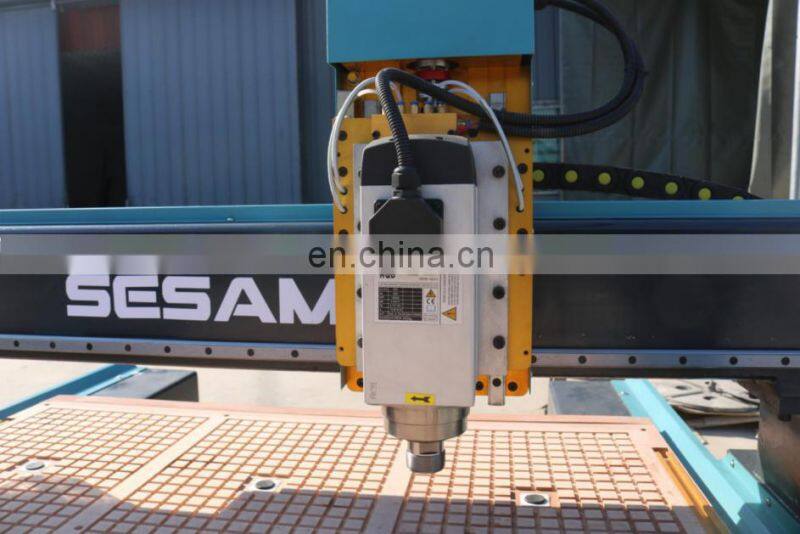

Spindle

Equipped Air cooling spindle, Air Spindle extremely high-speed working environment, High-end square air-cooled spindle high accuracy

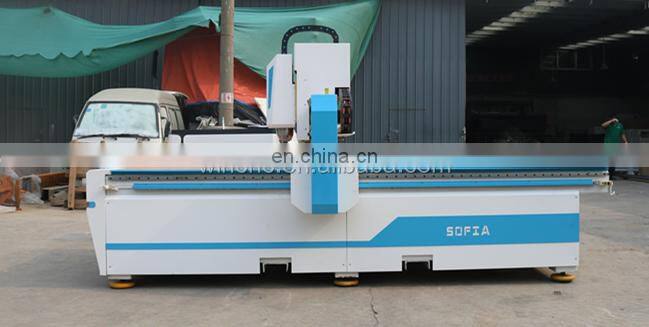

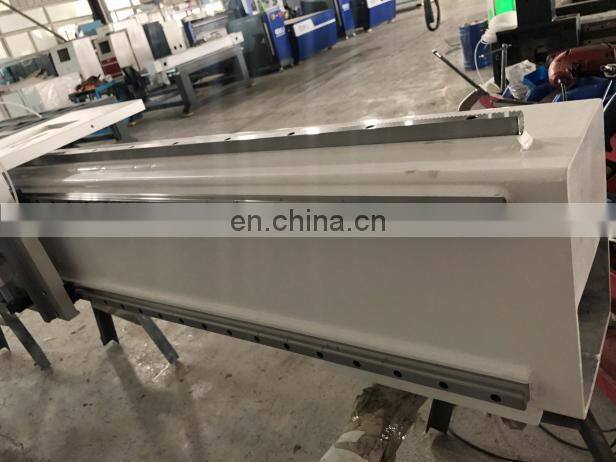

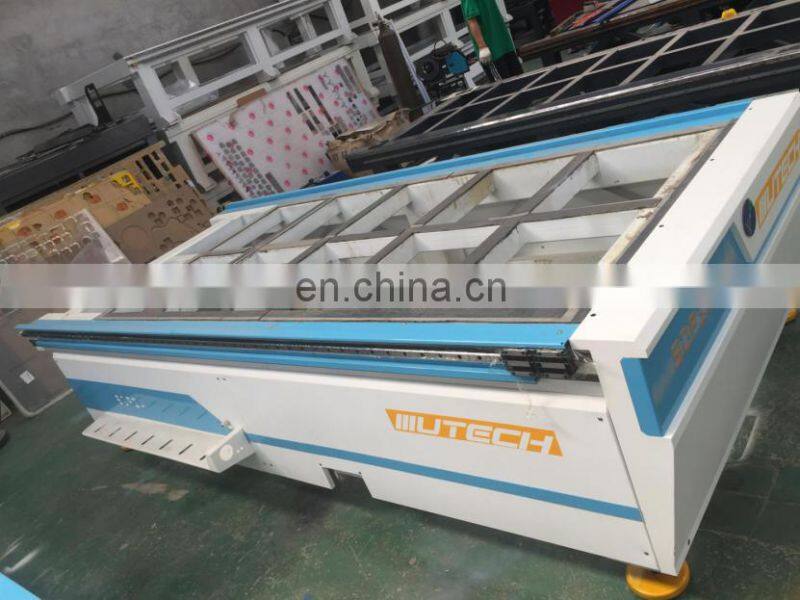

Machine Base Frame

The base frame is fabricated from heavy-duty tubular steel that is welded, precision machined and stress relieved so that the foundation remains true and steady over the operational life of the machine.
Reserved Position for Forklift
Bed welding process increases the reserved forklift, highlights two major advantages: First, increase the strength of the bed itself; Second, it`s more convenient for customers to load or unload the equipment.

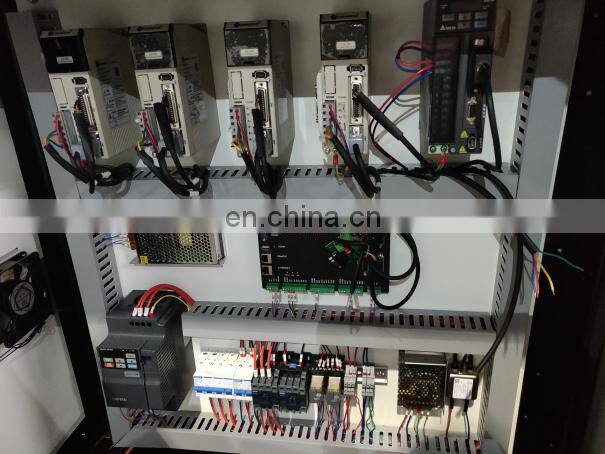

Some parts show inside control cabinet

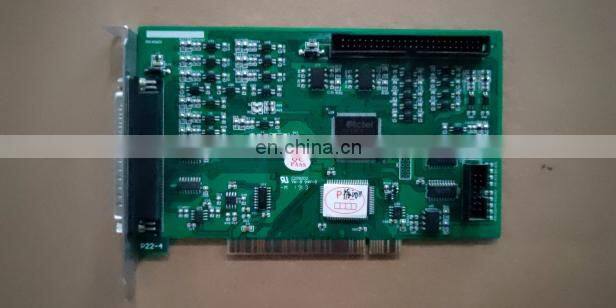

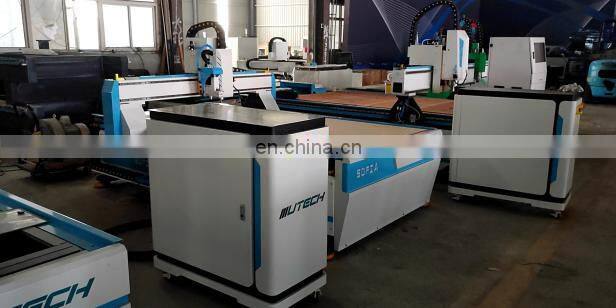

Independent control box


Control System
Equipped Air cooling spindle, Air Spindle extremely high-speed working environment, High-end square air-cooled spindle high accuracy

Anodized Aluminum Spindle Fixing plate


The spindle is fixed on the high quality aviation aluminum T6061/6063 plate, and it is Anodized Aluminum processing, the plate is machined by high precision CNC machining center.

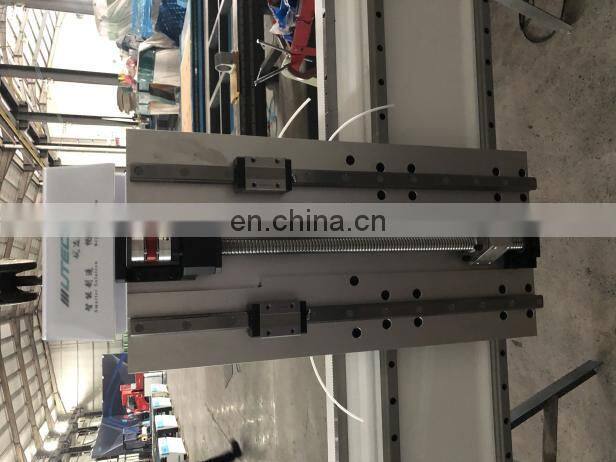

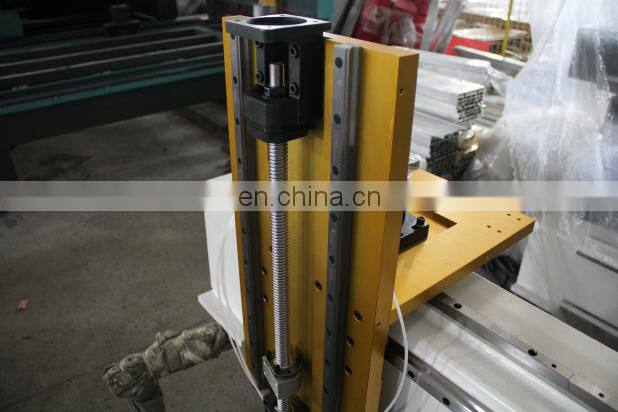

TBI High-Precision Ball-screw Transmission (Taiwan)+Disc coupling

1) Higher efficiency than traditional ball screws. 2) Gothic groove shape, the shaft direction clearance can be adjusted to a minimum and can be easily transferred. 3) The internal circulation method is applicable to many different scenes, and the circulation method is selected according to its own needs. 4) Use rigorous materials, high heat treatment and processing technology to supply durable products.

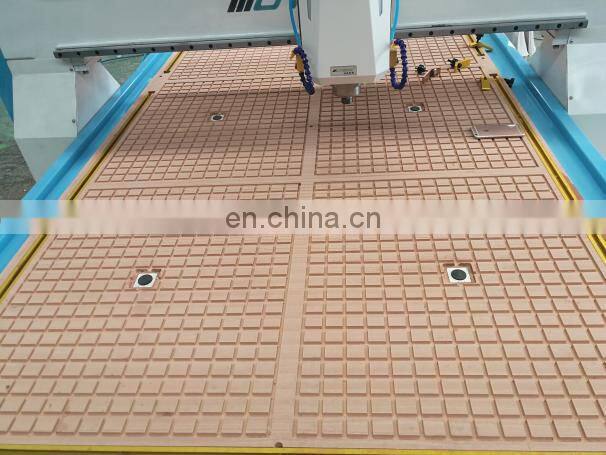

Vacuum+T-slot table
Unique multipurpose bakelite plate vacuum and aluminum clamping bed, with 4-8 adsorption zone, could be independent control to achieve adsorb and clamp. According to customer’s demands, could add more adsorption zones and adsorption holes.

Hiwin/PMI square rail(25/30)

SOFIA choose heavy duty linear guide rail with high assembly Flange sliding block and PMI linear guide. The Y-axis adopts double-row four-column guide rail, with strong bearing force, fast speed, smooth operation, high precision and high life span.

Germany VASTUN/Taiwan J&T gear rack

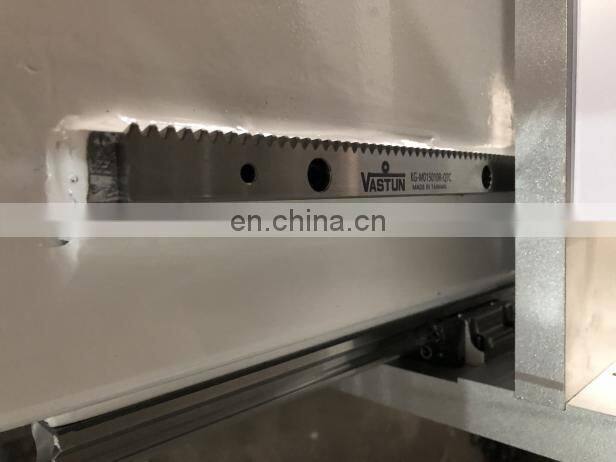

Rack of SOFIA series adopts high-precision 1.25/1.5M helical rack, which is complementary with the professional motor and professional deceleration device, which runs smoothly, high speed, high precision and low noise.

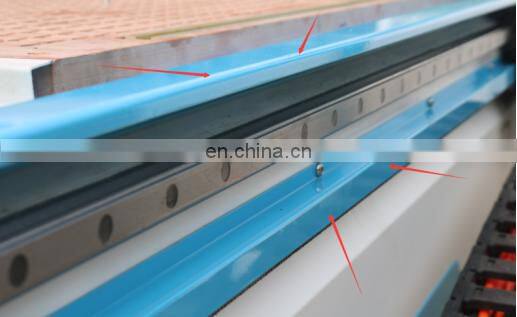

Dust cover for the guide rail and the helical rack gear


Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Japan SHIMPO 1:5/1:10 gear reducer + Leadshine 758 Servo motor&driver
(Delta/YASKAWA/Panasonic)

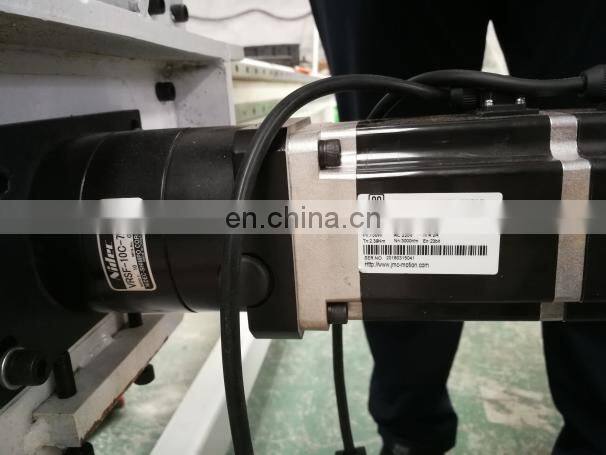

Due to machine with servo motor&driver, then we install Japan SHIMPO 1:10 gear reducer on driving motor, makes the motor is more powerful, and having a longer time service life. The servo motors are installed on all axis to ensure precise positioning of the gantry and the spindle in accordance with a predetermined program at high speed. Hybrid servo or Delta servo motors are well proven high degree of reliability.
Related Products
SESAME-S2 Overseas Type CNC Router
SESAME-S2 Vacuum table
SESAME-S3 Aluminum CNC Router
SESAME CNC Plasma Cutting Machine
Oscillating Knife CNC Cutting Machine
Automatic Tracing-edge CNC Cutting Machine
ATC CNC Router
High Precision&Speed CNC Cutting Machine

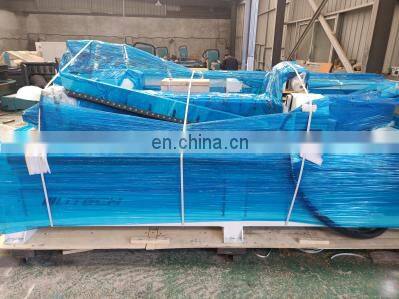

Packing&Shipping

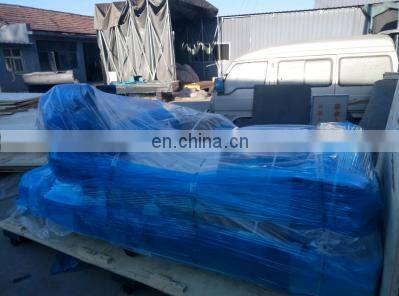

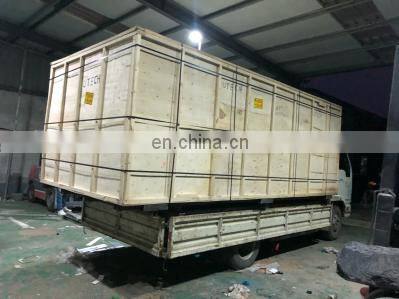

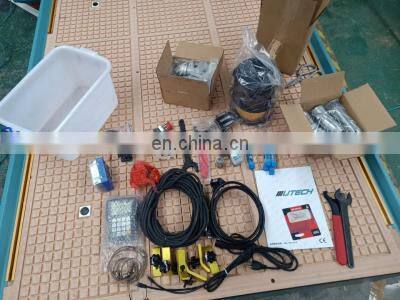

Packaging Detail: water-proof paper on CCD + Oscillating Knife vacuum table 3d wood cnc router 1530 for signs and standard plywood box.
