PCB Drilling CNC Machine 3d Stone Sculpture Cnc Routers Cnc Milling Machine 5 Axis

PCB drilling CNC machine 3d stone sculpture cnc routers cnc Milling Machine 5 Axis

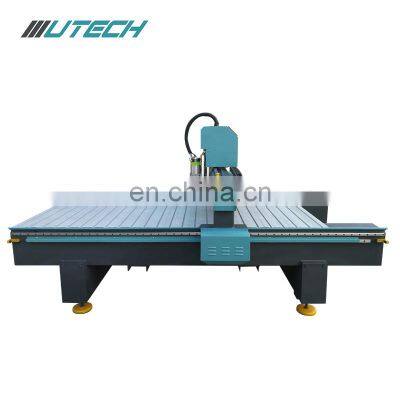

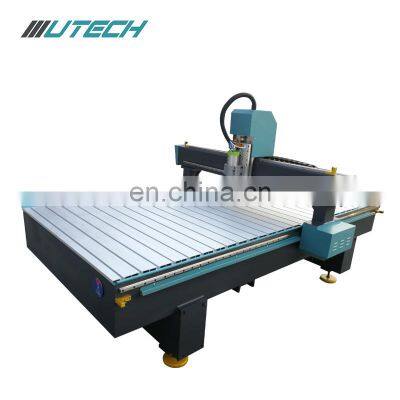

	CNC Router
Model		Sesame
Working area	X axis travel	1300mm
	Y axis travel	2500mm
	Z axis travel	150mm
Worktable size	X axis travel	1220mm
	Y axis travel	2440mm
	Z axis travel	150mm
Transmission device	X axis transmission mode	precision helical tooth gear transmission
	Y axis transmission mode	precision helical tooth gear transmission
	Z axis transmission mode	precision TBI ball screw
Table structure		T-slot table
Travel speed		0-18000mm/min
Driving mode		patent stepper reducer structure
Spindle power		3.2KW Water/Air cooled spindle motor
Spindle speed		0-24000rpm/min
Diameter of cutter		φ3.175-φ12.7mm
Command code		hPGL G-code
Working voltage		AC220V/Hz
Device interface		standard PCI/USB interface Optional
Control system		Nc-studio controller/DSP controller/Mach3 controller
Resolution		0.01mm
Machine size		1935*3015*1500mm
Machine weight		1000kg
Optional parts		machining parts, Utech spindle, etc.
The scope of application		woodworking, furniture, advertising, etc.

Product advantage





Shandong U-MAY CNC Technology CO.,LTD.Specializes in the research, development, production of CNC MACHINE. Our brand "WIN" has a considerable reputation in the domestic similar products, which has been widely used in wooden furniture, advertising,  craft gifts,  packaging and printing,  logo and etc. Our products have been exported to many  countries and regions such as Europe, Russia, Asia, Africa. We are committed to the enterprise management philosophy "Integrity - based, constantly innovation,effective communication,quality services"and the goal of "Technical service customer",but also great attention to product design , manufacture , installation , adjustment. We will still try our best to maintain one stop professional service.

1. As for you mentioned, this kind of machine can be packed with 8 cube, How is it packaged?

Before machine delivery, we’ll dismantle the holder under the lathe bed, when machine arrived, just need use screw install it.

2. If machine has any problem after I ordered it, how could I do?

Free parts send to you in machine warranty period if machine have any problem.

Free after-sales service life for machine, please feel free contact us if your machine have any problem. we will give you 24hours to get latest Price from phone and skype.

3. Does U-MAY have maintenance manual and operation manual?

Each cnc machine leaving the factory will be along with related series or model the English instructions including maintenance manual and operation manual. Attached documentations may also include cnc controller instruction, parts instruction you bought(like rotary, oil cooler)

4. Are you a factory or trading company?

We are a manufacturer&foreign trade corporation with export license.

5. What’s the package?

We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
