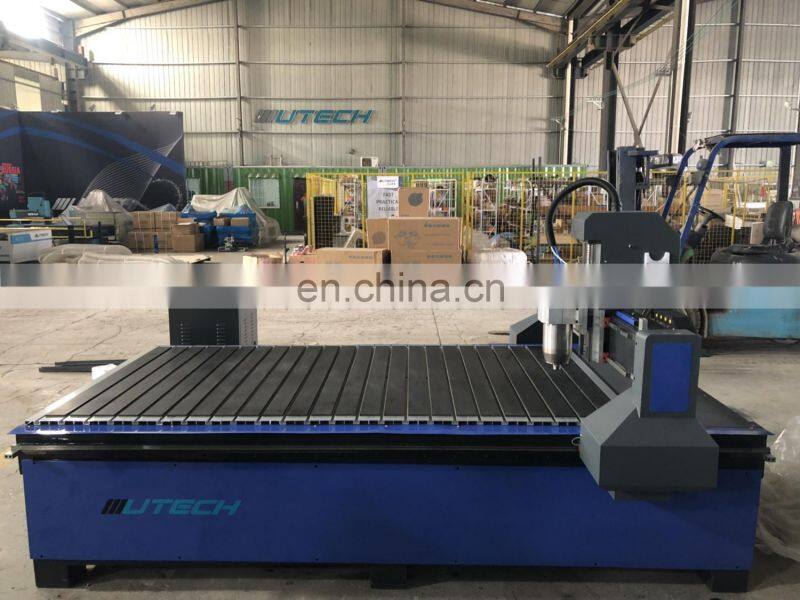

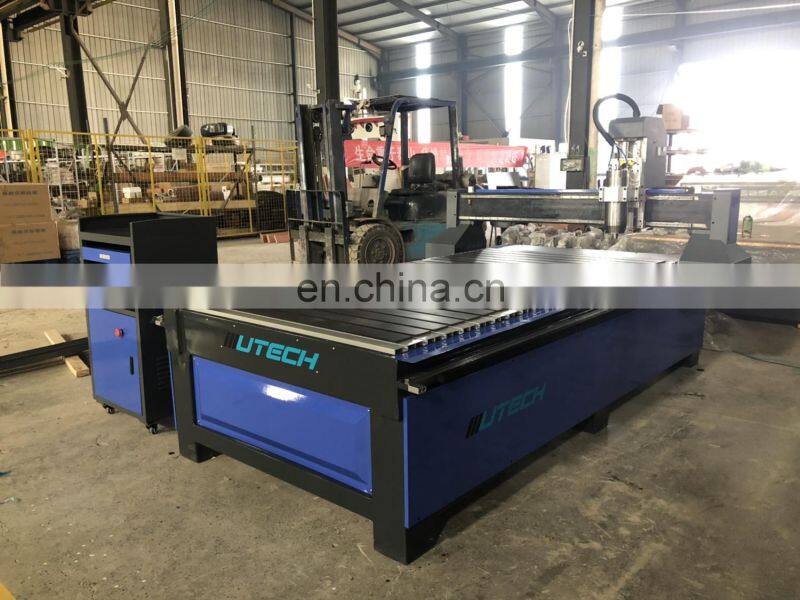

CNC Milling Machine 1325 Router CNC for Wood MDF Soft Metal Aluminum Cooper Cutting Engraving

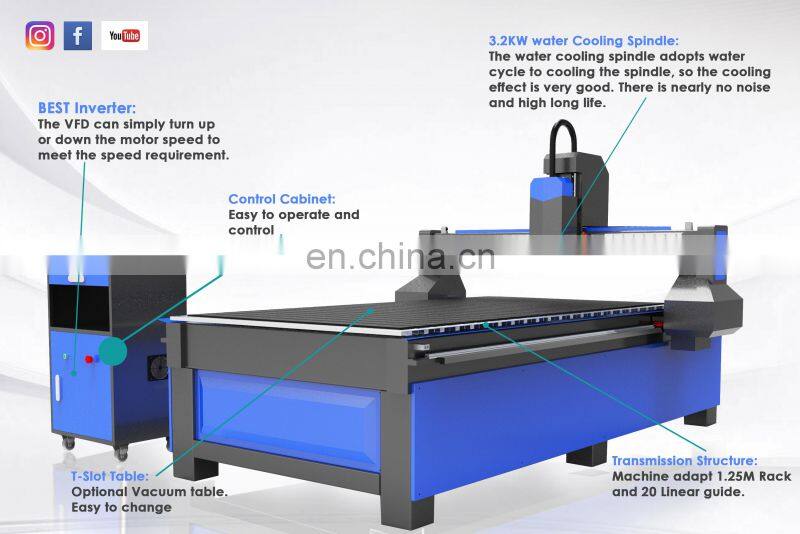

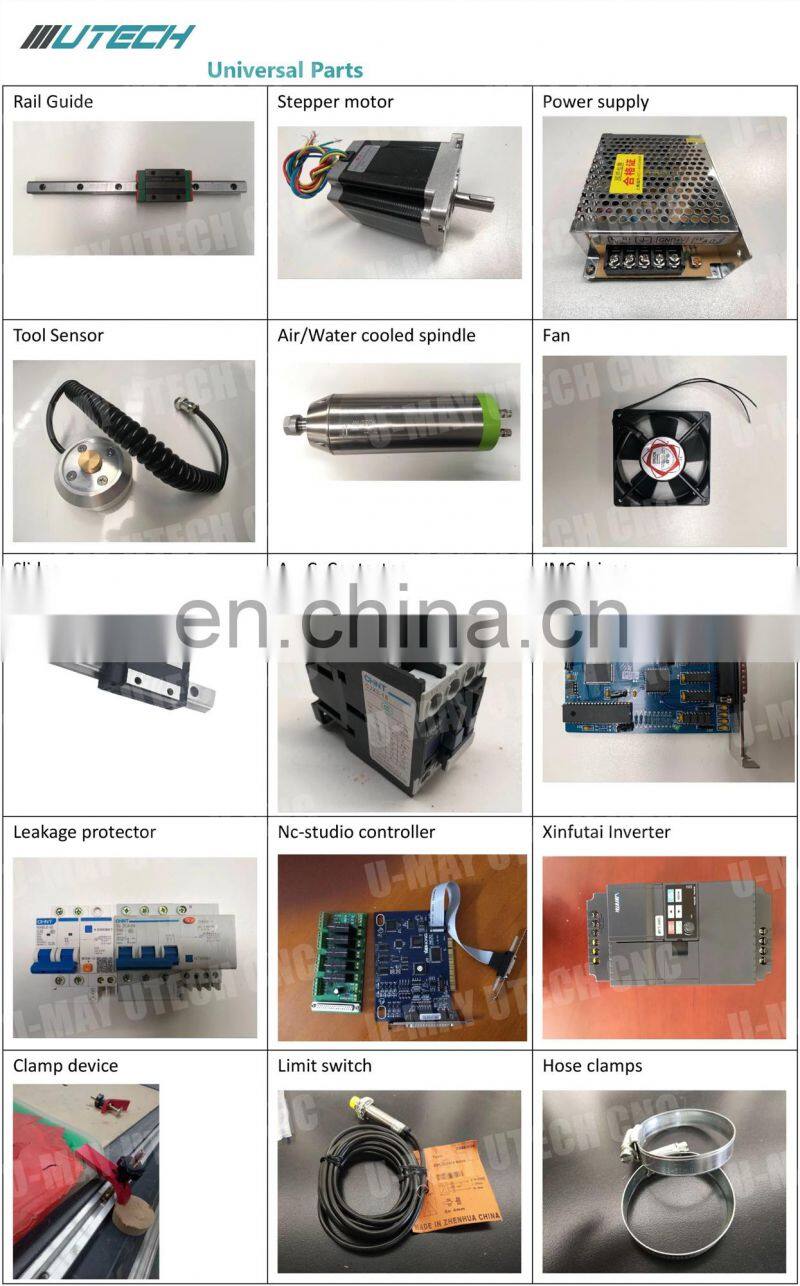

Specifications of KL-1325

(1) 3.2kw water cooled spindle

(2) 1300*2500*200mm

(3) Nc-studio controller

(4) XY axis by gear transmission, Z-axis by Taiwan TBI ball screw

(5) JMC 860 driver, 450B stepper motor

(6) HIWIN/PMT 20mm guide rail

(7) T-slot table

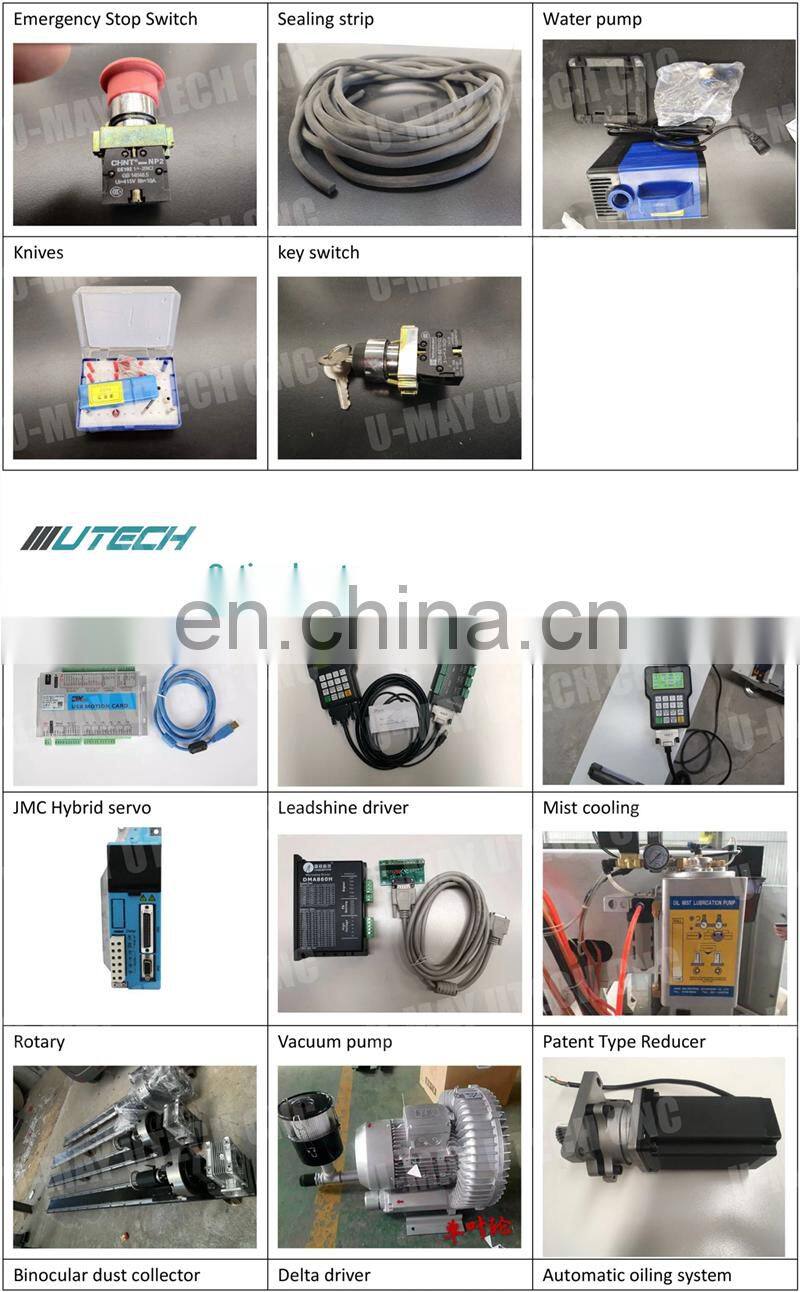

Optional:

(8) Air-cooled spindle

(9) Mach3/DSP controller

(10) Hybrid servo/AC servo

(11) Vacuum table+vacuum pump

(12) Dust collector, configurations, design, size, all could be customized.

	CNC Router
Model		KL
Working area	X-axis travel	1300mm
	Y-axis travel	2500mm
	Z-axis travel	200mm
Worktable size	X-axis travel	1220mm
	Y-axis travel	2440mm
	Z-axis travel	200mm
Transmission device	X-axis transmission mode	precision helical tooth gear transmission
	Y-axis transmission mode	precision helical tooth gear transmission
	Z-axis transmission mode	precision TBI ball screw
Travel speed		0-33000mm/min
Working speed		0-25000mm/min
Table structure		T-slot table(vacuum table optional)
Driving mode		JMC Stepper motor and drive (Hybrid servo optional)
Spindle power		3.2KW Water-cooled spindle motor
Spindle speed		0-24000rpm
Diameter of cutter		φ3.175-φ12.7mm
Command code		HPGL G-code
Working voltage		aC220V/Hz
Device interface		standard PCI/USB interface Optional
Control system		NC-studio controller/DSP controller/Mach3 controller
Resolution		0.01mm

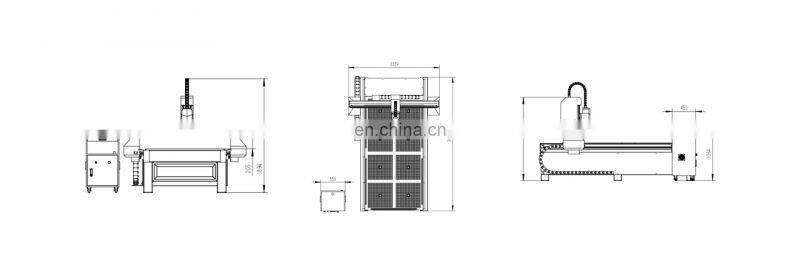

Machine size		3080*2120*1750mm
Machine weight		1200kg
Flash Memory		512M(U Disk)
Collet		ER20 ER25 ER30
Software Compatibility		Type3/Artcam software Ucancam
Running Environment Temperature		0-45 Centigrade
Relative Humidity		30%-75%
Optional parts		servo drive system, vacuum device, vacuum adsorption device, replace high-power spindle motor drive
The scope of application		advertising, furniture, sheet metal processing, handicrafts, decoration, and other industries
Performance characteristics		high strength, easy storage, high speed, complete circuit accessories, automatic knife tool, and so on

The CNC machine is widely used for carving, with a large number of common stone statues, escalators, chair backs, Buddha statues, stair columns, sofas, and table legs, which can complete the carving of many complex products

1: The advertising industry
Cnc router can engrave all kinds of signage,trademark,nameplates,badge,decorative gift,embossed medal,certificate, souvenir,photo frame,furniture decoration.
2: Small-scale woodworking industry
CNC router can be used for solid wood furniture, mahogany furniture, MDF paint door, solid wood door, composite door, cupboard door and window, bedside cabinet, folding screen, etc.
3: The artwork industry
CNC router can process wooden craft, mural art of wood, artwork. embossed, jewelry, cosmetics package, musical instrument.
4: Soft metal processing:
CNC router can process aluminum front panel, pop can, aluminum honeycomb panel, train car and aircraft interior decoration, bronze medal, copper mold.
5: Electronics industry:
CNC router can engrave electronic components, integrated circuits, electronic plastic case, electronic product model, circuit board, electronic Lightbox, computer, and mobile phone keyboard, engraving a variety of electronic products.

Packing:

1/ If machine delivered via LCL, then would be packed with wrapping film, EPE foam, and standard export plywood box.

2/ If machine delivery via FCL, then don't need a wood box, would be packed with wrapping film and EPE foam.

Shipping:

We support machine delivery via express, air transportation, land transportation, and sea transportation.

1/ Such as some small machine, Mini CNC Router or Small CO2 Laser Machine and Fiber Laser Marking Machine, usually delivery via express and air transportation.

2/ If you wanna us to help you deliver to a domestic warehouse or Russia, Kazakhstan, etc, usually delivered via land transportation.

3/ Large machines or some countries where shipping is more convenient, usually suggest choosing sea transportation.

You can choose any way you'd prefer, we also will give you some proper suggestions.

1. What kind of guarantee do you offer on your professional range of CNC routers?
We offer a full 24 months back to base warranty on the router CNC and relevant manufacturers warranty on 3rd party add ons. This covers electrical and mechanical parts under 'normal use'. Please see a list of our terms and conditions.

2. How do you send your CNC wood router?
They are firstly greased thoroughly and packaged in a free-fumigation wooden crate. Usually, we send machine by ship, sometimes, as customer's requirement, send by air or by train. When the goods arrive at your seaport or destination, you can pick up goods with the bill of lading we offered. Or we can arrange for the cargo agent to send goods to your door.

3. I want a size that you don`t make as standard, is this possible?
Absolutely, we design and manufacture everything ourselves and indeed do many custom builds.

4. I am new to CNC, how difficult are your machines to operate?
We help a lot of beginners in CNC if you have a reasonable knowledge of computers and are willing to spend a little time learning it is not that bad. Quite often when we sell a machine we send the manual out before the machine is ready for the customer to read ahead.

5. Does the machine comes with software?
Yes, we offer Type3, ArtCAM software with the machine, so it will be more convenient for you to operate the machine.

6. How do you make the machine to cut parts? Is it easy?
CNC Controller, the motion control software we use, is based on standard G-codes. The G-codes provide a source code comprised of inches and axis movements which can be edited and understood by others. Most CAM packages will generate G-codes from the drawings you create. What you need is to create the program from CAM software.

7. Do you offer training about products?
Yes, we can assign a technician to arrive at your company for the training at some charge, and accommodation, food, tickets will be charged.

8. Are there any machines in my area I can observe?
Our machines in many countries, if there is our machine in your country, we can contact the customer to arrange a visit for you.
