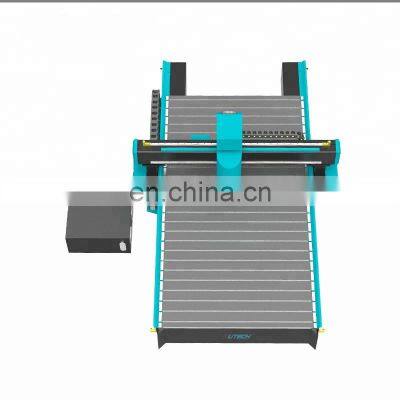

Hobby Cnc Plasma Cutter 1325 18mm Carbon Steel Plasma Cutting Machine Metal Plasma Cutter Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
1993
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Precision Stepping Motor Mini Desktop Cnc Wood Router For Wood Acrylic Stone Metal Engraving MachineNegotiableMOQ: 1 -
1325 UTECH Sofia ATC Arving Wood MDF Cutting Machines Cnc RouterNegotiableMOQ: 1
-
CS Fiber Laser Cutting Machine for Carbon Steel/stainless Steel 500W 750W 1000w 1500w 2000w 3000w OptionalNegotiableMOQ: 1
-
Fiber Laser Marking Machine for Stainless Steel Color Making 200*200mm Desktop Laser Marking Machine 30W Fiber Laer EngraverNegotiableMOQ: 1
-
High Speed Fiber Laser Marking Machine for Stainless Steel 0.2mm Black Color Making 200*200mm Portable Laser Marking MachineNegotiableMOQ: 1
Stainless Steel Sheet Metal Frame Cnc Plasma Machine 20mm CNC Desk Type CPL Series cnc plasma cutters
Working size: 1212, 1325, 1525, 1530, 2030 etc.
Plasma power: 45A, 63A, 65A, 85A, 100A, 120A, 160A, 200A etc.
Product Description
UTECH CNC Plasma Cutting Machine's characteristics
(1) Welded thick-walled steel structure, after special treatment, no distortion for the whole structure high precision, and long
service life time.
(2) Cutting system use Beijing Starfire system/ Start system/ FLMC-2300A or DSP system; Equipped with automatic height controller (THC controller), which can according to your material planeness, cutting head can automatically stable, and fast adjust.
(3) Taiwan HIWIN linear rail, ensure vertical section, more precision.
(4) Suitable software: Artcam/ Fastcam/ Starfire etc.
(5) FASTCAM programming software based on AutoCAD automatic programming and material system.
(6) FASTCAM is designed for all kinds of NC cutter with cutting software, the software can help the user completing various complex parts drawing, programming, material, using convenient, also bring the obvious economic benefit.
(7) If you cut thick material, according to actual use, we’ll add water tank for you for free, to absorbs a large amount of smoke generated during cutting.
(8) Machine could be customized, whatever specifications, appearance, etc. Any request you’ve, could tell us directly.
service life time.
(2) Cutting system use Beijing Starfire system/ Start system/ FLMC-2300A or DSP system; Equipped with automatic height controller (THC controller), which can according to your material planeness, cutting head can automatically stable, and fast adjust.
(3) Taiwan HIWIN linear rail, ensure vertical section, more precision.
(4) Suitable software: Artcam/ Fastcam/ Starfire etc.
(5) FASTCAM programming software based on AutoCAD automatic programming and material system.
(6) FASTCAM is designed for all kinds of NC cutter with cutting software, the software can help the user completing various complex parts drawing, programming, material, using convenient, also bring the obvious economic benefit.
(7) If you cut thick material, according to actual use, we’ll add water tank for you for free, to absorbs a large amount of smoke generated during cutting.
(8) Machine could be customized, whatever specifications, appearance, etc. Any request you’ve, could tell us directly.
Plasma cutting head
1/ Including control box for adjusting height, photoelectric switch and limit switch. 2/ Adjust the distance automatically as the different materials. 3/ The sensor can induce the surface automatically.

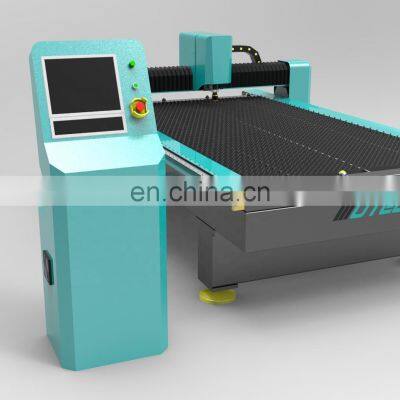

Starfire control system+THC Arc voltage regulator
1/ Constituent part: Control system: Beijing Starfire control system, Beijing Start controller, DSP controller, FLMC etc.
Plasma and Flame head also with different choice, according to your work and request, we'll give you proper suggestions. 2/ Z axis up-down lifting system: Shenzhen HYD.
Gear transmission+Taiwan HIWIN rail guide
XY axis by gear rack transmission, HIWIN rail guide to make machine higher precision, faster cutting speed, more bettre cutting performance.
Plamsa power supply
Here're two hot types power supply, one is Chinese Huayuan power supply, the other is America Hypertherm power supply. You can choose any brand according to your using habit and budget, local place's voltage.

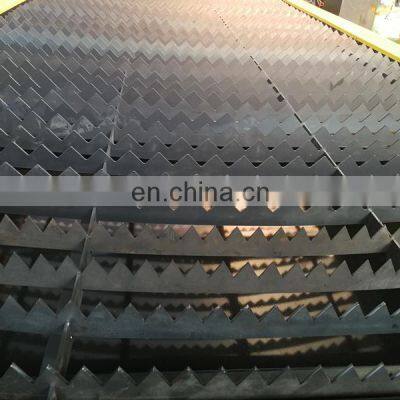

Machine table
Plasma table has two types, one is flat cutting table, the other is sawtooth cutting table. UTECH plasma usually adopt 5mm thick sawtooth table. It also depends on your request, all could be customzied.
Motor&driver
Two types of motor&driver for choosing: 1) Stepper motor&driver 2) Panasonic servo motor&driver Whole machine with three sets motor&driver, brand could be customized.
Split structure
Machine legs and machine body could be splitted freely, then could help you save much space and shipping freight. A 20GP container could accommodate 6 sets machine.
You can choose to disassemble or not disassemble according to your personal needs during transportation. The installation is also very simple. We will provide the installation video for your reference.
Water pipe
Whole machine with a piece water pipe, connect with cutting nozzle.
Fastcam software
FASTCAM is designed for all kinds of NC cutter with cutting software, the software can help the user completing various complex parts drawing, programming, material, using convenient, also bring the obvious economic benefit.
Exhaust fan(optional)
For absorb the smoke from cutting, here're two ways, one is add water table, it could adsorb smoke above the table; the other way is add exhaust fan, it could adsorb smoke under the table.
Packaging & Shipping
Packing:
1/ If machine delivery via LCL, then would packed with wrapping film, EPE foam, and standard export plywood box.
2/ If machine delivery via FCL, then dont need wood box, would packed with warpping film and EPE foam.
Shipping:
We support machine delivery via express, air transportation, land transportation and sea transportation.
1/ Such as some small machine, Mini CNC Router or Small CO2 Laser Machine and Fiber Laser Marking Machine, usually delivery via
express and air transportation.
2/ If you wanna us help you delivery to domestic warehouse or Russia, Kazakhstan etc, usually delivery via land transportation.
3/ Large machine or some countries where shipping is more convenient, usually suggest choose sea transportation.
You can choose any way you'd prefer, we also will give you some proper suggestions.
Shandong U-MAY CNC Technology CO., LTD. Specializes in machinery R&D, development, production. Our "UTECH" brand CNC Router has occupied CNC Router market with absolute advantage. Since the establishment of our company has been committed to professional CNC Router research and development production. We adhere to the "integrity-based, innovative products, effective communication, quality service" for the company's purpose, "technical service customers" based team spirit, and formed a complete set of one-stop service system for design, installation, commissioning, training and maintenance . 1. Independent research and development of High Precision&Speed CNC Cutting Machine. 2. The industry's first electronically controlled fully automated start-stop device. 3. The whole machine thermal aging treatment. 4. High precision T6 aviation aluminium profile machined parts. 5. Humanized design concept. 6. High Engraving processing efficiency, smooth cutting edge, good processing quality. Smart Solution, Better Tomorrow!
