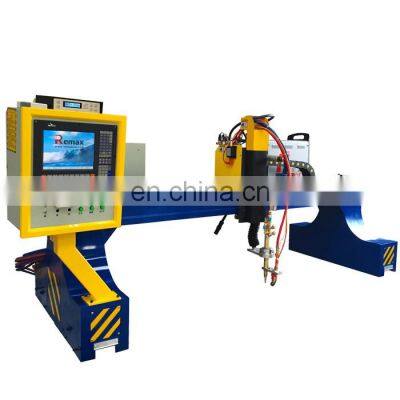

Jinan Heavy Gantry Cnc Plasma Cutting Machinery Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
1993
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Table Type Cnc Pipe and Sheet Plasma Cutting Machine Remax 1325NegotiableMOQ: 1 -
3050 Remaxcnc CNC Gantry Plasma Cutting MachineNegotiableMOQ: 1
-
Economical Gantry Cnc Plasma and Flame Steel Cutting MachineNegotiableMOQ: 1
-
Remax Cnc Plasma Cutters Gantry Cnc Plasma Cutting Machine for Metal CuttingNegotiableMOQ: 1
-
Remax 1530 Pipe Plasma Cutting Machine Cnc Plasma Cutting TableNegotiableMOQ: 1
Parameter
No |
Description |
Parameter |
1 |
Effective Cutting Width (X axis) |
1300mm |
2 |
Effective Cutting Length (Y axis) |
2500mm |
3 |
Plasma power |
Hypertherm |
4 |
Electrical components |
Schneider |
5 |
Control system |
Beijing STARFIRE |
6 |
Plasma cutting speed |
50-6500 mm/min |
7 |
Cutting torch lifting distance |
150mm |
9 |
Speed setting error |
≤±5% |
10 |
Max Idle running speed |
12000mm/min |
11 |
Torch height controller accuracy |
≦±1.0mm |
12 |
Longitudinal line accuracy |
±0.2mm/10m |
13 |
Motor and driver |
stepper motor and YAKO driver |
14 |
Gearbox |
Hubei planet |
15 |
Drive Method |
Rack and square rails for x YZ axis |
16 |
Moving Precision |
0.01mm per step |
17 |
Power Source |
380v 50/60Hz |
18 |
Height controller(plasma) |
HYD Torch height controller for plasma cutting |
19 |
Plasma cutting thickness |
Depends on power supply |
20 |
side length (Four sides) |
1000mm x1000mm |
21 |
Lineation speed, |
500-800mm/min |
22 |
length of a side |
±0.5mm |
23 |
Diagonal error |AD-BC| |
±0.5mm |
24 |
Base point return error |
±0.2mm |
25 |
Intersection point error |
±0.05mm |
26 |
Lineation forward- reverse error |
±0.2mm |
Feature
1.All-welded structure, Y,X axis with rack and linear guide drive,Z axis with electric automaticlifting,to assure cutting speed and quality.
2. Dual drive , stable performance.
3.The set-up is very simple, all kinds of CAD graphics can be read directly by our system troughU-disk.The software can be edict graphics automatically.
4.Collocated U-disk interface and cutting code auto converting software for CAD drawing ,CADdrawing can be input directly into the cutter through U-disk.
5.Tips for each operation is displayed at the screen at any moment ,so operators can use oursystem without being trained or reading the instructions.
6. Collocated indicator lights for various hitches.Hitch diagnosing is clear just at a glance and themaintenance is convenient and quick.
7.There are necessary keys for the movement control in the torch carriage ,so the operator caneasily move the torch to the right spot.
s. With break point or interruption of power ,memory function.
Parts
Company Information
Jinan Remax Machinery Technology Co., Ltd specializes in the development and manufacture of CNCrouter machines, CNC laser machine, CNC plasma cutting machine. Our company sets research anddevelopment, production, sales, maintenance services as a whole,Our products have covered advertisinindustry, woodworking industry, craft gifts, architectural models, electronics, CAD/CAM industry moldindustry, decoration, clothing, packaging, printing, dyeing, logos, seals, etc industries; and because of itsdistinct cost-effective domestic and in various application fields have been completely replacing importedsimilar products. The company will continue to adopt international advanced production technology andproduction processes, development and production of high quality, the high price ratio of numerical contrcequipment, continuing to create maximum value for customers.
Samples
Our Service
A. Pre-Sales Service
1.We have many exhibitions every year， hundreds of clients was coming to our booth for further communication.
2.24-hours online lnquiry and consulting support.
3.Support sample testing .
4.we welcome you to visit our factory.
B.After-Sales Service
1.Training how to install the machine,training how to use the machine online.
2.Engineers available to clients' factory for training.
3.Guarantee for one year
4.24-hour technical support by email or calling
5.User-friendly English manual for machine using and maintaining6.Free technician training for customers.
FAQ
Q1：good reasons why you should buy from us?
A1：1 we are a real factory offering products
2 free technical advice by QUALIFIED MECHANICAL ENGINEERS
3 company in business for many years
4 over 50 countries customers served!
5 buy direct saving your money!
6 all machine with CE, ISO,Bv certificate.
7.Total machine for one year guarantee
8 our engineer can go to your country to provide technical guidance
9 fast delivery, save your time.
Q2:How can l buy this machine from you ? ( very easy and flexible! )
A2:1.Cousult us about this product on line by e-mail.
2.Negotiate and confirm the fianl price,shipping,payment methods and other terms.
3.Send you the proforma invoice and confirm your order.
4.Make the payment according to the method put on proforma invoice.
5.We prepare for your order in terms of the proforma invoice after confirmin yourfull payment.And 100% quality checkbefore shiping.
6.Send your order by air or by sea.
