Low Maintenance Cost Gantry Cnc Plasma Metal Cutting Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
1993
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Jinan Good Price Table Cnc Plasma Cutting MachineNegotiableMOQ: 1 -
Cut Plasma Machine Pipe Cutting Machine Cnc Plasma Pipe CuttingNegotiableMOQ: 1
-
Cnc Iron Steel Plasma Metal Cutter Manufacturer Plasma Cutting Machine Cnc PlasmaNegotiableMOQ: 1
-
China Cnc Plasma Beauty Cutter 1530 Automatic Metal Cutting Machine Price Cnc Plasma Cutting MachineNegotiableMOQ: 1
-
Hot Sale Cnc Table Plasma Metal Cutter Pipe Cutting Machines China Price Portable Cnc 1530 Plasma Cutting MachineNegotiableMOQ: 1
Parameter
No | Description | Parameter |
1 | Effective Cutting Width( X axis) | 3000mm |
2 | Effective Cutting Length( Y axis) | 6000mm |
3 | Drive Mode | Bilateral-side |
4 | CNC System | Beijing START CNC |
5 | Plasma cutting speed | 50-6500mm/min |
6 | Cutting torch lifting distence | 150mm |
7 | Speed setting error | ≤±5% |
8 | Max ldle running speed | 12000mm/min |
9 | Torch height controller accuracy | ≤±1.0mm |
10 | longitudinal line accuracy | ±0.02mm/10m |
11 | Motor and driver | stepper motor and driver |
12 | Gearbox | Hubei planet |
13 | Drive Method | Rack and square rails for X Y Z axis |
14 | Moving Precision | 0.01mm per step |
15 | Power Source | 380V 50/60Hz |
16 | Height controller(plasma) | HYD THC |
17 | Plasma cutting thickness | Depends on power supply |
18 | length of a side | ±0.5mm |
19 | Diagonal error |AD-BC| | ±0.5mm |
20 | Base point return error | ±0.2mm |
21 | Intersection point error | ±0.5mm |
22 | Lineation forward-reverse error | ±0.2mm |
Feature
1 All-welded structure,Y,X axis with rack and linear guide drive,Z axis with electric automatic lifting, to assure cutting speed and quality.
2 Dual drive,stable performance.
3 The set-up is very simple,all kinds of CAD graphics can be read directly by our system trough U-disk.
The software can be edict graphics automatically.
4 Plate plasma cutting machine Collocated U-disk interface and cuttting code auto converting software for CAD drawing,CAD drawing can be input directly into the cutter through U-disk.
Parts

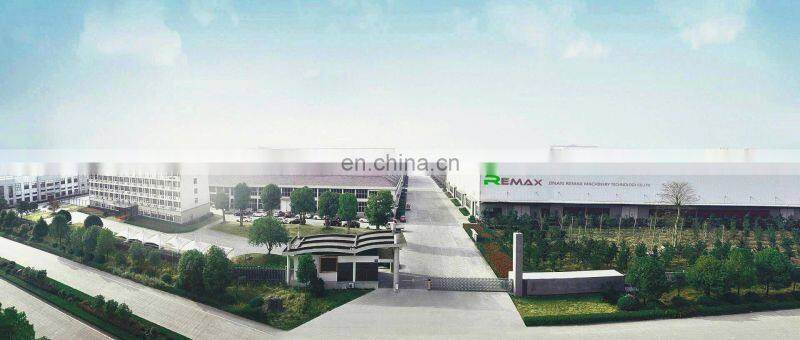

Company Information
Jinan Remax Machinery Technology Co., Ltd specializes in the development and manufacture of CNCrouter machines, CNC laser machine, CNC plasma cutting machine. Our company sets research anddevelopment, production, sales, maintenance services as a whole,Our products have covered advertisinindustry, woodworking industry, craft gifts, architectural models, electronics, CAD/CAM industry moldindustry, decoration, clothing, packaging, printing, dyeing, logos, seals, etc industries; and because of itsdistinct cost-effective domestic and in various application fields have been completely replacing importedsimilar products. The company will continue to adopt international advanced production technology andproduction processes, development and production of high quality, the high price ratio of numerical contrcequipment, continuing to create maximum value for customers.

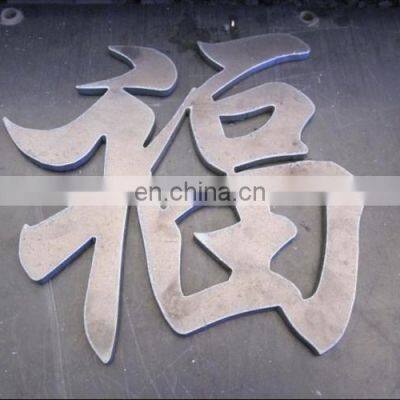

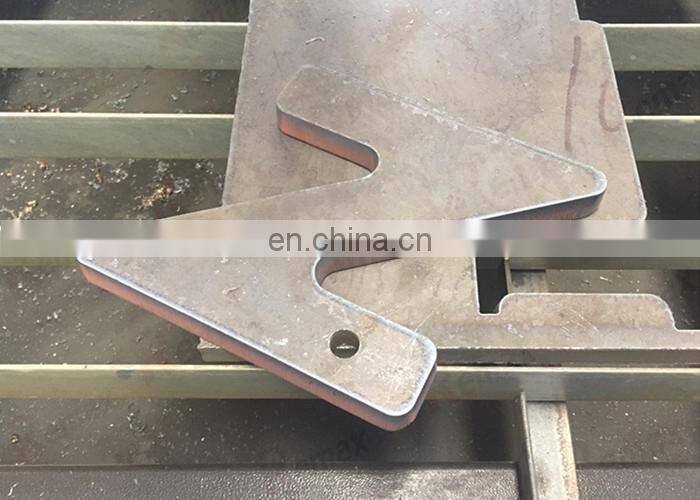

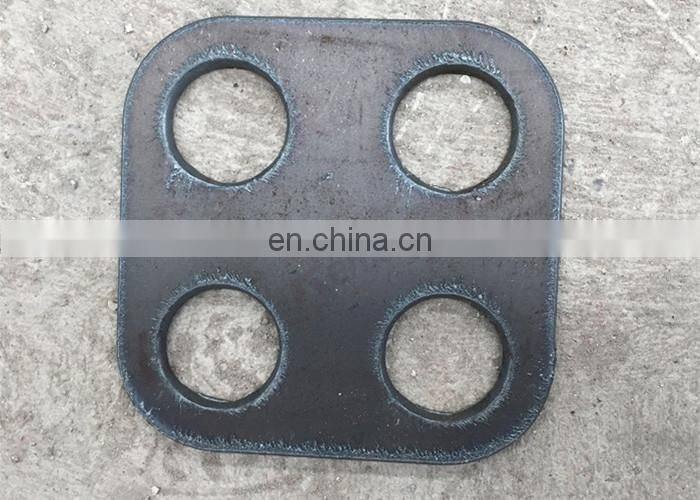

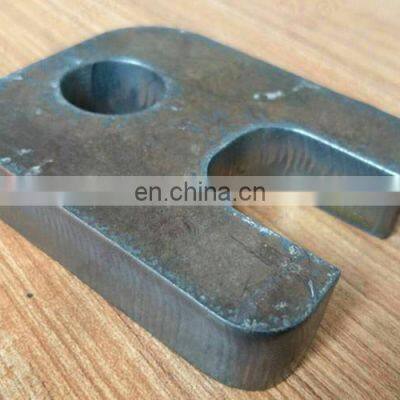

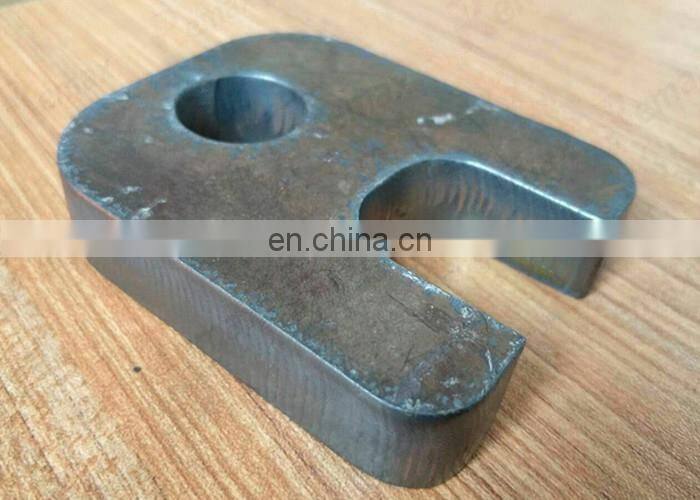

Samples
Our Service
A Guarantee:
12 months for the whole machine.
Within 12 months under normal use and maintenance,if something is wrong with machine,you will get spare part for free.
Out of 12 months,you will get spare part at cost price.
You will also get technical support and service all the lifetime.
B Technical support:
1,Technical support by phone,email or MSN/Skype 24 HOURS
2,Friendly English version manual and operation video CD disk.
3,Engineer available to service machinery overseas.
C After sales services:
Normal machine is property adjusted before dispatch.
You will be able to use the machine immediately.
You will be able to get free training advice towards our machine in our factory.
You will also get free suggestion and consulting,technical support and service by email/fax/tel and lifetime technical support.
FAQ
Q1：1.l need a plasma machine, can you give me some suggestions?
A1：Sure, we will give suggestions of the most suitable machine,before that we need to know some informations such as effective processing area, materials etc. to make sure mainparameters.
Q 2:This is the first time l use this kind of machine, is it easy to operate?
A2:There are english manual or teaching video that show how to use machine.lf there is still have any question, please contact us by e-mail / skypel phone /trademanager online service at any time.
