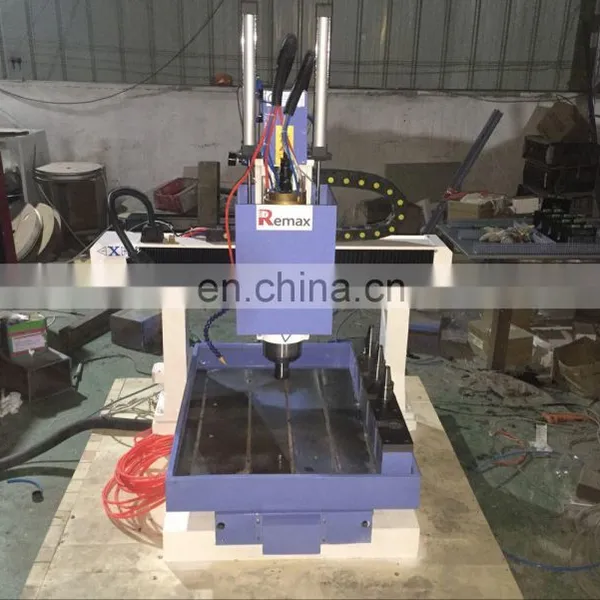

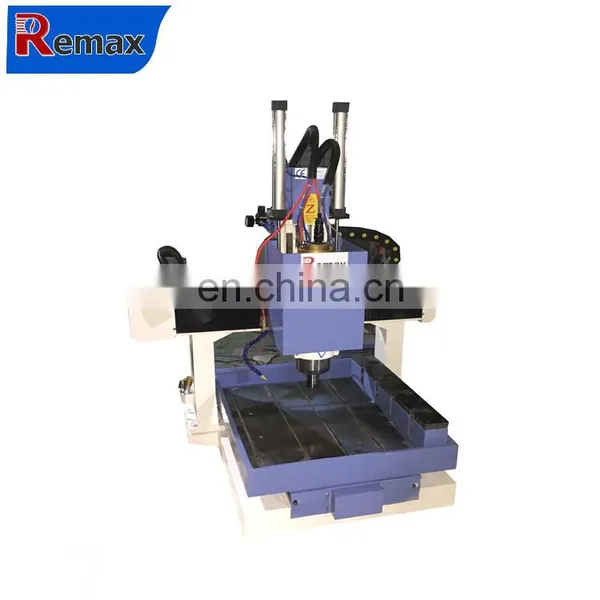

mini tool changer cnc router Remax cnc metal mould 6070 atc with servo motor
Features:
1. Mini cnc router is equipped with italian famous brand ATC spindle.
2. The work table is 600 * 700mm.
3. It offers a maximum working height of 500 mm
4. Its idle speed can reach 60 m / min and its machining speed can be up to 30 m / min.
5. Equipped with an ATC tool box of 6 tools that accelerates tool change speed.
6. The maximum speed of rotation is 24000rpm / min.
7. Ideal for complex machining process. It is designed for machining various parts in small quantities.
8. It treats a complete sheet of board without additional sawing. Also suitable for machining the sample.
9. Delivery with vacuum system and German Becker vacuum pump .
10. It has a YASKAWA servo system and a SYNTEC control system.
Parameters:
|
Model |
Remax-6070 linear type atc cnc router |
|
X,Y,Z Working Area |
600*700*300mm |
|
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
|
X,Y,Z Repositioning Accuracy |
±0.03mm |
|
Table Surface |
Aluminum table or vaccum absorption |
|
Frame |
At least 5 mm thick welded steel pipe |
|
X, Y Structure |
Rack and Pinion Transmission |
|
Z Structure |
HIWIN linear rail guide and TBI Ball Screw |
|
Max. Power Consumption |
(Without Spindle) 3.0kw |
|
Max. Rapid Travel Rate |
60000mm/min |
|
Max. Working Speed |
30000mm/min |
|
Spindle Power |
5.5kw HQD water cooling spindle |
|
Spindle Speed |
0-24000RPM |
|
Drive Motors |
YASKAWA servo motor and driver |
|
Working Voltage |
AC380V/50/60Hz,3PH (Option: 220V) |
|
Command Language |
G Code |
|
Operating System |
NK260 system for option |
|
Computer Interface |
USB |
|
Flash Memory |
2G(U Disk) |
|
Collet |
ER 32 |
|
X,Y Resolution |
<0.02mm |
|
Software Compatibility |
Type3/ARTCAM/CAXA |
|
Running Environment Temperature |
0 - 45 Centigrade |
|
Relative Humidity |
30% - 75% |
|
Inverter |
Delta |
|
Vacuum pump |
5.5 kw or 7.5kw |
|
Limit switch |
OMRON |
|
Driver |
YASKAWA |
A Guarantee:
12 months for the whole machine.
Within 12 months under normal use and maintenance,
If something is wrong with machine, you will get spare part for free;
Out of 12 months, you will get spare part at cost price.
You will also get technical support and service all the lifetime.
B Technical support:
1.Technical support by phone, email or MSN/Skype 24 HOURS.
2.Friendly English version manual and operation video CD disk.
3.Engineer available to service machinery overseas.
C After sales services:
Normal mashine is properly adjusted before dispatch.
You will be able to use the machine immediately.
You will be able to get free training advice towards our machine in oue factory.
You will also get free suggestion and consulting,technical support and service by email/fax/tel and lifetime technical support.

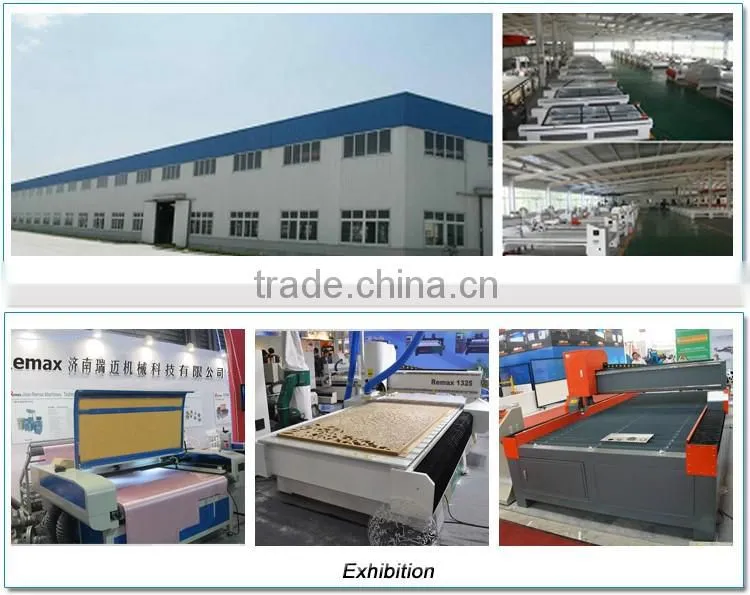

Jinan Remax Machinery Technology Co.,LTD is a professional cnc router manufacturer, after ten years of efforts, our company already independent R&D and manufacture of molds engraving and milling machine, large CNC woodworking engraving machine, woodworking engraving and milling machine, CNC advertising engraving machine, CNC stone engraving machine, CNC linear and disk auto tool changer machines, CNC plasma cutter machines, laser cutting and engraving machine, laser cutting machine, metal laser cutting machine(YAG and Fiber), laser seal engraving machine, styrofoam machining centers etc machines, since the establishment of our company, with professional technology and advanced management concepts, the rapid rise in the field of Numerical Control, has developed into research and development, production and sales of high-tech enterprises, the products have been widely used in the advertising industry, woodworking industry, craft gifts, architectural models, electronics, CAD / CAM industry mold industry, decoration, clothing, packaging, printing, dyeing, logos, seals, etc industries; and because of its distinct cost-effective domestic and in various application fields has been completely replace imported similar products, and become the leading companies in the industry.
A This is the first time I use this kind of machine, is it easy to operate?
There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.
B If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period if machine have any problem.
C MOQ ?
The minimum order is 1 set machine, if you order more one time, the price will be better.
D How can I buy this machine from you? ( Very easy and flexible !)
1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
6. Send your order by air or by sea.
E 10 good reasons why you should buy from us?
1. We are a real factory offering products.
2.Free technical business foa many years.
3.Company in busniess for many years.
4.Over 50 countries cuatomers served!
5.Buy direct saving your money!
6.All machine with CE, SO, BV certificate.
7.Machine and spindle warranty 1year.
8.Our enginner can go to your country to provide technical guidance
9.We have phone support in English,if you have any questions,you can call it,
we can give you a best soultion within 24 hours
10.Fast delivery,save your time.
Thank you fou your visiting the product of Remax!
Your success is our business.
