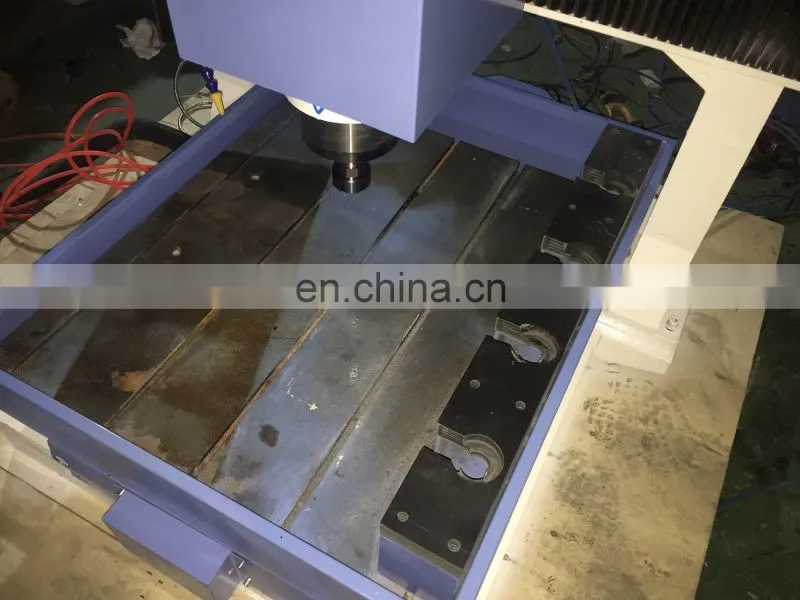

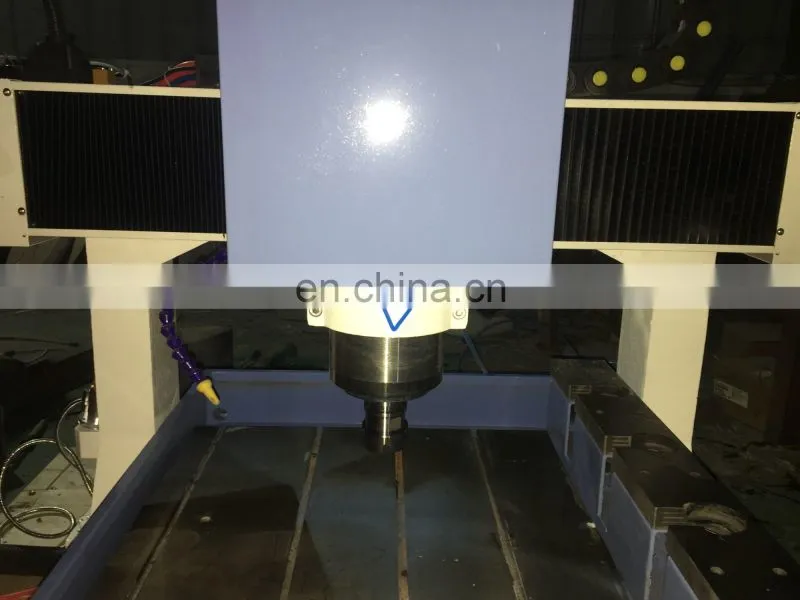

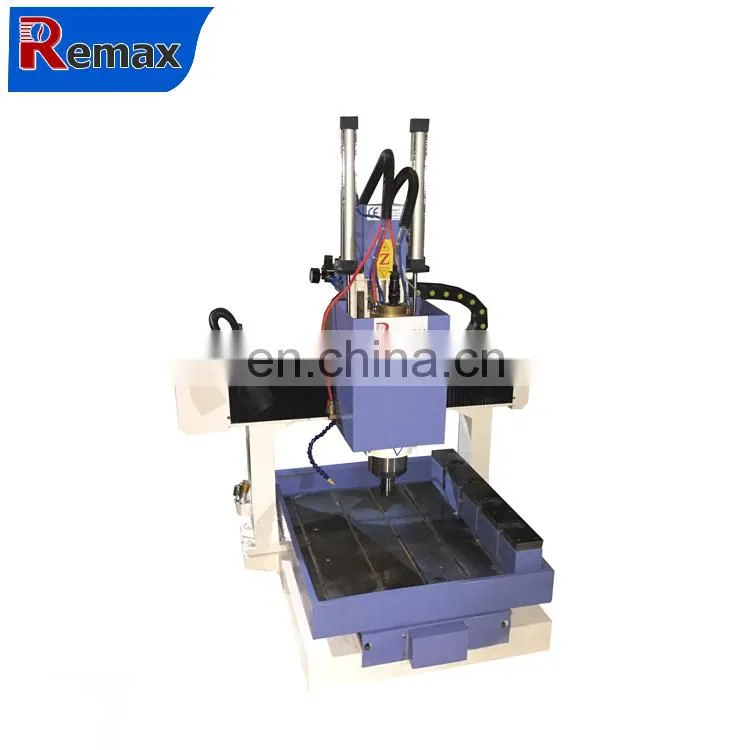

cnc wood router mini auto tool changer cnc router for metal working pvc 6070
Features:
1. cnc mini milling machine is equipped with italian famous brand ATC spindle.

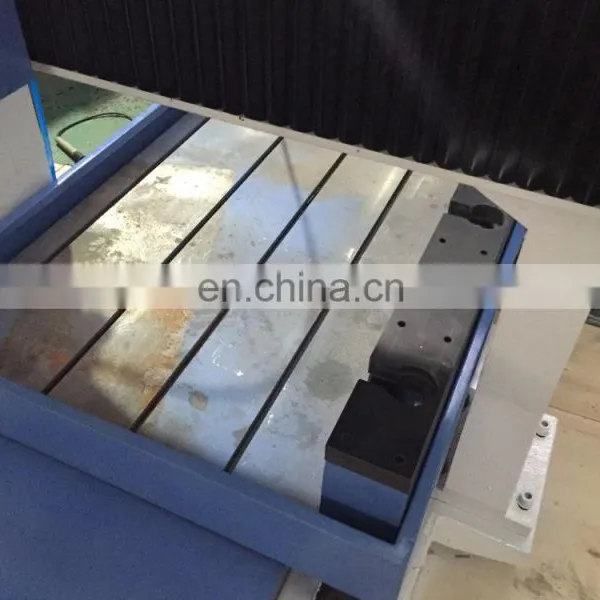

2. The work table is 600 * 700mm.
3. It offers a maximum working height of 500 mm
4. Its idle speed can reach 60 m / min and its machining speed can be up to 30 m / min.

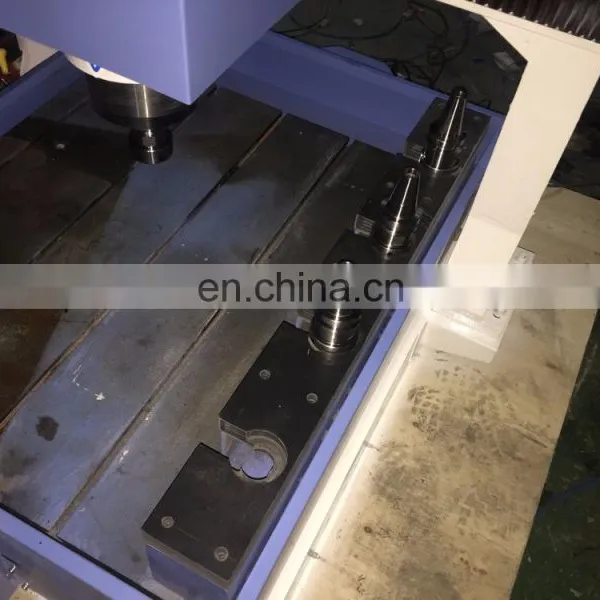

5. Equipped with an ATC tool box of 6 tools that accelerates tool change speed.
6. The maximum speed of rotation is 24000rpm / min.
7. Ideal for complex machining process. It is designed for machining various parts in small quantities.
8. It treats a complete sheet of board without additional sawing. Also suitable for machining the sample.
9. Delivery with vacuum system and German Becker vacuum pump .
10. It has a YASKAWA servo system and a SYNTEC control system.
Parameters:
|
Model |
Remax-6070 linear type atc cnc router |
|
X,Y,Z Working Area |
600*700*300mm |
|
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
|
X,Y,Z Repositioning Accuracy |
±0.03mm |
|

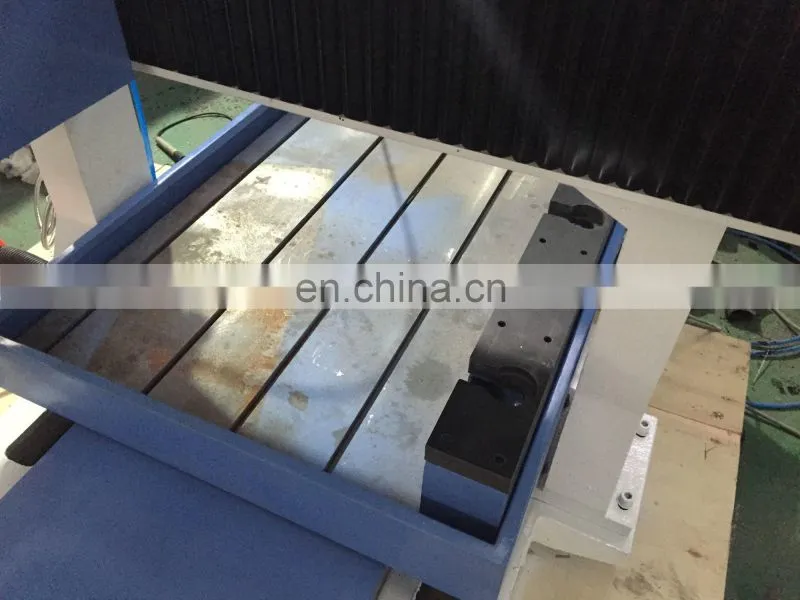

Table Surface |
Aluminum table or vaccum absorption |
|
Frame |
At least 5 mm thick welded steel pipe |
|
X, Y Structure |
Rack and Pinion Transmission |
|
Z Structure |
HIWIN linear rail guide and TBI Ball Screw |
|
Max. Power Consumption |
(Without Spindle) 3.0kw |
|
Max. Rapid Travel Rate |
60000mm/min |
|
Max. Working Speed |
30000mm/min |
|
Spindle Power |
5.5kw HQD water cooling spindle |
|
Spindle Speed |
0-24000RPM |
|
Drive Motors |
YASKAWA servo motor and driver |
|
Working Voltage |
AC380V/50/60Hz,3PH (Option: 220V) |
|
Command Language |
G Code |
|
Operating System |
NK260 system for option |
|
Computer Interface |
USB |
|
Flash Memory |
2G(U Disk) |
|
Collet |
ER 32 |
|
X,Y Resolution |
<0.02mm |
|
Software Compatibility |
Type3/ARTCAM/CAXA |
|
Running Environment Temperature |
0 - 45 Centigrade |
|
Relative Humidity |
30% - 75% |
|
Inverter |
Delta |
|
Vacuum pump |
5.5 kw or 7.5kw |
|
Limit switch |
OMRON |
|
Driver |
YASKAWA |
Products Name with link 91.8% Response Rate

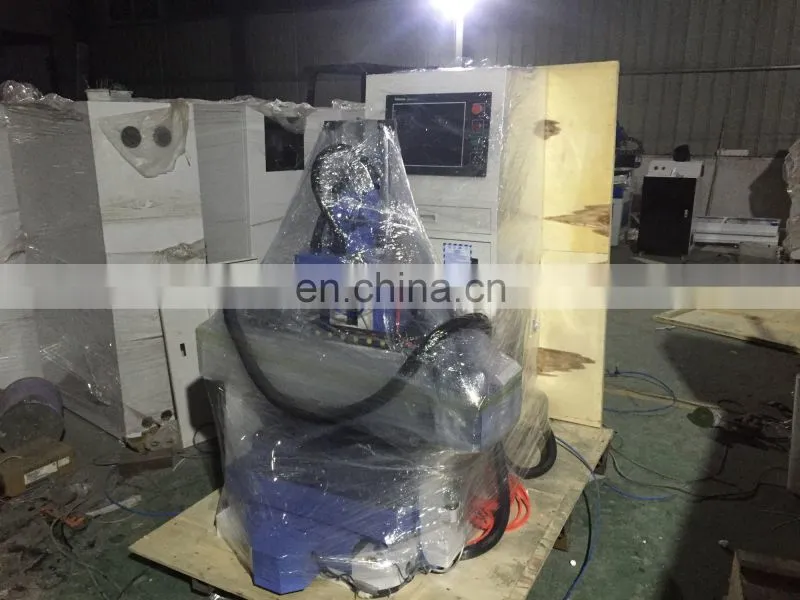

Packaging Details

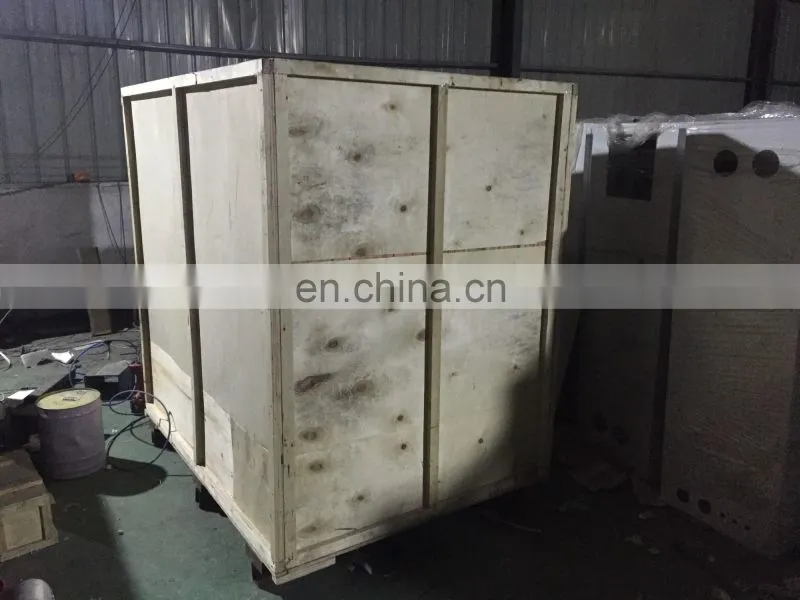

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
A Guarantee:
12 months for the whole machine.
Within 12 months under normal use and maintenance,
If something is wrong with machine, you will get spare part for free;
Out of 12 months, you will get spare part at cost price.
You will also get technical support and service all the lifetime.
B Technical support:
1.Technical support by phone, email or MSN/Skype 24 HOURS.
2.Friendly English version manual and operation video CD disk.
3.Engineer available to service machinery overseas.
C After sales services:
Normal mashine is properly adjusted before dispatch.
You will be able to use the machine immediately.
You will be able to get free training advice towards our machine in oue factory.
You will also get free suggestion and consulting,technical support and service by email/fax/tel and lifetime technical support.
Cooperation
Certifications
A This is the first time I use this kind of machine, is it easy to operate?
There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.
B If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period if machine have any problem.
If the parts less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
C MOQ ?
The minimum order is 1 set machine, if you order more one time, the price will be better.
D How can I buy this machine from you? ( Very easy and flexible !)
1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
6. Send your order by air or by sea.
