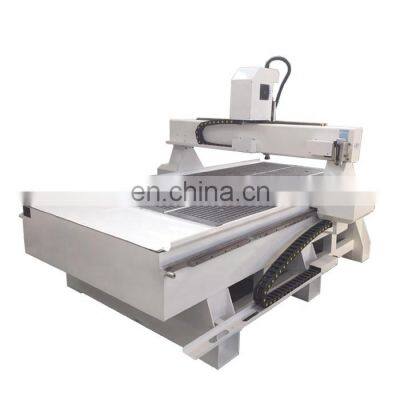

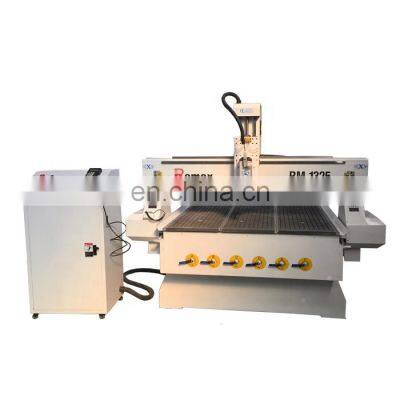

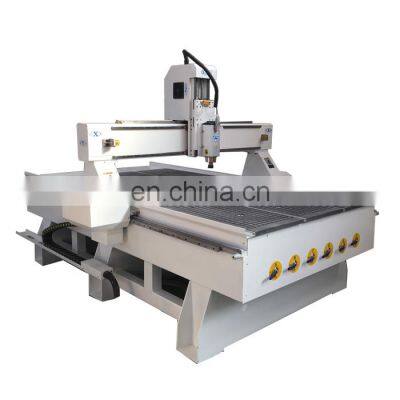

Remax high speed woodworking router cnc engraving machine/Cnc router for wood, plastic, acrylic, aluminum, stone
We are manufacturer and specialized in cnc router . We will provide you with high-quality technical support and good after-sales service.
Parameter:
|
NO. |
Description |
Parameter |
|
1 |
X,Y,Z Working Area |
1300x2500x200mm ,4000x2000x200mm |
|
2 |
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
|
3 |
X,Y,Z Repositioning Accuracy |
±0.03mm |
|
4 |
Table Surface |
Vacuum or T-slot Table |
|
5 |
Frame |
Welded Structure |
|
6 |
X, Y Structure |
Rack and Pinion Drive, Hiwin Rail Linear Guide |
|
7 |
Z Structure |
Hiwin Rail Linear Guide and TBI Ball Screw |
|
8 |
Max. Power Consumption |
(Without Spindle) 2.5kw~3Kw |
|
9 |
Max. Rapid Travel Rate |
25000mm/min |
|
10 |
Max. Working Speed |
18000mm/min |
|
11 |
Spindle Power |
3KW air cooling spindle |
|
12 |
Spindle Speed |
0-24000RPM |
|
13 |
Drive Motors |
Stepper Motor |
|
14 |
Working Voltage |
AC380V/50/60Hz,3PH (Option: 220V) |
|
15 |
Command Language |
G Code |
|
16 |
Operating System |
DSP System (Options: Ncstudio/Mach3 PC Software) |
|
17 |
Computer Interface |
USB |
|
18 |
Flash Memory |
128M(U Disk) |
|
19 |
Collet |
ER25 |
|
20 |
X,Y Resolution |
<0.01mm |
|
21 |
Software Compatibility |
Type3/UcancameV9 Software, (Option: Artcam Software) |
|
22 |
Running Environment Temperature |
0 - 45 Centigrade |
|
23 |
Relative Humidity |
30% - 75% |
|
24 |
Inverter |
Delta/Fuling |
|
25 |

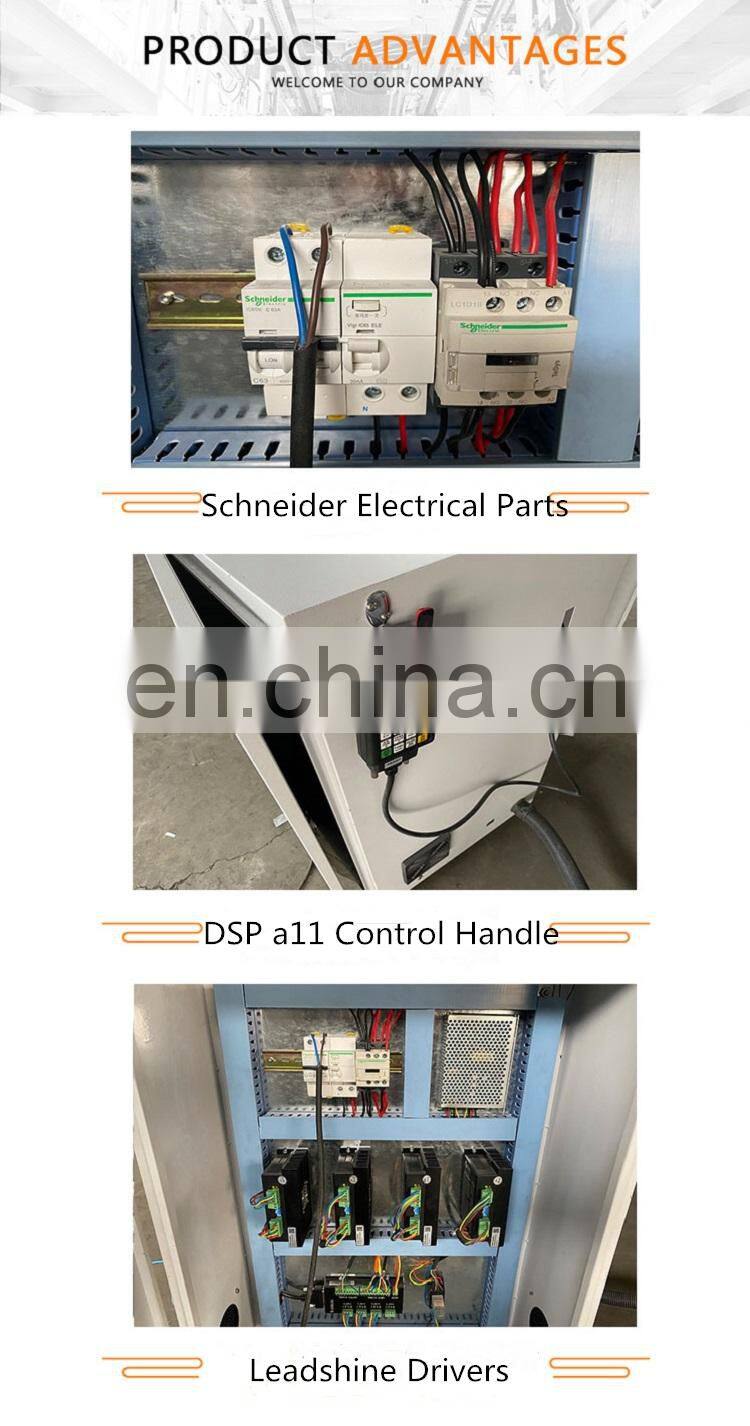

Electrical components |
Schneider |
|
26 |
Limit switch |
OMRON |
|
27 |
Driver |
Leadshine or Yako |

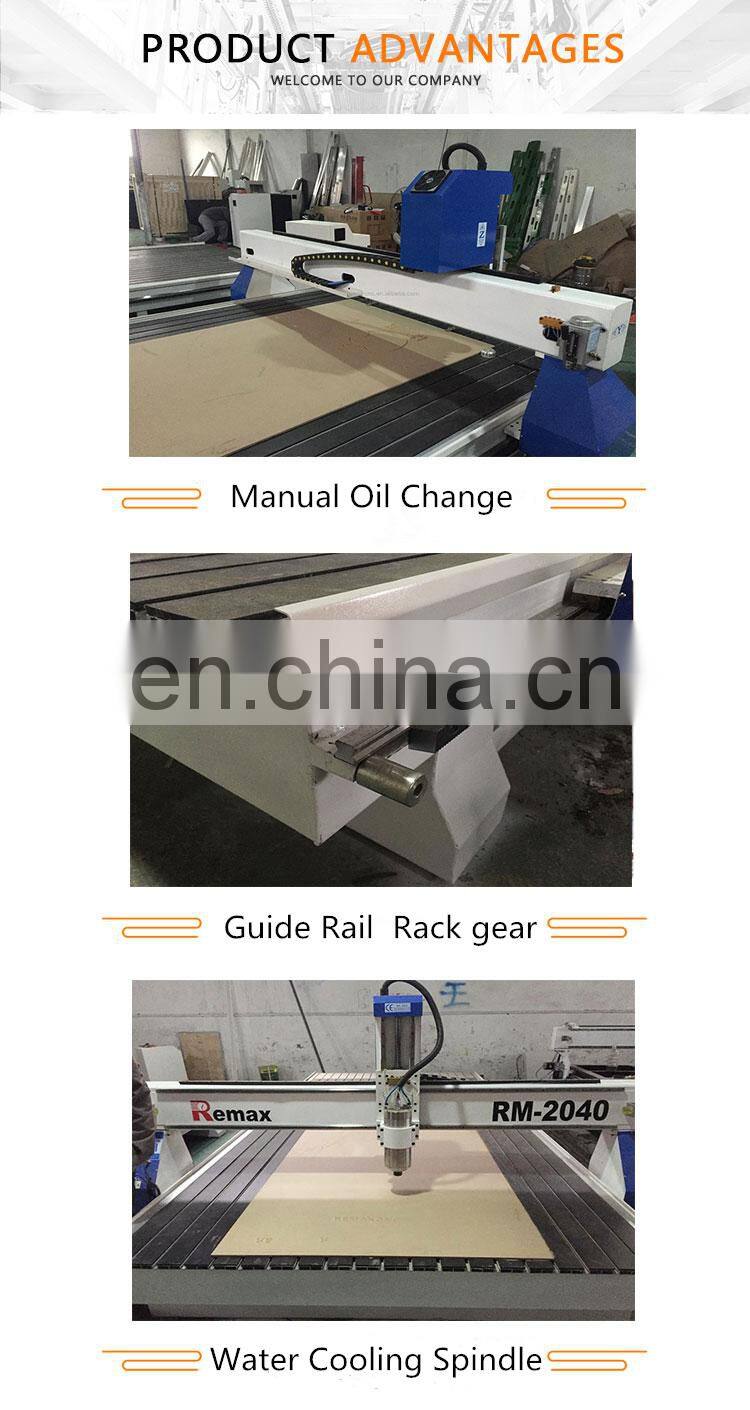

Features:
1)Welded steel pipe lathe bed, strong and never out of shape.
2)Double motors and drivers of Y axis which can ensure steady movement.
3)Rack gear transmission ensures fast speed and high accuracy.
4)Imported square rail ensures high accuracy and heavy workload.
5)Adopt vacuum system. Made by advanced international technology, with double cavities, configured with vacuum pump of strong adsorption, can absorb different size materials.
6)Vacuum table with 6 vacuum zones, which can absorb different size materials. With 5.5kw vacuum pump, high suction, more convenient, stable capability.
7)Imported square rail ensures high accuracy and heavy workload.
8)Humanistic design,the machine can be disassembled,so it is easily transported.
FAQ:
A This is the first time I use this kind of machine, is it easy to operate?
There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.
B If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period if machine have any problem.
If the parts less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
C MOQ ?
The minimum order is 1 set machine, if you order more one time, the price will be better.
D How can I buy this machine from you? ( Very easy and flexible !)
1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment. And 100% quality check before shipping.
6. Send your order by air or by sea.
E 10 good reasons why you should buy from us?
1 we are a real factory offering products.
2 free technical advice by QUALIFIED MECHANICAL ENGINEERS.
3 company in business for many years.
4 over 50 countries customers served!
5 buy direct saving your money!
6 all machine with CE, ISO, BV certificate.
7 machine and spindle warranty 1 year.
8 our engineer can go to your country to provide technical guidance.
9 we have phone support in English, if you have any questions, you can call it, we can give you a best solution within 24 hours.
10 fast delivery, save your time.
Thank you for your visiting the product of Remax! If you want to know more, please contact me.
