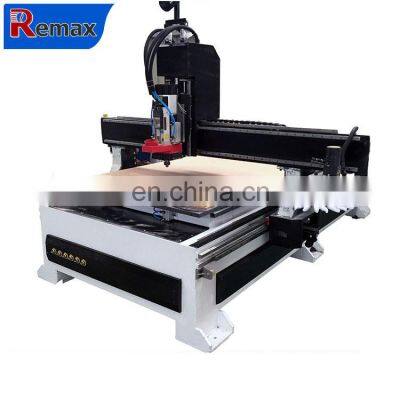

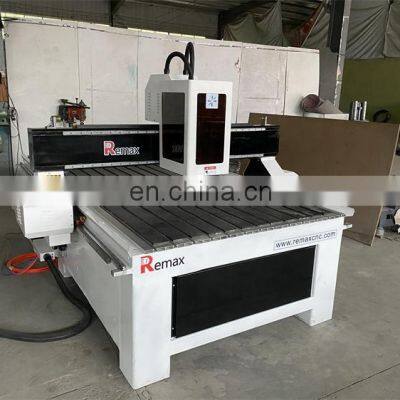

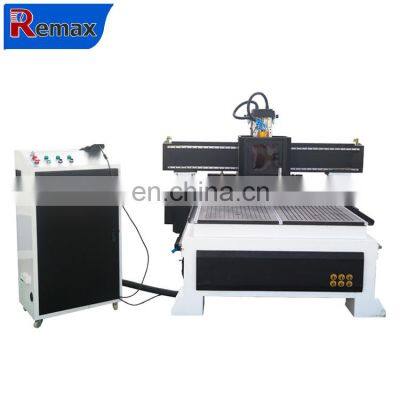

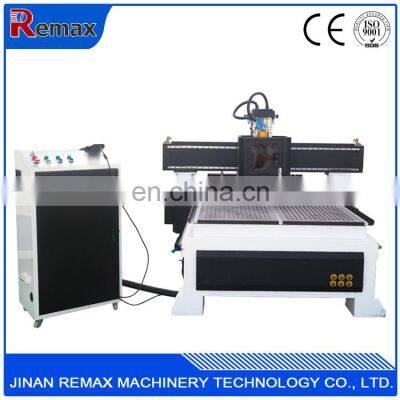

1325 Atc Wood Cnc Router Machine With Automatic Tool Changer System
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
1993
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Long Service Life Cnc 3d Router Stone Carving Cutting MachineNegotiableMOQ: 1 -
4040 Cnc Engraving and Milling MachinesNegotiableMOQ: 1
-
Linear Wood Furniture Making Atc Wood Working Carving Cnc Router 4th Axis MachineNegotiableMOQ: 1
-
China Best Price 4 Axis Wood Cnc Rotary Wood Router ManufacturerNegotiableMOQ: 1
-
4040 Cnc Mold Engraving Cnc Mill Cast IronNegotiableMOQ: 1
Product Description
Application:
ATC cnc router for woodworking, and other materials, such as wood door, art craft,
cabinet, windows, acrylic and other materials. It can engrave many different patterns,
and it can tool change automaticlly.
Main configuration:
1. Machine structure
#Frame: 8mm welded heavy duty body
#Working area: X: 1300mm*Y: 2500mm*Z: 250mm
2. Spindle: 9.0Kw Italian HSD air-cooling spindle
#Linear Type Automatic Tool Changer
#Tool Magazine Capacity-8
3. Control system:Taiwan Syntec 6MB control system
4. Guide and rail:
#Dust protected Taiwan Hiwin 30 square linear guiding system
Transmission:
#X, Y by XINYUE helical toothed rack drive
#Z by Taiwan TBI Ball screw transmission
5. Table: Vacuum table, Chinese YONGDUN 5.5KW pump
6. Drive system: Japanese 850W Yaskawa Servo Motor and Drivers
7. Inverter: Taiwan Delta 11KW VFD-B inverter
8. Exhaust system
9. Electronic Parts: Schneider Electronic Spare Parts
Parameters:
| Working Area | 1300x2500x250mm |
| X, Y, Z Repositioning Positioning Accuracy | 0.03mm |
| X, Y, Z Traveling Positioning Accuracy | 03/300mm |
| Table Surface | Vacuum table |
| Machine frame | Welded Steel pipe at least 8mm thickness |
| X, Y Structure | Rack and speed reducer, PMI, Hiwin or THK linear guide |
| Z Structure | TBI Ball Screw and linear guide |
| Max. Power Consumption (without spindle) | 9.0kw |
| Max. Rapid Travel Rate | 60000mm/min |
| Max. Working Speed | 30000mm/min |
| Spindle Power | 9.0Kw HSD air cooling spindle |
| Spindle Speed | 0-24000RPM |
| Drive Motors | Japan 850w YASKAWA Servo Motors and Drivers |
| Working Voltage | AC380V/50/60Hz, 3PH |
| Command code | G Code, HPGL |
| Operating System | SYNTEC |
| Flash Memory | 2G (U Disk) |
| Collet | ER32 |
| X, Y Resolution | 0.02mm |
| Software Compatibility | Type3 or Wentai, ARTCAM/CAXA |
| Electrical components | Schneider |
| Vacuum pump | 5.5kw |
Parts and Sample
Our Service
Packing and Delivery
Our Company
Jinan Remax Machinery Technology Co., Ltd specializes in the development and manufacture of CNC router machines, CNC laser machine, CNC plasma cutting machine.
Our company sets research and development, production, sales, maintenance services as a whole,Our products have covered advertising industry, woodworking industry, craft gifts, architectural models, electronics, CAD / CAM industry mold industry, decoration, clothing, packaging, printing, dyeing, logos, seals, etc industries; and because of its distinct cost-effective domestic and in various application fields have been completely replacing imported similar products. The company will continue to adopt international advanced production technology and production processes, development and production of high quality, the high price ratio of numerical control equipment, continuing to create maximum value for customers.
Our customer
Certifications
FAQ
A This is the first time I use this kind of machine, is it easy to operate?
There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.
B If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period if machine have any problem.
C MOQ ?
The minimum order is 1 set machine, if you order more one time, the price will be better.
D How can I buy this machine from you? ( Very easy and flexible !)
1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
6. Send your order by air or by sea.
E 10 good reasons why you should buy from us?
1 we are a real factory offering products
2 free technical advice by QUALIFIED MECHANICAL ENGINEERS
3 company in business for many years
4 over 50 countries customers served!
5 buy direct saving your money!
6 all machine with CE, ISO, BV certificate.
7 machine and spindle warranty 1 year.
8 our engineer can go to your country to provide technical guidance
