wood mdf atc 180 degree rotate 4 axis 1325 cnc router machine
- 1000 per Month
- T/T Credit Card
You May Like
-
4 axis cnc router rotate spindle atc
-
China 4 axis 4d other woodworking cnc router milling machinery for plywood aluminium foam stone eps
-
Hot sale 2030 cnc router wood door making cnc router cutting machine
-
Remax-1325 cnc router woodworking machine
-
1325 wood cnc machine price/cnc router build
-
Remax- high quality best price factory directly stone engraver cnc router machine
Product Description
ATCwood mdf atc 180 degree rotate 4 axis 1325 cnc router machine
1.4 axis cnc router , is specially for 4D work , the A axis can rotate +/- 90 degree2.The machine's main parts are all from world famous suppliers, such as Syntec control system, Yaskawa servo motors, Sampo reducer, spindle, Delta inverter and Becker vacuum pump, all components are from global leaders.
3.It can work on foam, MDF, Acrylic, wood, and the soft metal etc.
Parameter:
Index |
Parameter wood mdf atc 180 degree rotate 4 axis 1325 cnc router machine |
X,Y,Z, AWorking Area |
2500x1300X400mm ±90° |
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
X,Y,Z Repositioning Accuracy: |
±0.03mm |
Table Surface |
Integrated Vacuum and T-slot Combined (Option: T-slot Table) |
Frame |
Precision machined & heavy duty frame (stress-relieved),one-piece steel base |
X, Y Structure |
Rack and Pinion Drive, Hiwin Rail Linear Bearings |
Z Structure |
Hiwin Rail Linear Bearings and TBI Ball Screw |
Max. Power Consumption |
(Without Spindle) 4.5Kw |
Max. Rapid Travel Rate |
50000mm/min |
Max. Working Speed |
30000mm/min |
Spindle Power |
4.5/6.0/7.0/9.5/12.0 Kw HITECO ATC |
Drive Motors |
Yaskawa Motors |
Working Voltage |
AC380V/50/60Hz,3PH |
Command Language |
G Code |
Computer Interface |
CF card, Ethernet |
Flash Memory |
256M |
Tool holder |
HSK F63 |
X,Y Resolution |
<0.03mm |
Software Compatibility |
Type3, UcancameV9 software ( UG software/Power mill) |
Running Environment Temperature |
0 - 45 Centigrade |
Relative Humidity |
30% - 75% |
N.W. |
2600KG |

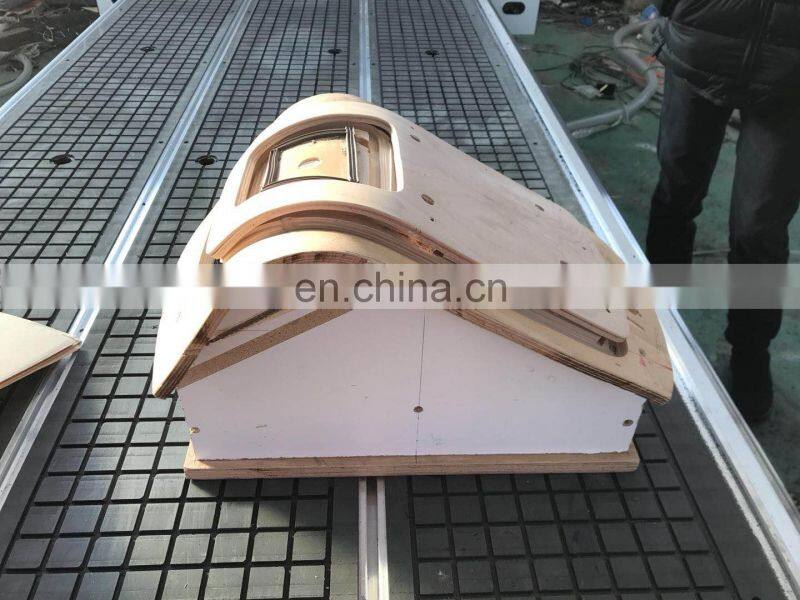

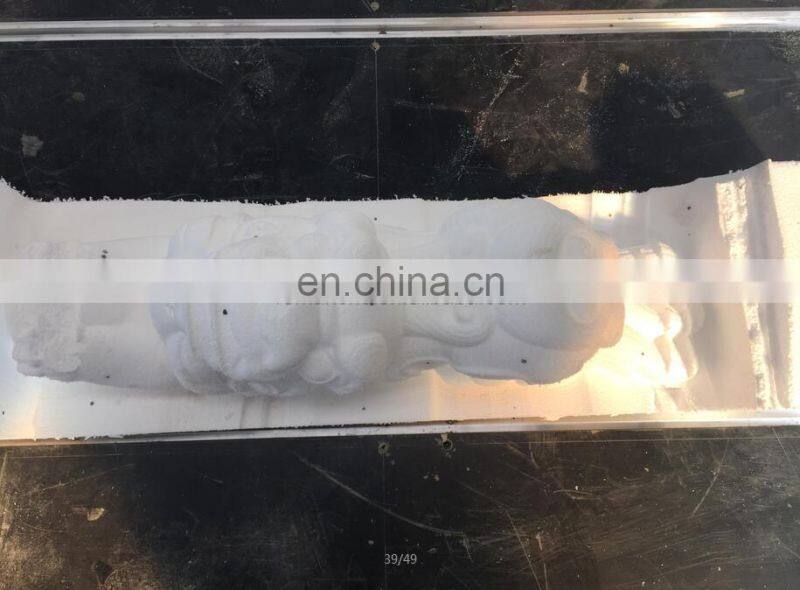

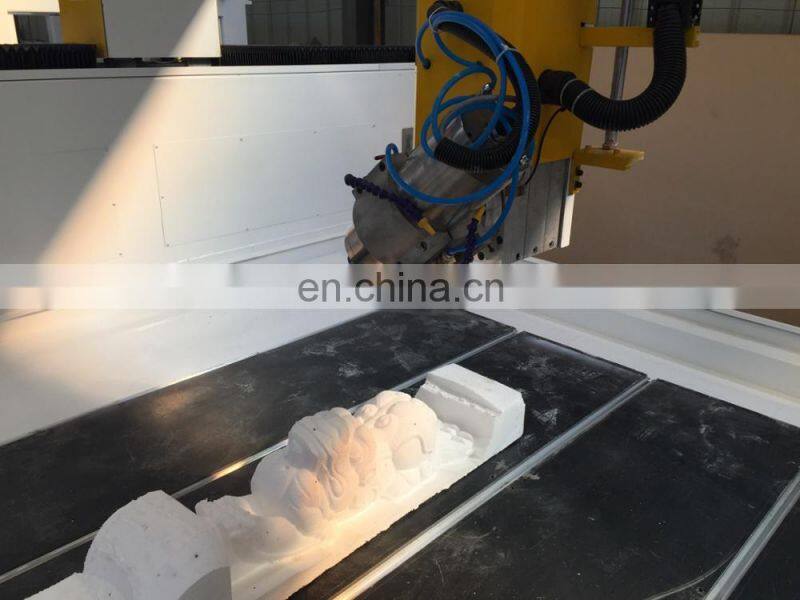

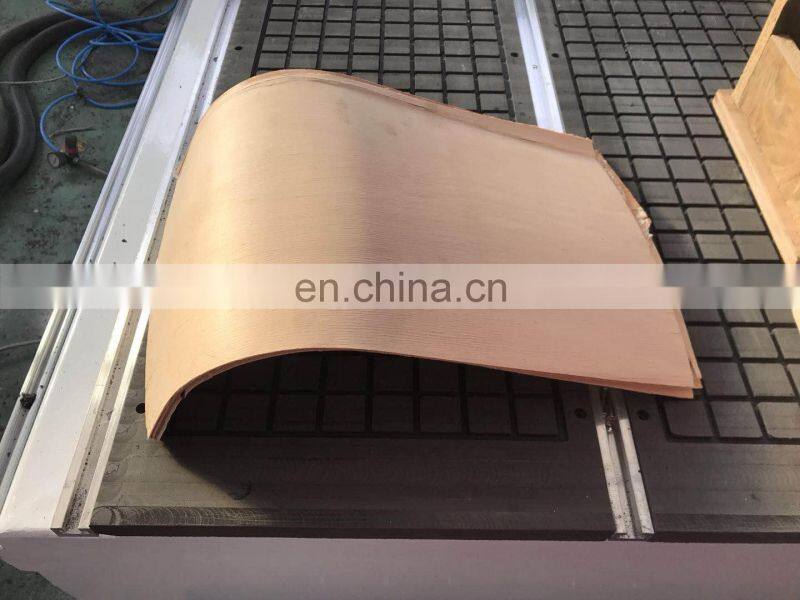

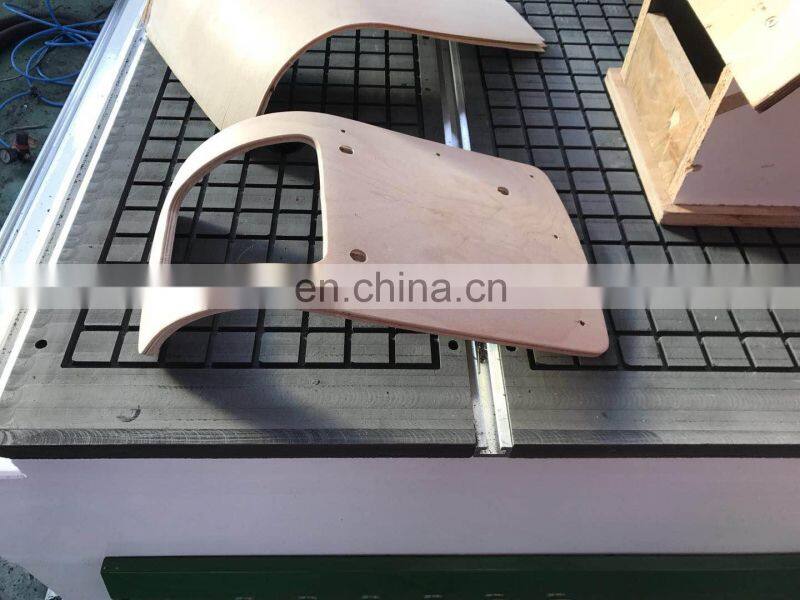

Sample of 4 axis Atc cnc machine :

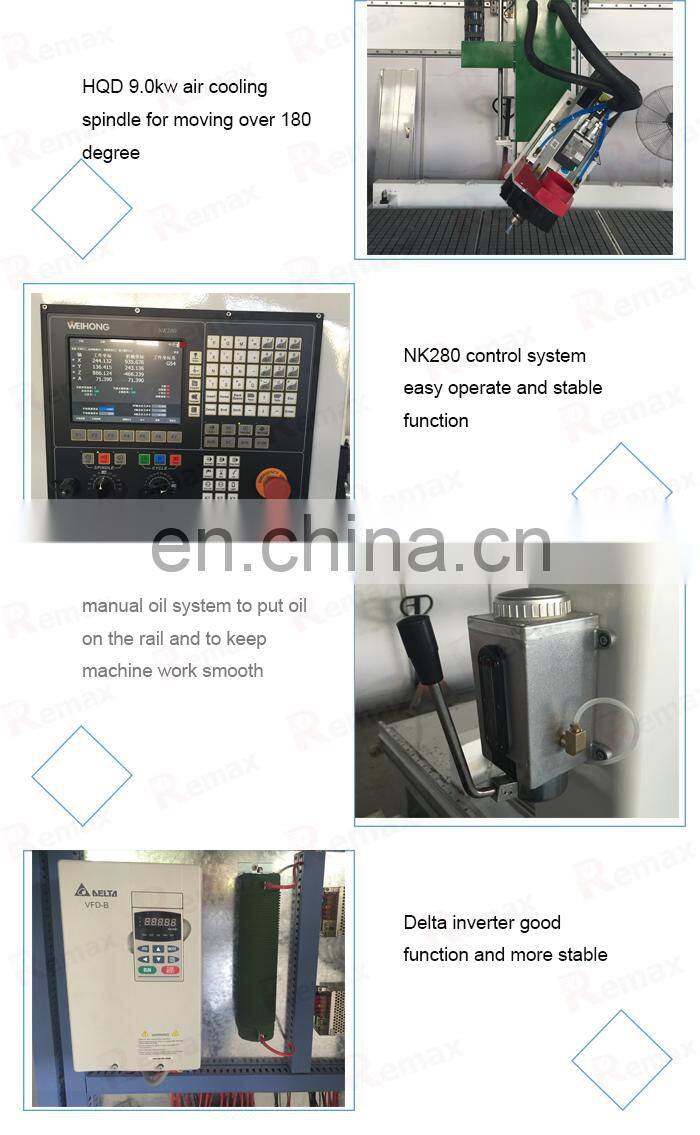

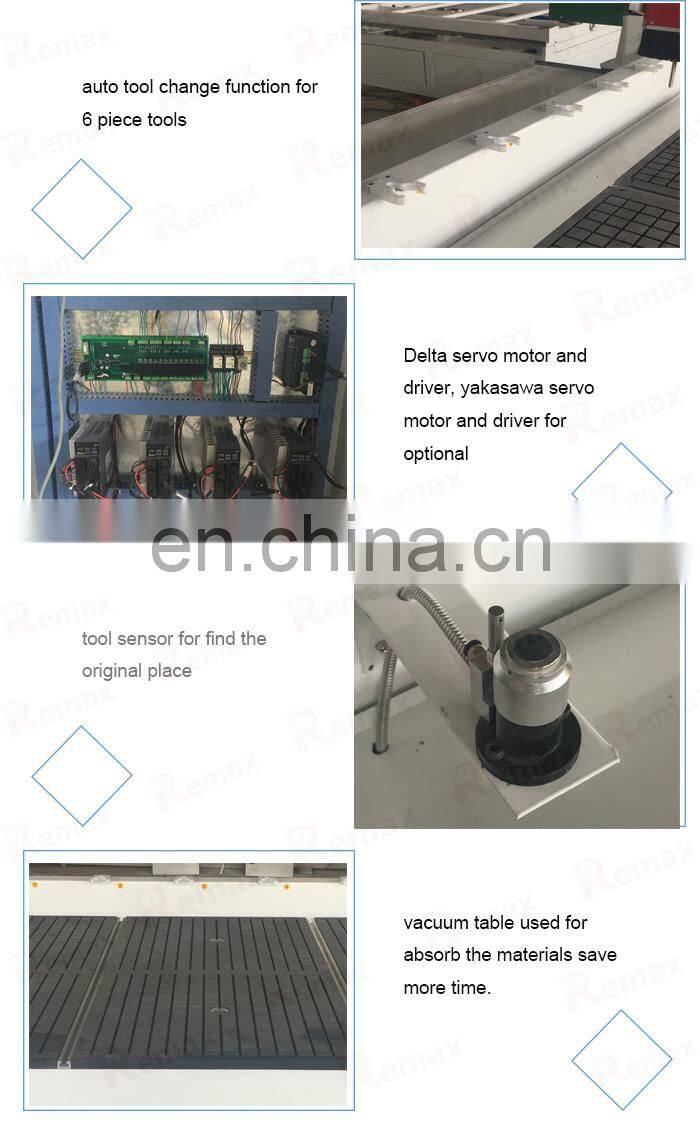

Machine parts:
Jinan Remax Machinery Technology Co., Ltd specializes in the development and manufacture of CNC router machines, CNC laser machine, CNC plasma cutting machine.
Our company sets research and development, production, sales, maintenance services as a whole,Our products have covered advertising industry, woodworking industry, craft gifts, architectural models, electronics, CAD / CAM industry mold industry, decoration, clothing, packaging, printing, dyeing, logos, seals, etc industries; and because of its distinct cost-effective domestic and in various application fields have been completely replacing imported similar products. The company will continue to adopt international advanced production technology and production processes, development and production of high quality, the high price ratio of numerical control equipment, continuing to create maximum value for customers
FAQ:
A This is the first time I use this kind of machine, is it easy to operate?
There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.
B If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period if machine have any problem.
If the parts less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
C MOQ ?
The minimum order is 1 set machine, if you order more one time, the price will be better.
D How can I buy this machine from you? ( Very easy and flexible !)
1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
6. Send your order by air or by sea.
]
Cooperation one time, you will like us forever!
