Home > Manufacturing & Processing Machinery > Woodworking Machinery > Wood Router > Mini Cnc Milling Router Machine for Metal 3D Engraving Cnc Cutting Machinery Price 6060 4040 Mini Cnc Router
Mini Cnc Milling Router Machine for Metal 3D Engraving Cnc Cutting Machinery Price 6060 4040 Mini Cnc Router
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
1993
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
4040 CNC Router 3D Milling MachineNegotiableMOQ: 1 -
China Cnc 6060 Mini CNC Router Metal Cutting CNC MachineNegotiableMOQ: 1
-
3d Metal Mold Making Engraving Machine Small Cnc Moulding Machine for Metal Shoe MouldNegotiableMOQ: 1
-
4 Axis Cnc Router 6060 Metal Wood Stone Acrylic Cnc Milling MachineNegotiableMOQ: 1
-
Competitive Price 5 Axis 6060 Cnc Milling Metal Cutting Router Machine SteelNegotiableMOQ: 1
Product Information

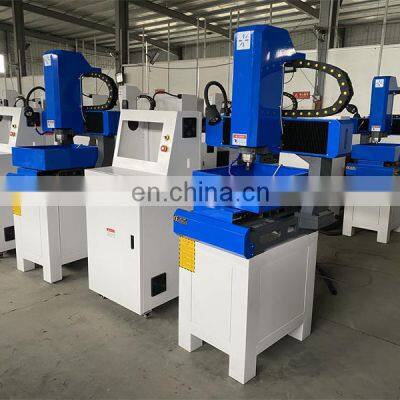

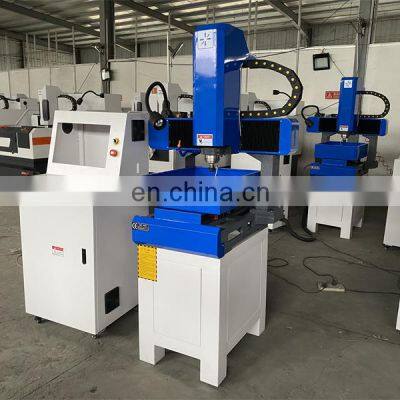

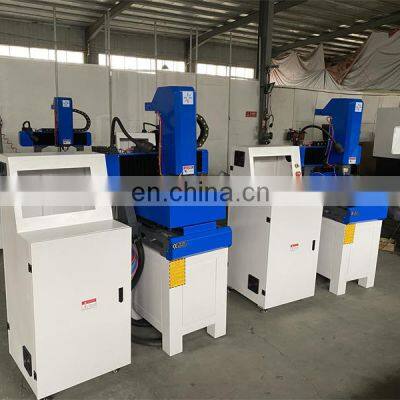

Remax 4040 mini CNC router machine for metal engraving
Machine Feature:
1,whole machine cast by iron, very strong, table moving, high precision.
2, imported Hiwin square rails and TBI ball screw for 3 axis.
3,working area 400*400*200mm, Z axis zone can according your need make it.
4, Leadshine hybrid servo motor and driver, Japan servo motor for option.
5, DSP control system, NC Studio and Mach3 for option.
6, machine with lubrication system, spindle cover, Japan OMRON limit switch and Schneider electrical components
2, imported Hiwin square rails and TBI ball screw for 3 axis.
3,working area 400*400*200mm, Z axis zone can according your need make it.
4, Leadshine hybrid servo motor and driver, Japan servo motor for option.
5, DSP control system, NC Studio and Mach3 for option.
6, machine with lubrication system, spindle cover, Japan OMRON limit switch and Schneider electrical components
Description |
Parameter |
Model |
Remax-4040 CNC Router |
X,Y,Z Working Area |
400*400*200mm |
X,Y,Z Traveling Positioning Accuracy |
±0.02mm |
X,Y,Z Repositioning Accuracy |
±0.0254mm |
Table Surface |
T-slot table |
Frame |
cast by iron |
X, Y,Z Structure |
Hiwin Rail Linear Guide and Ball Screw |
Z Structure |
Hiwin Rail Linear Guide and Ball Screw |
Max. Power Consumption |
(Without Spindle) 1.0Kw |
Max. Rapid Travel Rate |
16000mm/min |
Max. Working Speed |
10000mm/min |
Spindle Power |
1.5 kw water cooling spindle |
Spindle Speed |
0-24000RPM |
Drive Motor |
Leadshine hybrid servo driver and motor |
Working Voltage |
AC220/380V/50/60Hz,3PH |
Command Language |
G Code |
Operating System |
DSP System (Options: Ncstudio/Mach3 PC Software) |
Computer Interface |
USB |
Flash Memory |
128M(U Disk) |
X,Y Resolution |
<0.01mm |
Software Compatibility |
Type3/UcancameV9 Software, (Option: Artcam Software) |
Running Environment Temperature |
0 - 45 Centigrade |
Relative Humidity |
30% - 75% |
Inverter |
Delta/Fuling |
Electrical components |
Schneider |
Limit switch |
OMRON |
Driver |
Leadshine or Yako |
Warranty |
One year, expect consumable parts |
Support |
By calling or email or training |
Parts
Samples
Our Service
A Guarantee:
1. 12 months for the whole machine.
2. Within 12 months under normal use and maintenance,
If something is wrong with machine, you will get spare part for free.
3. Out of 12 months, you will get spare part at cost price.
4. You will also get technical support and service all the lifetime.
B Technical support:
1, Technical support by phone, email or MSN/Skype 24 HOURS
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas
C After sales services:
1 Normal machine is properly adjusted before dispatch.
2 You will be able to use the machines immediately.
3 You will be able to get free training advice towards our machine in our factory.
4 You will also get free suggestion and consulting, technical support and service by email/fax/tel and lifetime technical support.
1. 12 months for the whole machine.
2. Within 12 months under normal use and maintenance,
If something is wrong with machine, you will get spare part for free.
3. Out of 12 months, you will get spare part at cost price.
4. You will also get technical support and service all the lifetime.
B Technical support:
1, Technical support by phone, email or MSN/Skype 24 HOURS
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas
C After sales services:
1 Normal machine is properly adjusted before dispatch.
2 You will be able to use the machines immediately.
3 You will be able to get free training advice towards our machine in our factory.
4 You will also get free suggestion and consulting, technical support and service by email/fax/tel and lifetime technical support.
Packing and shipping
Company Information
FAQ
A This is the first time I use this kind of machine, is it easy to operate?
There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.
B If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period if machine have any problem.
C MOQ ?
The minimum order is 1 set machine, if you order more one time, the price will be better.
There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.
B If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period if machine have any problem.
C MOQ ?
The minimum order is 1 set machine, if you order more one time, the price will be better.
