Remax 4 Axis 6060 CNC Router Machine For Aluminum Steel Mold
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
1993
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Mini Cnc Router Metal Milling Machine 4040 CncNegotiableMOQ: 1 -
6060 Cnc Engraving Metals Cnc Milling Machine for Metal MoldNegotiableMOQ: 1
-
Enclosed Heavy Full Cover 6080 Automatic Tool Changer Mini Mould Engraving Milling Machines Remax 6080 ATC CNC Router MachineNegotiableMOQ: 1
-
China Cnc Router for Sale AluminumNegotiableMOQ: 1
-
Remax 8080 5 Axis Cnc Router Milling MachineNegotiableMOQ: 1
Remax 4 Axis 6060 CNC Router Machine For Aluminum Steel Mold
Feature:
1.Our 4 axis cnc router 6060 metal milling machine, whole machine cast by iron, very strong, table moving, high precision.
2.The metal mold cnc machine imported Hiwin square rail and TBI ball screw for 4 axis.
3.NC studio control system NK260/280 with wireless handle ,easy to operation. MULTECH for option.
4.Leadshine hybrid servo motor and driver,fast speed and high precision.Japan servo motor for option.
5.Machine with lubricating system, spindle cover, Japan Omron limit switch and Schneider eletrical components.
6.Working area is 600*600*200mm, the Z axis can make it according your needs.
7.Equipped with 100mm diameter rotary axis that can make Cylindrical carving, 200mm diameter rotary axis is for optional
Feature:
1.Our 4 axis cnc router 6060 metal milling machine, whole machine cast by iron, very strong, table moving, high precision.
2.The metal mold cnc machine imported Hiwin square rail and TBI ball screw for 4 axis.
3.NC studio control system NK260/280 with wireless handle ,easy to operation. MULTECH for option.
4.Leadshine hybrid servo motor and driver,fast speed and high precision.Japan servo motor for option.
5.Machine with lubricating system, spindle cover, Japan Omron limit switch and Schneider eletrical components.
6.Working area is 600*600*200mm, the Z axis can make it according your needs.
7.Equipped with 100mm diameter rotary axis that can make Cylindrical carving, 200mm diameter rotary axis is for optional
No |
Item |
parameter |
1 |
XYZ Working area |
600*600*200mm |
2 |
XYZ accuracy |
0.02mm |
3 |
X,Y,Z Repositioning Accuracy |
0.01mm |
4 |
Table Surface |
T-slot table |
5 |
Frame |
Cast by iron |
6 |
X, Y, Z Structure |
Hiwin Rail Linear Guide and Ball Screw |
7 |
Z Structure |
Hiwin Rail Linear Guide and Ball Screw |
8 |
Max. Power Consumption |
(Without Spindle) 3.0Kw |
9 |
Max. Rapid Travel Rate |
20m/min |
10 |
Max. Working Speed |
10m/min |
11 |
Spindle Power |
3.0KW/5.5kw water cooling spindle |
12 |
Spindle Speed |
0-24000RPM |
13 |
Drive Motors |
Leadshine servo Motor and driver |
14 |
Working Voltage |
AC220/380V/50/60Hz,3PH |
15 |
Command Language |
G code |
16 |
Control System |
NK260/280/multech control system |
20 |
Software Compatibility |
Type3/Artcam Software |
21 |
Running Environment Temperature |
0 - 45 Centigrade |
22 |
Relative Humidity |
30% - 75% |
23 |
Inverter |
Delta/Fuling |
24 |
Limit switch |
OMRON |
26 |
Electrical Components |
Schneider |
27 |
Rotary axis |
100mm diameter rotary, 200mm diameter for optional |

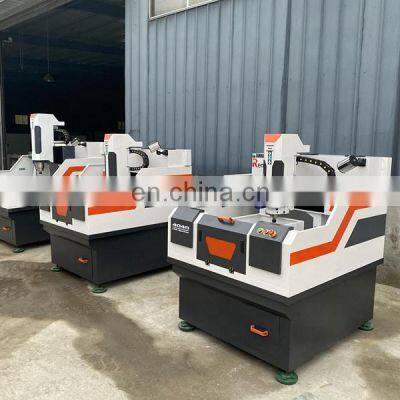

Detailed Photos
Samples
Related products
Certifications
Company Information
Jinan Remax Machinery Technology Co.,LTD is a professional cnc router manufacturer, after ten years of efforts, our company already independent R&D and manufacture of molds engraving and milling machine, large CNC woodworking engraving machine, woodworking engraving and milling machine, CNC advertising engraving machine, CNC stone engraving machine, CNC linear and disk auto tool changer machines, CNC plasma cutter machines, laser cutting and engraving machine, laser cutting machine, metal laser cutting machine(YAG and Fiber), laser seal engraving machine, styrofoam machining centers etc machines.
Since the establishment of our company, with professional technology and advanced management concepts, the rapid rise in the field of Numerical Control, has developed into research and development, production and sales of high-tech enterprises, the products have been widely used in the advertising industry, woodworking industry, craft gifts, architectural models, electronics, CAD / CAM industry mold industry, decoration, clothing, packaging, printing, dyeing, logos, seals, etc industries; and because of its distinct cost-effective domestic and in various application fields has been completely replace imported similar products, and become the leading companies in the industry.
Packing and shipping
FAQ
A This is the first time I use this kind of machine, is it easy to operate?
There are English manual or teaching that show how to use machine.
If there is still any question. please contract us by e-mail/whatsapp/phone/trademanager online service at any time.
B If machine have any problem after I receive it, how can I do?
Free part send to you in machine warranty period if machine have any problem.
C MOQ?
The minnimum order is 1set machine , if you order more one time,the price will be better.
D How can I buy this machine from you ? ( Very easy and flexible! )
1. Cousult us about this product on line by e-mail.
2.Negotiate and confirm the final price,shipping,payment methods and other terms.
3.Send you the proforma invoice and confirm your order.
4.Make the payment according to the method put on proforma invoice.
5.We prepare for your order in terms of the proforma invoice, after confirmin your full payment.And 100% quality check before shiping.
6.Send your order by air or by sea.
E 10 good reasons why you should buy from us?
1. We are a real factory offering products.
2.Free technical business for many years.
3.Company in busniess for many years.
4.Over 50 countries customers served!
5.Buy direct saving your money!
6.All machine with CE certificate.
7.Machine and spindle warranty 1year.
8.Our engineer can go to your country to provide technical guidance
9.We have phone support in English,if you have any questions,you can call it,
we can give you a best solution within 24 hours
10.Fast delivery, save your time.
There are English manual or teaching that show how to use machine.
If there is still any question. please contract us by e-mail/whatsapp/phone/trademanager online service at any time.
B If machine have any problem after I receive it, how can I do?
Free part send to you in machine warranty period if machine have any problem.
C MOQ?
The minnimum order is 1set machine , if you order more one time,the price will be better.
D How can I buy this machine from you ? ( Very easy and flexible! )
1. Cousult us about this product on line by e-mail.
2.Negotiate and confirm the final price,shipping,payment methods and other terms.
3.Send you the proforma invoice and confirm your order.
4.Make the payment according to the method put on proforma invoice.
5.We prepare for your order in terms of the proforma invoice, after confirmin your full payment.And 100% quality check before shiping.
6.Send your order by air or by sea.
E 10 good reasons why you should buy from us?
1. We are a real factory offering products.
2.Free technical business for many years.
3.Company in busniess for many years.
4.Over 50 countries customers served!
5.Buy direct saving your money!
6.All machine with CE certificate.
7.Machine and spindle warranty 1year.
8.Our engineer can go to your country to provide technical guidance
9.We have phone support in English,if you have any questions,you can call it,
we can give you a best solution within 24 hours
10.Fast delivery, save your time.
