Product Description
Product Description

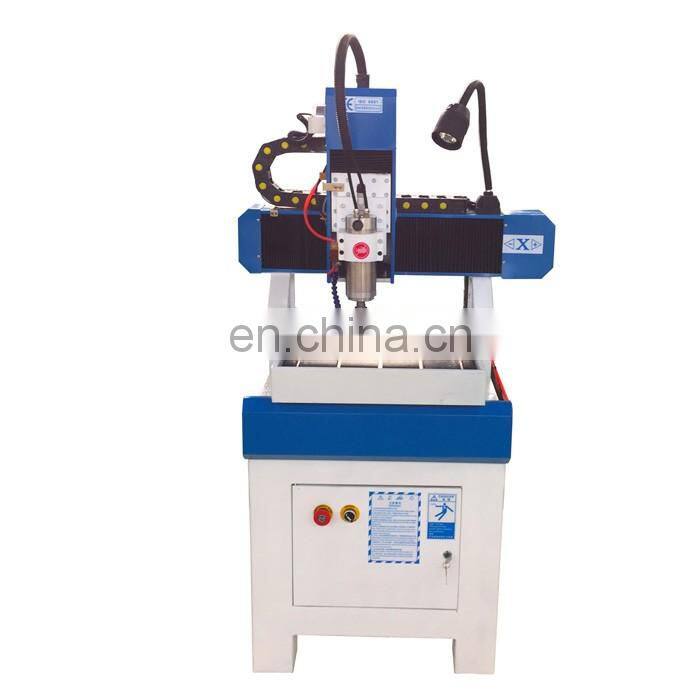

4040 small metal cnc router cutting machine
Main Features
2. TBI ball screw transmission improves positioning accuracy and fast speed
3. Equipped with Schneider electrical components and Omron safety limit switch
4. Adjust driving speed via inverter, reversing the direction of rotation right / left, emergency stop punch
5. Whole machine cast by iron,T-slot , table moved ,easy to sue

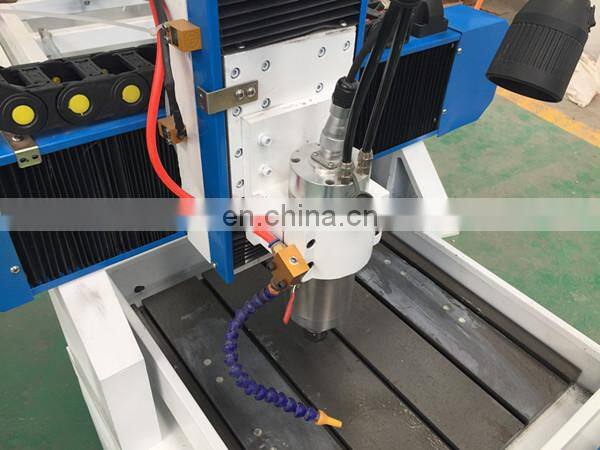

6. Selection of high speed 1.5kw water cooled spindle, low noise, high torque, this CNC can be used to process high hardness materials.
Application
Small woodworking engraving machine can be used for ceramic tile engraving, mold engraving, woodworking engraving, wood carving relief engraving, antique furniture engraving, handicraft batch engraving, advertisement engraving, cutting, stone carving, ceramic tile engraving and cutting, copper-aluminum engraving cutting, wood cutting engraving, handicraft engraving cutting, handicraft box engraving, building model making, interior decoration, lamp industry engraving, identify production, acrylic engraving cutting, sign engraving.
Description | Parameter | ||||||
Product name | 4040 small metal cnc router cutting machine | ||||||
X,Y,Z Working Area | 400x400x150mm | ||||||
X,Y,Z Accuracy | ±0.02mm | ||||||
X,Y,Z Repositioning Accuracy | ±0.0254mm | ||||||
Table Surface | T-slot Table | ||||||
Frame | whole machine cast by iron | ||||||
Transmission | Hiwin square rail and TBI ball screw for 3 axis | ||||||
Max. Power Consumption | 2.5kw~3Kw (without spindle) | ||||||
Max. Rapid Travel Rate | 15000mm/min | ||||||
Max. Working Speed | 8000mm/min | ||||||
Spindle Power | 1.5kw water cooling (2.2 and 3kw for option) | ||||||
Spindle Speed | 0-24000RPM | ||||||
Driver and Motor | Leadshine and Stepper Motor | ||||||
Working Voltage | 220/380V 50/60Hz | ||||||
Command Language | G Code | ||||||
Operating System | DSP System (Options: Ncstudio/Mach3 PC Software) | ||||||
Computer Interface | USB | ||||||
Software | Type3 or Artcam | ||||||
Running Environment Temperature | 0 - 45 Centigrade | ||||||
Relative Humidity | 30% - 75% | ||||||
Inverter | Delta/Fuling | ||||||
Electrical components | Schneider | ||||||
Limit switch | OMRON | ||||||
Tool sensor and lubrication | With | ||||||

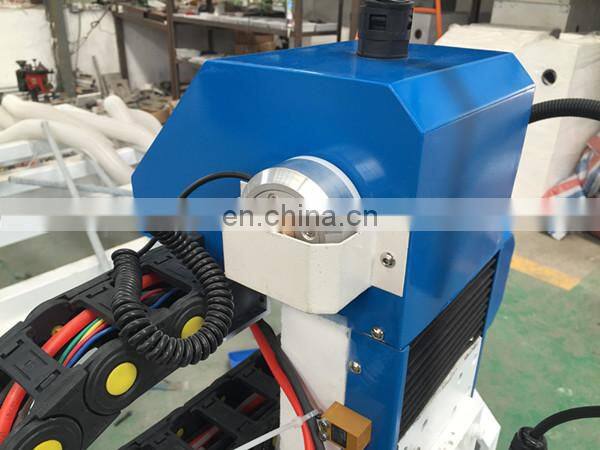

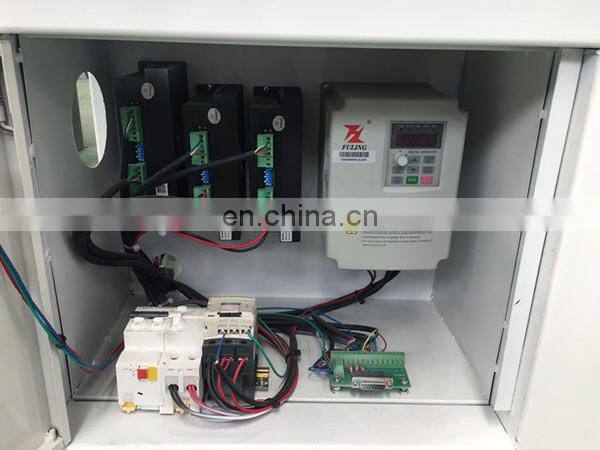

Detailed Images

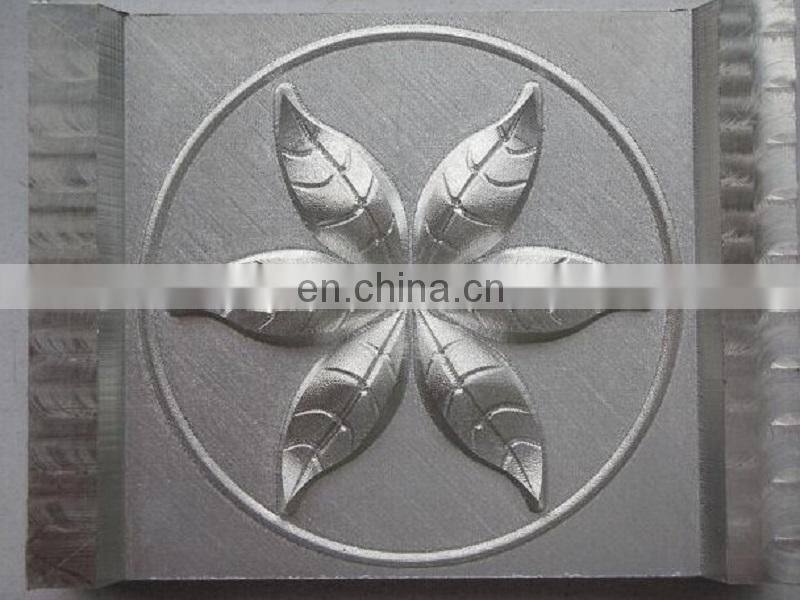

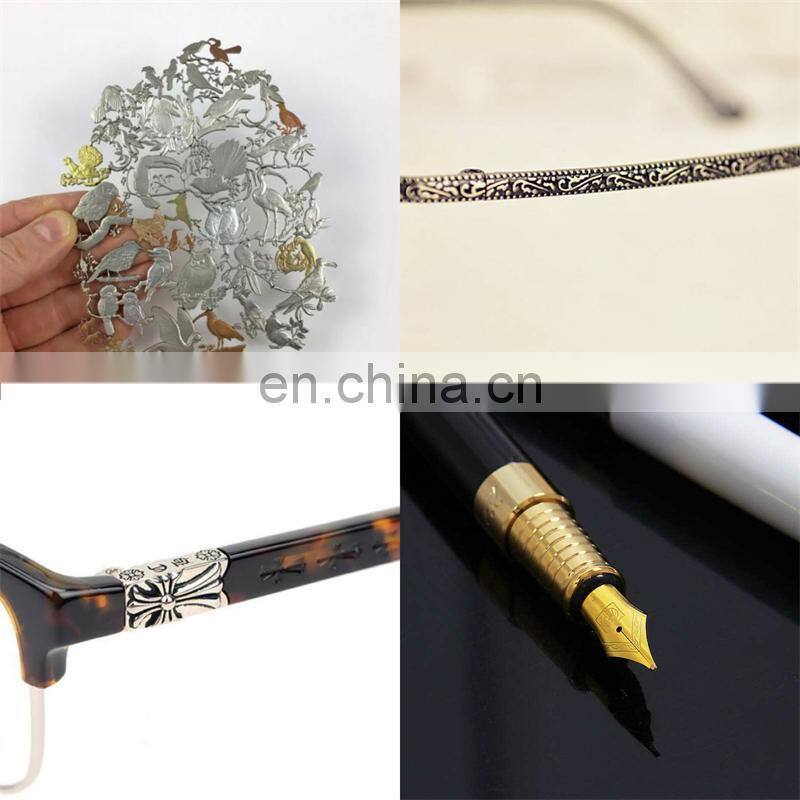

Sample
Certifications
Our Company
Jinan Remax Machinery Technology Co., Ltd specializes in the development and manufacture of CNC router machines, CNC laser machine, CNC plasma cutting machine.
Our company sets research and development, production, sales, maintenance services as a whole,Our products have covered advertising industry, woodworking industry, craft gifts, architectural models, electronics, CAD / CAM industry mold industry, decoration, clothing, packaging, printing, dyeing, logos, seals, etc industries; and because of its distinct cost-effective domestic and in various application fields have been completely replacing imported similar products. The company will continue to adopt international advanced production technology and production processes, development and production of high quality, the high price ratio of numerical control equipment, continuing to create maximum value for customers.
We not only produce machines, we provide the best solution for you.
Remax looking forward to being your partner.
Our Service
Guarantee:
1. Two years for the whole machine.
2. Within two years under normal use and maintenance, If something is wrong with machine, you will get spare part for free.
3. Out of two years, you will get spare part at cost price.
4. You will also get technical support and service all the lifetime.
Technical support:
1. Technical support by phone, email or MSN/Skype 24 HOURS
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas
After sales services:
1. Normal machine is properly adjusted before dispatch.
2. You will be able to use the machines immediately.
3. You will be able to get free training advice towards our machine in our factory.
4. You will also get free suggestion and consulting, technical support and service by email/fax/tel and lifetime technical support.
