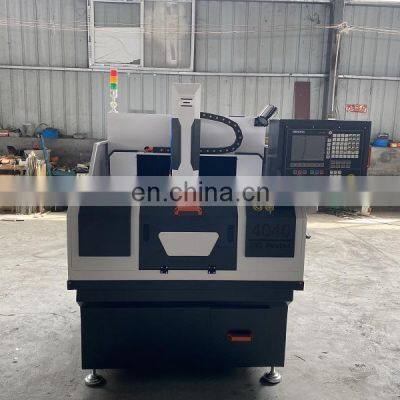

3 Axis Cnc Vertical Mini Cnc Router Metal Engraving Cnc Milling Machine for Mold Making
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
1993
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
5 Axis ATC CNC Router 6060 Metal Milling MachineNegotiableMOQ: 1 -
Cnc Router Aluminium Milling Metal Cutting MachineNegotiableMOQ: 1
-
Remax 6060 3D ATC Shoe Mould CNC Router Milling Engraving Machine for MetalNegotiableMOQ: 1
-
Cnc Milling and Cutting Aluminium Carving Engraving Atc Cnc Router Machine for Metal MaterialsNegotiableMOQ: 1
-
3030 Mold Cnc Metal Mold Machine for Aluminum Molding Making MachineryNegotiableMOQ: 1
Product Information
3 axis cnc vertical mini cnc router metal engraving cnc milling machine for mold making
Application of CNC Metal Engraving Machine
1. It is suitable for precision engraving, milling and drilling of steel, copper, aluminum, plastic and other materials.
2. Widely used in automobile, injection mold, hardware mold and engraving mold industry.
3. Specially designed for engraving and milling dies, glasses, watches, panels, badges, brands, large-size three-dimensional graphics and characters with smooth outer surface.
Product Details
1 .X Linear guide rails and linear guide rails on X, Y and Z (German screw drive) axes are used to ensure high precision and stable performance, and support heavy weight.
2. The water-cooled brushless spindle of domestic famous brand is adopted, which has low noise and strong cutting ability and ensures long-time working.
3. The gantry structure and cast iron ensure strong stability and support. Electronic handwheel is easy to operate.
1 .X Linear guide rails and linear guide rails on X, Y and Z (German screw drive) axes are used to ensure high precision and stable performance, and support heavy weight.
2. The water-cooled brushless spindle of domestic famous brand is adopted, which has low noise and strong cutting ability and ensures long-time working.
3. The gantry structure and cast iron ensure strong stability and support. Electronic handwheel is easy to operate.
Product name |
metal milling mini cnc router machine |
X,Y,Z Working Area |
600x600x200mm |
X, Y,Z Structure |
Hiwin Rail Linear Guide and Ball Screw |
Table Surface |
T-slot Table |
Max. Power Consumption |
(Without Spindle) 1.0Kw |
Max. Rapid Travel Rate |
16000mm/min |
Max. Working Speed |
10000mm/min |
Frame |
cast by iron |
Spindle Power |
3.0KW water cooling spindle |
Drive Motors |
Servo Motor |
Spindle Speed |
0-24000RPM |
Operating System |
NK 280B(Options: Ncstudio/Mach3 PC Software,DSP) |
Flash Memory |
128M(U Disk) |
Relative Humidity |
30% - 75% |
Inverter |
Delta/Fuling |
Working Voltage |
AC220/380V/50/60Hz,3PH |
Parts
CASTING IRON TABLE/ STEEL DUST PROOF
NK280B CONTROL PANEL
FULING INVERTER /LEADSHINE DRIVER
SPINDLE / WATER SPARY
AUTO OIL CHNAGER/ HALF COVER
WATER TANK/ LEVEL PAD
Sample
Our Service
Certifications
FAQ
A This is the first time I use this kind of machine, is it easy to operate?
1. There are English manual or teaching video that show how to use machine.
2. If there is still have any question, please contact us by e-mail /skype/ phone /trademanager online service at any time.
B If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period if machine have any problem.
C MOQ ?
The minimum order is 1 set machine, if you order more one time, the price will be better.
D How can I buy this machine from you? ( Very easy and flexible !)
1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your payment. And 100% quality check before shipping.
6. Send your order by air or by sea.
Packing and shipping
