Multipurpose Remax 6060 cnc router metal cutting machine/mold making machine /metal milling machine
REMAX--EXPERT OF CNC ROUTER!
Technology Features:
1. Aluminum grooved and moving table, ideal for machining metal or wooden molds
2. Axes X, Y, Z are equipped with photoelectric devices, which ensure a fast response and good anti-interference capacity
3. TBI ball screw transmission improves positioning accuracy and fast speed
4. Selection of high speed 3.0kw water cooled spindle, low noise, high torque, this CNC can be used to process high hardness materials.
5. With the Nc studio operating system, it has the breakpoint memory function, which allows you to continue working in the event of a power failure or next day's workrements
Other Accessories with this machine:

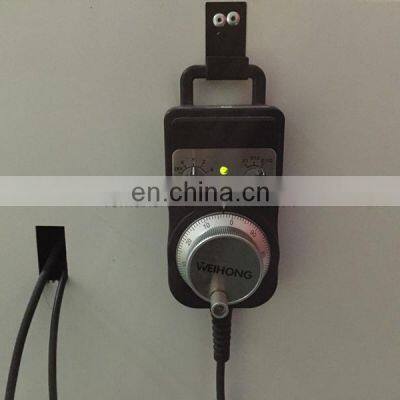

1. Feeler block 2. Wireless handwheel 3. LED light 4. Stainless steel dust 5. Water Pump 6. Tools 7. Power Cables 8. USB Cables 9. User's Guide 10. CD For installation / operation
Product parameter:
| Model | Remax-6060 CNC Mold Machine |
| X,Y,Z Working Area | 600*600*200mm |
| X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| X,Y,Z Repositioning Accuracy | ±0.03mm |
| Table Surface | T-slot Aluminum +PVC |
| Frame | By cast iron |
| X, Y Structure | PMI Rail Linear Guide and TBI Ball Screw |
| Z Structure | PMI Rail Linear Guide and TBI Ball Screw |
| Max. Power Consumption | (Without Spindle) 1.0Kw |
| Max. Rapid Travel Rate | 16000mm/min |
| Max. Working Speed | 10000mm/min |
| Spindle Power | 3.0 kw water cooling spindle |
| Spindle Speed | 0-24000RPM |
| Drive Motors | Stepper Motor |
| Working Voltage | AC220/380V, 50/60Hz |
| Command Language | G Code |
| Operating System | Ncstudio or Mach3 PC Software |
| Computer Interface | USB |
| Flash Memory | 128M(U Disk) |
| X,Y Resolution | <0.01mm |
| Software Compatibility | Type3/Ucancame V9 Software, (Option: Artcam Software) |
| Running Environment Temperature | 0 - 45 Centigrade |
| Relative Humidity | 30% - 75% |
| Inverter | Delta/Fuling |
| Electrical components | Schneider |
| Limit switch | OMRON |
| Driver | Leadshine or Yako |
| Warranty | One year, expect consumable parts |
| ER clamp holder | ER 11 |
JINAN REMAX MACHINERY TECHNOLOGY CO.,LTD,is a professional cnc router, plasma cutting machine and laser cutting machine manufacturer, after ten years of efforts,our company has already owned independent R&D and manufacture capacity of molds engraving and milling machine, large CNC woodworking engraving machine, woodworking engraving and milling machine, CNC advertising engraving machine, CNC stone engraving machine, CNC linear and disk auto tool changer machines, CNC plasma cutter machines, laser cutting and engraving machine, laser cutting machine, metal laser cutting machine(YAG and Fiber), laser seal engraving machine, styrofoam machining centers etc machines, since the establishment of our company, with professional technology and advanced management concepts, the rapid rise in the field of Numerical Control, has developed into research and development, production and sales of high-tech enterprises, the products have been widely used in the advertising industry, woodworking industry, craft gifts, architectural models, electronics, CAD / CAM industry mold industry, decoration, clothing, packaging, printing, dyeing, logos, seals, etc industries; and because of its distinct cost-effective domestic and in various application fields has been completely replace imported similar products, and become the leading companies in the industry.
A. Warranty:
1. All machines sold by Remax Machinary Technology are warranted for one year;
2. Under normal use and with regular maintenance, if the machine has broken down, we will be able to provide you free replacement parts or repair your machine for free;
3. After warranty period of your machine, you could buy spare parts with cost price;
4. Our assistance will always be offered to you as soon as possible and at a reasonable price after the guarantee of your machine, do not hesitate to contact us for more information.
B. Technical Support:
1. We are currently developing an online customer service system. You will have technical support by phone, email or MSN / Skype 24/24.
2. A CNC Machine Operator's Manual and an Operation Video Disc (CD) in English version will be offered with the machine.
3. Remax Machinery Technology has a technical support network serviced by specialized technicians. This technical assistance network is supported by a team of professionals with a long experience in this field and who are available for technical assistance services abroad.
C. After-sales service:
1. The machine is fully assembled and properly adjusted before shipping.
2. You can use the machine immediately.
3. You will be able to get free operation tips of our machine in the factory.
4. You will also get advice, technical support and assistance by email / fax / telephone.
A. This is the first time I use this type of machine, is it easy to use?
There is an operator's manual of machine tools in English that show how to use the machine. If you still have questions, contact us by email / skype / phone, our sales manager is online at any time.
B. If some problems happen after I receive it, what can I do for it?
During the warranty period, we will send you spare parts for free in the event of a breakdown.
C. MOQ?
The minimum order quantity is one set machine. The more you order, the cheaper it will be!
D. How can I buy this machine online? (Very easy and flexible!)
1. Find out this product online.
2. Negotiate and confirm the final price, transport, payment methods and other conditions of sale.
3. Send us your proforma invoice and confirm your order.
4. Pay according to the proforma invoice method.
5. We prepare your order according to the proforma invoice after the confirmation of your complete payment. And we assure you 100% quality control before shipping.
6. We send your order by air or by ship.
E. Ten good reasons to choose us!
1. We are professional manufacturer
2. Free Technical Advice
3. More than 5 years of manufacturing and production of machine tools
4. More than 50 countries and regions served
5. Save your cost by purchasing directly from our factory
6. All our machines are certified CE, ISO, SGS, BV
7. One year warranty for machine and spindle
8. Online technicians
9. 24/24, 7/7 on-line support service
10. Fast delivery, save time
With competitive prices, excellent cost value and comprehensive follow-up after purchase (training, support, after-sales service, warranty), we have gained a foothold in the worldwide market of CNC machine.
Individuals, associations, schools, professionals, teachers, munusiers, decoration workshops, models and Fablab trust us. Why not you?
Please contact us for more information.
Thank you for visiting Remax products!
Your success is our business!
