Cnc Bridge Saw Stone Marble Cutting Machine Bridge Saw Stone Machine for Marble Granite Stone Kitchen Countertop
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2004
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
5 Axis Bridge Saw Stone Cutting Machine Stone Cutter Marble Cutting MachineNegotiableMOQ: 1 -
5 Axis Stone_bridge_saw Diamond Saw Blades For Cutting StoneNegotiableMOQ: 1
-
Diamond Wire Saw Cutting Steel Used Granite Bridge Saw Stone Cutting Machine Bridge Saw TableNegotiableMOQ: 1
-
Bridge Saw Cutting Machine Granite Bridge Saw Stone Cutting Saw MachineNegotiableMOQ: 1
-
Granite Bridge Saw Cutting Machine Stone_bridge_saw 5 Axis Cnc Bridge SawNegotiableMOQ: 1
cnc Bridge saw stone marble cutting machine bridge saw stone machine for marble granite stone kitchen countertop
Product Description
Machine Features
# Cutting head: The head can rotation 360 degree, realize multi-angle cutting.
# Control system: We adopt the touch screen design, the system is upgraded and the operation is simpler, zero distance control system interface.
# Camera: We add the Camera on the machine, it’s connected to the computer system, the position of the stone plates on the table can be viewed directly on the computer, which is conducive to typesetting.
# Cutting: It’s can cut straight and 45 degree. (planes and bevels cutting).
# Polishing: The machine can polish various edges automatically.
# Grinding/drilling: It can grind irregular cutting surfaces and always reach a smooth effect.
# Make Hole: The machine can make small or big hole, especially making hole for water-tap in the wash basin.
# The tilting table: The table can be turned 87 degree, It’s easy to loading the materials.
# Operate wheel: The operate wheel is like the remote, you can operate the machine at any time when you are far away from the machine.
Multi-functions: Cutting straight and 45 degree, Polishing, Edging, Grinding, Making hole.With Camera, tilting table.
# Control system: We adopt the touch screen design, the system is upgraded and the operation is simpler, zero distance control system interface.
# Camera: We add the Camera on the machine, it’s connected to the computer system, the position of the stone plates on the table can be viewed directly on the computer, which is conducive to typesetting.
# Cutting: It’s can cut straight and 45 degree. (planes and bevels cutting).
# Polishing: The machine can polish various edges automatically.
# Grinding/drilling: It can grind irregular cutting surfaces and always reach a smooth effect.
# Make Hole: The machine can make small or big hole, especially making hole for water-tap in the wash basin.
# The tilting table: The table can be turned 87 degree, It’s easy to loading the materials.
# Operate wheel: The operate wheel is like the remote, you can operate the machine at any time when you are far away from the machine.
Multi-functions: Cutting straight and 45 degree, Polishing, Edging, Grinding, Making hole.With Camera, tilting table.
Machine Functions
Specification
Working area |
3000*2000*350mm |
Table size |
3700*2200*1800mm |
Control method |
5 axis touch cnc control |
Programming method |
CAD & Manual |
Spindle power |
4.5KW |
Blade size |
350-500mm |
Cutting thickness |
150mm |
X axis working stroke |
3000mm |
Y axis working stroke |
2000mm |
Z axis working stroke |
260mm |
A axis working stroke |
360 degree free rotation |
Driving motor |
Servo motor |
Voltage |
AC380/50HZ |
Tilting table |
0-87 degree |
Weight |
2300KG |
Details Images

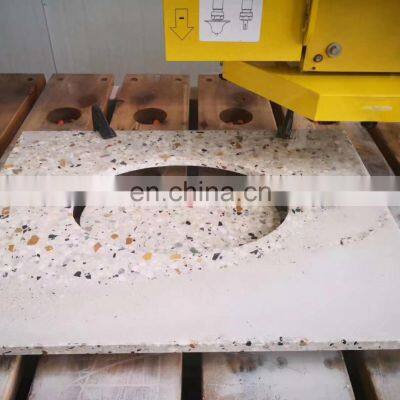

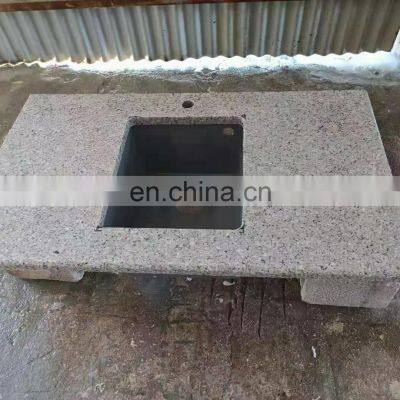

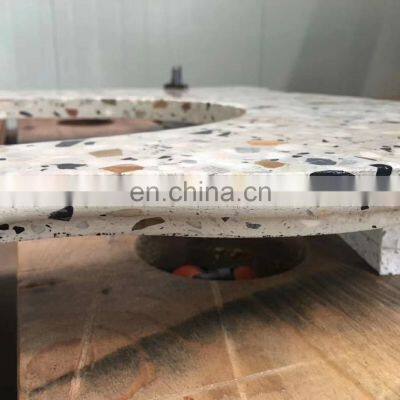

Working Sample
Professional for making kitchen countertop, It can cut, drill, slot, dig round, mill, profile edge, open basin hole, stove hole,slash cutting and other multi-functional integration, with high-quality motor, high precision and fast speed. It is suitable for quartz stone, rock slab, artificial stone, granite, marble and other large, medium and small stone decoration projects.
