Jinan hot selling stone router factory price 1325 stone carving tombstone carving CNC milling machine

Name: Jinan hot selling stone router factory price 1325 stone carving tombstone carving CNC milling machine
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

Jinan hot selling stone router factory price 1325 stone carving tombstone carving CNC milling machine

Product Description

# Heavy duty type machine structure, good weight bearing capacity, not easy to deformation, the special machine bed design, can bearing more than 2000kgs materials.
# The special designed Zaxis, can increase the stone relief accuracy, can solve the Zaxis belt or ball screw breaking problem thoroughly.
# The water proof and dust proof system for X Y Zaxis, can protect all the parts, reduce the machine fault, enlarge the life time.
# High-performance driven motor to ensure that the machines high speed and accuracy. Using well-known domestic brands of water-cooled brushless spindle, low noise, strong cutting ability, to ensure the long time working.
# Easy to use Mach3 / NC Studio / DSP controller works with all industry standard CAD/CAM software.
# High grade Hiwin square rail, XY axis German helical rack and pinion, Z axis high precision TBI ball screw.
# 900*1500mm, 1300*1300mm, 1300*2500mm, 1500*3000mm,1800*2500mm standard sizes are optional.

Specification

X Y Working area	1300*2500mm
Z axis travel	300mm, option: 500mm, 600mm, 700mm, etc.
Machine Body	8mm thickness welded steel tube, cast iron vertical shafts and steel gantry
Spindle	4.5kw/ 5.5kw HQD water cooling
Spindle speed	24000rpm
Driving motor	Stepper/Servo motor and driver
Inverter	Fuling inverter
Control system	DSP/NC Studio/ Mach3
Interface	USB
Table Surface	T-slot aluminum+Good PVC
Guide rail	Hiwin linear square guide rail
Transmission	X/Y rack and pinion, Z ball screw
Lubrication system	Manual lubrication system
Tool Calibration	Automatic tool sensor calibration
Cables	Germany Igus cables with CE, cUL certificate
Compatible software	Artcam, Powermill, Fusion 360, etc.
Command language	G Code & M Code
Traveling speed	40m/min
Working speed	0-20m/min
Re-positioning accuracy	±0.03mm
Working voltage	220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ

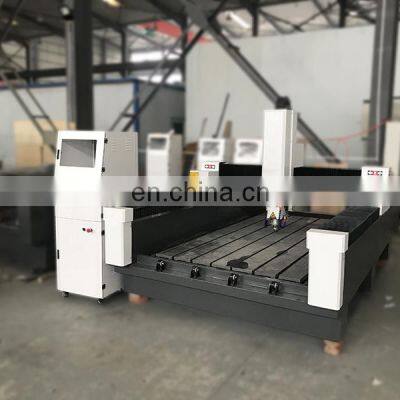

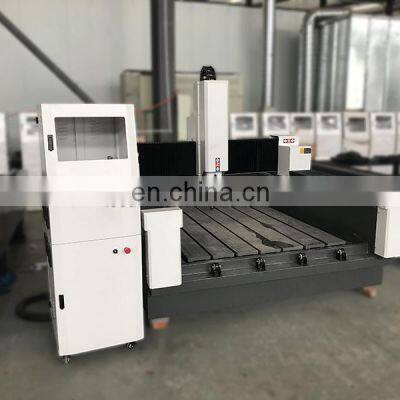

Details Images

Working Sample

This stone CNC router craving machine mainly suit for stone, granite, marble engrave cutting work. But it also suit engrave and cut on soft wood,hard wood, MDF, Aluminum and plastic composite panel, Acrylic sheet, ABS double color sheet, PVC foam sheet, wooden sheet, PCB Aluminum sheet etc.
Wood furniture industry
Door, cabinets, tables, Chairs. Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards, etc.
Advertising industry
Signage, Logo, Badges, display board, meeting sign board, billboard advertising field, sign marking, acrylic engraving cutting, crystal word making, blaster molding, etc.
Mold industry
Sculpture of copper, aluminum, iron and other metal mold as well as artificial marble, sand, plastic sheeting, PVC pope and other nonmetal mold
Artwork and decoration
Wood crafts, gift box, jewelry box
Others
Relief sculpture and 3D engraving and cylindrical object.
