Product Description
High Efficiency Woodworking Machine 1325 1530 CNC Machinery 3 Axis 4 Axis CNC Milling Machine
Product Description
Machine Features

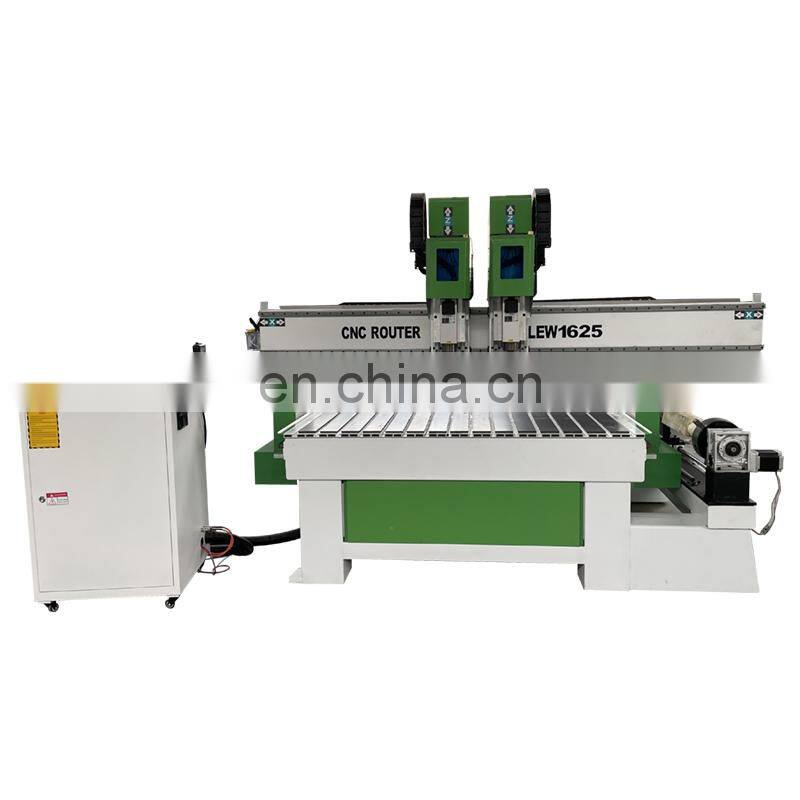

This is a multi-spindle engraving machine with two spindles. The two spindles can complete processing independently, so more flexible processing is realized. The two spindles can also work at the same time, which greatly improves the processing efficiency.
* New type thicker and bigger heavy duty welded frame and gantry.
* Two spindles working one by one,like a simple ATC machine,more convenient to change the tool.
* The machine spindle is Chinese top air cooling spindle. It’s more economic and good performance.
* New type thicker and bigger heavy duty welded frame and gantry.
* Two spindles working one by one,like a simple ATC machine,more convenient to change the tool.
* The machine spindle is Chinese top air cooling spindle. It’s more economic and good performance.
* The bed is welded with thick-walled square steel, which is more stable than ordinary square tubes. Square bracket, the color is black and orange, beautiful.
* It adopts Taiwan imported original linear square guide rail, double row and four rows of ball slides, rack drive, large bearing capacity, stable operation, high precision and long service life. The imported ball screw has high precision and accurate cutting.
* The pallet type gantry adopts square steel welded structure, and the side plate adopts thick-walled steel structure, which is more stable and can effectively reduce the gantry shaking feeling during engraving.
* Good software compatibility, compatible with various CAD/CAM design and production software such as type3/Actcam/Castmate/Wentai.
* The Y-axis is driven by a dual motor, which has the advantages of high performance, low noise and excellent stability.
Specification
X,Y,Z Working Area | 1600*2500*200mm |
Table Surface | T-slot & vacuum work table |
Frame | New type thicker and bigger heavy duty welded frame and gantry |
X, Y Structure | TaiWan HIWIN #20 linear guide Helical rack gear transmission for X,Y axis |
Z Structure | Taiwan TBI ball screw for Z axis |
Spindle Power | 2 sets 3.5kW air cooling spindle |
Spindle Speed | 0-24000rpm |
Driver & Motor | Stepper/Servo motor and driver |
Operating System | DSP/Mach3/Nc Studio Control System |
Computer Interface | USB |
Working Voltage | 380V, 3 phase, 50HZ |
Inverter | Fuling inverter |
Lubrication system | Manual lubrication system |
Dust Collector | Optional |
Details Images
Working Sample
# Woodworking: wooden door and furniture, windows, tables and chairs,cabinets and panels, 3D wave plate,MDF,computer desk,musical instruments,etc;
# Advertising: billboard, logo,sign,3D characters cutting,acrylic cutting,LED/neon channel,literal-hole cut,lightbox mold,stamp,mould,etc;
# Die industry: copper sculpture,aluminum engrave,metal molds,plastic sheeting,PVC ,etc;
# Decoration: acrylic, density board, artificial stone, organic glass, soft metals like aluminum and copper.
# Advertising: billboard, logo,sign,3D characters cutting,acrylic cutting,LED/neon channel,literal-hole cut,lightbox mold,stamp,mould,etc;
# Die industry: copper sculpture,aluminum engrave,metal molds,plastic sheeting,PVC ,etc;
# Decoration: acrylic, density board, artificial stone, organic glass, soft metals like aluminum and copper.
Packing & Delivery
