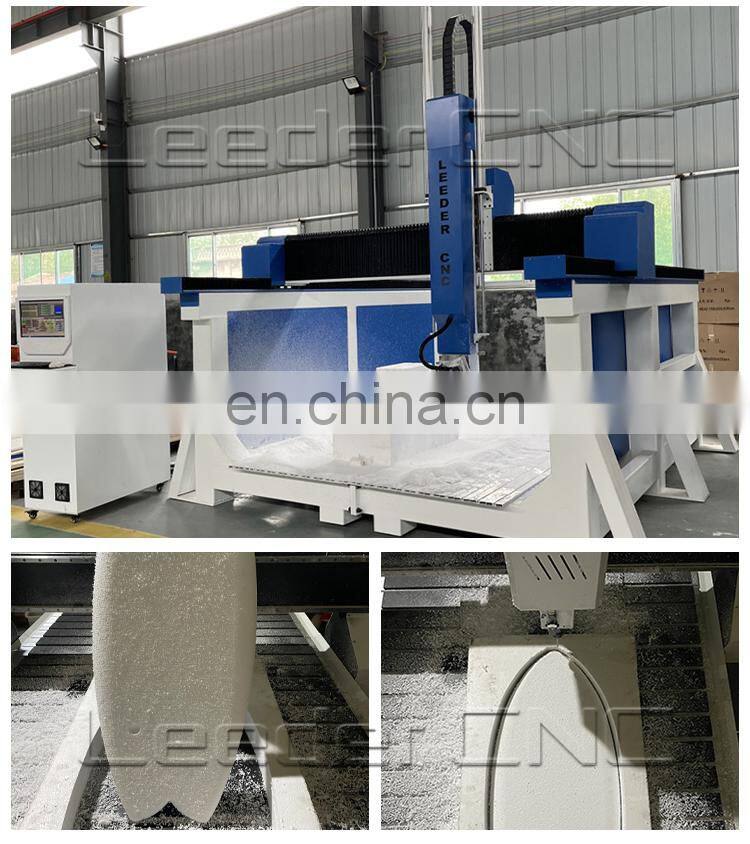

Jinan LEEDER cnc 4x8 router 4 axis 3d cnc marble sculpture machine cnc machine for surfboards
BOARD SHAPING MACHINES
#CNC surfboard shaping machine series is a device specially used to manufacture surfboard shapes. According to the material characteristics of the surfboard, it uses a vacuum adsorption device to fix the material.
#We are specialized in the field of surfing, windsurfing, kite-surfing, with equipments for foam: vacuum pump, suction cups, centering, adjustable support.
#All our machines are made custom-tailored in a range going from (working area) 2.20 meters (7’) up to 6 meters (18’) length.
#Capable of machining any type of foam, polystyrene, polyurethane PU, XPS, EPS, we offer the best adapted cutting tools.
| Model | LE-1530M |
| Body structure | Steel tubes |
| X, Y Structure | Rack and pinion drive |
| Z Structure | Ball Screw/option gear wheel |
| Control system | Mach3 |
| Spindle power | 3kw/4.5kw/5.5KW/8KW(can be choices) |
| Spindle Speed | 6000-24,000rpm |
| Table style | Fixture Table/vacuum option |
| Voltage | AC220V/50Hz/ or as customer needed |
| Drive type | Stepper/Option:servo |
| Working Dictate | G Code ,HPGL |
| Operating system | NC-Studio/Dsp System/option syntec or LNC |
| Interface | USB |
| Software Compatability | Ucancam / ArtCam/TYPE3/Power Mill |
Three years warranty for the whole machine. Within 18 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 18 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.
Technical support:
1. Technical support by phone, email or WhatsApp/Skype around the clock
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas
After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.
Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/WhatsApp/tel etc
