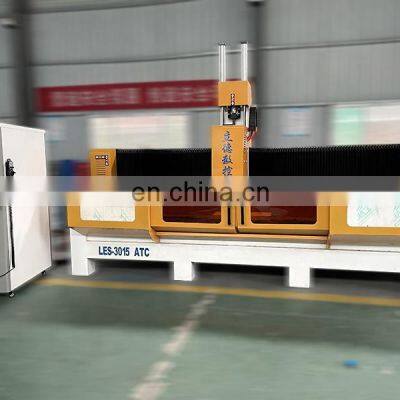

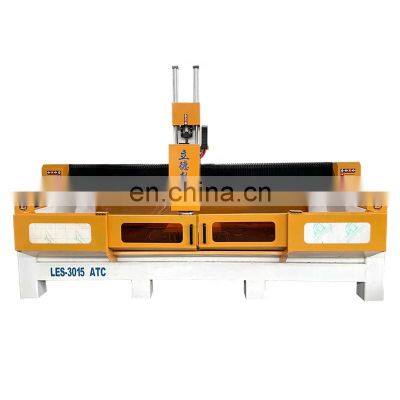

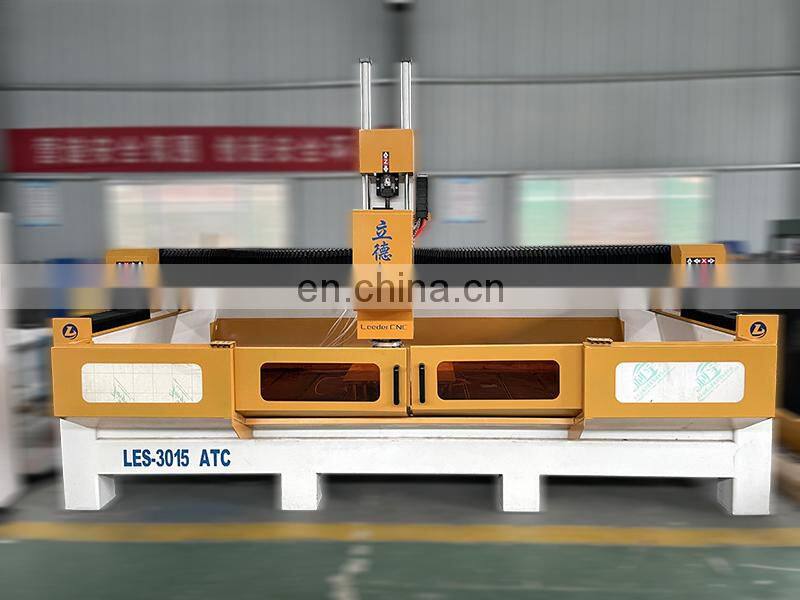

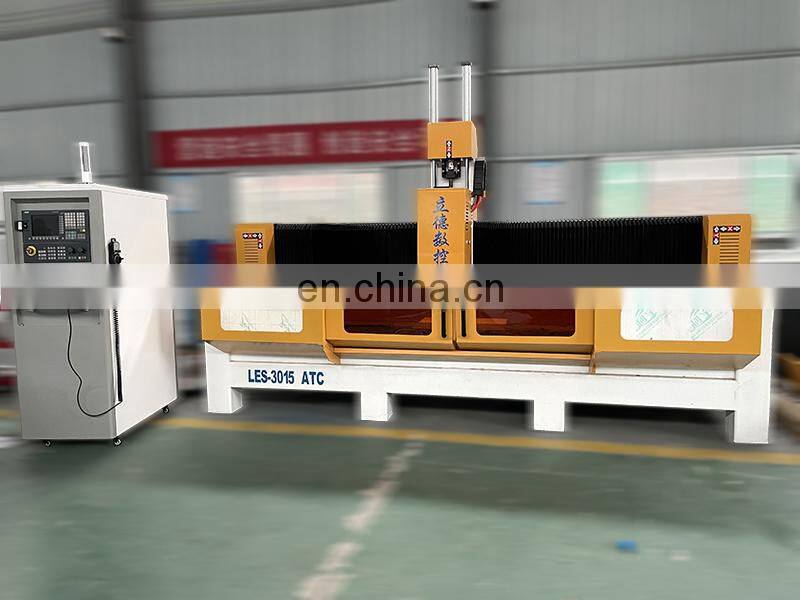

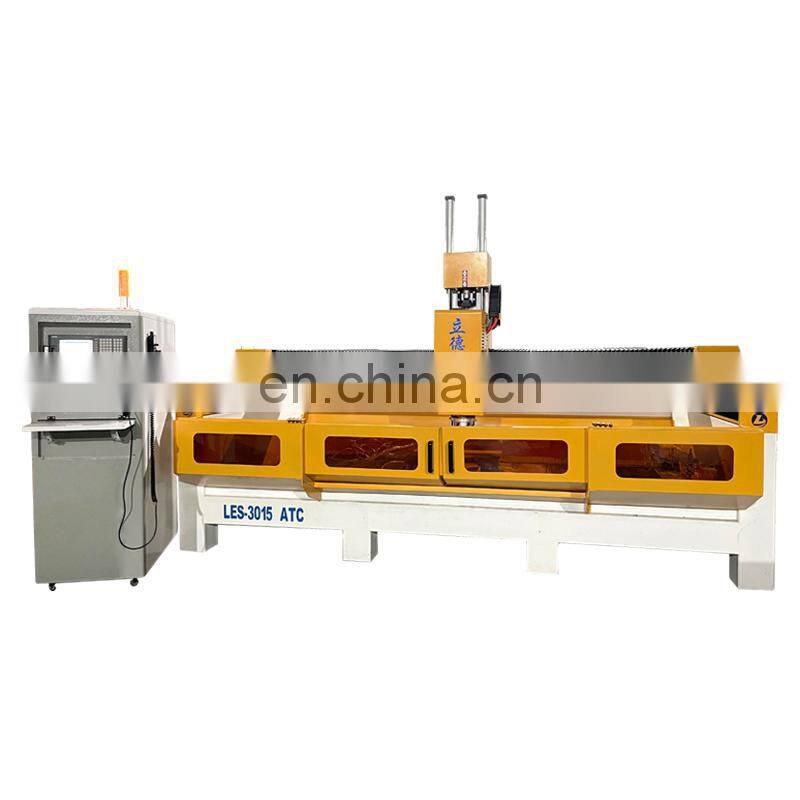

China 3D CNC Processing Granite Marble Tombstone Stone Engraving Carving Cutter CNC Router Stone Cutting Machinery
#Working area: 3000 *1500*300mm

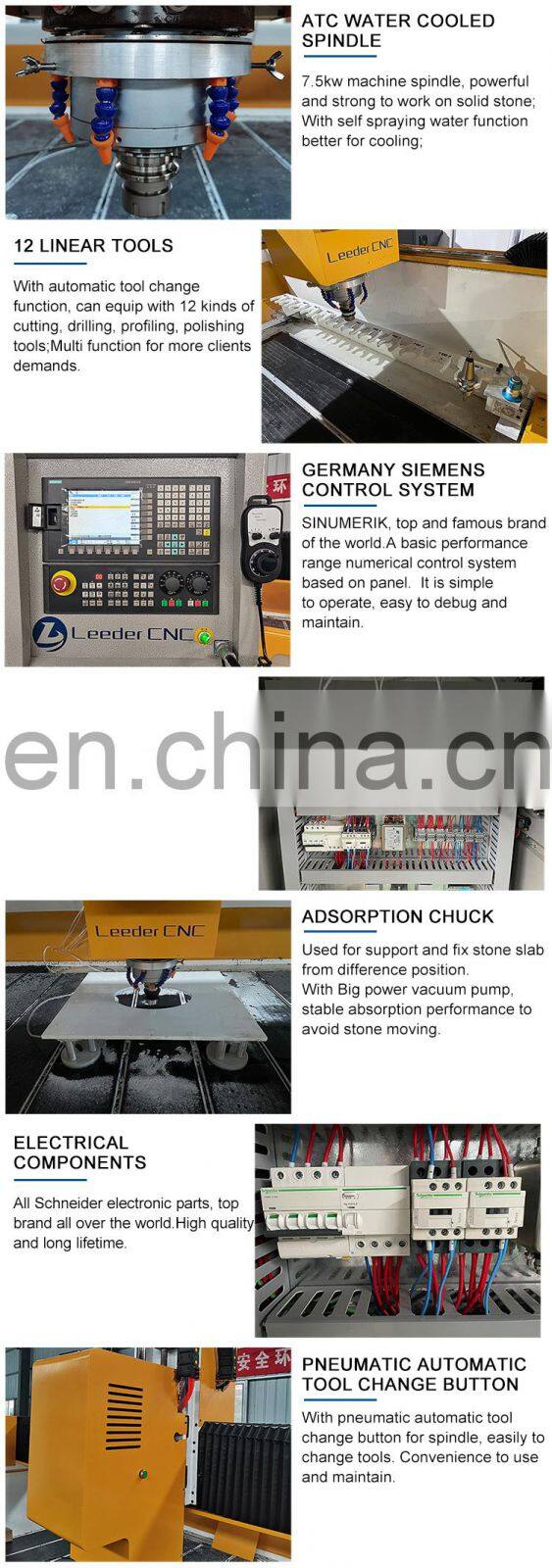

#Function: ATC function
#Controller: Top brand German Siemens
# German Siemens Servo Motor
#ATC 5.5kw /7.5kw Powerful mechanical servo spindle
#Tool shank 12pcs (BT40)
#12pcs of tool holder
#Steel machine frame
#T slot + vacuum block working table
#Vacuum chuck
#Vacuum pump: 7.5kw
#XYZ all from Famous Taiwan Hiwin Line 30mm Square guide way
#Automatic lubrication system
#Artcam Software
Stone Cutting Machine Parameters:
|
NO. |
Description |
Parameters |
|
1 |
Working area |
3000*1500*300mm |
|
2 |
Table size |
4200*2250*2000mm |
|
3 |
Transmission |
X/Y rack and pinion, Z ball screw |
|
5 |
Spindle power |
ATC 5.5KW/7.5KW Machinery Spindle |
|
6 |
Spindle speed |
8000r/min |
|
7 |
Travelling speed |
20m/min |
|
8 |
Working speed |
10m/min |
|
9 |
Working Delicacy |
0.05mm |
|
10 |
Repositioning Accuracy |
0.05mm |
|
11 |
Driving Motor |
German Siemens Servo brand |
|
12 |
Control System |
Siemens/Nc Studio |
|
15 |
Voltage |
AC380V |
|
16 |
Table |
Vacuum table with chuck |
|
17 |
Software |
JD/Ucancam/Artcam/Type3,other CAD/CAM |
