Product Name

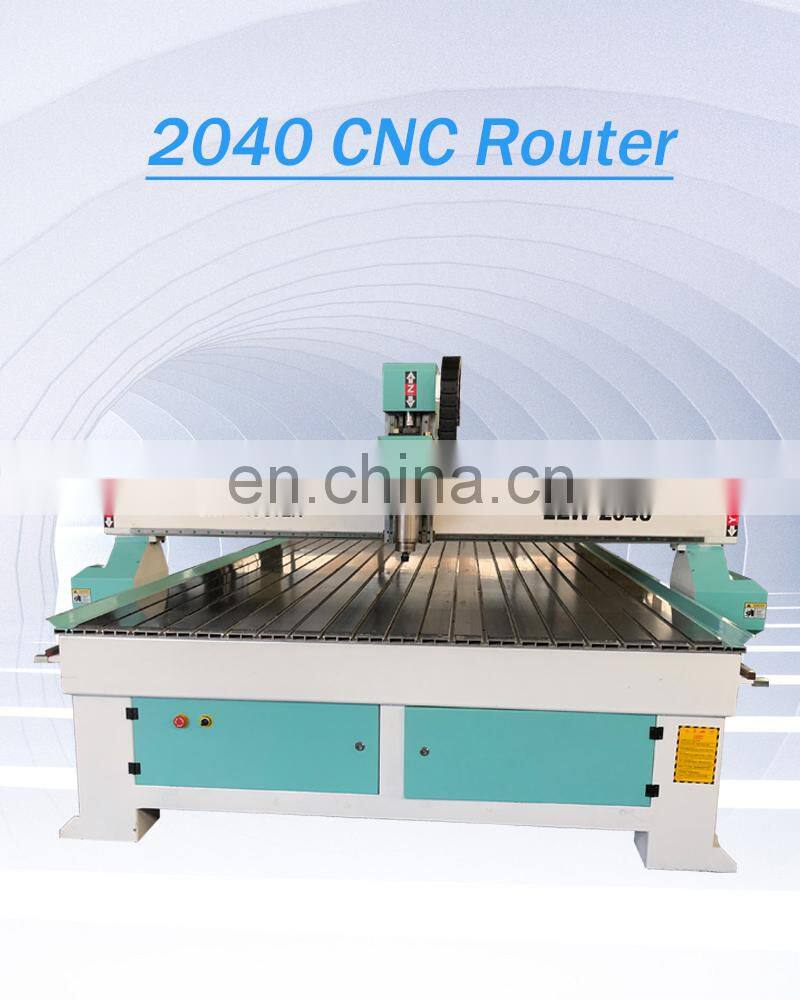

Large cnc wood router carving 2030 1325 wood cutting machine
Products Description
Feature
1. With heavy duty steel welded structure for long use life and stable performance.
2. 3.5kw/4.5kw/6kw air cooling spindle with 18000r/min, or 2.2/3.2/4.5/5.5kw water cooling spindle with 24000rpm.
3. Computer control, easy operation,strong function and more visual;
DSP Controller, easy operation, convenient.
4. Vacuum table could adsorb different size materials closely.
5. All famous and quality brand part, to guarantee whole machines high quality and long use life.
2. 3.5kw/4.5kw/6kw air cooling spindle with 18000r/min, or 2.2/3.2/4.5/5.5kw water cooling spindle with 24000rpm.
3. Computer control, easy operation,strong function and more visual;
DSP Controller, easy operation, convenient.
4. Vacuum table could adsorb different size materials closely.
5. All famous and quality brand part, to guarantee whole machines high quality and long use life.
Product Paramenters
NO. | ITEM | DESCRIPTION |
1 | Working area | 2000x3000x 200/300mm |
2 | Spindle | HQD 3/4.5/5.5/6kw air or cooling spindle, optional Italy HSD |
3 | Control system | NC Studio / DSP / Mach3, etc. |
4 | Driving system | Leadshine stepper driver and motor, optional servo |
5 | Table | T-slot aluminum table, optional vacuum table. |
6 | Transmission | Gear and rack transmission for XY and Z axis Taiwan TBI ball screw |
7 | Linear rail | Taiwan Hiwin square linear rail |
8 | Inverter | Best / Fuling |
9 | Machine structure | Heavy duty, big and thick steel welding |
10 | Limit switch | Japan Omron |
11 | Electronic parts | Schneider / Chnt |
12 | Cabinet | Independent / Inbuilt |
13 | Control mode | G Code*.u00*.mmg*.plt |
14 | Software | Artcam/Type3/AutoCAD, other CAD/CAM17 |
15 | Max travelling speed | 30m/min |
16 | Max working speed | According to material |
17 | Voltage | AC 220V / 380V |
18 | Color | Customizable |

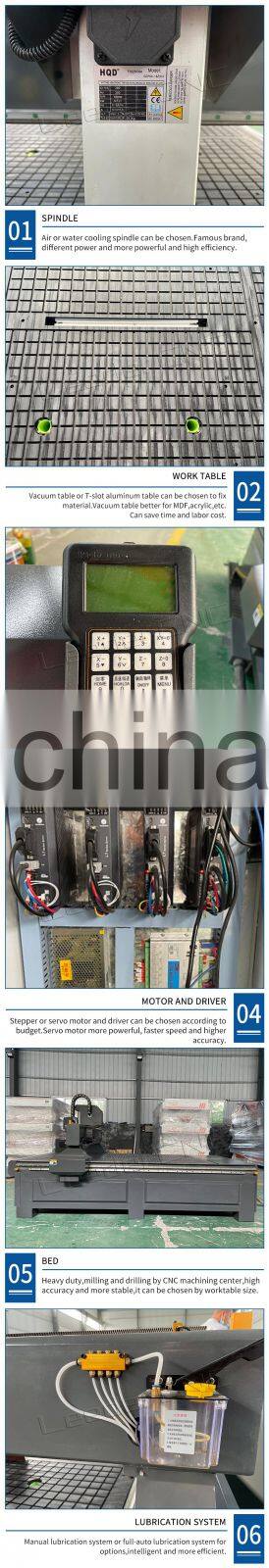

Details Images
Working Sample
Application
1.Woodworking: wooden door and furniture, windows, tables and chairs, cabinets and panels, 3D wave plate, MDF, computer desk, musical instruments,etc;
2.Advertising: billboard, logo, sign, 3D characters cutting, acrylic cutting, LED/neon channel, literal-hole cut, lightbox mold, stamp, mould, etc;
3.Die industry: copper sculpture, aluminum engrave, metal molds, plastic sheeting, PVC, etc;
4.Decoration: acrylic, density board, artificial stone, organic glass, soft metals like aluminum and copper.
2.Advertising: billboard, logo, sign, 3D characters cutting, acrylic cutting, LED/neon channel, literal-hole cut, lightbox mold, stamp, mould, etc;
3.Die industry: copper sculpture, aluminum engrave, metal molds, plastic sheeting, PVC, etc;
4.Decoration: acrylic, density board, artificial stone, organic glass, soft metals like aluminum and copper.
Company Profile
Our service
* Two years warranty.
* Normal machine is properly adjusted before dispatch. Customer will be able to use the machine after received machine.
* Customer will be able to get free training advice towards our machine in our factory.
Can also get free suggestion and consultation, technical support and service by Email/Tel/WhatsApp/Skype, etc.
* Any question or problem, show us pictures or videos, and then we will try our best to help you as soon as possible.
* Free parts will be provided if broken not human reason within warranty.
* Engineer available to service machinery overseas.
