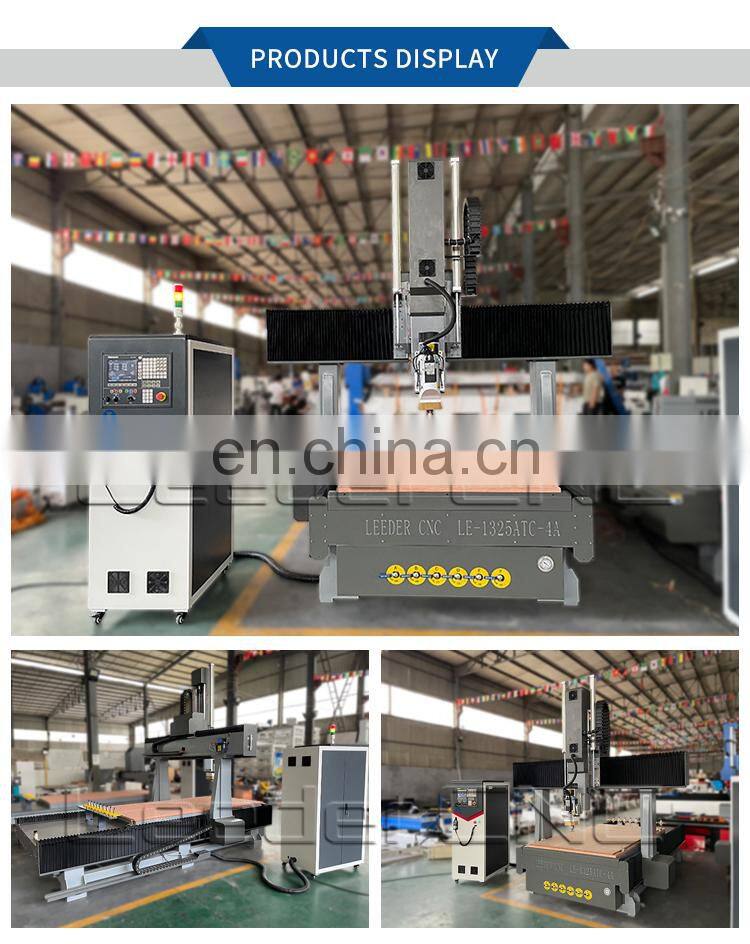

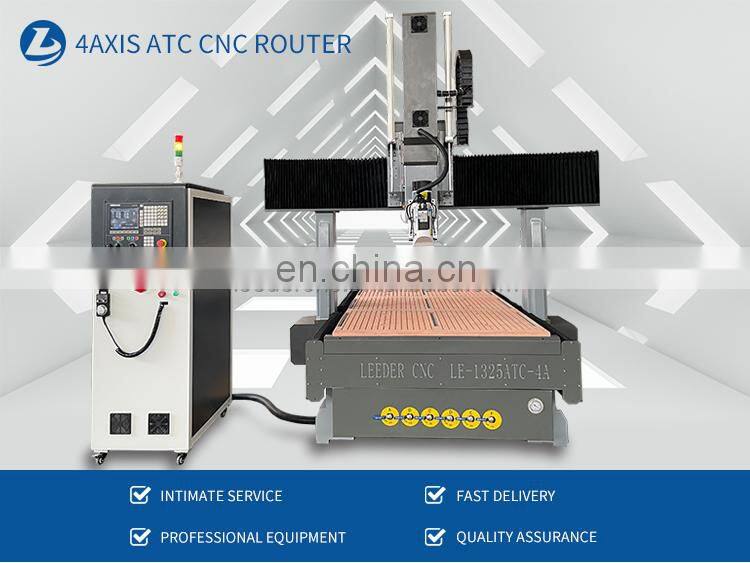

Multiple Axis 3 4 5 Axis 1325 1530 Wood Cnc Router
1.Woodworking: wooden door and furniture, windows, tables and chairs,cabinets and panels, 3D wave plate,MDF,computer desk,musical instruments,etc;
2.Advertising: billboard, logo,sign,3D characters cutting,acrylic cutting,LED/neon channel,literal-hole cut,lightbox mold,stamp,mould,etc;
3.Die industry: copper sculpture,aluminum engrave,metal molds,plastic sheeting,PVC ,etc;
4.Decoration:acrylic, density board, artificial stone, organic glass, soft metals like aluminum and copper.
|
NO. |
Model |
1325 |
|
1 |
Working area |
1300x2500x700mm |
|
2 |
Working table |
Vacuum absorb table with T-slot |
|
3 |
Spindle |
9kw ATC air cooling spindle |
|
4 |
Cooling system |
Air cooling |
|
5 |
Control system |
NC Studio/Syntec |
|
6 |
Inverter |
Fuling inverter |
|
7 |
Transmission |
XY-axis Rack gear,Z-axis ball screw |
|
8 |
Guide rail |
Taiwan Square HIWIN guide rail |
|
9 |
Ball screw |
Taiwan TBI ball screw |
|
10 |
Drive system |
Servo motor and driver |
|
11 |
Machine body |
Square tube welding body |
|
12 |
Limit Switch |
Japan Omron |
|
13 |
Electrical components |
France Schneider |
|
14 |
Traveling speed |
30m/min |
|
15 |
Working speed |
20m/min |
|
16 |
Control software |
Artcam/Type3,other CAD/CAM |
|
17 |
Command code |
G Code*.u00*.mmg*.plt |
|
18 |
Voltage |
AC220V/380V-50HZ/60HZ |
|
19 |
Color |
Optional |
# Adopt Taiwan Hiwin square rails, life-long maintenance-free self-lubricating.
# Adopting HQD/HSD high-speed electric spindle, the maximum spindle speed reaches 10000RPM (foam). 24000 (wood mold), to ensure the optimization of processing efficiency.
# The entire resin sand casting worktable undergoes strict annealing and other heat treatment processes to ensure the structural stability and rigidity of the bed.
# WEIHONG systems, safe and reliable operation, read code speed and high efficiency, and have on-line simulation capabilities, online monitoring capabilities.
# Long-time working time with high precision and high efficiency: Welded square tube structure, anti-deformation, strong and relaible; Imported high-precision ball screw; High-performance driven motor; Working with dust hood on all three axis, which can stop dust away from the rails and ball screws, and to keep the machine working for longer time.
# Humanized and beautiful designing: with attractive color and curvings in cosideration of convenient user operation at the same time.
# Safe and high efficiency: Double limit protection in avoid of excessive machining; Unique preservation way of the zero point. Breakpoint specific memory to keep the carving status when power off, processing time forecast and other functions in case of the accidental power outages.
# Easy operation and low maintenance cost. gdesign and top quality accessories to minimize the machine’s failure rate
# Many optional configuration and OEM service available.
