Home > Products > CNC Router Machine > CNC Router Machine Mini 9012 9015 1212 1310 1313
CNC Router Machine Mini 9012 9015 1212 1310 1313
- 1000 per Month
- T/T Credit Card
You May Like
-
4040 cnc router 6060 mini cnc milling machine 6090 cnc router engraving PCB drill machine
-
High quality table movable cast iron frame 6060 0609 mini cnc router madeira
-
6060 6090 CNC Mini 3Axis Metal Milling Machine Heavy Duty Metal CNC Milling Machine
-
Mini cnc wood aluminum cutting machine small cnc router 6090 / best price cnc 3d letter carving machine
-
Router cnc mini 3040 4040 made in China Jinan price
-
Mini CNC router 6040 3040 free CAD software for sale
Product Description
CNC Router Machine Mini 9012 9015 1212 1310 1313
CNC router machine 6090 Applications:
1.Woodworking: wooden door and furniture, windows, tables and chairs,cabinets and panels, 3D wave plate,MDF,computer desk,musical instruments,etc;
2.Advertising: billboard, logo,sign,3D characters cutting,acrylic cutting,LED/neon channel,literal-hole cut,lightbox mold,stamp,mould,etc;
3.Die industry: copper sculpture,aluminum engrave,metal molds,plastic sheeting,PVC ,etc;
4.Decoration::acrylic, density board, artificial stone, organic glass, soft metals like aluminum and copper.
CNC router machine parameter:
|
NO. |
Model |
9012 |
|
1 |
Working area |
900x1200x150mm |
|
2 |
Working table |
T-slot aluminum table Option: Vacuum table, water table. |
|
3 |
Spindle |
1.5kw/2.2kw/3.2kw water cooling spindle |
|
4 |
Cooling system |
Air cooling or water cooling |
|
5 |
Control system |
NC Studio/DSP/MARCH3 |
|
6 |
Inverter |
Fuling/Best inverter |
|
7 |
Transmission |
XY-axis Rack gear,Z-axis ball screw |
|
8 |
Guide rail |
Taiwan Square HIWIN guide rail |
|
9 |
Ball screw |
Taiwan TBI ball screw |
|
10 |
Drive system |
Stepper or Servo motor and driver |
|
11 |
Machine body |
Square tube welding body |
|
12 |
Limit Switch |
Japan Omron |
|
13 |
Electrical components |
France Schneider |
|
14 |
Traveling speed |
20m/min |
|
15 |
Working speed |
10m/min |
|
16 |
Control software |
Artcam/Type3,other CAD/CAM |
|
17 |
Command code |
G Code*.u00*.mmg*.plt |
|
18 |
Voltage |
AC220V, 50HZ/60HZ |
|
19 |
Color |
Optional |

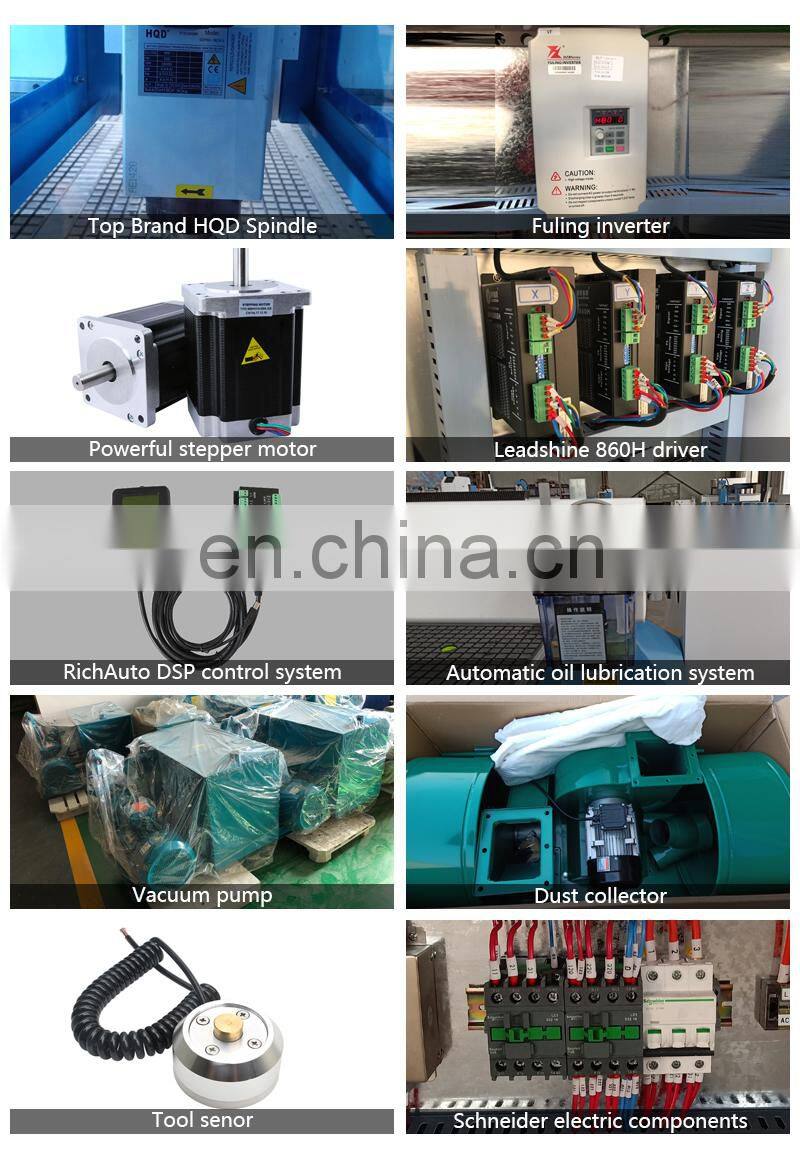

Machine Parts:
Working Simples:
Customer feedback:
1.Can I customized the machine from your company?
Of courtse you can, we can customized the machine according to your requirement.
2.How does your factory do regarding quality controlling?
All raw materials we used are environment-friendly
Skillful workers care every details in handing the producing and packing process.
Quality control department are specially responsible for quality in each process.
3.Dose the packing strong?
Yes, all of our export packing with Protective film and strong wooden box.
4.How about the after-sale service?
Two years warranty for machines(no human reason)
The machine free installation and fully test before send to the customers.
24 hours technical support by internet(Team viewer, whatsapp, wechat, skype) or by telephone in English, provided by professional engineer, free instructions and problem solving for whole life.
