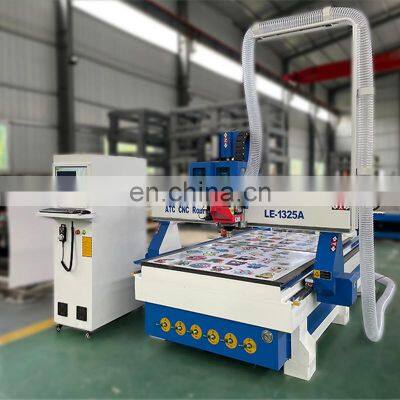

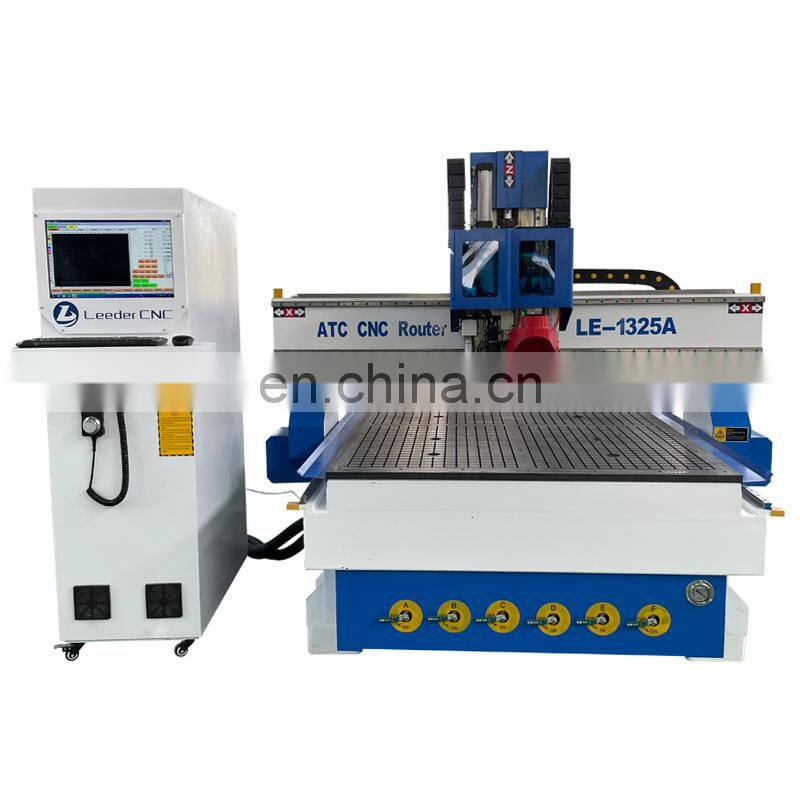

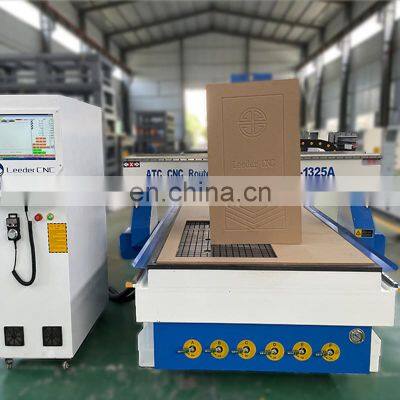

Leeder CNC 1325 Oscillating Knife CNC Router Machine With CCD Camera
CNC router with spindle and CCD camera and oscillating knife is a newly developed machine by our company, which combine CNC spindle cutting, oscillating knife cutting and CCD camera. It's very popular use in sign making and advertising industry.
CNC router spindle head is used for smart cutting, routing, carving, grooving, drilling on popular woodworking or advertising projects: Wood arts, wood crafts, wood signs, wood gifts, wood toys, cabinet making, wood door making, wardrobe and other wood furniture production. It applied to cut hard advertising materials, such as wood,acrylic,plastic,etc.
Oscillating knife is used for high-precision cutting of heavier flexible and semi-rigid materials. Oscillating knife is carried on the multi-tool cutting head–Vibration knife, Oblique knife, Circular knife, Punching knife, Milling knife, Punch roller and Marking pen. CCD Camera is for precise positioning, CCD camera scan,detect and recognize printed contour, or pick up printed registration marks and cut the chosen designs with fast speed and high accuracy. Oscillating knife cutting is also called CNC knife cutter, CNC knife cutter Machine, Knife Cutter, Knife Cutting Machine, CNC knife cutting table.
1. Spindle: Adopt 9kw air cooling spindle, powerful in cutting milling and carving.
2. Control system: Leeder CNC control system support knife cutting and spindle cutting perfectly.
3. Working table: Strong vacuum table match with vacuum pump, big suction to fix materials.
4. Driving motor: Japan Yaskawa servo motors and drivers, Z axis with band brake, very powerful in use.
5. Camera CCD: Automatic edge recognition, It can identify large-area graphics, scan the mark point and cut the outline precisely. Strong recognition ability, fast positioning speed, high positioning accuracy.
6. Dust collector: it will clean up the carving residuum and make the operations tidier and more convenient.
| Model | LE-1325A |
| X,Y Working Area | 1300 x 2500mm |
| Lathe Structure | Heavy Steel lathe bed |
| Spindle | 9kw water-cooling spindle |
| Spindle Rotate Speed | 18000-24000r/min, variable speed |
| Inverter | Top brand Fuling |
| Motor | Yaskawa Servo motor |
| Driver | Yaskawa Servo motor |
| Operating System | CNC control system |
| Diameter of cutter | φ3.175-φ12.7mm |
| Work table |
Vacuum absorption for spindle cutting Carpet layer for vibrating knife cutting |
| Working Voltage | AC380V/50Hz,3 Phase |
| Dust collector | Double bags |
| Vacuum pump | used for adsorption table |
