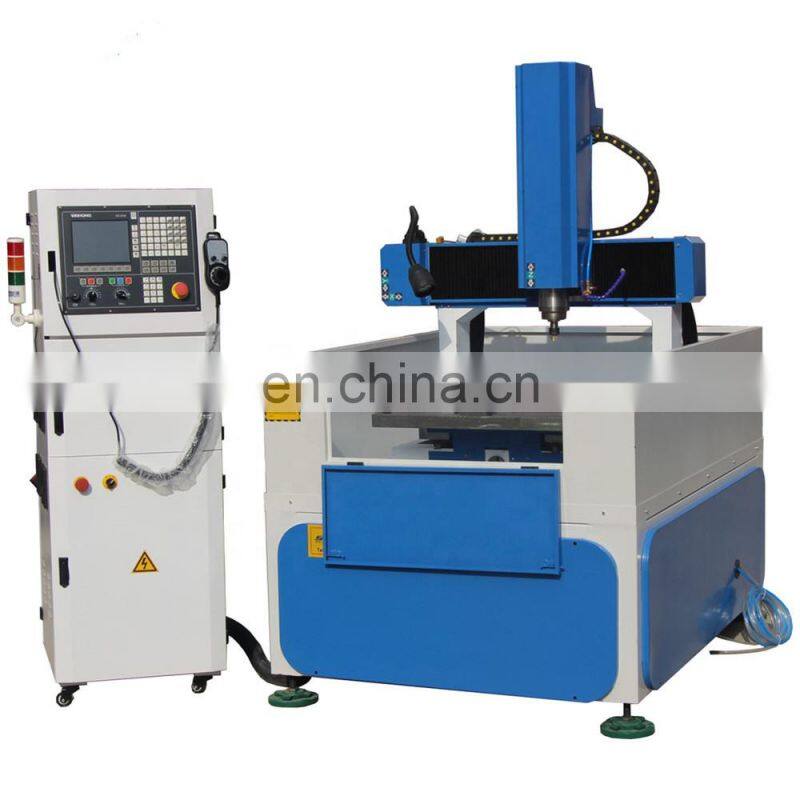

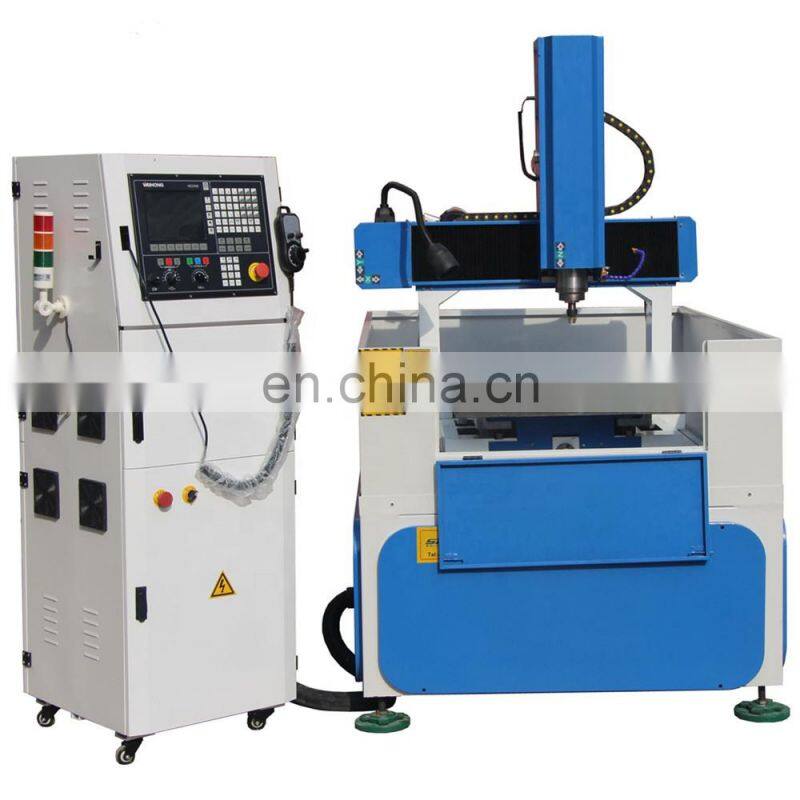

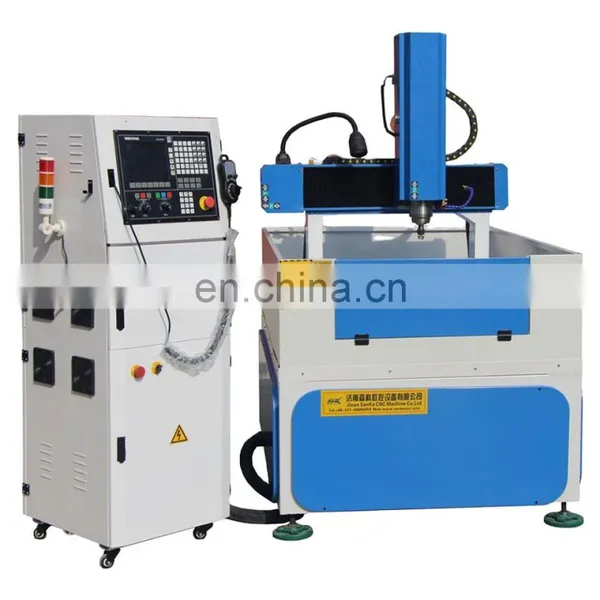

Mini Metal Cnc Milling Machine for Engraving Aluminum Shoe Brass Iron Copper Steel Mold
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Metal Mold Spindle CNC Engraving Machine Mini CNC Router Automatic Metal Mould 4 Axis CNC Milling Machine
-
CNC Router 6060 Metal Engraving And Milling Machine For Brass Aluminum Sliver Metal Stamping Mould
-
6090 Four Head ATC Tool Change Brass Moulding Making Cnc Router Metal Cutting Machine
-
Whole Cast Iron Body Table Move Cnc Router 6090 Metal
-
Iron Copper Steel Metal Mini Cnc Router 6090 1212 Cast Iron Table Heavy Body
-
High Quality SKM-6060 Small Metal Mould Making Machine Cnc Router Machine Price in India
Product Description
Product Paramenters
mini metal cnc milling machine for engraving aluminum shoe brass iron copper steel mold
Products Description
Technical Parameter | ||
Description | Parameter | |
Working area | 600*600*150mm | |
Table Surface | Cast iron T-slot table with water tank | |
Frame | Strong Cast Iron | |
X Y Structure | Ball Screw Drive, Hiwin Rail Linear Bearings | |
Z Structure | Taiwan Original TBI Ball Screw | |
Spindle Power | 2.2KW HQD Water Cooling Spindle(3.2KW 4.5KW Optional) | |
Spindle Speed | 0-24000RPM | |
Inverter | Fuling Inverter(Delta Inverter Optional) | |
Diver Motors | Stepper motors and Leadshine Drivers(Servo Motor Optional) | |
Working voltage | 380V/415V 3 Phase 50/60Hz(Optional:220V Single/3 Phase 50/60Hz or 110V Single Phase 50/60Hz ) | |
Command Language | G Code | |
Operating System | DSP A11Control System (Mach 3 Optional) | |
Software Compatibility | Artcam (Type 3/UcancameV9 Software) | |
Computer Interface | USB | |
Running Environment Temperature | 0-45 Centigrade | |
Relative Humidity | 30%-75% | |
PS: All the working area and specifacations can be customized according to your jobs requirement | ||
Applicable industry
Metal, Jade or marble engraving, also for Sign board process, mould, bronzing ,badge, pattern mould, art carve, sign and label etc
Musical instrument industry,can engrave 3D surface of large scale musical instrument and the contour cutting
Applicable Industries and materials:
Advertising industry: acrylic, double color boards, PVC, ABS, aluminum composite panels, kind of sign, chest signs, texts mould,
trademark materials.
Arty and crafts: Artificial stone and metal, engrave kind of texts, patterns on souvenirs.
Mold processing: Building models, physical model, hot stamping mould, trace injection mould, shoes mold, badges, embossed mold,
biscuit, chocolate candy mold.
Advertising industry: acrylic, double color boards, PVC, ABS, aluminum composite panels, kind of sign, chest signs, texts mould,
trademark materials.
Arty and crafts: Artificial stone and metal, engrave kind of texts, patterns on souvenirs.
Mold processing: Building models, physical model, hot stamping mould, trace injection mould, shoes mold, badges, embossed mold,
biscuit, chocolate candy mold.
Sample display
Related products

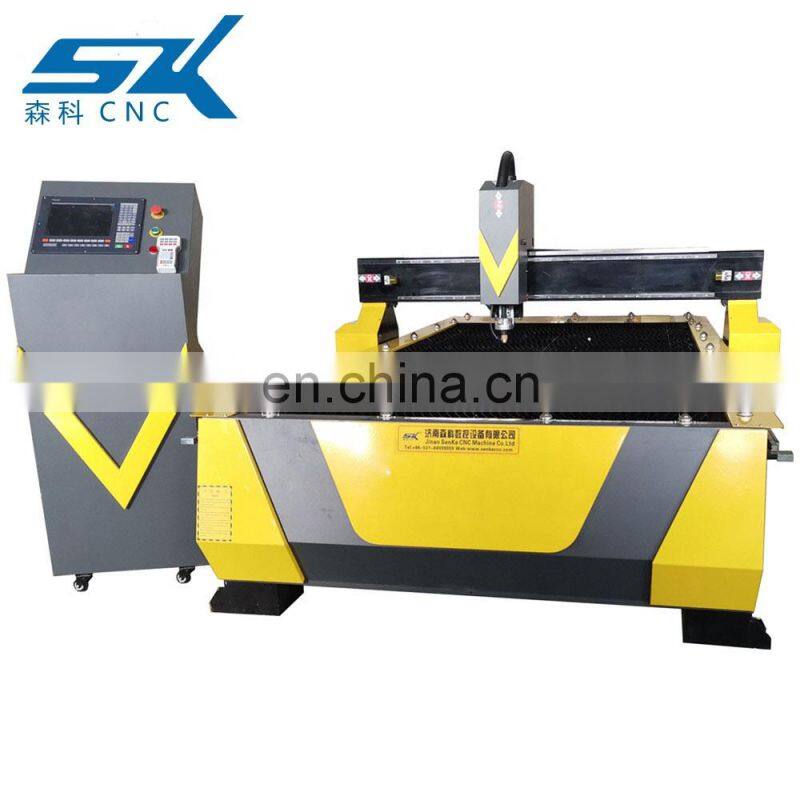

Professional Metal cutting machine cnc plasma metal cutter
https://senkecnc.en.china.cn/product/62510251492-215369569/Metal_cutting_machine_cnc_plasma_for_cutting_iron_stainless_steel_plate_metal.html
FAQ
Q1: I knew nothing about this machine, what kind of machine i should choose?
Very easy to choose. Just tell us what you want to do by using CNC router, then let us give you perfect solutions and suggestions.
Q2: When I got this machine, but I don’t know how to use it. What should I do?
We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail.
Q3: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
Q4: Before sending me an inquiry on our cnc router, it is better for you to provide me the following information
1)Your metal or non-metal material size. Because in our factory, we have different models according to working area.
2)Your materials:Metal/Acrylic/plywood/MDF?
3)You want to engrave or cut?
Very easy to choose. Just tell us what you want to do by using CNC router, then let us give you perfect solutions and suggestions.
Q2: When I got this machine, but I don’t know how to use it. What should I do?
We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail.
Q3: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
Q4: Before sending me an inquiry on our cnc router, it is better for you to provide me the following information
1)Your metal or non-metal material size. Because in our factory, we have different models according to working area.
2)Your materials:Metal/Acrylic/plywood/MDF?
3)You want to engrave or cut?
