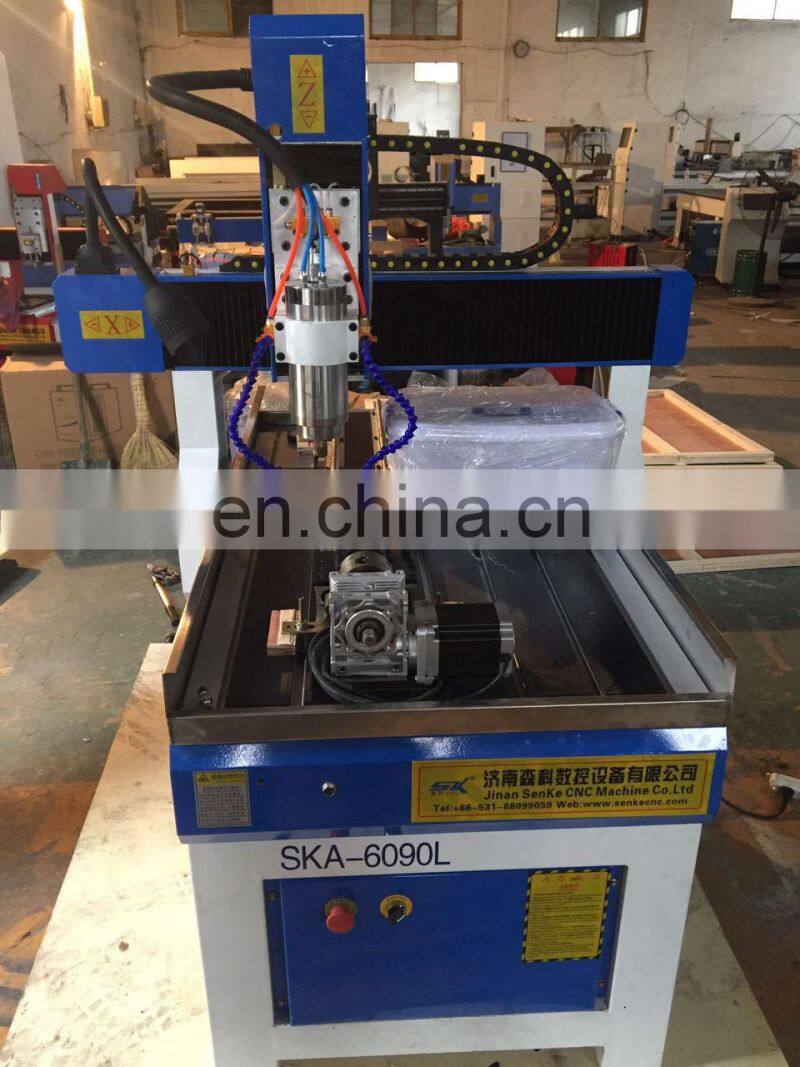

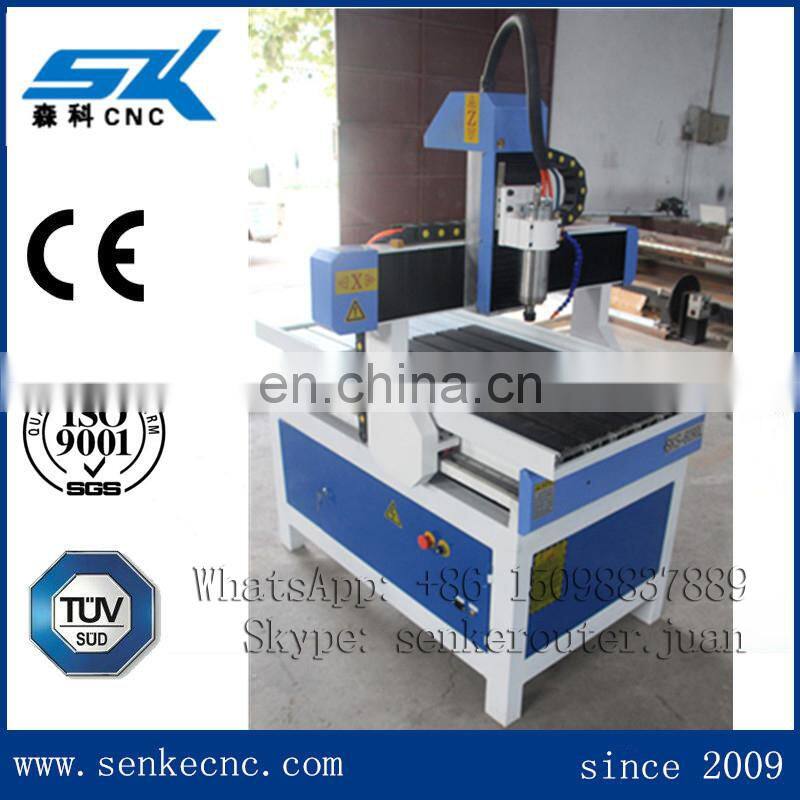

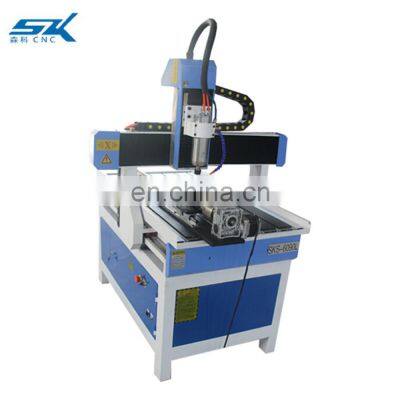

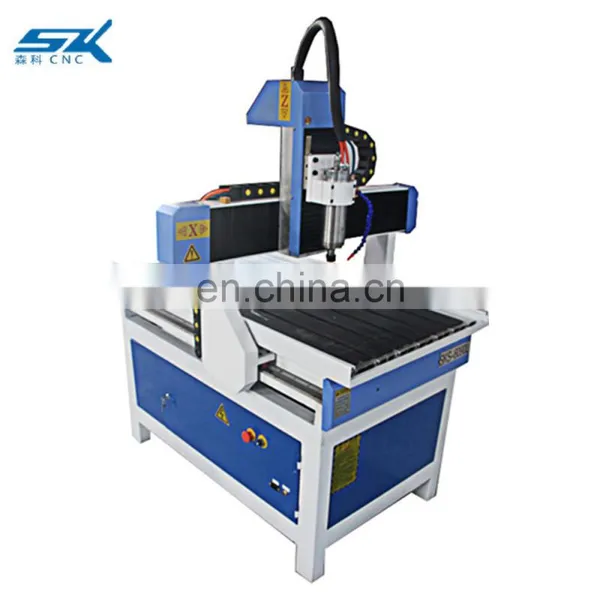

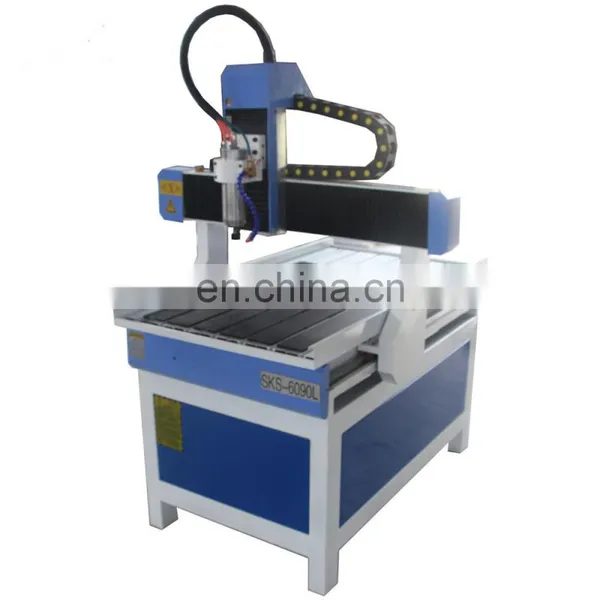

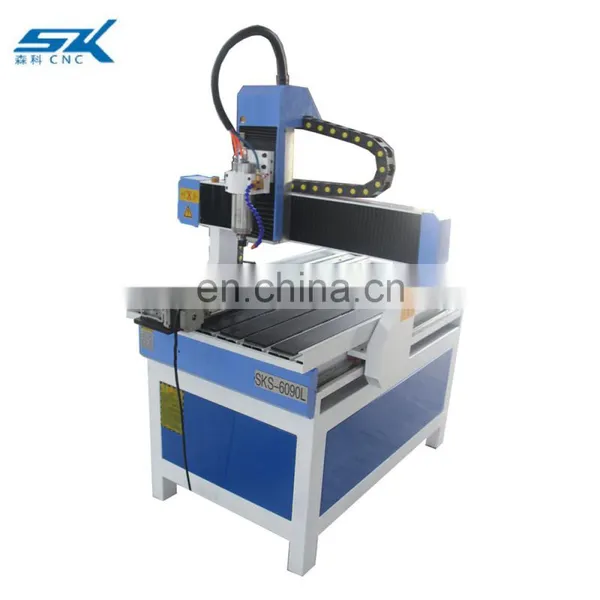

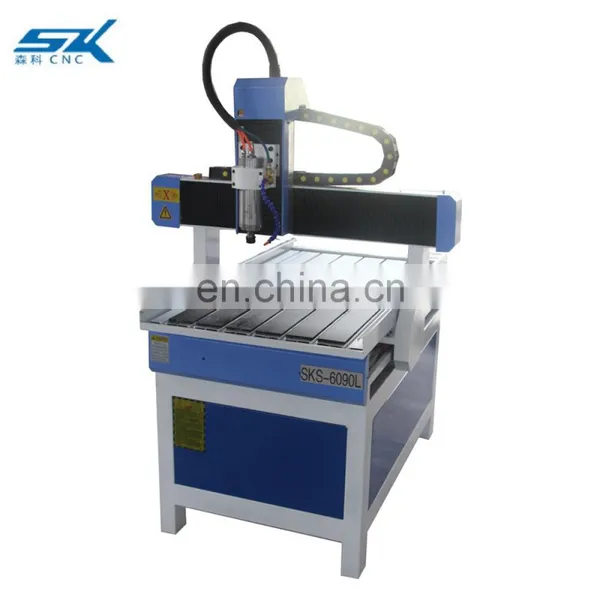

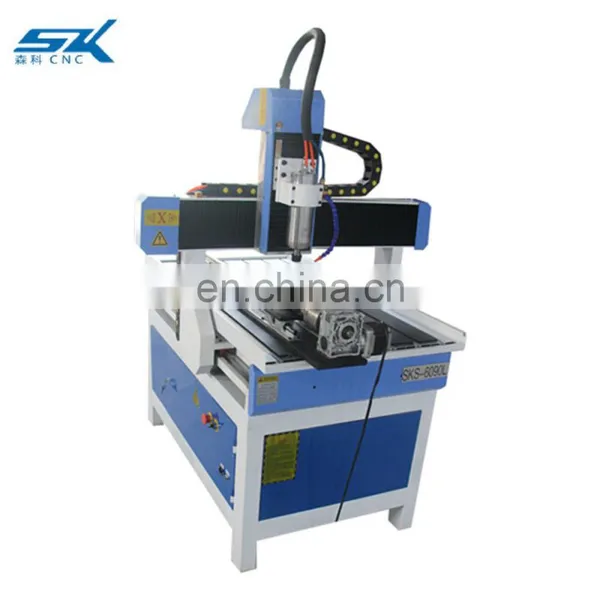

Small 6090 cnc milling machine for metal aluminum stainless steel
Technical parameters:
Discrip Discription | Parameter | |||
SKA-3030L | SKA-4040L | SKA-6090L | Option | |
Working Area (X*Y*Zmm) | 300*300*100mm | 400*400*100mm | 600*900*150mm | customized |
Z Structure | Ball Screw | |||
X, Y Resolution | <0.01mm | |||
Max Moving Speed | 8000mm/min | |||
Max Engraving Speed | 6000mm/min | |||
XYZ traveling positioning accuracy | 0.03/300mm | |||
XYZ repositioning accuracy | 0.03mm | |||
Spindle power | 0.8kw/1.5kw/2.2kw(can be choices) | |||
Table style | Fixture | |||
Spindle Speed | 0-18,000rpmrpm | |||
Dust collection | Can add or not | |||
Voltage | AC220V/50Hz or can be customized | |||
Drive type | Stepper/Option:servo | |||
Working Dictate | G Code ,HPGL | |||
Operating system | Dsp /option System NC Studio | |||
Interface | USB | |||
Flash memory | 128M(U Disk) | |||
Software Compatability | Type3/Ucancam Artcam | |||
Features:
1.Integrally cast lathe bed,solid and stable,high rigidity and long service time.
2. Imported high accuracy ball screw ensures more stable movement and high accuracy.
3. Aluminum decorated appearance,beautiful shape and magnificent looking.
4. Water-cooling brushless spindle/ air cooling spindle,low noise,vigorous cutting strength and long time mass processing.

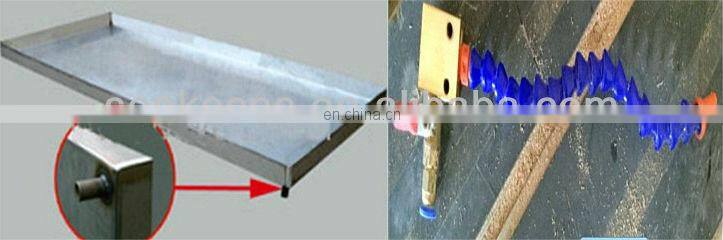

Machinery parts shows:
water tank water mouth
Applicable industry:

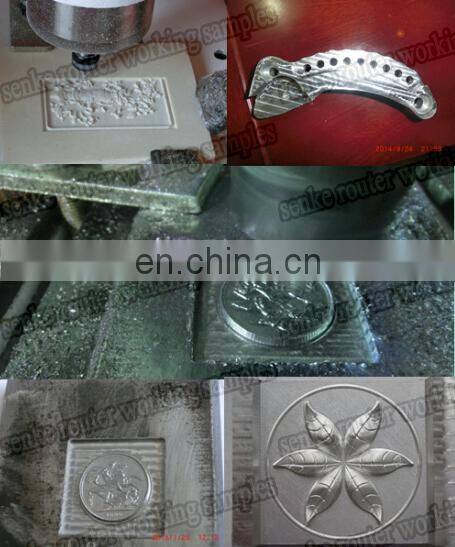

Advesting industry,artcraft industry,various types of man-made plate,LED,light box,building modes,rulers badges,department cards etc
Appllicable materials:
wood,pvc board,MDF board,PCB board,aluminum industry,3D technology,breastplate,indoor&outdoor decoration etc
Double paking of protective film and fumigation-free wooden case:
Service:
1 We will provide the user a CD to study the machine installation and commissioning.
2 Our technicists can give user online guide.
3 The user can by call or email us any problems at any time.
4 After-sales service.
Two year warranty for machine maintenance, for equipment maintenance over the warranty period is clearly marked.
Our factory and work team:
