Home > Manufacturing & Processing Machinery > Metallic Processing Machinery > Metal Processing Machinery Parts > Configuration Upgrade Cnc Metal Mould Engraving and Milling Machine

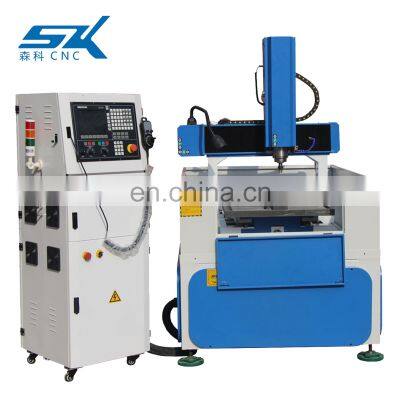

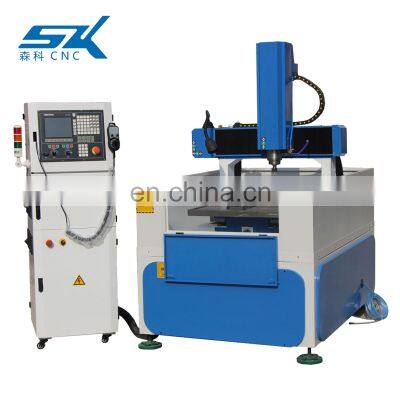

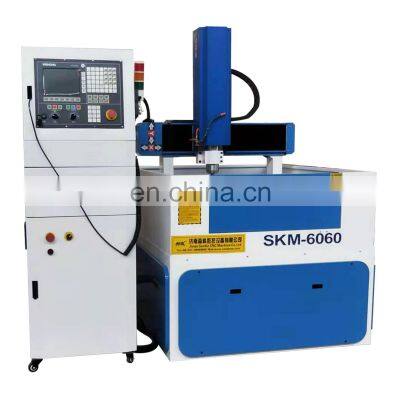

Configuration Upgrade Cnc Metal Mould Engraving and Milling Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2011
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Precision Metal Engraver Cnc Metal MachineNegotiableMOQ: 1 -
High Precision Metal Engraver Cnc Metal MachineNegotiableMOQ: 1
-
Configuration Upgrade SKM 6060 Atc Cnc Metal Cutting MachineNegotiableMOQ: 1
-
High Precision Home CNC 6060 4040 Mini Size Metal Milling Engraving MachineNegotiableMOQ: 1
-
SENKE Factory Wholesale CNC Wood Aluminum Copper Metal Milling MachineryNegotiableMOQ: 1
Product Description
Specification
Model | SKM-6060 | SKM-6090 | |
Working Area | 600*600mm | 600*900mm | |
Table Surface | Cast iron T-slot table with water tank | ||
Frame | Strong Cast Iron | ||
X Y Structure | Ball Screw Drive, HIWIN Rail Linear Bearings | ||
Z Structure | Taiwan Original TBI Ball Screw | ||
Spindle Power | 2.2KW Professional Metal Used Spindle(3.2KW 4.5KW Optional) | ||
Spindle Speed | 0-24000RPM | ||
Working voltage | 380V/415V 3 Phase 50/60Hz(Optional:220V Single/3 Phase 50/60Hz or 110V Single Phase 50/60Hz ) | ||
Command Language | G Code | ||
Software Compatibility | Artcam (Type 3/UcancameV9 Software) | ||
Computer Interface | USB | ||
Running Environment Temperature | 0-45 Centigrade | ||
Relative Humidity | 30%-75% | ||
Machine size | 1.08*1.14*2.0M | 1.08*1.8*2.0M | |
After packed size | 1.18*1.24*2.16M | 1.08*1.9*2.0M | |
N.W | 660KGS | 720KGS | |
G.W | 720KGS | 800KGS | |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
FAQ
Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give you
CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q: If we are interested in your machine, how to choose proper power?
Please tell us the following answer, our professional seller will recommend you proper power.
1. What material you want to cut,stainless steel,carbon steel or other?
2. What thickness do you want to cut?
Q: If I want to visit your factory, how can I contact?
A: just senke us your online contact number, we will discuss and make a detailed arrangement according to your time.
Q: How about warranty?
A: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts
will be maintained) when if any problem during the warranty period.
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the
world, We need your machines running in order to keep your business running.
Q: How can i get the machine ?
A: as manufacturer we ware been verified by TUV, https://senkecnc.en.china.cn/company_profile.html?spm=_index.88.31
confirmed the model, we will issue the proforma invoice→the payment the machine started→machine ready the tested photo and video
supplied→balance made, book boat and shipped
Q: After received the machine, how can i use it ?
A: the machine’s software was been designed and tested by our engineer, easy operate, come with the machine the teaching manual,
video supplied , at the same time, the online support available such as wechat/whatsapp/remote teach etc
1. how can i know, the machine can finished my work ?
A: the machine with various configurations which suitable for different jobs, show /description to us the result you wanted, we
help to make solution, if needed, the sample supplied
Q: what after-sale services you supplied?
A: 1. whole machine 2 years warranty, whole life free services
2. 7*24Hours available
3. teaching manual, video supplied , at the same time, the online support available such as wechat/whatsapp/remote teach etc
4. Door to door available
5. Consumable parts net cost supplied
A: Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give you
CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q: If we are interested in your machine, how to choose proper power?
Please tell us the following answer, our professional seller will recommend you proper power.
1. What material you want to cut,stainless steel,carbon steel or other?
2. What thickness do you want to cut?
Q: If I want to visit your factory, how can I contact?
A: just senke us your online contact number, we will discuss and make a detailed arrangement according to your time.
Q: How about warranty?
A: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts
will be maintained) when if any problem during the warranty period.
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the
world, We need your machines running in order to keep your business running.
Q: How can i get the machine ?
A: as manufacturer we ware been verified by TUV, https://senkecnc.en.china.cn/company_profile.html?spm=_index.88.31
confirmed the model, we will issue the proforma invoice→the payment the machine started→machine ready the tested photo and video
supplied→balance made, book boat and shipped
Q: After received the machine, how can i use it ?
A: the machine’s software was been designed and tested by our engineer, easy operate, come with the machine the teaching manual,
video supplied , at the same time, the online support available such as wechat/whatsapp/remote teach etc
1. how can i know, the machine can finished my work ?
A: the machine with various configurations which suitable for different jobs, show /description to us the result you wanted, we
help to make solution, if needed, the sample supplied
Q: what after-sale services you supplied?
A: 1. whole machine 2 years warranty, whole life free services
2. 7*24Hours available
3. teaching manual, video supplied , at the same time, the online support available such as wechat/whatsapp/remote teach etc
4. Door to door available
5. Consumable parts net cost supplied
