6090 ATC CNC Engraving Machine Half Protect Parts Aluminum Die Moulding Machine Iron CNC Router 6060

6090 ATC CNC Engraving Machine Half Protect Parts Aluminum Die Moulding Machine Iron CNC Router 6060 photo-1

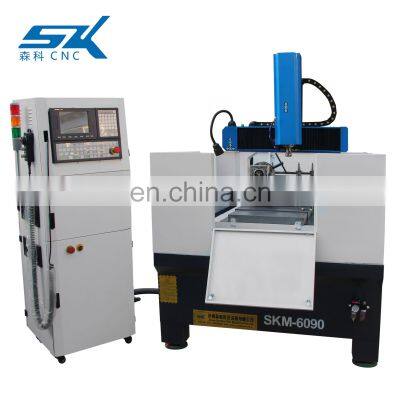

6090 ATC CNC Engraving Machine Half Protect Parts Aluminum Die Moulding Machine Iron CNC Router 6060 photo-2
6090 ATC CNC Engraving Machine Half Protect Parts Aluminum Die Moulding Machine Iron CNC Router 6060 photo-3
6090 ATC CNC Engraving Machine Half Protect Parts Aluminum Die Moulding Machine Iron CNC Router 6060 photo-4
6090 ATC CNC Engraving Machine Half Protect Parts Aluminum Die Moulding Machine Iron CNC Router 6060 photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2011
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Product Description



   6090 ATC CNC Engraving Machine Half Protect Parts Aluminum Die Moulding Machine Iron CNC Router 6060

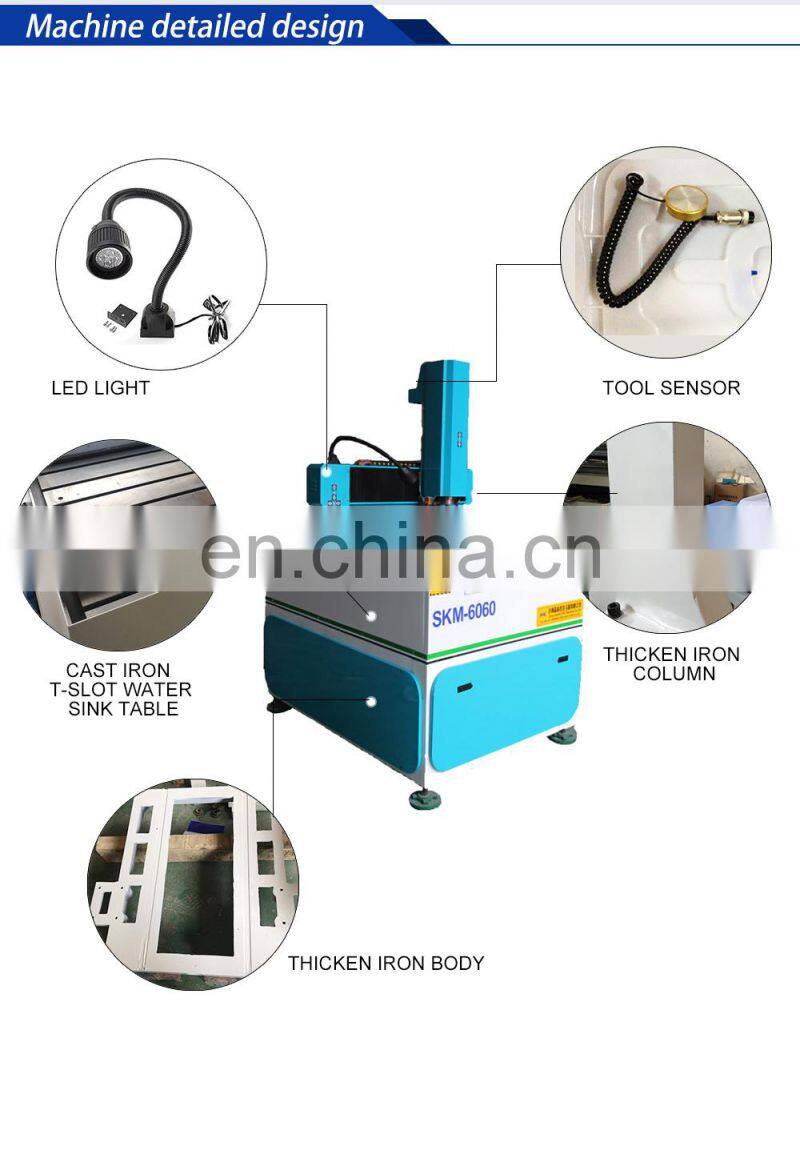

1. Integrally cast lathe bed, firm and non-deforming, high rigidity and high accuracy, adopts Taiwan line guide rail.
2. Use high speed drive motor,also servo motors for optional
3. Memory function ensures the processing point when the blade is broken or having to postpone the process.
4. With better compatibility, can math with many programs such as Typle3, artcam, castmate, proE, Coreldraw/CAD, CAM. It achieves 2D and 3D works easily.

Discription
SKM-4040/SKM-6060/SKM-6090
Working area (X*Y*Z)
400*400*150MM/600*600*150MM/600*900*150MM
body
cast iron
Spindle power
5.5KW/optional
Max move speed
15000mm/min
Max engraving speed
5000mm/min
Cutting depth
40mm
Spind speed
6000-24000rpm
voltage
AC220V, 50/60Hz/AV380V,50Hz/60Hz)
driver
YASKAWA servo/ optional
Working Dictate
G code

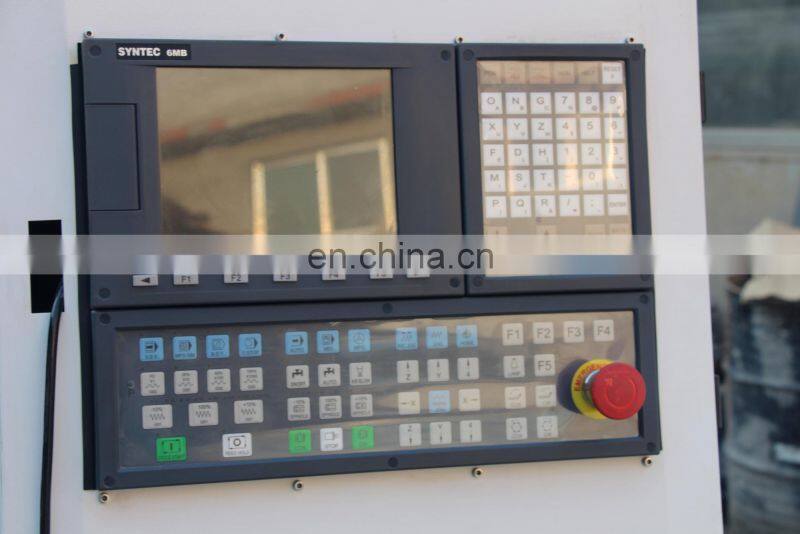

Control system
Taiwan SYNTEC/NC-Studio/ DSP/taiwan LNC
Tools
Metal special use
sample and our machine

Main Features

Jade or marble engraving, also for Sign board process, mould, bronzing ,badge, pattern mould, art carve, sign and label etc
Musical instrument industry,can engrave 3D surface of large scale musical instrument and the contour cutting


senke other products
Certifications
Our Company

Jinan SenKe CNC Machine Co., Ltd. is a manufacturer of CNC routers and laser cutting machines, with well-equipped testing equipment and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in wood, stones, metals, marbles, boats, air areas and other industries

Jinan SenKe CNC Machine Co.,ltd.adhering to the "integrity as fundamental to quality of survival,innovation and development" business philosophy,is willing to work with people who with insight,cooperation,mutual trust ,win-win and common development.

                                   contact luna



             thanks for you time,senke always here for you,ready to help
