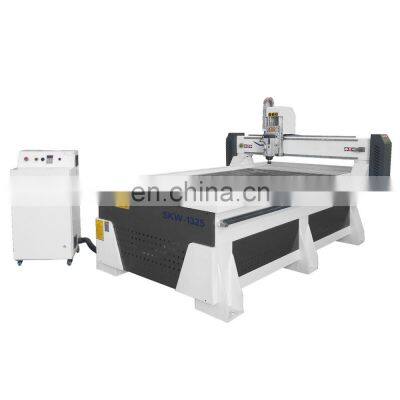

Help CenterSENKE 2022 Factory Hot Sale 4*8 FT CNC Router Machine for Stainless Steel Copper Aluminum Plate Cutting
Related Products
-
SENKE High Precision MINI CNC Router 24*36 INCH With Rotary for Metal and Non Metal Cylinder EngravingNegotiableMOQ: 1 -
SENKE 2022 Factory Hot Sale 600*600mm CNC Router Machine for Stainless Tube and Plate CuttingNegotiableMOQ: 1
-
SENKE CNC Cutter Gantry Moving Metal Cutting and Engraving Machine Acrylic Carving MachineNegotiableMOQ: 1
-
SENKE 2022 New Update 600*900mm CNC Router Machine for Metal Tube and Plate Carving MoldingNegotiableMOQ: 1
-
SENKE 2022 Factory Hot Sale 600*600MM 600*900MM CNC Router Metal Mold CNC Engrave MachineNegotiableMOQ: 1

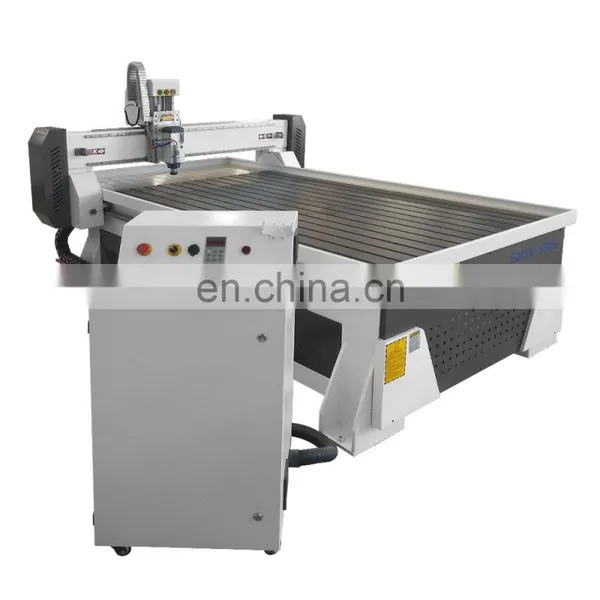

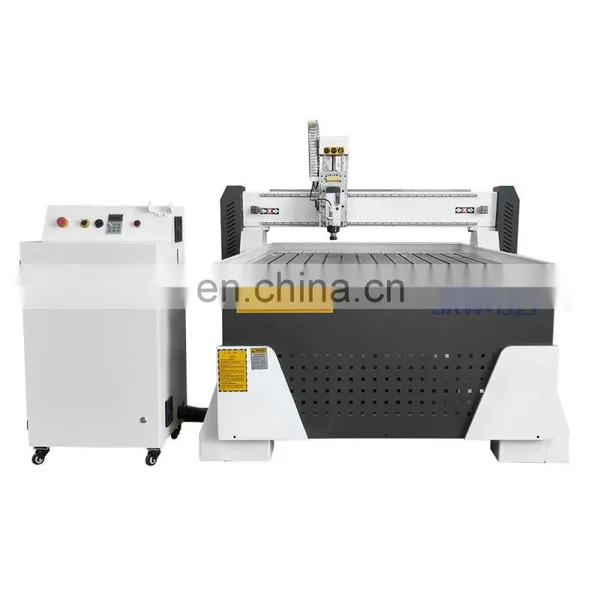

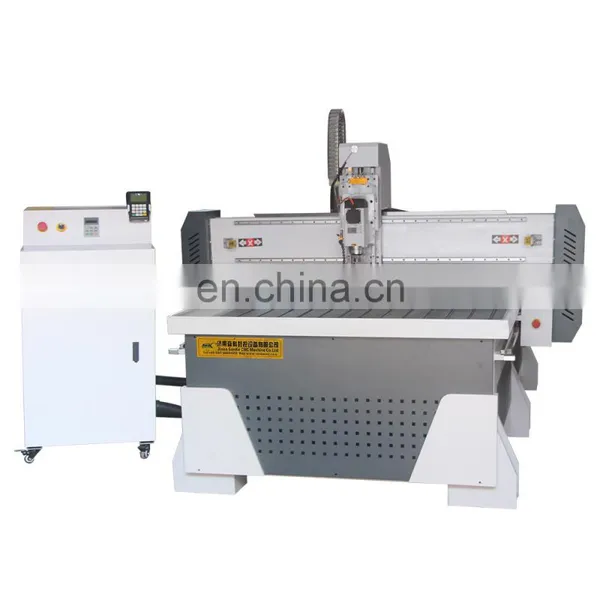

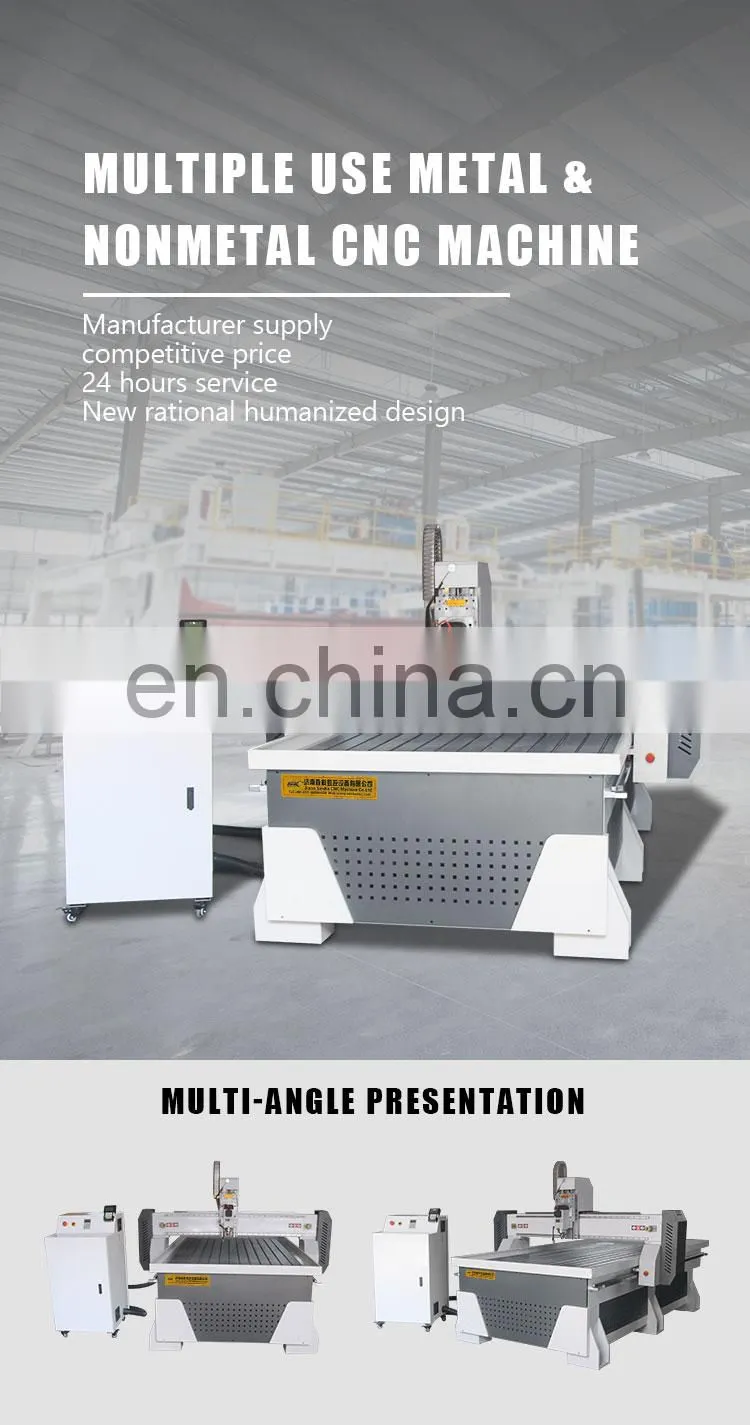

CNC Router Metal Engrving Milling Machine Manufacturer
Product Introduction
1.Integrally cast lathe bed,solid and stable,high rigidity and long service time.
2. Imported high accuracy ball screw ensures more stable movement and high accuracy.
3. Aluminum decorated appearance,beautiful shape and magnificent looking.

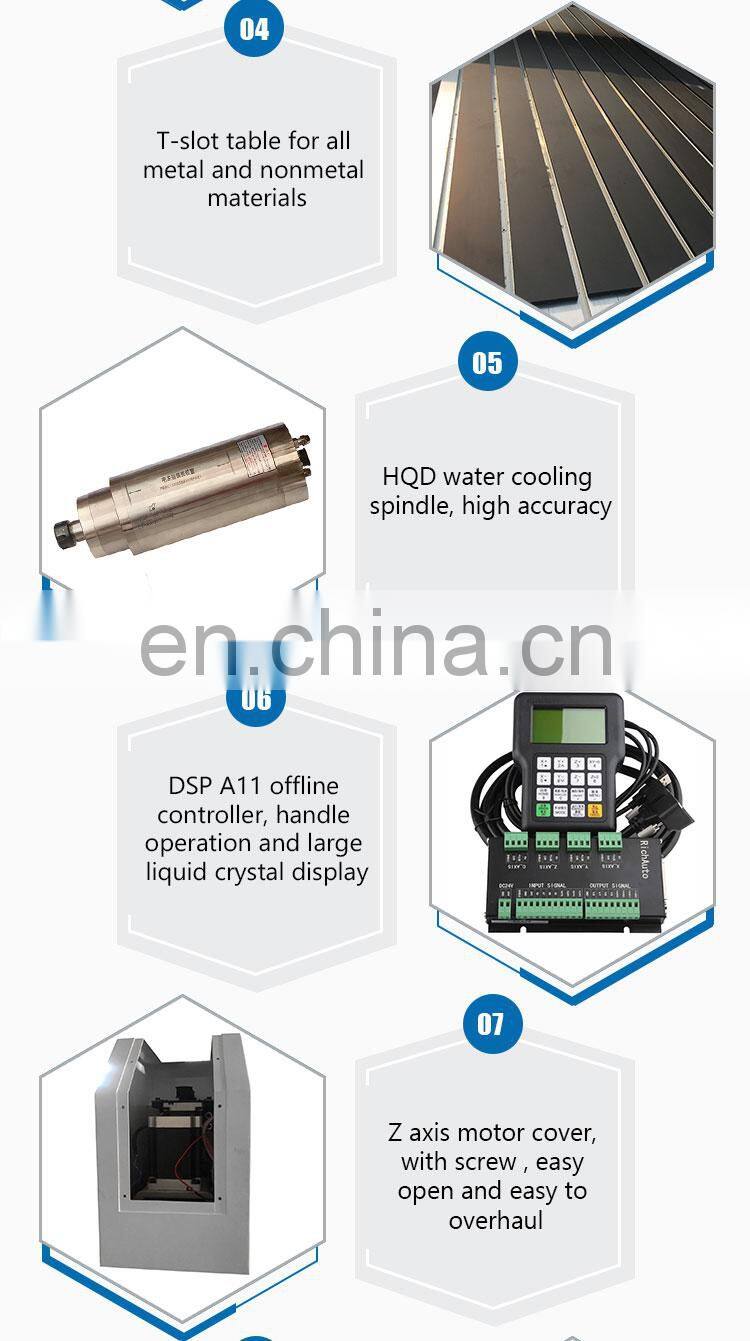

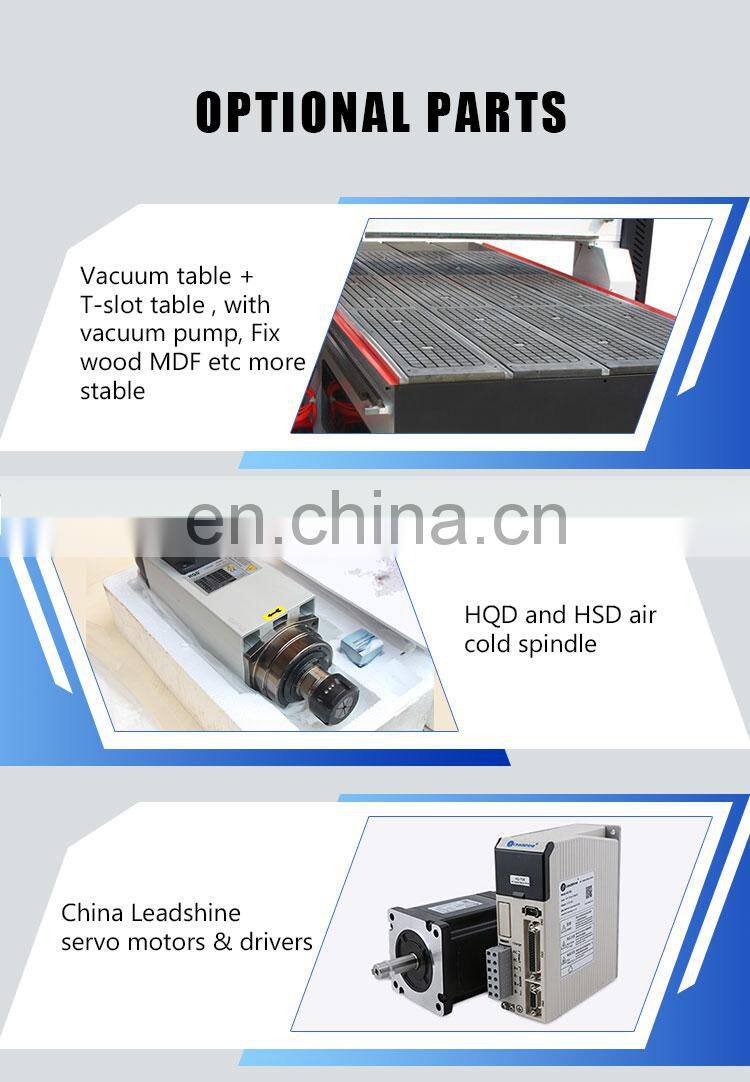

4. Water-cooling brushless spindle/italy HSD air cooling spindle,low noise,vigorous cutting strength and long time mass processing.
| Model | SKW-1325L | SKW-1530L | SKW-2040L |
| Working area (X*Y*Z) | 1300*2500*200mm | 1500*3000*200mm | 2000*4000*200mm |
| Table Surface | T-slot working table with hard black PVC | T-slot working table with hard black PVC | T-slot working table with hard black PVC |
| Body structure | Thicken steel Big and heavy tube made body | Thicken steel Big and heavy tube made body | Thicken steel Big and heavy tube made body |
| Frame | New style heavy duty welded | New style heavy duty welded | New style heavy duty welded |
| X, Y Structure | gear rack, Hiwin rail line bearings | gear rack, Hiwin rail line bearings | gear rack, Hiwin rail line bearings |

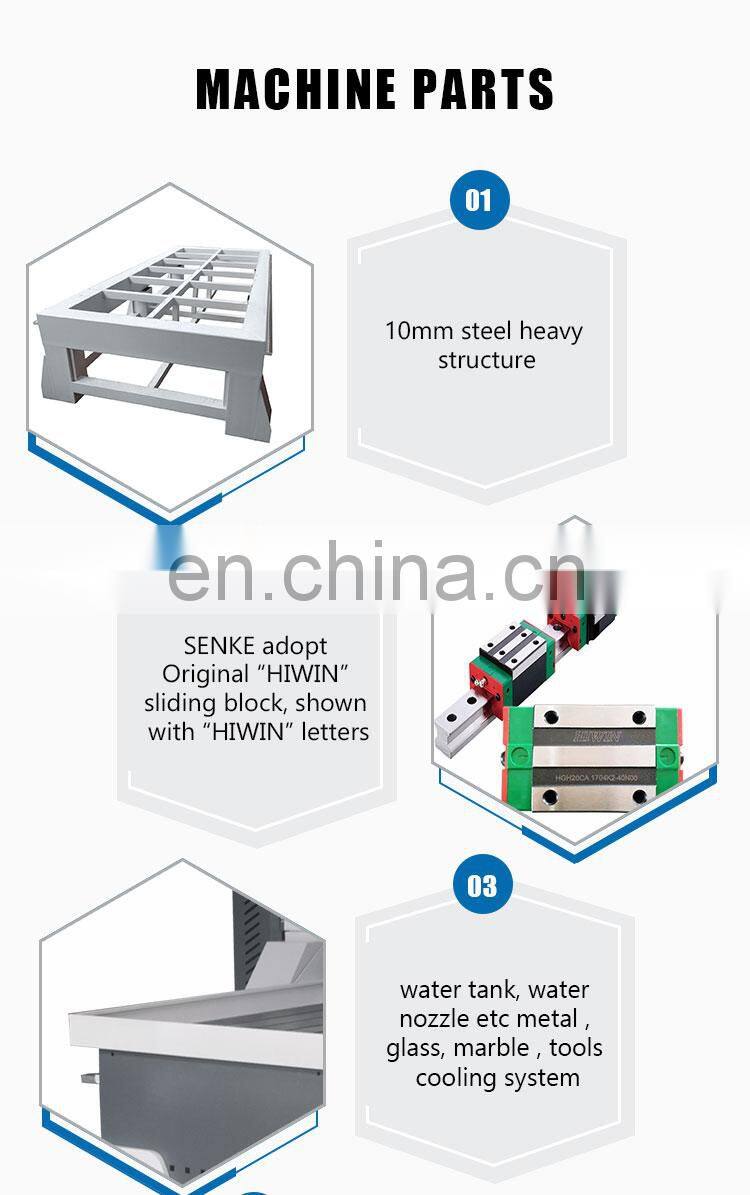

| rails | Original Taiwan HIWIN blocks | Original Taiwan HIWIN blocks | Original Taiwan HIWIN blocks |
| Gear rack | Gear rack with pingchuan brand | Gear rack with pingchuan brand | Gear rack with pingchuan brand |
| Z Structure | 25mm Taiwan TBI ball screw | 25mm Taiwan TBI ball screw | 25mm Taiwan TBI ball screw |
| X, Y Resolution | <0.01mm | <0.01mm | <0.01mm |
| Max Moving Speed | 70000mm/min | 70000mm/min | 70000mm/min |
| Max Engraving Speed | 50000mm/min | 50000mm/min | 50000mm/min |
| XYZ traveling positioning accuracy | ±0.01mm | ±0.01mm | ±0.01mm |
| Spindle power | 4.5 KW HQD air cooling spindle | 4.5 KW HQD air cooling spindle | 4.5 KW HQD air cooling spindle |
| Spindle Speed | 0-18,000rpm | 0-18,000rpm | 0-18,000rpm |
| Inverter | Fuling inverter(Delta inverter optional) | Fuling inverter(Delta inverter optional) | Fuling inverter(Delta inverter optional) |
| Voltage | 110v/220v/380v/415v , 50HZ/60HZ, | 110v/220v/380v/415v , 50HZ/60HZ, | 110v/220v/380v/415v , 50HZ/60HZ, |
| 1phase/3phase | 1phase/3phase | 1phase/3phase | |
| Motor&Drive type | Stepper motors & Lead shine drivers | Stepper motors & Lead shine drivers | Stepper motors & Lead shine drivers |
| Working Dictate | G Code | G Code | G Code |
| Operating system | DSP A11 control system(NC-Studio/MACH3 optional) | DSP A11 control system(NC-Studio/MACH3 optional) | DSP A11 control system(NC-Studio/MACH3 optional) |
| After packed size | 3.2*2.18*1.90M | 3.7*2.27*1.9m | 4.7*2.27*1.9m |
| G.W | 1200kgs | 1300KGS | 1400KGS |
FAQ:
1. I am not sure if this machine suitable for my work?
-Do not worry, just tell us your working materials, Max working area and engraving cutting thickness, then we will recommend you the most suitable machine and Quotation for you
-We can free engraving sample for you
2. I am worrying about the operation of you machine?
-Do not worry, We will test and installed the machine before delivery. When you receive the machine you can use it directly. We offer free software installation video. if there anything wrong with machine within the guarantee time, we will change a new one for you.
3.How do I pay?
-We support online or offline payments. We mainly use TT (bank transfer )and credit card payment, of course, we can also use other payment methods that are convenient for you.
4.How much will it cost shipping to my country?
Sea shipping: need to tell me your destination port
5.What is your delivery time?
-We need to spend 10-13 working days to produce this machine and parameter test.
6.What is your guarantee?
-The machine we supply two years warranty.
7.What style do you have?
-We have full cover model, half cover model,table move body, gantry move body etc.
