1325 Single Spindle Woodworking CNC Router For Wooden Furniture Wood Carving Machine CNC Router

Jinan Senke CNC Machine Co., Ltd.
1325 Single Spindle Woodworking CNC Router For Wooden Furniture Wood Carving Machine CNC Router thumbnail-1
1325 Single Spindle Woodworking CNC Router For Wooden Furniture Wood Carving Machine CNC Router thumbnail-2
1325 Single Spindle Woodworking CNC Router For Wooden Furniture Wood Carving Machine CNC Router thumbnail-3
1325 Single Spindle Woodworking CNC Router For Wooden Furniture Wood Carving Machine CNC Router thumbnail-4
1325 Single Spindle Woodworking CNC Router For Wooden Furniture Wood Carving Machine CNC Router thumbnail-5
1325 Single Spindle Woodworking CNC Router For Wooden Furniture Wood Carving Machine CNC Router photo-1
1325 Single Spindle Woodworking CNC Router For Wooden Furniture Wood Carving Machine CNC Router photo-2
1325 Single Spindle Woodworking CNC Router For Wooden Furniture Wood Carving Machine CNC Router photo-3

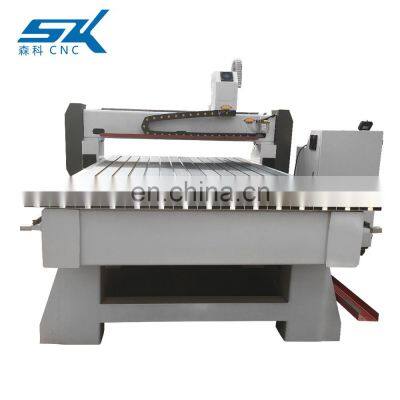

1325 Single Spindle Woodworking CNC Router For Wooden Furniture Wood Carving Machine CNC Router photo-4

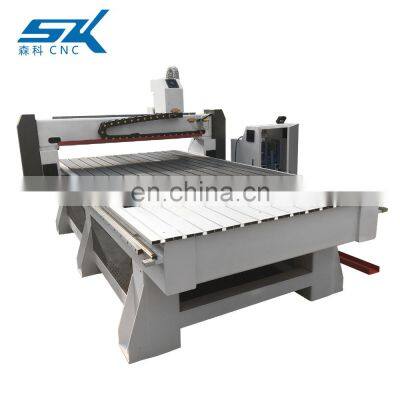

1325 Single Spindle Woodworking CNC Router For Wooden Furniture Wood Carving Machine CNC Router photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2011
Annual Export Value:
US$5 Million - US$10 Million
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
1325 Single Spindle Woodworking CNC Router For Wooden Furniture Wood Carving Machine CNC Router
Product Description
Specification
Model
SKW-1325
SKW-1530
SKW-2040
Working area (X*Y*Z)
1300*2500*200mm
1500*3000*200mm
2000*4000*200mm
Table Surface
T-solt working table with hard black PVC
T-solt working table with hard black PVC
T-solt working table with hard black PVC
Body structure
Thicken steel Big and heavy tube made body
Thicken steel Big and heavy tube made body
Thicken steel Big and heavy tube made body
Frame
New style heavy duty welded
New style heavy duty welded
New style heavy duty welded
Leg pad
depth 10MM
depth 10MM
depth 10MM
X, Y Structure
gear rack, Hiwin rail line bearings
gear rack, Hiwin rail line bearings
gear rack, Hiwin rail line bearings
rails
Original Taiwan HIWIN blocks with original stamp use on rails
Original Taiwan HIWIN blocks with original stamp use on rails
Original Taiwan HIWIN blocks with original stamp use on rails
Gear rack
Gear rack with pingchuan brand
Gear rack with pingchuan brand
Gear rack with pingchuan brand
Z Structure
25mm Taiwan TBI ball screw
25mm Taiwan TBI ball screw
25mm Taiwan TBI ball screw
X, Y Resolution
<0.01mm
<0.01mm
<0.01mm
Max Moving Speed
70000mm/min
70000mm/min
70000mm/min
Max Engraving Speed
50000mm/min
50000mm/min
50000mm/min
XYZ traveling positioning accuracy

±0.01mm

±0.01mm

±0.01mm
Spindle power
4.5 KW HQD/HSD air cooling spindle(5.5/6/9KW optional)/water cooling optional
4.5 KW HQD/HSD air cooling spindle(5.5/6/9KW optional)/water cooling optional
4.5 KW HQD /HSD air cooling spindle
(5.5/6/9KW optional)/water cooling optional
Spindle Speed
0-18,000rpm
0-18,000rpm
0-18,000rpm
Inverter
Fuling inverter(Delta inverter optional)
Fuling inverter(Delta inverter optional)
Fuling inverter(Delta inverter optional)
Voltage
110v/220v/380v/415v , 50HZ/60HZ, 1phase/3phase
110v/220v/380v/415v , 50HZ/60HZ, 1phase/3phase
110v/220v/380v/415v , 50HZ/60HZ, 1phase/3phase
Motor&Drive type
Stepper motors & Lead shine drivers
Stepper motors & Lead shine drivers
Stepper motors & Lead shine drivers
Working Dictate
G Code
G Code
G Code
Operating system
DSP A11 control system(NC-Studio/MACH3 optional)
DSP A11 control system(NC-Studio/MACH3 optional)
DSP A11 control system(NC-Studio/MACH3 optional)
Computer interface
USB
USB
USB
software
Artcam(Type 3/ JDpaint optional)
Artcam(Type 3/ JDpaint optional)
Artcam(Type 3/ JDpaint optional)
Tool sensor
Yes ,included
Yes ,included
Yes ,included
oil lubricator
Yes, included
Yes ,included
Yes ,included
Wire protect
Yes ,included
Yes ,included
Yes ,included
Running Environment
Temperature: -10℃～45℃
Temperature: -10℃～45℃
Temperature: -10℃～45℃
Relative hmidity
30%-75%
30%-75%
30%-75%
After packed size
3.2*2.18*1.90M
3.7*2.27*1.9m
4.7*2.27*1.9m
G.W
1200kgs
1300KGS
1400KGS

PS: the machine sizes and specifications can be customized
