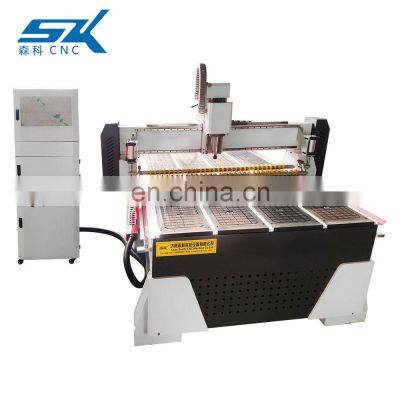

Famous Brand Strong Body Vacuum Table 1530 2030 2040 Model Wood Press Roller CNC Engraving Machine

Name: Famous Brand Strong Body Vacuum Table 1530 2030 2040 Model Wood Press Roller CNC Engraving Machine
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

Famous Brand Strong Body Vacuum Table 1530 2030 2040 Model Wood Press Roller CNC Engraving Machine

Product Description

Specification

Model	SKW-1325	SKW-1530	SKW-2040
Working area (XYZ)	13002500200mm	15003000200mm	20004000200mm
Table Surface	T-solt working table with hard black PVC	T-solt working table with hard black PVC	T-solt working table with hard black PVC
Body structure	Thicken steel Big and heavy tube made body	Thicken steel Big and heavy tube made body	Thicken steel Big and heavy tube made body
Frame	New style heavy duty welded	New style heavy duty welded	New style heavy duty welded
Leg pad	depth 10MM	depth 10MM	depth 10MM
X, Y Structure	gear rack, Hiwin rail line bearings	gear rack, Hiwin rail line bearings	gear rack, Hiwin rail line bearings
rails	Original Taiwan HIWIN blocks with original stamp use on rails	Original Taiwan HIWIN blocks with original stamp use on rails	Original Taiwan HIWIN blocks with original stamp use on rails
Gear rack	Gear rack with pingchuan brand	Gear rack with pingchuan brand	Gear rack with pingchuan brand
Z Structure	25mm Taiwan TBI ball screw	25mm Taiwan TBI ball screw	25mm Taiwan TBI ball screw
X, Y Resolution	<0.01mm	<0.01mm	<0.01mm
Max Moving Speed	70000mm/min	70000mm/min	70000mm/min
Max Engraving Speed	50000mm/min	50000mm/min	50000mm/min
XYZ traveling positioning accuracy	±0.01mm	±0.01mm	±0.01mm
Spindle power	4.5 KW HQD/HSD air cooling spindle(5.5/6/9KW optional)/water cooling optional	4.5 KW HQD/HSD air cooling spindle(5.5/6/9KW optional)/water cooling optional	4.5 KW HQD /HSD air cooling spindle (5.5/6/9KW optional)/water cooling optional
Spindle Speed	0-18,000rpm	0-18,000rpm	0-18,000rpm
Inverter	Fuling inverter(Delta inverter optional)	Fuling inverter(Delta inverter optional)	Fuling inverter(Delta inverter optional)
Voltage	110v/220v/380v/415v , 50HZ/60HZ, 1phase/3phase	110v/220v/380v/415v , 50HZ/60HZ, 1phase/3phase	110v/220v/380v/415v , 50HZ/60HZ, 1phase/3phase
Motor&Drive type	Stepper motors & Lead shine drivers	Stepper motors & Lead shine drivers	Stepper motors & Lead shine drivers
Working Dictate	G Code	G Code	G Code
Operating system	DSP A11 control system(NC-Studio/MACH3 optional)	DSP A11 control system(NC-Studio/MACH3 optional)	DSP A11 control system(NC-Studio/MACH3 optional)
Computer interface	USB	USB	USB
software	Artcam(Type 3/ JDpaint optional)	Artcam(Type 3/ JDpaint optional)	Artcam(Type 3/ JDpaint optional)
Tool sensor	Yes ,included	Yes ,included	Yes ,included
oil lubricator	Yes, included	Yes ,included	Yes ,included
Wire protect	Yes ,included	Yes ,included	Yes ,included
Running Environment	Temperature: -10℃～45℃	Temperature: -10℃～45℃	Temperature: -10℃～45℃
Relative hmidity	30%-75%	30%-75%	30%-75%
After packed size	3.22.181.90M	3.72.271.9m	4.72.271.9m
G.W	1200kgs	1300KGS	1400KGS
PS: the machine sizes and specifications can be customized

Samples

Samples

Packing & Delivery

Packing&Delivery

wooden box

Certifications

Certifications

Company Profile

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

FAQ

1. who are we?
We are based in Shandong, China, start from 2012,sell to South Asia(13.00%),Mid East(9.00%),Domestic Market(9.00%),Western
Europe(9.00%),Southeast Asia(9.00%),North America(9.00%),Central America(9.00%),Oceania(8.00%),Africa(7.00%),South
America(6.00%),Eastern Asia(4.00%),Eastern Europe(4.00%),Northern Europe(3.00%),Southern Europe(1.00%). There are total about
51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
cnc router,wood working machine,stone engraving machine,laser cutting machine,plasma cutting machine

4. why should you buy from us not from other suppliers?
1.manufacturer directly petitive prices and quality guarantee(2 years) 3.timely support, door to door service available
4.the only one who pass strict quality check,supply Army cnc routers. 5.5 years OEM supplied 6.365 days,24 hours available

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,DDP,DDU,Express Delivery,DAF；
Accepted Payment Currency:USD,EUR,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
