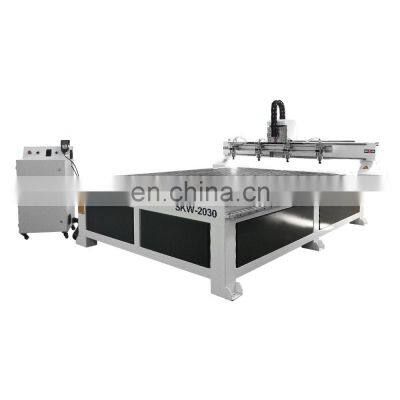

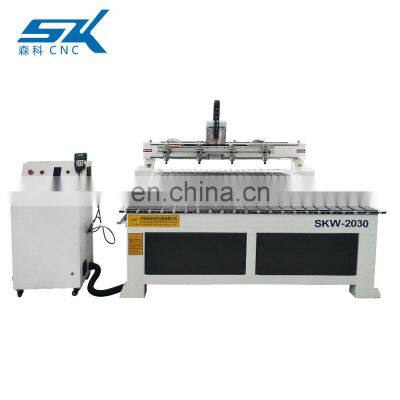

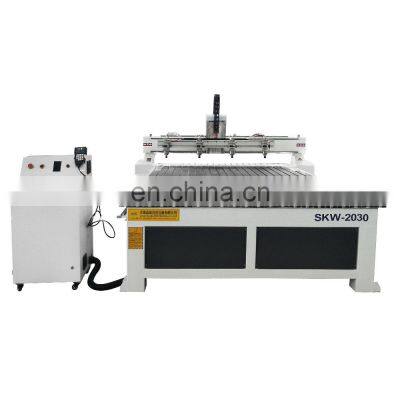

1530 2040 Senke Heavy 4 Heads 6 Heads Duty Steel Frame 1530 Carousel Type Atc CNC Router/Wood CNC Router With Vacuum Table
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2011
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
3 Axis1325 Wood Work CNC Router Machine Wood Working Machinery Wood Caving Cutting CNC RouterNegotiableMOQ: 1 -
3 Axis 4x8 ft Feet Woodworking Carving CNC Engraver Acrylic 3D Engraving Machine Wood CNC RouterNegotiableMOQ: 1
-
3 Axis CNC Cutting Carving Milling Machine 1325 Wood CNC Woodworking Multi-Functional Wood CNC RouterNegotiableMOQ: 1
-
1325 Woodworking Cutting Engraving Machine Wood CNC Router CNC Milling Machine for Wood Furniture CNC Router Machine PriceNegotiableMOQ: 1
-
3 Axis Automatic 3d Wood CNC Router for Table Legs Chair Making Engraving Milling MachineryNegotiableMOQ: 1
1530 2040 Senke Heavy 4 Heads 6 Heads Duty Steel Frame 1530 Carousel Type Atc CNC Router/Wood CNC Router with Vacuum Table
Product Description
Specification
Model |
SKW-1325 |
SKW-1530 |
SKW-2040 |
|||
Working area (X*Y*Z) |
1300*2500*200mm |
1500*3000*200mm |
2000*4000*200mm |
|||
Table Surface |
T-solt working table with hard black PVC |
T-solt working table with hard black PVC |
T-solt working table with hard black PVC |
|||
Body structure |
Thicken steel Big and heavy tube made body |
Thicken steel Big and heavy tube made body |
Thicken steel Big and heavy tube made body |
|||
Frame |
New style heavy duty welded |
New style heavy duty welded |
New style heavy duty welded |
|||
Leg pad |
depth 10MM |
depth 10MM |
depth 10MM |
|||
X, Y Structure |
gear rack, Hiwin rail line bearings |
gear rack, Hiwin rail line bearings |
gear rack, Hiwin rail line bearings |
|||
rails |
Original Taiwan HIWIN blocks with original stamp use on rails |
Original Taiwan HIWIN blocks with original stamp use on rails |
Original Taiwan HIWIN blocks with original stamp use on rails |
|||
Gear rack |
Gear rack with pingchuan brand |
Gear rack with pingchuan brand |
Gear rack with pingchuan brand |
|||
Z Structure |
25mm Taiwan TBI ball screw |
25mm Taiwan TBI ball screw |
25mm Taiwan TBI ball screw |
|||
X, Y Resolution |
<0.01mm |
<0.01mm |
<0.01mm |
|||
Max Moving Speed |
70000mm/min |
70000mm/min |
70000mm/min |
|||
Max Engraving Speed |
50000mm/min |
50000mm/min |
50000mm/min |
|||
XYZ traveling positioning accuracy |
±0.01mm |
±0.01mm |
±0.01mm |
|||
Spindle power |
4.5 KW HQD/HSD air cooling spindle(5.5/6/9KW optional)/water cooling optional |
4.5 KW HQD/HSD air cooling spindle(5.5/6/9KW optional)/water cooling optional |
4.5 KW HQD /HSD air cooling spindle (5.5/6/9KW optional)/water cooling optional |
|||
Spindle Speed |
0-18,000rpm |
0-18,000rpm |
0-18,000rpm |
|||
Inverter |
Fuling inverter(Delta inverter optional) |
Fuling inverter(Delta inverter optional) |
Fuling inverter(Delta inverter optional) |
|||
Voltage |
110v/220v/380v/415v , 50HZ/60HZ, 1phase/3phase |
110v/220v/380v/415v , 50HZ/60HZ, 1phase/3phase |
110v/220v/380v/415v , 50HZ/60HZ, 1phase/3phase |
|||
Motor&Drive type |
Stepper motors & Lead shine drivers |
Stepper motors & Lead shine drivers |
Stepper motors & Lead shine drivers |
|||
Working Dictate |
G Code |
G Code |
G Code |
|||
Operating system |
DSP A11 control system(NC-Studio/MACH3 optional) |
DSP A11 control system(NC-Studio/MACH3 optional) |
DSP A11 control system(NC-Studio/MACH3 optional) |
|||
Computer interface |
USB |
USB |
USB |
|||
software |
Artcam(Type 3/ JDpaint optional) |
Artcam(Type 3/ JDpaint optional) |
Artcam(Type 3/ JDpaint optional) |
|||
Tool sensor |
Yes ,included |
Yes ,included |
Yes ,included |
|||
oil lubricator |
Yes, included |
Yes ,included |
Yes ,included |
|||
Wire protect |
Yes ,included |
Yes ,included |
Yes ,included |
|||
Running Environment |
Temperature: -10℃～45℃ |
Temperature: -10℃～45℃ |
Temperature: -10℃～45℃ |
|||
Relative hmidity |
30%-75% |
30%-75% |
30%-75% |
|||
After packed size |
3.2*2.18*1.90M |
3.7*2.27*1.9m |
4.7*2.27*1.9m |
|||
G.W |
1200kgs |
1300KGS |
1400KGS |
|||
PS: the machine sizes and specifications can be customized |
||||||
Samples
Samples
Packing & Delivery
Packing&Delivery
wooden box
Certifications
Certifications
Company Profile
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
1. Machine features
-CNC Router working area 1300x2500mm is our very popular machine
-this machine can process all kinds of materials, such as acrylic, plastic, pvc, wood, aluminum, copper, stone etc.
-high quality machine parts; servo motor, HIWIN linear rails are optional
-short delivery time: 5-12 working days, usually we can finiah it during 7 working days.
- We also have other size like, 400*400mm, 600*900mm, 1200*1200mm, 1200*2400mm,1500*3000mm, 2000*4000mm and so on.
2. FAQ
1. How should i pay for my order ? what is the procession of this purchase ?
we accept TT by bank. You can do 30% prepayment at first, then we will start to make production.when the machine is ready , we will take pictures to you, and then you can do the balance. After we got your payment. i will send the machine to you.
2. How about your service after sales ? can your engineer speak fluent english ?
We offer the service from you got the machine, including how to install the machine, how to use machine.How to let machine work. and so on. Usually we will teach you how to do by email or by skype . Our engineer has many years of experience for cnc machine service . He can speak very good english , so he can slove the problem in short time.
3.Are you a factory or trading company?
We are the manufacturer . As only the machine made by ourself ,quality can be trusted, and most important thing is we can do better serivce after sales. We know how to fix the problem in each parts easliy.So welcome to visit to our factory
4 How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
5 How about the documents after shipment?
After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
