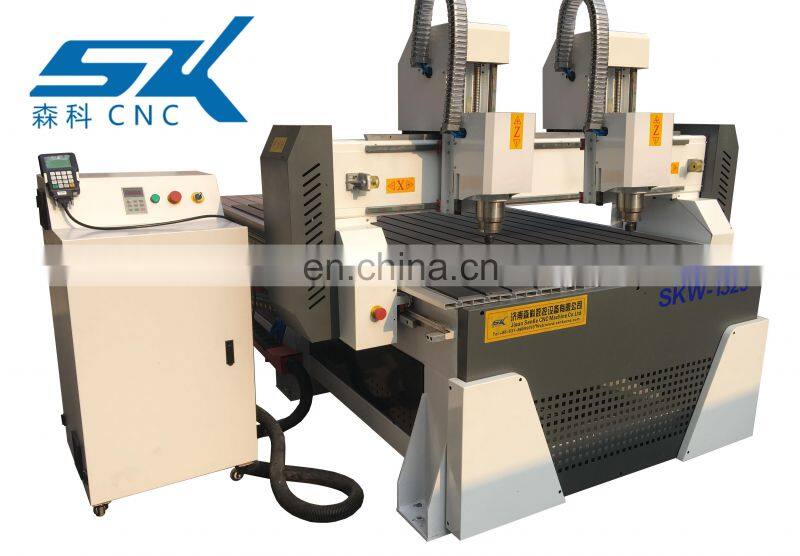

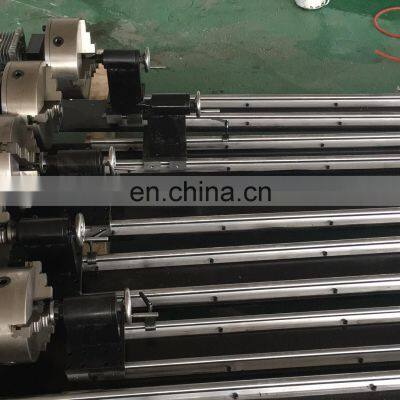

Strong model T shape double heads 1325 wood CNC with 4 axis rotary 200mm diameter DSP A18 controller
|
Description |
Parameter |
|
X,Y,Z Working Area |
1300x2500x200mm/1500x3000x200mm/2000x3000x200mm |
|
Table Surface |
T-slot working table with hard black PVC |
|

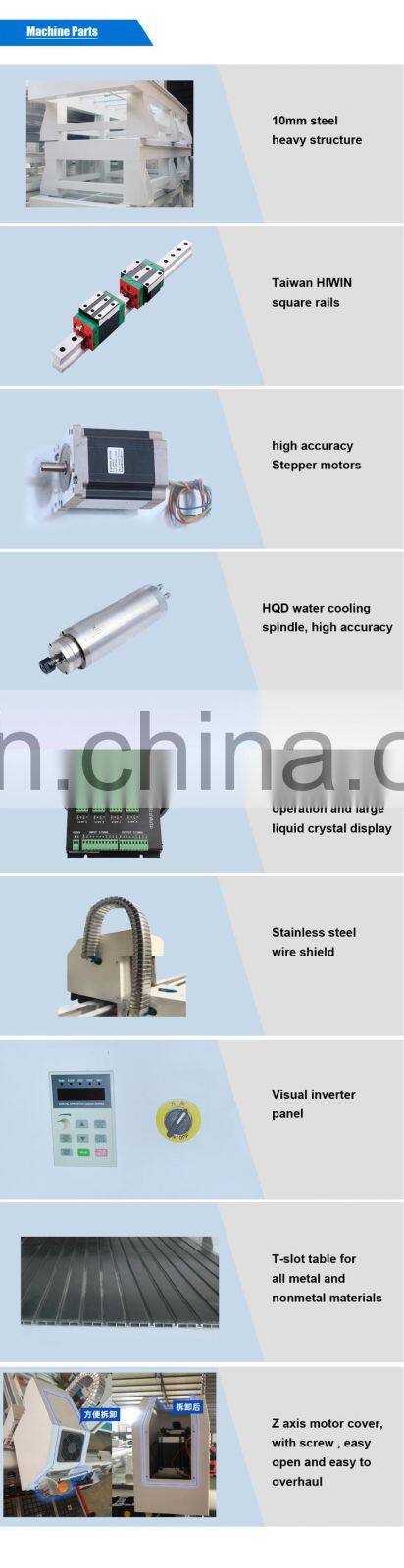

Frame |
New style heavy duty Welded |
|
X, Y Structure |
Rack and Pinion Drive, Hiwin Rail Linear Bearings |
|
Z Structure |
Taiwan Original TBI Ball Screw |
|
Spindle Power |

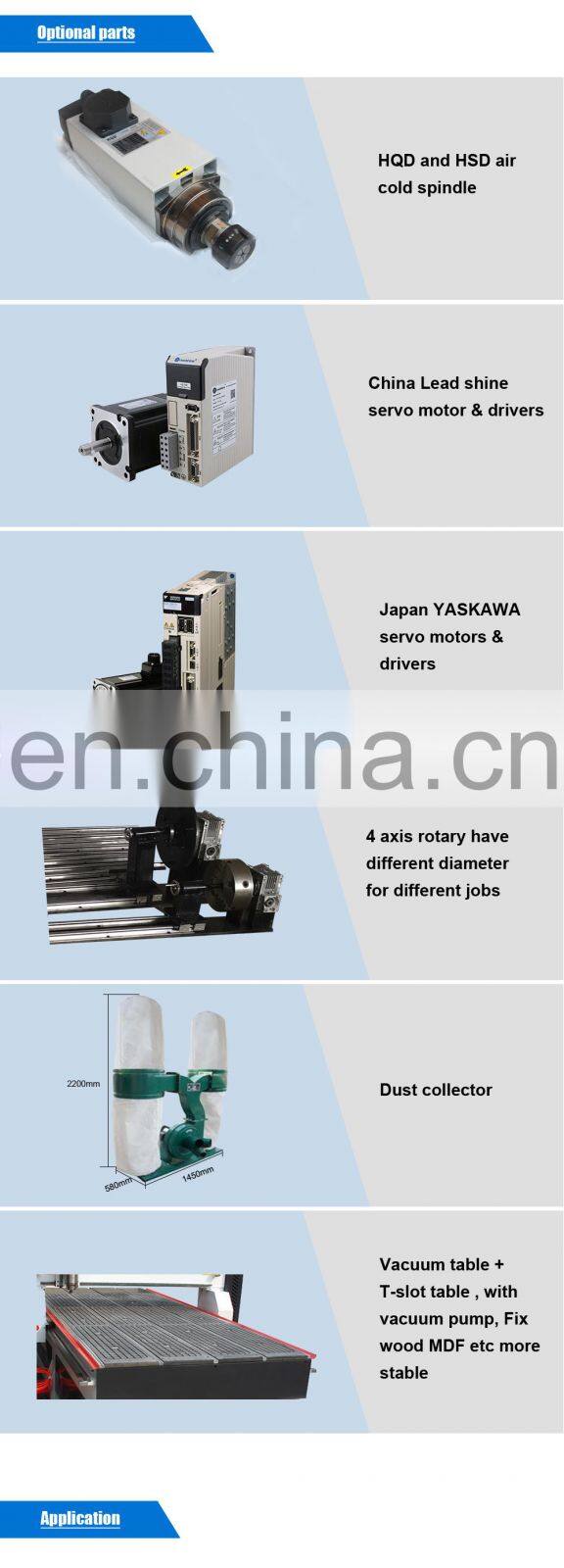

2 heads 3.2kw HQD water cooling spindle(4.5KW,5.5KW,6KW,9KW optional) |
|
Spindle Speed |
0-24000RPM |
|
Inverter |
Fuling inverter (Delta inverter optional) |
|
Drive Motors |
Stepper |
|
Working Voltage |
380v/415V 3phase 50/60HZ (Optional: 220V Single/3phase 50/60HZ or 110V single phase 50HZ/60HZ) |
|
Command Language |
G Code |
|

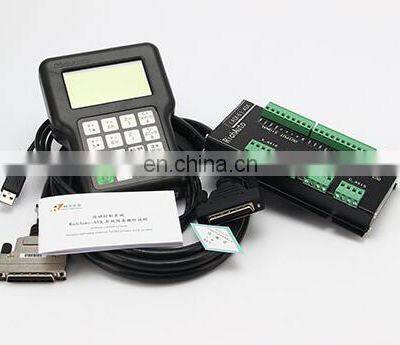

Operating System |
DSP A18 |
|
Computer Interface |
USB |
|
Software Compatibility |
Artcam (Type3/UcancameV9 Software) |
|
Running Environment Temperature |
0 - 45 Centigrade |
|
Relative Humidity |
30% - 75% |
PS: All the working area and specifications can be customized according to your jobs requirements.

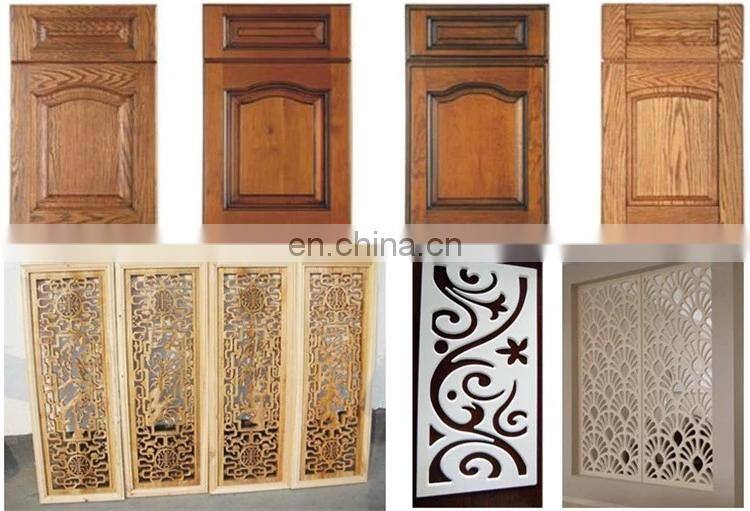

1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
Packaging Details:
1. Outside package: Standard export free fumigation wooden box.
2. inner package: Moisture-proof and rust-proof elastic plastic film packaging
3. Our factory colleagues can package as your requests too.
Delivery Detail: Shipped in 12-15 working days after payment.
Please click machine picture check more:

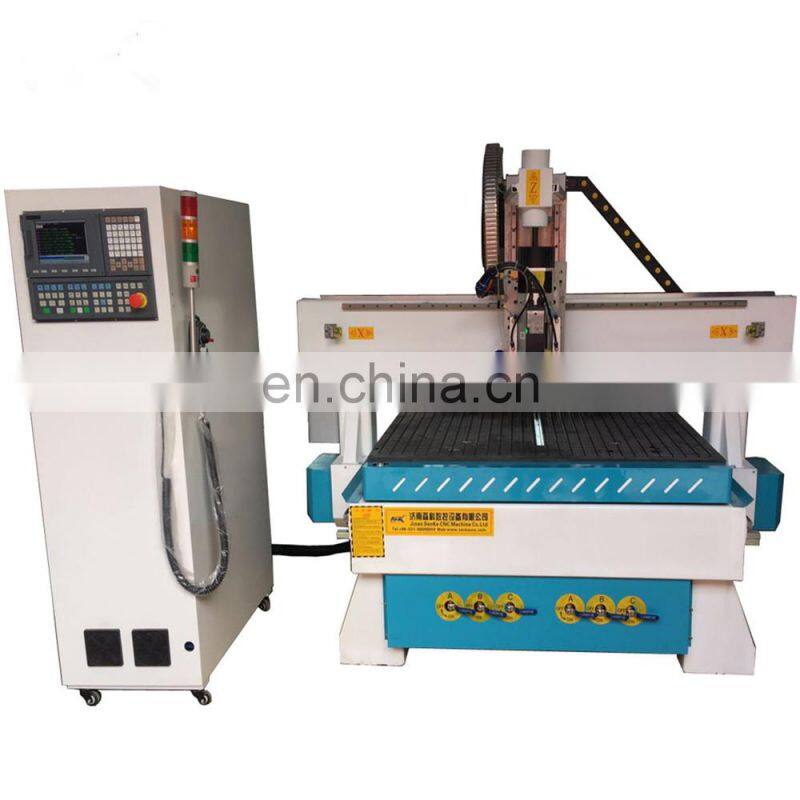

ATC WOOD CNC ROUTER
We can also do according to your requirements and
other types machine,offer many videos,welcome inquiry to me
and visit our factory!
