3D 4 Axis 5 Axis Wood EPS Foam Milling Cnc Router Machine 1325 3kw With the Rotary

Jinan Senke CNC Machine Co., Ltd.
3D 4 Axis 5 Axis Wood EPS Foam Milling Cnc Router Machine 1325 3kw With the Rotary thumbnail-1
3D 4 Axis 5 Axis Wood EPS Foam Milling Cnc Router Machine 1325 3kw With the Rotary thumbnail-2
3D 4 Axis 5 Axis Wood EPS Foam Milling Cnc Router Machine 1325 3kw With the Rotary thumbnail-3
3D 4 Axis 5 Axis Wood EPS Foam Milling Cnc Router Machine 1325 3kw With the Rotary thumbnail-4
3D 4 Axis 5 Axis Wood EPS Foam Milling Cnc Router Machine 1325 3kw With the Rotary thumbnail-5
3D 4 Axis 5 Axis Wood EPS Foam Milling Cnc Router Machine 1325 3kw With the Rotary photo-1
3D 4 Axis 5 Axis Wood EPS Foam Milling Cnc Router Machine 1325 3kw With the Rotary photo-2
3D 4 Axis 5 Axis Wood EPS Foam Milling Cnc Router Machine 1325 3kw With the Rotary photo-3
3D 4 Axis 5 Axis Wood EPS Foam Milling Cnc Router Machine 1325 3kw With the Rotary photo-4
3D 4 Axis 5 Axis Wood EPS Foam Milling Cnc Router Machine 1325 3kw With the Rotary photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2011
Annual Export Value:
US$5 Million - US$10 Million
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

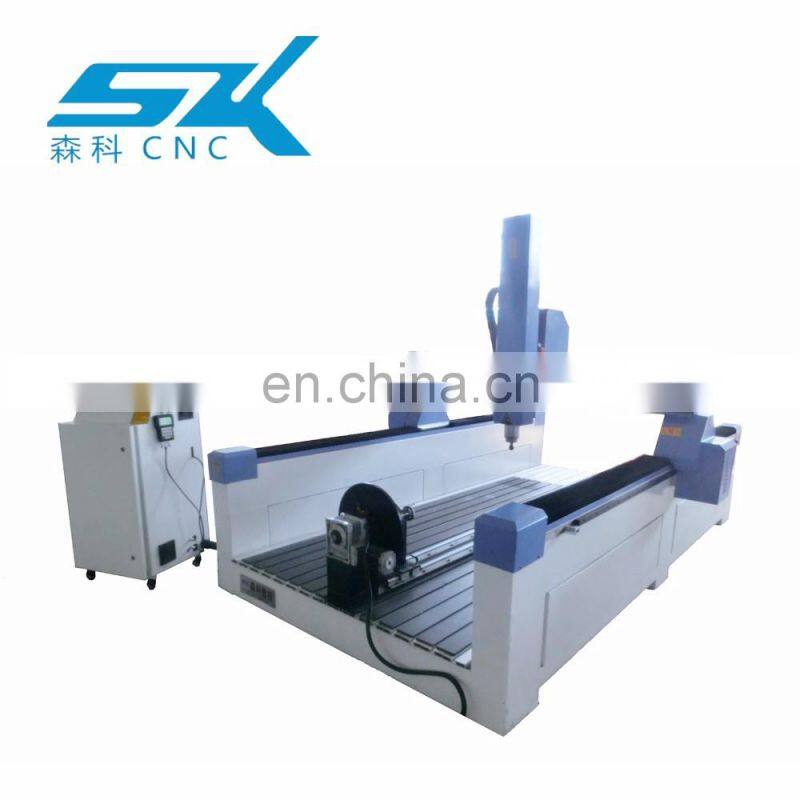

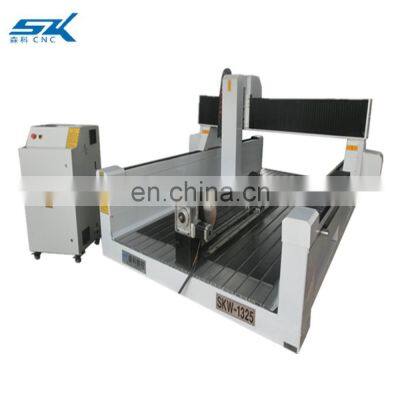

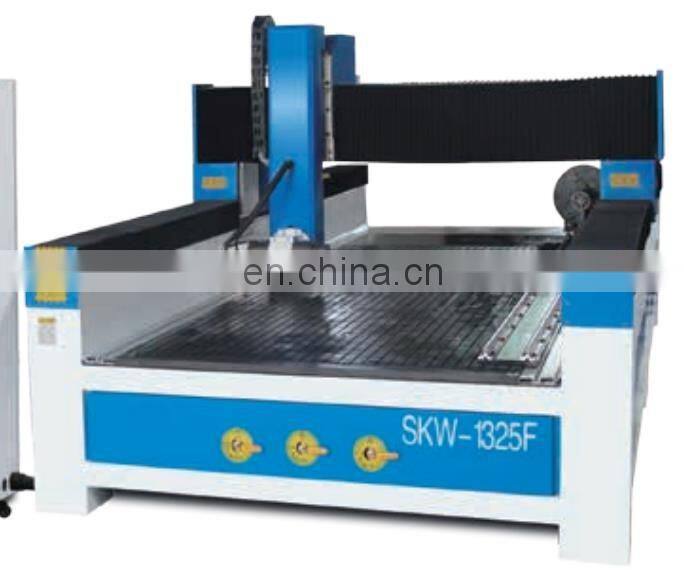

Model:SKW-1325F(size customizable)


1. X,Y axis transmission with gear rack, Z Germany ball screws, ensures stable and smooth movement of the machine.
2. High power spindle, water cooling/air cooling for choose, working vigorously with low noise.
3. Automatic lubrication system fulfills the periodic lubrication maintenance just by a slight press

Product Name
3D 4 Axis 5 Axis Wood EPS Foam milling engraving cnc router machine 1325 3kw with the rotary
Working area
1300*2500*600mm
Body structure
welding
Spindle power
3kw/5kw/7kw(can be choiced)water or air cooling spindle
Spindle Speed
0-24,000rpm
Control system
Nc-studio/DSP/MACH 3 etc
X, Y Structure
Tainwan HIWIN square rails
Z Structure
ball screw
Driver type
stepper or servo for choice
X, Y Resolution
<0.01mm
Max Moving Speed
35000mm/min
Max Engraving Speed
18000mm/min
XYZ traveling positioning accuracy
±0.03/300mm
XYZ repositioning accuracy
±0.03mm
Working Dictate
G Code
Tool sensor
Yes,included
Auto oil lubricator
Yes,included
Wire protect
Yes,included
Running Environment
Temperature: 0°C~45°C
Products Show
Our Customers
Packing & Delivery

Packing Details  : wooden box

Delivery Details : 13-15 working days after the payment




Our Certifications
FAQ

Q: Are you trading company or manufacturer ?

A: We are the direct manufacturer.

Q: How long is your delivery time?

A: It is about 13-15 working days after the payment.

Q: Do you provide samples ?

A: Yes, we could offer the sample as for your demand.

Q: What is your terms of payment ?

A: 50% in advance,50% before shippment
If you have another question, pls feel free to contact us as below:



Related product:


4 Axis 5 Axis Foam EPS Wood cnc router:https://www.china.cn/product-detail/4-Axis-5-Axis-cnc-woodworking_60728182987.html?spm=a2747.manage.list.10.2e88e9a5vrBKlx


mini cnc router:https://www.china.cn/product-detail/CNC-metal-cutting-machine-MINI-cnc_60728582389.html?spm=a2747.manage.list.7.2e88e9a5vrBKlx


multiple heads cnc router:https://www.china.cn/product-detail/multi-heads-2-4-6-8_60729940649.html?spm=a2747.manage.list.9.7f4c4a49YMRPRV


CNC router:https://www.china.cn/product-detail/wood-making-machine-4-8-ft_60760556818.html?spm=a2747.manage.list.25.2e88e9a5vrBKlx


WARRANTY AND AFTER-SELL SERVICE:

1) SenKe supplied 2 years warranty for their machine.
2) come with the machine,there is teaching video and detailed manual,easy for user to learn.
3) Skype,Wechat,Whatsapp,TM etc,24H online,anything we may help just contact us

Thanks for your time reading our machine,hope what we supplied can help in your work,anything more needed,just let us know,SenKe always here :-)
