4 axis router spindle rotate surfboard cnc shaping machine
Features:
1. Lathe bed adopts strong welded steel tube to avoid distortion.
2. Spindle move 180 degree,you can make 2d 3d engraving on curved surface,arc-surface,bending surface, larger dimension mould,statues,sculptures,cylinders...
3. 400mm-1000mm height Z axis to burden heavy and thick materials.
4. servo (stepper) motor and driver.
5. 4 axis control system.
6. Optional rotary device for cylinders,large statues,sculptures,complexity moulds processing.
7. Professional design and high quality machine parts provides this CNC machine with low break down rate.
Technical parameter:
|
Model |
SKW-1325B |
|
X,Y,Z ,A axis working area |
1300*2500*600mm*180degree |
|
Whole structure |
Welded Steel gantry structure |
|
X,Y,Z structure |
Taiwan HIWIN Square linear guide rail |
|
X,Y structure |
Rack and pinion transmission,high speed and more stable; Y -double motor drive |
|
Z structure |
Imported ball screw,high precision |
|
Max. idling speed |
50m/min |
|
Max. working speed |
25m/min |
|
Repositioning Accuracy |
±0.05mm |
|
X Y Z working Accuracy |
< 0.02mm |
|
Spindle |
3kw Water-cooling spindle |
|
Operation language |
G code |
|
Driving system |
Servo(stepper) motor and driver |
|
Operating system |
4 axis Mach3 (Ncstudio) control system |
|
Working voltage |
AC380V,50-60Hz or other can be customized |
|
Software |
PowerMill,UG |
Machine parts:
Application industry:
foam carving machine, wood, styrofoam foam, and a variety of non-metallic materials. Carving a variety of large-scale non-metal molds, especially for automotive foam molds, wooden ships model , aviation wooden model, trains wooden mold, food mold (eg: moon cake mold) and other precision mold making.

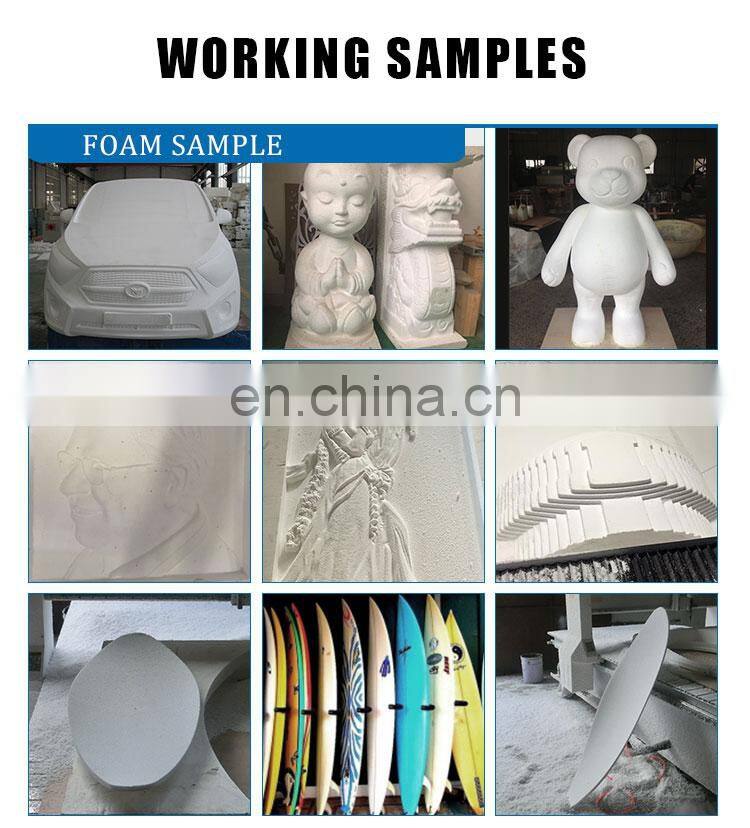

Samples:
Double paking of protective film and fumigation-free wooden case:
Questions and answers:
1,How about the documents after shipment?
After shipment, we will send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
2,How long is the delivery time?
For standard machines, it would be 5-7 days; For non-standard machines and customized machines according to clients specific requirements, it would be 10 to 15 days.
3,Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
4,How is the packing?
Waterroof plastic film package with foam protection in each cornerSolid Seaworthy Wood Box Package with Steel Belt Save space as much as possible for container loading.
