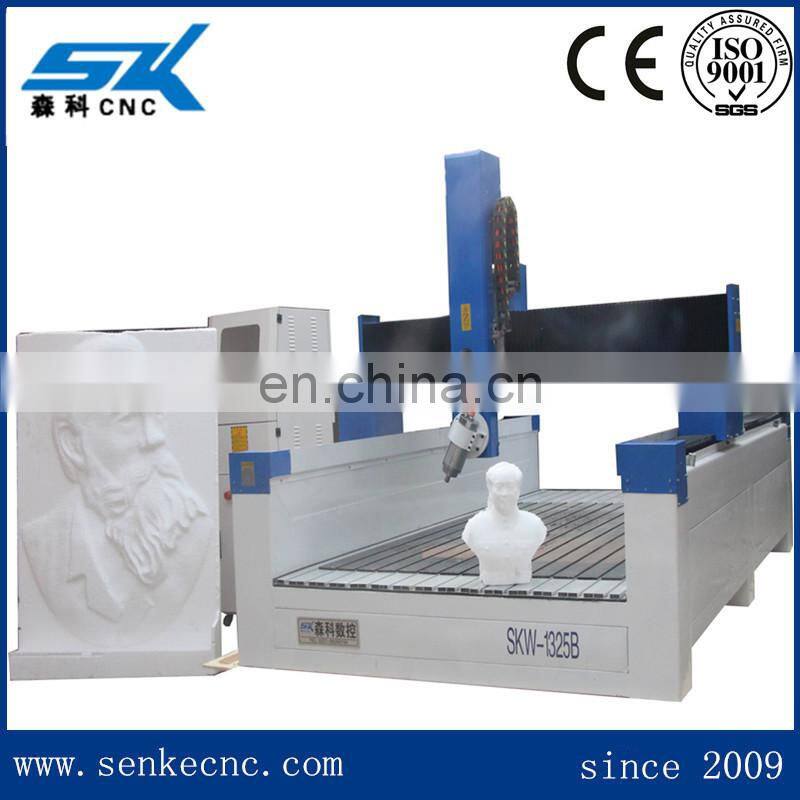

Hobby wood cnc router 4 axis cnc mill with tilting head
Features:
1. Lathe bed adopts strong welded steel tube to avoid distortion.

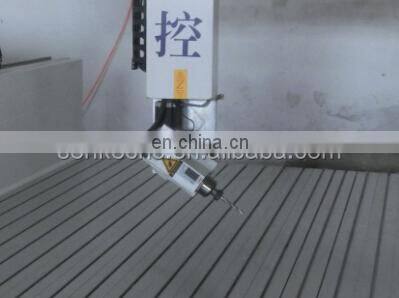

2. Spindle move 180 degree,you can make 2d 3d engraving on curved surface,arc-surface,bending surface, larger dimension mould,statues,sculptures,cylinders...
3. 400mm-1000mm height Z axis to burden heavy and thick materials.
4. servo (stepper) motor and driver.
5. 4 axis control system.
6. Optional rotary device for cylinders,large statues,sculptures,complexity moulds processing.
7. Professional design and high quality machine parts provides this CNC machine with low break down rate.
Technical parameter:
Model |
SKW-1325B |
X,Y,Z ,A axis working area |
1300*2500*500mm*180degree |
Whole structure |
Welded Steel gantry structure |
X,Y,Z structure |
Taiwan HIWIN Square linear guide rail |
X,Y structure |
Rack and pinion transmission,high speed and more stable; Y -double motor drive |
Z structure |
Imported ball screw,high precision |
Max. idling speed |
50m/min |
Max. working speed |
25m/min |
Repositioning Accuracy |
±0.05mm |
X Y Z working Accuracy |
< 0.02mm |
Spindle |
3kw Water-cooling spindle |
Operation language |
G code |
Driving system |
Servo(stepper) motor and driver |
Operating system |
4 axis Mach3 (Ncstudio) control system |
Working voltage |
AC380V,50-60Hz or other can be customized |
Software |
PowerMill,UG |

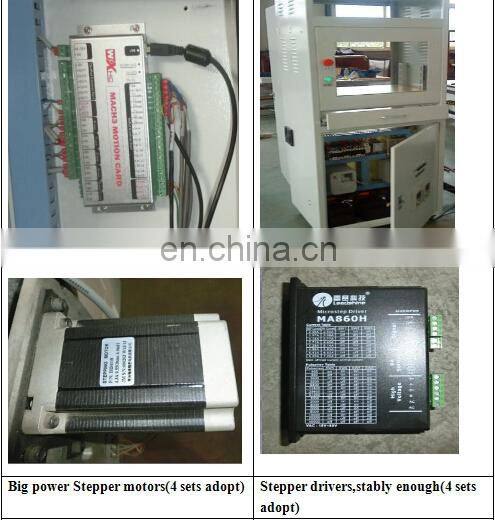

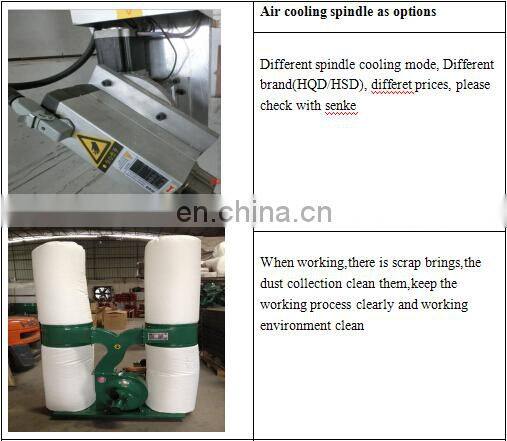

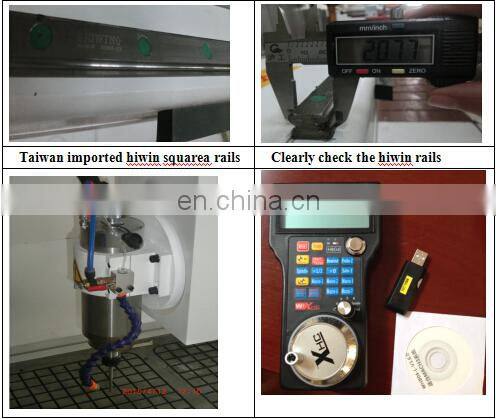

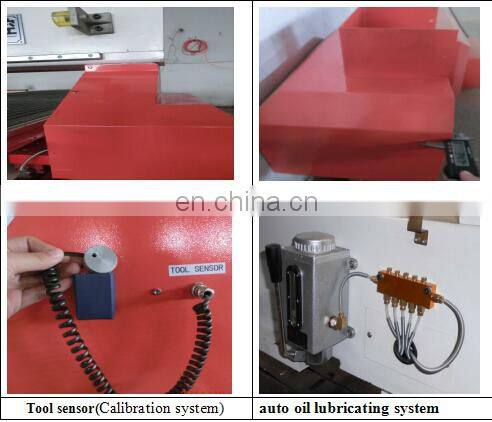

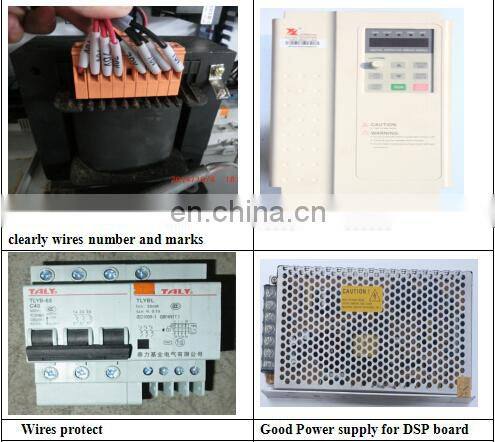

Machine parts:
Application industry:
foam carving machine, wood, styrofoam foam, and a variety of non-metallic materials. Carving a variety of large-scale non-metal molds, especially for automotive foam molds, wooden ships model , aviation wooden model, trains wooden mold, food mold (eg: moon cake mold) and other precision mold making.

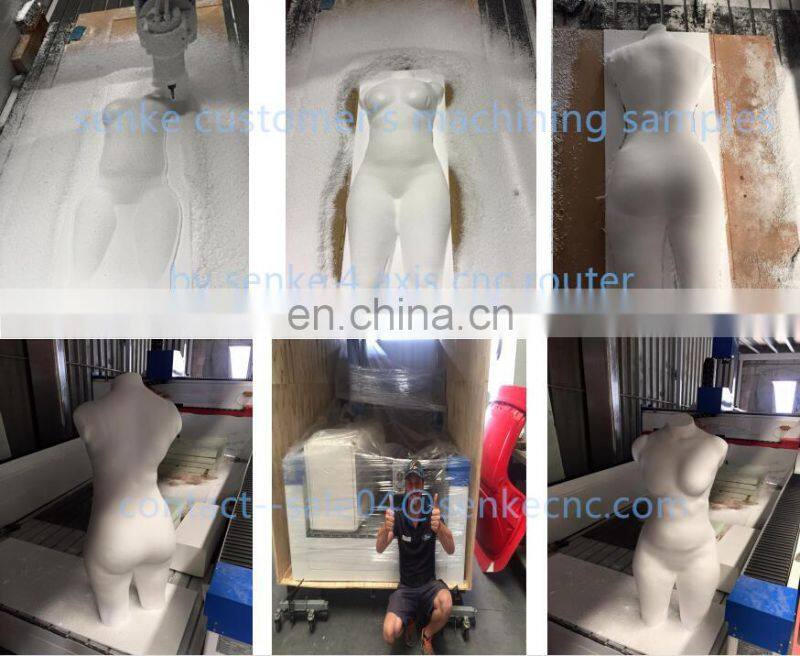

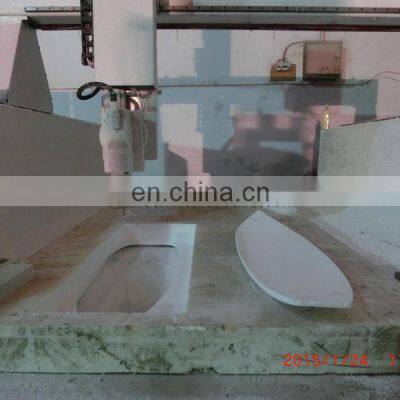

Samples:
Service:
1 We will provide the user a CD to study the machine installation and commissioning.
2 Our technicists can give user online guide.
3 The user can by call or email us any problems at any time.
4 After-sales service.
Two year warranty for machine maintenance, for equipment maintenance over the warranty period is clearly marked.
