Two Independent Heads Wood Engraving CNC Router Dual Spindle Cnc
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2011
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1325 1530 Cnc Router Wood Cutting Machine Dual Spindle Cnc RouterNegotiableMOQ: 1 -
4*8 Table Size Wood Carving Cutting Router Machine Dual Spindle Cnc MachineNegotiableMOQ: 1
-
ATC Wood Carving Machinery Plywood Cutting Wood Cnc Router 1325NegotiableMOQ: 1
-
9kw Air Cooling Spindle Cnc Engraving Machine 1325 Cnc RouterNegotiableMOQ: 1
-
Energy-Saving Portable High-Power 1500W Welding MachineNegotiableMOQ: 1

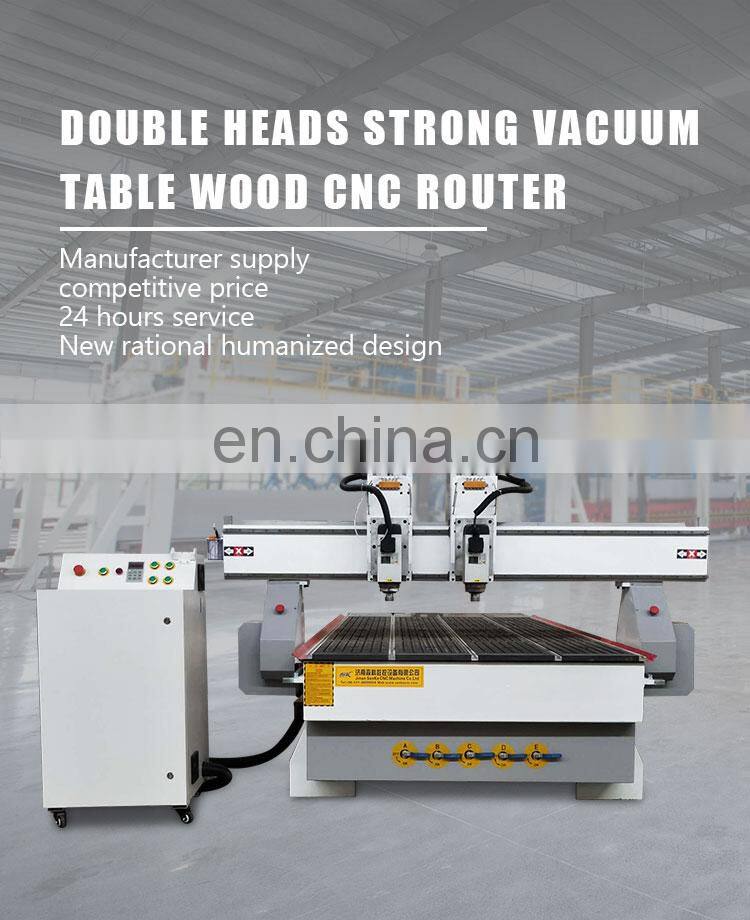

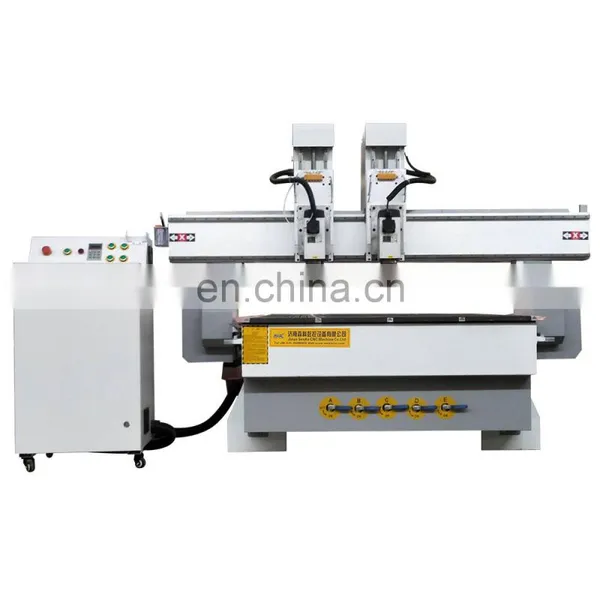

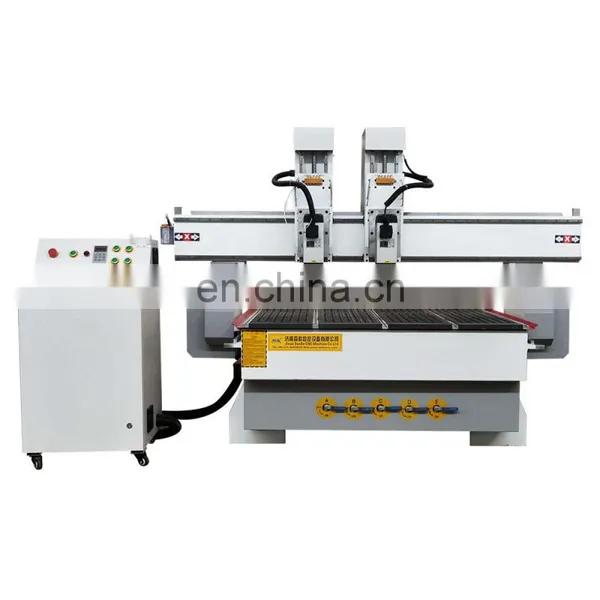

Two Independent heads Wood Engraving CNC Router dual spindle cnc
Product Description
Specification
Model |
SKW-1325/SKW-1530/SKW-2030 etc |
X,Y,Z axis workin g area |
1300*2500*300mm |
Machine size |
3.1*2.2*1.78m |
X,Y movement |
Rack and pinion |
Z movement |
Ballscrew transmission |
Guide |
Taiwan HIWIN 25-30 square rails |
Max idling speed |
60000mm/min |
Max engraving speed |
30000mm/min |
Spindle power |
3.5kw aircooling spindle |
Spindle speed |
18000rpm |
inverter |
3.7kw |
Drive motors |
servo motors optional |
drivers |
Servo drivers |
Control system |
DSP A11 control |
Working voltage |
380V or customized |
Command code |
G code |
software |
Artcam,type 3,etc |
collet |
ER32-ER40 |
Packing dimension(L*W*H) |
3.5*2.3*1.89M |
Standard equipment included |
1.automatic oil injection system 2.Tool sensor 3.vacuum table,5.5kw vacuum pump 4.whole set dust collector system |
Packing & Delivery
Company Profile
FAQ
Q.what kind materials your machine can process?
--Our cnc router machine professional designed for all kinds of metal&nonmetal cutting and engraving jobs, such as wood,pvc,MDF,plywood,acrylic,aluminum etc..
Q.how shall i choose the models?
--different materials size different machine model,just told us,what’s your materials maximum size ,.we will supply the best solutions for you.:-)
Q. can you send the machine to my country?
--Yes dear,we can send the machine to your country, please let us know which shipping terms you prefer? EXW, FOB or CIF?
Q.how much would shipping cost?
-- please let us know which sea port near by you? The shipping cost need check with freight agent.
Q.What's your payment terms?
-- we accept T/T,LC,PAYPAL,WESTERN UNION etc.various payment method,please let us know which method more convenient for you.
