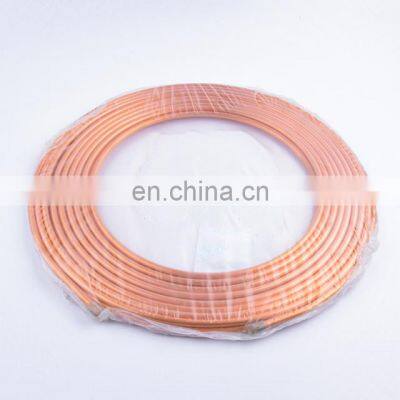

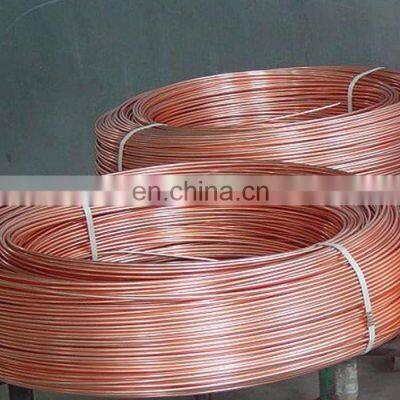

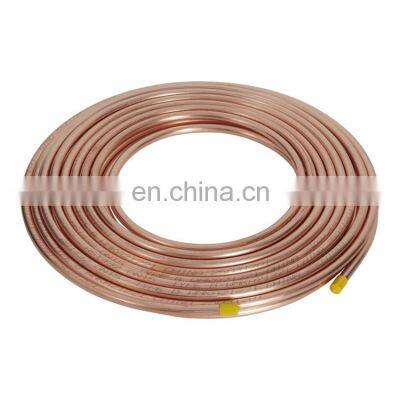

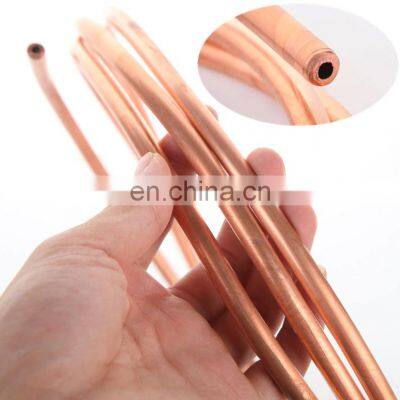

Pancake Coil Refrigeration Coil Copper Pipe Copper Tube for Refrigerator

Shandong Ganquan Import And Export Co., Ltd.
Pancake Coil Refrigeration Coil Copper Pipe Copper Tube for Refrigerator thumbnail-1
Pancake Coil Refrigeration Coil Copper Pipe Copper Tube for Refrigerator thumbnail-2
Pancake Coil Refrigeration Coil Copper Pipe Copper Tube for Refrigerator thumbnail-3
Pancake Coil Refrigeration Coil Copper Pipe Copper Tube for Refrigerator thumbnail-4
Pancake Coil Refrigeration Coil Copper Pipe Copper Tube for Refrigerator thumbnail-5
Pancake Coil Refrigeration Coil Copper Pipe Copper Tube for Refrigerator photo-1
Pancake Coil Refrigeration Coil Copper Pipe Copper Tube for Refrigerator photo-2
Pancake Coil Refrigeration Coil Copper Pipe Copper Tube for Refrigerator photo-3
Pancake Coil Refrigeration Coil Copper Pipe Copper Tube for Refrigerator photo-4
Pancake Coil Refrigeration Coil Copper Pipe Copper Tube for Refrigerator photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2007
Annual Export Value:
US$10 Million - US$50 Million
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

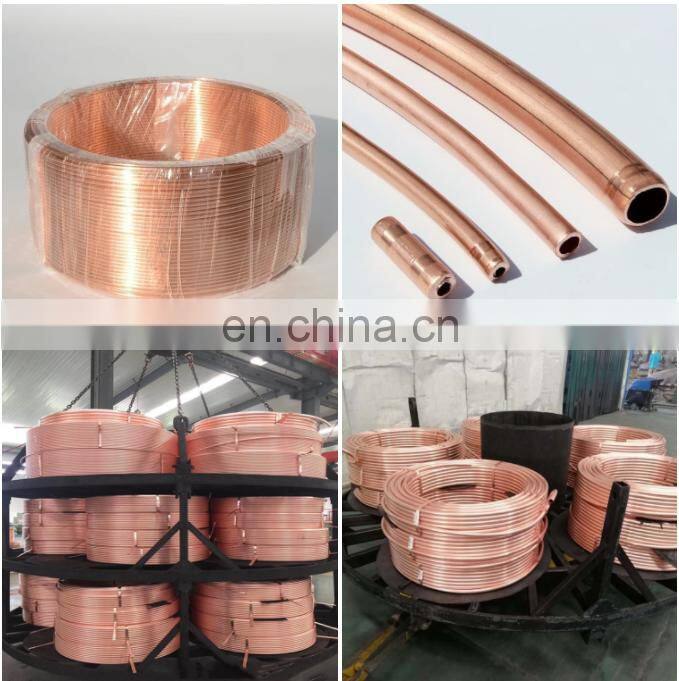

Pancake Coil Refrigeration Coil Copper pipe Copper tube for Refrigerator
Specification
Outside
Diameter
Wall
Thickness
Nominal
Weight (kgs)
Packing
inch
mm
mm
15 Meters
15.24 Meters
Carton Dimension(cm³)
Coils per
Carton
3/16
4.76
0.8
1.33
1.35
40*40*18.5
16
1/4
6.35
0.8
1.86
1.89
40*40*18.5
12
1/4
6.35
1.0
2.25
2.28
40*40*18.5
12
5/16
7.94
0.8
2.40
2.44
40*40*18.5
10
5/16
7.94
1.0
2.91
2.96
40*40*18.5
10
3/8
9.52
0.8
2.93
2.98
45*45*18.5
8
3/8
9.52
1.0
3.58
3.64
45*45*18.5
8
1/2
12.7
0.8
4.00
4.06
50*50*18.5
6
1/2
12.7
1.0
4.91
4.99
50*50*18.5
6
5/8
15.88
1.0
6.25
6.35
55*55*18.5
5
3/4
19.05
1.0
7.58
7.70
60*60*18.5
4
7/8
22.22
1.0
8.91
9.06
65*65*18.5
3
Product Description
Copper tube also known as red copper tube. A kind of nonferrous metal pipe, is pressed and drawn seamless pipe.Copper pipe has the characteristics of good electrical conductivity, thermal conductivity, electronic products conductive accessories and heat dissipation accessories of the main material, and become the modern contractor in all residential commercial housing water pipeline, heating, refrigeration pipeline installation of the first choice.

Copper tube corrosion resistance is strong, not easy to oxidize, and with some liquid substances is not easy to react, easy to bend shape.
Application
Straight / Pancake copper tube is widely used in condensator and radiator of air-conditioning. All of them are cording with standard GB/T17791-1999,ASTM B68. JIS H3300.AS/NZS 1571, etc.

Copper pipes have the characteristics of good electrical conductivity and thermal conductivity. They are the main materials for electrical and heat-dissipating accessories of electronic products. They have become the first choice for modern contractors to install water pipes, heating and cooling pipes in all residential commercial buildings.

Copper pipes have strong corrosion resistance, are not easy to oxidize, and are not easy to chemically react with some liquid substances, and are easy to bend and shape.

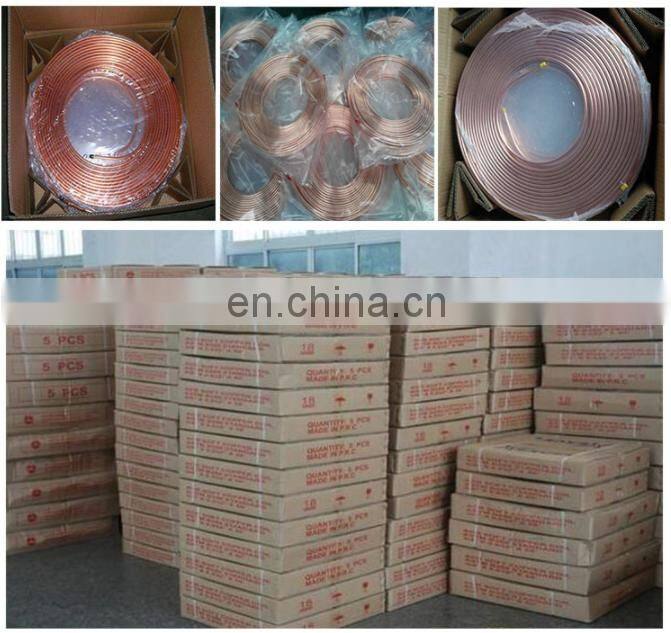

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
