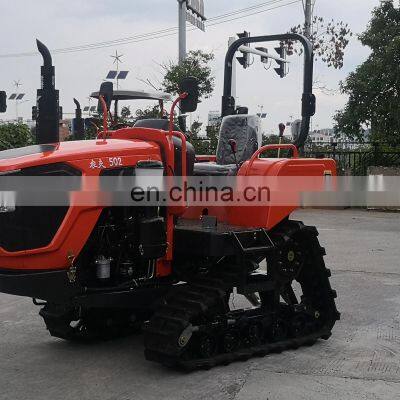

NF-502 China Rubber Crawler Tractor Farm Tools Agricultural Machinery Equipment Modern Tractor

NF-502 China Rubber Crawler Tractor Farm Tools Agricultural Machinery Equipment Modern Tractor thumbnail-1
NF-502 China Rubber Crawler Tractor Farm Tools Agricultural Machinery Equipment Modern Tractor thumbnail-2
NF-502 China Rubber Crawler Tractor Farm Tools Agricultural Machinery Equipment Modern Tractor thumbnail-3
NF-502 China Rubber Crawler Tractor Farm Tools Agricultural Machinery Equipment Modern Tractor photo-1
NF-502 China Rubber Crawler Tractor Farm Tools Agricultural Machinery Equipment Modern Tractor photo-2
NF-502 China Rubber Crawler Tractor Farm Tools Agricultural Machinery Equipment Modern Tractor photo-3
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
2005
Annual Export Value:
US$5 Million - US$10 Million
Contact Supplier Request Quote Chat Now
Hunan Nongfu Machinery & Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Description

China Famous brands (China first brand)

50-100HP farming uses Triangle track drive agricultural

machinery cawler tractor

(Domestic initiative ,Leading technology)

Product Description 1.Farm tractors engine form adopt renowned directly injection vertical water cooled 4-stroke(In line,EFI,water cooled,4-stroke) YTO/CHANGCHAI engine. 2.Agricultural equipment tractors Walking rubber track pitch section*number*width:
90*46*300(NFY602,60HP) 90*46*350(NF502,50HP) 90*50*350(NFY702/802,70/80HP) 90*51*350(NF702,70HP) 90*54*400(NF802/902,80/90HP) 90*56*400(NFG902/1002,90/100HP) 3.China bestselling tractors cltuch:single-plate, single-acting, wet friction clutch Type. 4.Our farm tractors Minimum ground clearance(mm):260，400，410，530，610. 5.Equipment farming tractors of gear box:F12+R12；F8+R8；2(machanical gear)+2*2(hydraulic stepless speed change)；Main transmission(hydraulic stepless speed change+machanical gear)+2(secondary speed change). 6.PTO:φ38,8teeth φ38,6teeth,Speed:720/1000.Linkage:II Rear Mount 3-point Linkage. We can produce and customize all sorts of medium-sized tractor 50 HP - 100 HP farm crawler tractors, diesel type, electric type can be customized production, and the tractor with all series farm implements, such as ridging machine,rotary tiller,disc plough, flattener,ditching machine,windrower,harrow, loader, backhoe, trailer,mower,grass chopper,silage corn straw harvester,small excavators etc you want. But firstly, tell us your preferred horsepower tractor.
Product name
rubber traked Tractor NF-502
 Minimum ground clearance （mm）
400




Engine
Mode
YD4C50V1
Form
inline,water coolling ,pressurized intercoler,high pressure commonrail
Rated power(kW)
36.8
Fuel
diesel oil
Rated speed r/min
2400
Starting method
electric start
Steering brake system
Steering System Type
teeth clutch + brake
Brake system type
wet friction type


Drive train
Clutch type
single chip single action
Transmission type
main transmission(hydraulic continuously variable transmission+Mechanical gear)+secondary speed change2
Transmission shift mode
shift sleeve


Walking system
Rack form
full frame
Track Pitch section × number × width
90×46×350
The theoretical speed of each file(km/h)
mechanical:5.3low;8.2high hydraulic pressure:low0-6.2;high0-9.2


Working device
Lifter type
semi-Split
Tillage depth control
position adjustment(optional force position adjustment)
PTO form
type1, dependent
Power output shaft speed（r/min）
620/960
More Products
Product Line
Our Company
Certification
Partner
Packaging & Shipping
FAQ
1.Are you tractor supplier or manufacturer? We are tractor manufacturer. We can provide the complete tractor and spare parts with favorite price, because we are the source.
2.Can you supply tractor farm implements? We can supply series farm implements, such as rotary tillers, ridgers etc you want.
3. How soon can you respond cuient inquiries? Our team is consisted of a group of diligent and dynamic people. Most problems can be solved within 8 hours!
4.where is your factory?
ChenZhou high tech Industrial Park,Hunan Province,China.
5.Which incoterms 2010 terms can you work?
We are a professional and sophisticated international player can handle all INCOTERMS 2010terms, and we normally work on regular terms such as FOB. CFR,CIF ect.
6.What's your payment method?
Support L/C,D/A,D/P,T/T,and other secure payment.
7. What Logistics ways you can work for shipment? We can ship construction machinery by various transportation tools. (1)For 80% of our shipment,the machine will go by sea,to all main continents such as Africa,South America and Southeast Asia etc. (2)For inland neighborhood countries of China,such as Russia,Mongolia,Kazakhstan,Kyrgyzstan,Tajikistan,Uzbekistan,Turkmenistan etc.,we can send machines by road or railway. (3) For light spare parts in urgent demand,we can send it by international courier service,such as DHL,TNT,UPS,or FedEx.
